Manual Chapter : Monitors Concepts

Applies To:

Show Versions Show Versions

BIG-IP DNS

  • 17.1.2, 17.1.1, 17.1.0, 17.0.0, 16.1.5, 16.1.4, 16.1.3, 16.1.2, 16.1.1, 16.1.0, 16.0.1, 16.0.0, 15.1.9, 15.1.8, 15.1.7, 15.1.6, 15.1.5, 15.1.4, 15.1.3, 15.1.2, 15.1.1, 15.1.0, 15.0.1, 15.0.0, 14.1.5, 14.1.4, 14.1.3, 14.1.2, 14.1.0, 14.0.1, 14.0.0
Manual Chapter

Monitors Concepts

Purpose of monitors

Monitors determine the availability and performance of devices, links, and services on a network. Health monitors check the availability. Performance monitors check the performance and load. If a monitored device, link, or service does not respond within a specified timeout period, or the status indicates that performance is degraded or that the load is excessive, the BIG-IP system can redirect the traffic to another resource.

Benefits of monitors

Monitors gather information about your network. The information that monitors gather is available for you to view. You can use this information to troubleshoot problems and determine what resources in your network are in need of maintenance or reconfiguration.

About iCheck functionality for monitors

FTP, SMTP, POP3, and IMAP monitors provide inherent iCheck functionality, which reduces the load on BIG-IP systems and improves sustained monitor performance. Additionally, iCheck functionality provides smoother performance characteristics as these monitors approach full capacity.
FTP monitors provide inherent iCheck functionality, which reduces the load on BIG-IP systems and improves sustained monitor performance. Additionally, iCheck functionality provides smoother performance characteristics as these monitors approach full capacity.

Methods of monitoring

The BIG-IP Local Traffic Manager, DNS, and Link Controller provide three methods of monitoring: simple monitoring, active monitoring, and passive monitoring.

Simple monitoring

Simple monitoring
determines whether the status of a resource is up or down. Simple monitors do not monitor pool members (and therefore, individual protocols, services, or applications on a node), but only the node itself. The system contains three simple monitors,
Gateway ICMP
,
ICMP
, and
TCP_ECHO
.
Simple monitors work well when you only need to determine the up or down status of the following:
  • A Local Traffic Manager node
  • A BIG-IP-DNS or Link Controller server, virtual server, pool, pool member, or link

Active monitoring

Active monitoring
checks the status of a pool member or node on an ongoing basis as specified. If a pool member or node does not respond within a specified timeout period, or the status of a node indicates that performance is degraded, the BIG-IP system can redirect the traffic to another pool member or node. There are many active monitors. Each active monitor checks the status of a particular protocol, service, or application. For example, one active monitor is
HTTP
. An
HTTP
monitor allows you to monitor the availability of the HTTP service on a pool, pool member, or node. A
WMI
monitor allows you to monitor the performance of a node that is running the Windows Management Instrumentation (WMI) software. Active monitors fall into two categories: Extended Content Verification (ECV) monitors for content checks, and Extended Application Verification (EAV) monitors for service checks, path checks, and application checks.
An active monitor can check for specific responses, and run with or without client traffic.
An active monitor also creates additional network traffic beyond the client request and server response and can be slow to mark a pool member as down.

Passive monitoring

Passive monitoring
occurs as part of a client request. This kind of monitoring checks the health of a pool member based on a specified number of connection attempts or data request attempts that occur within a specified time period. If, after the specified number of attempts within the defined interval, the system cannot connect to the server or receive a response, or if the system receives a bad response, the system marks the pool member as down. There is only one passive monitor, called an
Inband
monitor.
A passive monitor creates no additional network traffic beyond the client request and server response. It can mark a pool member as down quickly, as long as there is some amount of network traffic.
A passive monitor cannot check for specific responses and can potentially be slow to mark a pool member as up.

Comparison of monitoring methods

In the short description, briefly describe the purpose and intent of the information contained in this topic. This element is an F5 requirement.
Monitoring Method
Benefits
Constraints
Simple
  • Works well when you only need to determine the up or down status of a node.
  • Can check the health of a node only, and not a pool member.
Active
  • Can check for specific responses
  • Can run with or without client traffic
  • Creates additional network traffic beyond the client request and server response
  • Can be slow to mark a pool member as down
Passive
  • Creates no additional network traffic beyond the client request and server response
  • Can mark a pool member as down quickly, as long as there is some amount of network traffic
  • Cannot check for specific responses
  • Can potentially be slow to mark a pool member as up

Monitor destinations

By default, the value for the
Alias Address
setting in the monitors is set to the wildcard
* Addresses
, and the
Alias Service Port
setting is set to the wildcard
* Ports
. This value causes the monitor instance created for a pool, pool member, or node to take that node’s address or address and port as its destination. You can, however, replace either or both wildcard symbols with an explicit destination value, by creating a custom monitor. An explicit value for the
Alias Address
and/or
Alias Service Port
setting is used to force the instance destination to a specific address and/or port which might not be that of the pool, pool member, or node.
The ECV monitor types HTTP, HTTPS, and TCP include the settings
Send String
and
Receive String
for the send string and receive expression, respectively.
The most common
Send String
value is
GET /
, which retrieves a default HTML page for a web site. To retrieve a specific page from a web site, you can enter a
Send String
value that is a fully qualified path name:
"GET /www/support/customer_info_form.html"
The
Receive String
value is the text string that the monitor looks for in the returned resource. The most common
Receive String
values contain a text string that is included in a particular HTML page on your site. The text string can be regular text, HTML tags, or image names.
The sample
Receive String
value below searches for a standard HTML tag:
"<HEAD>"
You can also use the default null
Receive String
value
[""]
. In this case, any content retrieved is considered a match. If both the
Send String
and
Receive String
fields are left empty, only a simple connection check is performed.
For HTTP and FTP monitor types, you can use the special values
GET
or
hurl
in place of
Send String
and
Receive String
values. For FTP monitors specifically, the GET value should specify the full path to the file to retrieve.

About monitor settings

Every monitor consists of settings with values. The settings and their values differ depending on the type of monitor. In some cases, the BIG-IP system assigns default values. This example shows that an HTTP-type monitor has these settings and default values.
The settings specify that an HTTP type of monitor is configured to check the status of an IP address every 5 seconds, and to time out every 16 seconds. The destination IP address that the monitor checks is specified by the Alias Address setting, with the value
* All Addresses
. Thus, in the example, all IP addresses with which the monitor is associated are checked.
Name my_http Type HTTP Interval 5 Timeout 16 Transparent No Alias Address * All Addresses
The settings specify that an HTTP type of monitor is configured to check the status of an IP address every 30 seconds, and to time out every 5 seconds. The destination IP address that the monitor checks is specified by the Alias Address setting, with the value
* All Addresses
. Thus, in the example, all IP addresses with which the monitor is associated are checked.
Name my_http Type HTTP Interval 30 Timeout 5 Transparent No Alias Address * All Addresses

Transparent and Reverse modes

The normal and default behavior for a monitor is to ping the destination pool, pool member, or node by an unspecified route, and to mark the node
up
if the test is successful. However, with certain monitor types, you can specify a route through which the monitor pings the destination server. You configure this by specifying the Transparent or Reverse setting within a custom monitor.

Transparent setting

Sometimes it is necessary to ping the aliased destination through a transparent pool, pool member, or node. When you create a custom monitor and set the
Transparent setting to Yes, the BIG-IP system forces the monitor to ping through the pool, pool member, or node with which it is associated (usually a firewall) to the pool, pool member, or node. (That is, if there are two firewalls in a load balancing pool, the destination pool, pool member, or node is always pinged through the pool, pool member, or node specified; not through the pool, pool member, or node selected by the load balancing method.) In this way, the transparent pool, pool member, or node is tested: if there is no response, the transparent pool, pool member, or node is marked as
down
.
Common examples are checking a router, or checking a mail or FTP server through a firewall. For example, you might want to check the router address
10.10.10.53:80
through a transparent firewall
10.10.10.101:80
. To do this, you create a monitor called
http_trans
in which you specify
10.10.10.53:80
as the monitor destination address, and set the Transparent setting to Yes. Then you associate the monitor
http_trans
with the transparent pool, pool member, or node.
This causes the monitor to check the address
10.10.10 53:80
through
10.10.10.101:80
. (In other words, the BIG-IP system routes the check of
10.10.10.53:80
through
10.10.10.101:80
.) If the correct response is not received from
10.10.10.53:80
, then
10.10.10.101:80
is marked
down
.

Reverse setting

With the Reverse setting set to Yes, the monitor marks the pool, pool member, or node down when the test is successful. For example, if the content on your web site home page is dynamic and changes frequently, you may want to set up a reverse ECV service check that looks for the string "
Error
". A match for this string means that the web server was
down
.

Monitors that contain the Transparent or Reverse settings

This table shows the monitors that contain either the Transparent setting or both the Reverse and Transparent settings.
Monitor Type
Settings
TCP
Transparent and Reverse
HTTP
Transparent and Reverse
HTTPS
Transparent and Reverse
TCP Echo
Transparent
Gateway ICMP
Transparent
TCP Half Open
Transparent
ICMP
Transparent
UDP
Transparent

The Manual Resume feature

By default, when a monitor detects that a resource (that is, a node or a pool member) is unavailable, the BIG-IP system marks the resource as
down
and routes traffic to the next appropriate resource as dictated by the active load balancing method. When the monitor next determines that the resource is available again, the BIG-IP system marks the resource as
up
and immediately considers the resource to be available for load balancing connection requests. While this process is appropriate for most resources, there are situations where you want to manually designate a resource as available, rather than allow the BIG-IP system to do that automatically. You can manually designate a resource as available by configuring the Manual Resume setting of the monitor.
For example, consider a monitor that you assigned to a resource to track the availability of an HTML file,
index.html
, for a web site. During the course of a business day, you decide that you need to restart the system that hosts the web site. The monitor detects the restart action and informs the BIG-IP system that the resource is now unavailable. When the system restarts, the monitor detects that the
index.html
file is available, and begins sending connection requests to the web site. However, the rest of the web site might not be ready to receive connection requests. Consequently, the BIG-IP system sends connection requests to the web site before the site can respond effectively.
To prevent this problem, you can configure the Manual Resume setting of the monitor. When you set the Manual Resume setting to Yes, you ensure that the BIG-IP system considers the resource to be unavailable until you manually enable that resource.

Resumption of connections

If you have a resource (such as a pool member or node) that a monitor marked as
down
, and the resource has subsequently become available again, you must manually re-enable that resource if the monitor’s
Manual Resume
setting is set to Yes. Manually re-enabling the resource allows the BIG-IP system to resume sending connections to that resource.
The procedure for manually re-enabling a resource varies depending on whether the resource is a pool, a pool member, or a node.

The Time Until Up feature

By default, the BIG-IP system marks a pool member or node as up immediately upon receipt of the first correct response to a
ping
command.
The Time Until Up feature provides a way to adjust the default behavior. This feature allows the system to delay the marking of a pool member or node as up for some number of seconds after receipt of the first correct response. The purpose of this feature is to ensure that the monitor marks the pool member or node as up only after the pool member or node has consistently responded correctly to the BIG-IP system during the defined time period. With this feature, you ensure that a pool member or node that is available only momentarily, after sending one correct response, is not marked as up.
A Time Until Up value of
0
causes the default behavior. When the Time Until Up value is a non-0 value, the BIG-IP system marks a pool member or node as up only when all pool member or node responses during the Time Until Up period are correct.

About health and performance monitors

BIG-IP systems use two categories of monitors: health monitors and performance monitors. You can associate monitors with the following resources:
  • In Local Traffic Manager: nodes, pools, and pool members
  • In DNS: links, servers, virtual servers, pools, and pool members
  • In Link Controller: links, pools, and pool members
Category
Description
Health
Checks resources to determine if they are up and functioning for a given service.
Performance
Gathers information about resources that the system uses to dynamically load balance traffic.
When a virtual server that is being monitored by a health monitor does not respond to a probe from the BIG-IP system within a specified timeout period, the system marks the virtual server down and no longer load balances traffic to that virtual server. When the health monitor determines that the virtual server is once again responsive, the system again begins to load balance traffic to that virtual server. To illustrate, a Gateway Internet Control Message Protocol (ICMP) monitor pings a virtual server. If the monitor does not receive a response from the virtual server, the BIG-IP system marks that virtual server down. When the ping is successful, the system marks the virtual server up.
When a server that is being monitored by a performance monitor displays a degradation in performance, the BIG-IP system redirects traffic to other resources until the performance of the server returns to normal. To illustrate, an SNMP DCA monitor checks the current CPU, memory, and disk usage of a server that is running an SNMP data collection agent, and then dynamically load balances traffic based on the performance of the server.
When a server that is being monitored by a performance monitor displays a degradation in performance, the BIG-IP system redirects traffic to other resources until the performance of the server returns to normal. To illustrate, an SNMP Link monitor checks the current CPU, memory, and disk usage of a server that is running an SNMP data collection agent, and then dynamically load balances traffic based on the performance of the server.

About address check monitors

An
address check monitor
provides a simple verification of an address on a network. This type of monitor sends a request to an IP address. When a response is received, the test is successful.
With
BIG-IP DNS
Link Controller
, you can use an address check monitor to monitor a virtual server, a server (which includes all of the virtual servers on a specified server), a pool member, a pool (which includes all of the pool members of a specified pool), or a link. This monitor uses the Gateway Internet Control Message Protocol (ICMP) to perform a simple resource check. The check is successful if the monitor receives a response to an
ICMP_ECHO
datagram.
The following illustration depicts a DNS using a
Gateway ICMP
monitor to verify an IP address for a virtual server.
BIG-IP-DNS using a Gateway ICMP monitor
Address check monitor
  1. BIG-IP-DNS sends an ICMP echo request to a virtual server.
  2. An ICMP echo response is received.
An
address check monitor
provides a simple verification of an address on a network. This type of monitor sends a request to a virtual server. When a response is received, the test is successful.
When an address check monitor is associated with a node, it determines the availability of all services associated with that node's IP address. If the monitor is unsuccessful in determining that a node is available, the monitor marks the node and all pool members at that IP address as
Offline
.
The following illustration depicts a Local Traffic Manager using a
TCP Echo
monitor to verify an IP address for a virtual server.
Local Traffic Manager using a TCP Echo monitor
Address check monitor
  1. Local Traffic Manager sends a TCP echo request to a virtual server.
  2. A TCP echo response is received.

About application check monitors

An
application check monitor
interacts with servers by sending multiple commands and processing multiple responses.
An FTP monitor, for example, connects to a server, logs in by using a user ID and password, navigates to a specific directory, and then downloads a specific file to the
/var/tmp
directory. If the file is retrieved, the check is successful.
An application check monitor
Application check monitor
  1. BIG-IP-DNS opens a TCP connection to an IP address and port, and logs in to the server.
  2. A specified directory is located and a specific file is requested.
  3. The server sends the file to BIG-IP-DNS.
  4. BIG-IP-DNS receives the file and closes the TCP connection.
An application check monitor
Application check monitor
  1. Local Traffic Manager opens a TCP connection to an IP address and port, and logs in to the server.
  2. A specified directory is located and a specific file is requested.
  3. The server sends the file to Local Traffic Manager.
  4. Local Traffic Manager receives the file and closes the TCP connection.

About content check monitors

A
content check monitor
determines whether a service is available and whether the server is serving the appropriate content. This type of monitor opens a connection to an IP address and port, and then issues a command to the server. The response is compared to the monitor's receive rule. When a portion of the server's response matches the receive rule, the test is successful.

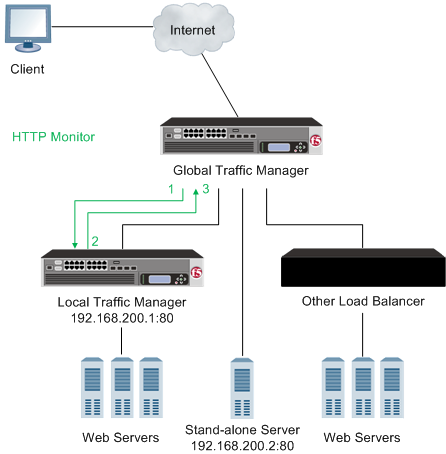

A content check monitor
Content check monitor
  1. DNS opens a TCP connection to an IP address and port, and issues a command to the server.
  2. The server sends a response.
  3. BIG-IP-DNS compares the response to the monitor's receive rule and closes the connection.
A content check monitor
Content check monitor
  1. Local Traffic Manager opens a TCP connection to an IP address and port, and issues a command to the server.
  2. The server sends a response.
  3. Local Traffic Manager compares the response to the monitor's receive rule and closes the connection

About path check monitors

A
path check monitor
determines whether traffic can flow through a device to an endpoint. A path check monitor is successful when network paths through firewalls or routers are available.

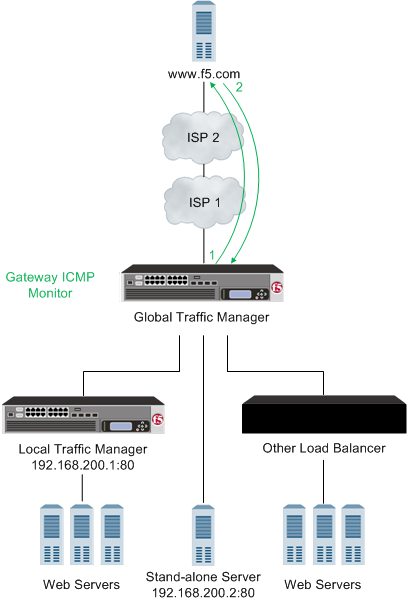

The following illustration depicts Global Traffic Manager (GTM), which is now known as BIG-IP DNS, using a
Gateway ICMP
monitor to verify a path to a virtual server.
Global Traffic Manager (now known as BIG-IP DNS) using a Gateway ICMP monitor
Path check monitor
  1. With the
    Gateway ICMP
    monitor
    Transparent
    option set to
    Yes
    , BIG-IP DNS sends an ICMP echo request to a virtual server.
  2. An ICMP echo response is received.
The following illustration depicts Local Traffic Manager (LTM) using a
TCP Echo
monitor to verify a path to a virtual server.
Local Traffic Manager using a TCP Echo monitor
Path check monitor
  1. With the
    TCP Echo
    monitor
    Transparent
    option set to
    Yes
    , Local Traffic Manager sends a TCP Echo request to a virtual server.
  2. A TCP Echo response is received.

About performance check monitors

A
performance check monitor
interacts with a link or server to acquire information about the resource load and the condition of the virtual servers on the server.
On Link Controller, you assign the BIG-IP Link monitor to link entries. This monitor gathers data from the gateway pool about the flow of the outbound traffic passing through the links.
On DNS, you assign the BIG-IP Link monitor to link entries. This monitor gathers data from the gateway pool about the flow of the outbound traffic passing through the links.

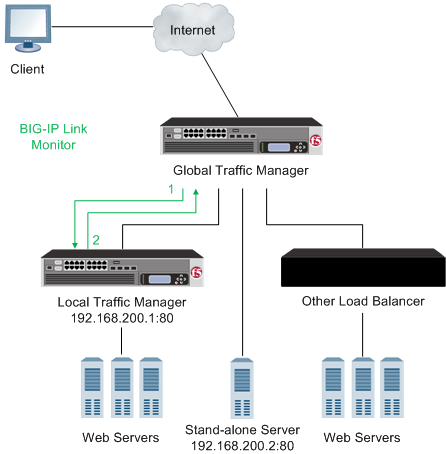

A performance check monitor
Performance check monitor
  1. The BIG-IP Link monitor gathers data from the gateway pool.
  2. BIG-IP-DNS evaluates the health of the link and makes a determination about load balancing traffic to the link.
A
performance check monitor
interacts with servers to determine the server load, and to acquire information about the condition of virtual servers.
An SNMP DCA monitor, for example, checks the current CPU, memory, and disk usage of a pool, pool member, or node that is running an SNMP data collection agent, and then dynamically load balances traffic accordingly.
If you configure a performance monitor, such as the SNMP DCA or WMI monitor type, you should also configure a health monitor. Configuring a health monitor ensures that Local Traffic Manager reports accurate node availability status.
A performance check monitor
Performance check monitor
  1. Local Traffic Manager connects with a server to acquire data.
  2. The server sends the data to Local Traffic Manager for evaluation and determination of load balancing.

About service check monitors

A
service check monitor
determines whether a service is available. This type of monitor opens a connection to an IP address and port, and then closes the connection. When the TCP connection is established, the test is successful.

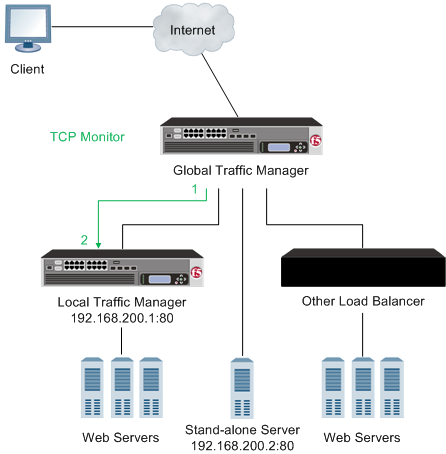

A service check monitor
Service check monitor
  1. DNS opens a TCP connection to an IP address and port.
  2. The TCP connection is closed.
When a service check monitor is associated with pool members, it determines the availability of a service. If the monitor is unsuccessful in determining that a pool member is available, the monitor marks the pool member as
Offline
and no requests are sent to that pool member.
A service check monitor
Service check monitor
  1. Local Traffic Manager opens a TCP connection to an IP address and port.
  2. The TCP connection is closed.

About resources and monitor queries

Network resources often perform different functions at the same time. Therefore, it is likely that multiple monitors are checking the availability of a single resource in different ways.
Example:
A BIG-IP system may monitor a single resource to verify that the connection to the resource is available, that a specific HTML page on the resource can be reached, and that a database query returns an expected result.

About the Virtual Location monitor

The
Virtual Location
monitor optimizes the way that the BIG-IP system manages connections to pool members by assigning priority groups to local and remote pool members.
The monitor determines whether a pool member is local (residing in the same data center as the BIG-IP system) or remote (residing in a different data center). If a pool member is local, the monitor sets the priority group of the pool member to a higher priority. If a pool member is remote, the monitor sets the priority group of the pool member to a lower priority.
You must configure Priority Group Activation to specify the minimum number of available members, before the BIG-IP system begins directing traffic to members in a lower priority group.

About adaptive response time monitoring

Adaptive response time
monitoring measures the amount of time between when the BIG-IP system sends a probe to a resource and when the system receives a response from the resource. It adds an extra dimension to existing monitoring capabilities. A monitor with adaptive response time enabled marks a service as up or down based on the deviation of latency of the monitor probe from the mean latency of a monitor probe for that service. In typical cases, if the monitor detects three consecutive probes that miss the latency value you set, the system marks the pool member or node as down.

About the types of adaptive response time monitoring

There are two types of adaptive response time monitoring:
Absolute
The number of milliseconds that the latency of a monitor probe can exceed the mean latency of a monitor probe, for the service being probed.
Relative
The percentage of deviation that the latency of a monitor probe can exceed the mean latency of a monitor probe, for the service being probed; that is, the running mean latency calculated by the system.
You can enable the adaptive response time monitoring feature on these specific monitors:
  • DNS
  • Gateway ICMP
  • HTTP
  • HTTPS
  • ICMP
  • TCP
  • UDP

About calculating the mean latency of a probe

A monitor marks a service down if a response to a probe does not meet the latency requirements of either the absolute limit or the relative limit, that is the running average. By default, the system stores the last five minutes of probe history for each monitor instance in a buffer. The system uses this history to calculate the varying mean latency of the probes for that monitor instance.

How does adaptive response time monitoring work?

This example shows a BIG-IP Local Traffic Managersystem configured to handle HTTP traffic using a pool and an HTTP monitor with adaptive response time monitoring enabled (through the
Adaptive
setting).
HTTP adaptive response time monitoring
HTTP adaptive response time monitoring
  1. A client makes an HTTP request. The HTTP request is represented by the green arrows.
  2. The request is routed to an HTTP pool on BIG-IP Local Traffic Manager (LTM).
  3. The LTM routes the request to one of two servers in the pool.
  4. The HTTP monitor assigned to the pool determines whether the servers are up or down based on the probe latency of each server. The probe is represented by the red arrows.

Using adaptive response time monitoring to optimize a web application

One example of how you can use adaptive response time monitoring is to optimize a moderately configurable web application that is served by several web servers with limited memory capacity. For example, when the web application is overwhelmed with traffic, perhaps at month end, the application may consume excessive amounts of memory and start swapping to disk, substantially degrading performance. Because performance degrades drastically when this condition poccurs, and you do not want the BIG-IP Local Traffic Manager to mark a server down unnecessarily, you can configure the servers in a pool with an HTTP monitor by enabling the
Adaptive
setting.

Using adaptive response time monitoring to mitigate probe attacks

You can use adaptive response time monitoring to mitigate probe attacks. For example, consider the scenario where a popular web application for a financial company receives a a huge number of brute-force logon attempts that cause the web servers to become unresponsive. As the administrator, you can place the web servers in a pool configured for priority-based load balancing and assign an HTTP monitor with the
Adaptive
setting
Enabled
. When probe latency spikes, the monitor marks the primary servers in the pool down. When all the primary servers are marked down, the system sends requests to a secondary set of servers in the pool that presents a page that does not accept logon attempts.

Overview of monitor implementation

You implement monitors by using either the BIG-IP Configuration utility or a command line utility. The task of implementing a monitor varies depending on whether you are using a preconfigured monitor or creating a custom monitor. A
preconfigured monitor
is an existing monitor that BIG-IP system provides for you, with its settings already configured. A
custom monitor
is a monitor that you create based on one of the allowed monitor types.
If you want to implement a preconfigured monitor, you need only associate the monitor with a pool, pool member, or node, and then configure the virtual server to reference the relevant pool. If you want to implement a custom monitor, you must first create the custom monitor. Then you can associate the custom monitor with a pool, pool member, or node, and configure the virtual server to reference the pool.

Preconfigured monitors

For a subset of monitor types, the BIG-IP system includes a set of preconfigured monitors. You cannot modify preconfigured monitor settings, as they are intended to be used as is. The purpose of a preconfigured monitor is to eliminate the need for you to explicitly create a monitor. You use a preconfigured monitor when the values of the settings meet your needs as is.
Preconfigured monitors include the following entries.
  • bigip
  • bigip_link
  • gateway_icmp
  • gtp
  • http
  • http_head_f5
  • https
  • https_443
  • https_head_f5
  • icmp
  • inband
  • real_server
  • snmp_dca
  • tcp
  • tcp_half_open
An example of a preconfigured monitor is the
http
monitor. The example shows the
http
monitor, with values configured for its
Interval
,
Timeout
, and
Alias Address
settings. Note that the Interval value is
5
30
, the Timeout value is
16
120
, the Transparent value is
No
, and the Alias Address value is
* All Addresses
.
If the Interval, Timeout, Transparent, and Alias Address values meet your needs, you simply assign the
http
preconfigured monitor directly to a server, virtual server, pool, pool member, or link. In this case, you do not need to use the Monitors screens, unless you simply want to view the values of the preconfigured monitor settings.
Name http Type HTTP Interval 5 Timeout 16 Transparent No Alias Address * All Addresses
If the Interval, Timeout, Transparent, and Alias Address values meet your needs, you simply assign the
http
preconfigured monitor directly to a server, virtual server, pool, pool member, or link. In this case, you do not need to use the Monitors screens, unless you simply want to view the values of the preconfigured monitor settings.
Name http Type HTTP Interval 30 Timeout 120 Transparent No Alias Address * All Addresses
All preconfigured monitors reside in partition
Common
.

Custom monitors

You create a custom monitor when the values defined in a preconfigured monitor do not meet your needs, or no preconfigured monitor exists for the type of monitor you are creating.
When you create a custom monitor, you use the BIG-IP Configuration utility or a command line utility to: give the monitor a unique name, specify a monitor type, and, if a monitor of that type already exists, import settings and their values from the existing monitor. You can then change the values of any imported settings.
You must base each custom monitor on a monitor type. When you create a monitor, the BIG-IP Configuration utility displays a list of monitor types. To specify a monitor type, simply choose the one that corresponds to the service you want to check. For example, if you want to want to create a monitor that checks the health of the HTTP service on a pool, you choose HTTP as the monitor type.
If you want to check more than one service on a pool or pool member (for example HTTP and HTTPS), you can associate more than one monitor on that pool or pool member.
Checking services is not the only reason for implementing a monitor. If you want to verify only that the destination IP address is alive, or that the path to it through a transparent node is alive, use one of the simple monitors,
icmp
or
tcp_echo
. Or, if you want to verify TCP only, use the monitor
tcp
.

Importing settings from a preconfigured monitor

If a preconfigured monitor exists that corresponds to the type of custom monitor you are creating, you can import the settings and values of that preconfigured monitor into the custom monitor. You are then free to change those setting values to suit your needs. For example, if you create a custom monitor called
my_icmp
, the monitor can inherit the settings and values of the preconfigured monitor
icmp
. This ability to import existing setting values is useful when you want to retain some setting values for your new monitor but modify others.
The example shows a custom ICMP-type monitor called
my_icmp
, which is based on the preconfigured monitor
icmp
. Note that the Interval value is changed to
10
, and the Timeout value is
20
. The other settings retain the values defined in the preconfigured monitor.
Name my_icmp Type ICMP Interval 10 Timeout 20 Transparent No Alias Address * All Addresses
Checking services is not the only reason for implementing a monitor. If you want to verify only that the destination IP address is alive, or that the path to it through a transparent node is alive, use a simple monitor, such as
gateway_icmp
. Or, if you want to verify TCP only, use the monitor
tcp
.

Importing settings from a preconfigured monitor

If a preconfigured monitor exists that corresponds to the type of custom monitor you are creating, you can import the settings and values of that preconfigured monitor into the custom monitor. You are then free to change those setting values to suit your needs. For example, if you create a custom monitor called
my_gateway_icmp
, the monitor can inherit the settings and values of the preconfigured monitor
gateway_icmp
. This ability to import existing setting values is useful when you want to retain some setting values for your new monitor but modify others.
The example shows a custom ICMP-type monitor called
my_gateway_icmp
, which is based on the preconfigured monitor
gateway_icmp
. Note that the Interval value is changed to
20
, and the Timeout value is
100
. The other settings retain the values defined in the preconfigured monitor.
Name my_gateway_icmp Type Gateway ICMP Interval 20 Timeout 100 Transparent No Alias Address * All Addresses

Importing settings from a custom monitor

You can import settings from another custom monitor instead of from a preconfigured monitor. This is useful when you would rather use the setting values defined in another custom monitor, or when no preconfigured monitor exists for the type of monitor you are creating. For example, if you create a custom monitor called
my_oracle_server2
, you can import settings from another custom Oracle-type monitor that you created, such as
my_oracle_server1
. Selecting a monitor is straightforward. Like
gateway_icmp
, each of the monitors has a Type setting based on the type of service it checks, for example,
http
,
https
,
ftp
,
pop3
, and a Parent Monitor that is used for importing the custom monitor settings. (Exceptions are port-specific monitors, like the
external
monitor, which calls a user-supplied program.)

Dynamic ratio load balancing

You can configure Dynamic Ratio load balancing for pools that consist of RealNetworks® RealServer servers, Microsoft Windows servers equipped with Windows Management Instrumentation (WMI), or any server equipped with an SNMP agent such as the UC Davis SNMP agent or Windows 2000 Server SNMP agent.
You can configure Dynamic Ratio load balancing for pools that consist of RealNetworks® RealServer servers or Microsoft Windows servers equipped with Windows Management Instrumentation (WMI).
To implement Dynamic Ratio load balancing for these types of servers, BIG-IP system provides a special monitor plug-in file and a performance monitor for each type of server. The exception is a server equipped with an SNMP agent. In this case, the BIG-IP system provides the monitor only; no special plug-in file is required for a server running an SNMP agent.
To implement Dynamic Ratio load balancing for these types of servers, BIG-IP system provides a special monitor plug-in file and a performance monitor for each type of server.
You must install the monitor plug-in on each server to be monitored, and you must create a performance monitor that resides on the BIG-IP system. Once you have created a monitor, the monitor communicates directly with the server plug-in.

Monitor plug-ins and corresponding monitor templates

For each server type, this table shows the required monitor plug-in and the corresponding performance monitor types.
Server Type
Monitor plug-in
Monitor Type
RealServer Windows server
F5RealMon.dll
Real Server
RealServer UNIX server
f5realmon.so
Real Server
Windows server with WMI
f5isapi.dll
or
F5Isapi64.dll
or
F5.IsHandler.dll
WMI
Windows 2000 Server server
SNMP agent
SNMP DCA and SNMP DCA Base
UNIX server
UC Davis SNMP agent
SNMP DCA and SNMP DCA Base

Monitor association with pools and nodes

You must associate a monitor with the server or servers to be monitored. The server or servers can be either a pool, a pool member, or a node, depending on the monitor type. You can associate a monitor with a server in any of these ways:
Monitor-to-pool association
This type of association associates a monitor with an entire load balancing pool. In this case, the monitor checks all members of the pool. For example, you can create an instance of the monitor
http
for every member of the pool
my_pool
, thus ensuring that all members of that pool are checked.
Monitor-to-pool member association
This type of association associates a monitor with an individual pool member, that is, an IP address and service. In this case, the monitor checks only that pool member and not any other members of the pool. For example, you can create an instance of the monitor
http
for pool member
10.10.10.10:80
of
my_pool
.
A monitor associated with an individual pool member supersedes a monitor associated with that pool member's parent pool.
Monitor-to-node association
This type of association associates a monitor with a specific node. In this case, the monitor checks only the node itself, and not any services running on that node. For example, you can create an instance of the monitor
icmp
for node
10.10.10.10
. In this case, the monitor checks the specific node only, and not any services running on that node. You can designate a monitor as the default monitor that you want the BIG-IP system to associate with one or more nodes. In this case, any node to which you have not specifically assigned a monitor inherits the default monitor.
Some monitor types are designed for association with nodes only, and not pools or pool members. Other monitor types are intended for association with pools and pool members only, and not nodes. Finally, in some instances, some monitor types associated with a node are not mutually exclusive of pools or pool members, and must function in combination in some scenarios.
Node-only monitors specify a destination address in the format of an IP address with no service port (for example,
10.10.10.2
). Conversely, monitors that you can associate with nodes, pools, and pool members specify a destination address in the format of an IP address and service port (for example,
10.10.10.2:80
). Therefore, when you use the BIG-IP Configuration utility to associate a monitor with a pool, pool member, or node, the utility displays only those pre-configured monitors that are designed for association with that server.
For example, you cannot associate the monitor
icmp
with a pool or its members, since the
icmp
monitor is designed to check the status of a node itself and not any service running on that node.

Monitor instances

When you associate a monitor with a server, the BIG-IP system automatically creates an
instance
of that monitor for that server. A monitor association thus creates an instance of a monitor for each server that you specify. This means that you can have multiple instances of the same monitor running on your servers.
Because instances of monitors are not partitioned objects, a user can enable or disable an instance of a monitor without having permission to manage the associated pool or pool member.
For example, a user with the Manager role, who can access partition
AppA
only, can enable or disable monitor instances for a pool that resides in partition
Common
. However, that user cannot perform operations on the pool or pool members that are associated with the monitor. Although this is correct functionality, the user might not expect this behavior. You can prevent this unexpected behavior by ensuring that all pools and pool members associated with monitor instances reside in the same partition.
