Manual Chapter

Introduction to the vCMP System

What is vCMP?

Virtual Clustered Multiprocessing™ (vCMP®)
 is a feature of the BIG-IP® system that allows you to provision and manage multiple, hosted instances of the BIG-IP software on a single hardware platform. A vCMP hypervisor allocates a dedicated amount of CPU, memory, and storage to each BIG-IP instance. As a vCMP system administrator, you can create BIG-IP instances and then delegate the management of the BIG-IP software within each instance to individual administrators.
A key part of the vCMP system is its built-in flexible resource allocation feature. With
flexible resource allocation
, you can instruct the hypervisor to allocate a different amount of resource to each BIG-IP instance according to the particular needs of the instance. Each core that the hypervisor allocates contains a fixed portion of system CPU and memory.
At a high level, the vCMP system includes two main components:
vCMP host
The
vCMP host
 is the system-wide hypervisor that makes it possible for you to create and view BIG-IP instances, known as
guests
. Through the vCMP host, you can also perform tasks such as creating trunks and VLANs, and managing guest properties. For each guest, the vCMP host allocates system resources such as CPU and memory according to the particular resource needs of the guest.
vCMP guests
A
vCMP guest
 is an instance of the BIG-IP software that you create on the vCMP system for the purpose of provisioning one or more BIG-IP® modules to process application traffic. A guest consists of a TMOS® instance, plus one or more BIG-IP modules. Each guest has its own share of hardware resources that the vCMP host allocates to the guest, as well as its own management IP addresses, self IP addresses, virtual servers, and so on. This effectively allows each guest to function as a separate BIG-IP device, configured to receive and process application traffic, with no knowledge of other guests on the system. Furthermore, each guest can use TMOS® features such as route domains and administrative partitions to create its own multi-tenant configuration. Each guest requires its own guest administrator to provision, configure, and manage BIG-IP modules within the guest. The maximum number of guests that the vCMP system supports varies by hardware platform.
This illustration shows a basic vCMP system with a host and four guests. Note that each guest a different set of modules provisioned, depending on the guest's particular traffic requirements.
Example of a four-guest vCMP system
A vCMP system with four guests

Other vCMP System Components

In addition to the host and guests, the vCMP® system includes these components:
Virtual disk
A
virtual disk
 is an amount of disk space that the vCMP host has allocated to a guest. A virtual disk image is typically a 100 gigabyte sparse file. Each virtual disk is implemented as an image file with an
.img
 extension, such as
guest_A.img
.
Core
A
core
 is a portion of CPU and memory that the vCMP host allocates to a guest. The amount of CPU and memory that a core provides varies by hardware platform.

BIG-IP license considerations for vCMP

The BIG-IP® system license authorizes you to provision the vCMP® feature and create guests with one or more BIG-IP system modules provisioned. Note the following considerations:
  • Each guest inherits the license of the vCMP host.
  • The host license must include all BIG-IP modules that are to be provisioned across all guest instances. Examples of BIG-IP modules are BIG-IP Local Traffic Manager and BIG-IP Global Traffic Manager™.
  • The license allows you to deploy the maximum number of guests that the platform allows.
  • If the license includes the appliance mode feature, you cannot enable appliance mode for individual guests; when licensed, appliance mode applies to all guests and cannot be disabled.
You activate the BIG-IP system license when you initially set up the vCMP host.

About vCMP provisioning

To enable the vCMP® feature, you perform two levels of provisioning.
First, you provision the vCMP feature as a whole. When you do this, the BIG-IP® system, by default, dedicates most of the disk space to running the vCMP feature, and in the process, creates the host portion of the vCMP system.
Second, once you have configured the host to create the guests, each guest administrator logs in to the relevant guest and provisions the required BIG-IP modules. In this way, each guest can run a different combination of modules. For example, one guest can run BIG-IP® Local Traffic Manager (LTM) only, while a second guest can run LTM and BIG-IP ASM™.
Once you provision the vCMP feature, you cannot provision any BIG-IP modules, such as BIG-IP LTM, on the vCMP host. Moreover, if any BIG-IP modules are already provisioned on the system before you provision the vCMP feature, those modules are de-provisioned when you provision the vCMP feature. This, in turn, interrupts any application traffic currently being processed.

Network isolation

The vCMP® system separates the data plane network from the management network. That is, the host operates with the hardware switch fabric to control the guest data plane traffic. This provides true multi-tenancy by ensuring that traffic for a guest remains separate from all other guest traffic on the system.

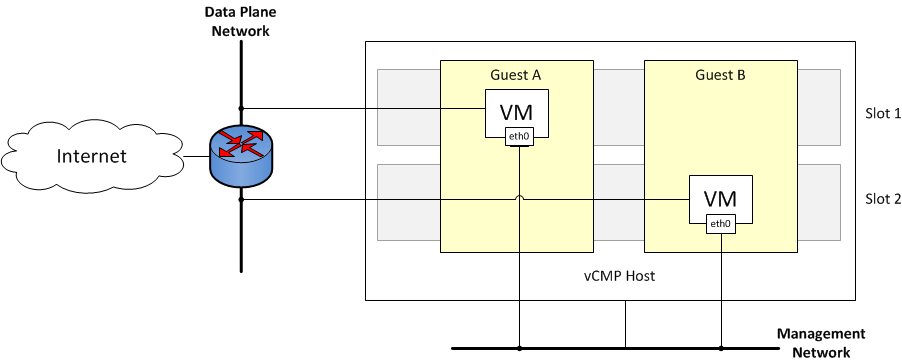

The following illustration shows the separation of the data plane network from the management network.
Isolation of the data plane network from the management network
Isolation of the data plane network from the management network

System administration overview

Administering a vCMP® system requires two distinct types of administrators: a vCMP host administrator who creates guests and allocates resources to those guests, and a vCMP guest administrator who provisions and configures BIG-IP modules within a specific guest.
At a minimum, these tasks must be performed on the vCMP host, by a host administrator:
  • Provision the vCMP feature
  • Create vCMP guests, including allocating system resources to each guest
  • Create and manage VLANs
  • Create and manage trunks
  • Manage interfaces
  • Configure access control to the host by other host administrators, through user accounts and roles, partition access, and so on
These tasks are performed on a vCMP guest by a guest administrator:
  • Provision BIG-IP modules
  • Create self IP addresses and associate them with host VLANs
  • Create and manage features within BIG-IP modules, such as virtual servers, pools, policies, and so on
  • Configure device service clustering (DSC)
  • Configure access control to the guest by other guest administrators, through user accounts and roles, partition access, and so on
vCMP host administration tasks can only be performed on the vCMP host and not from within a guest. This prevents a guest administrator from accessing either the host or other guests on the system, thereby ensuring the separation of administrative tasks across the vCMP deployment.
After you initially set up the vCMP host, you will have a standalone, multi-tenant vCMP system with some number of guests defined. A guest administrator will then be ready to provision and configure the BIG-IP modules within a guest to process application traffic. Optionally, if the host administrator has set up a second chassis with equivalent guests, a guest administrator can configure high availability for any two equivalent guests.

Guest access to the management network

As a vCMP host administrator, you can configure each vCMP® guest to be either bridged to or isolated from the management network, or to be isolated from the management network but remain accessible by way of the host-only interface.
F5 Networks recommends that you configure all vCMP guests to be bridged to the management network, unless you have a specific business or security requirement that requires guests to be isolated from the management network.

About bridged guests

When you create a vCMP guest, you can specify that the guest is a bridged guest. A
bridged
 guest is one that is connected to the management network. This is the default network state for a vCMP guest. This network state bridges the guest's virtual management interface to the physical management interface of the blade on which the guest virtual machine (VM) is running.
You typically log in to a bridged guest using its cluster management IP address, and by default, guest administrators with the relevant permissions on their user accounts have access to the
bash
 shell, the BIG-IP Configuration utility, and the Traffic Management Shell (
tmsh
). However, if per-guest Appliance mode is enabled on the guest, administrators have access to the BIG-IP Configuration utility and
tmsh
 only.
Although the guest and the host share the host's Ethernet interface, the guest appears as a separate device on the local network, with its own MAC address and IP address.
Note that changing the network state of a guest from isolated to bridged causes the vCMP host to dynamically add the guest's management interface to the bridged management network. This immediately connects all of the guest's VMs to the physical management network.
If you want to easily make TCP connections (for SSH, HTTP, and so on) from either the host or the external network to the guest, or from the guest to the host or external network, you can configure a guest's management port to be on the same IP network as the host's management port, with a gateway identical to the host's management gateway. However, you should carefully consider the security implications of doing so.

About isolated guests

When you create a vCMP guest, you can specify that the guest is an isolated guest. Unlike a bridged guest, an
isolated
 guest is disconnected from the management network. As such, the guest cannot communicate with other guests on the system. Also, because an isolated guest has no management IP address for administrators to use to access the guest, the host administrator, after creating the guest, must use the
vconsole
 utility to log in to the guest and create a self IP address that guest administrators can then use to access the guest.

About Appliance mode

Appliance mode
 is a BIG-IP system feature that adds a layer of security in two ways:
  • By preventing administrators from using the
    root
     user account.
  • By granting administrators access to the Traffic Management Shell (
    tmsh
    ) instead of and the advanced (
    bash
    ) shell.
You can implement Appliance mode in one of two ways:
System-wide through the BIG-IP license
You can implement Appliance mode on a system-wide basis through the BIG-IP® system license. However, this solution might not be ideal for a vCMP® system. When a vCMP system is licensed for Appliance mode, administrators for all guests on the system are subject to Appliance mode restrictions. Also, you cannot disable the Appliance mode feature when it is included in the BIG-IP system license.
On a per-guest basis
Instead of licensing the system for Appliance mode, you can enable or disable the appliance mode feature for each guest individually. By default, per-guest Appliance mode is disabled when you create the guest. After Appliance mode is enabled, you can disable or re-enable this feature on a guest at any time.
If the license for the BIG-IP system includes Appliance mode, the system ignores the per-guest Appliance mode feature and permanently enforces Appliance mode for the vCMP host and all guests on the system.

User access restrictions with Appliance mode

When you enable Appliance mode on a guest, the system enhances security by preventing administrators from accessing the root-level advanced shell (
bash
).
For bridged guests
For a bridged guest with Appliance mode enabled, administrators can access the guest through the guest's management IP address. Administrators for a bridged guest can manage the guest using the BIG-IP® Configuration utility and
tmsh
.
For isolated guests
For an isolated guest with Appliance mode enabled, administrators must access a guest through one of the guest's self IP addresses, configured with appropriate port lockdown values. Administrators for an isolated guest can manage the guest using the BIG-IP Configuration utility and
tmsh
.
When you enable Appliance mode on a guest, any accounts with advanced shell access automatically lose that permission and the permission reverts to
tmsh
. If you disable Appliance mode later, you can re-assign advanced shell access to those accounts.

BIG-IP version restrictions with Appliance mode

If you want to use the BIG-IP® version 11.5 Appliance mode feature on a guest, both the host and the guest must run BIG-IP version 11.5 or later.
If you enable Appliance mode on a guest, and a previous version of the BIG-IP software is installed in another boot location, a guest administrator with an Administrator user role can boot to the previous version and obtain advanced shell access.
