Manual Chapter

Configuring Global Application Policies with Bandwidth Control

Overview: Global Application Policies with Bandwidth Control

You can use bandwidth controllers with Policy Enforcement Manager to restrict bandwidth usage per subscriber, group of subscribers, per application, and so on. This implementation uses PEM for global application control to limit overall bandwidth for all P2P (or other application) traffic. For example:

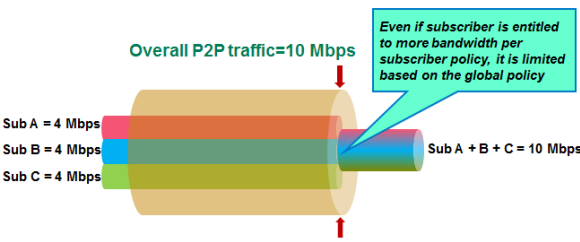

Diagram of bandwidth usage per subscriber
In the figure, three subscribers have individual policies that allow P2P bandwidths of up to 4 Mbps each. The maximum bandwidth for all P2P traffic is limited to 10 Mbps (specified as the maximum rate in a static bandwidth controller). If all were sending P2P traffic, they would all get less bandwidth if you apply a global enforcement policy that enforces bandwidth control.
For this implementation, you create the bandwidth controller and the enforcement policy on the BIG-IP® system. In the enforcement policy, a rule applies bandwidth control to P2P traffic. From the listener, you apply the policy globally to all traffic.

Creating VLANs

VLANs
represent a collection of hosts that can share network resources, regardless of their physical location on the network. For Policy Enforcement Manager, you typically create VLANs for the subscriber traffic coming in to the BIG-IP system, for traffic going out to the network, and if using w-steering with service chains, you need two VLANs for each value added service to be fully transparent.
  1. On the Main tab, click
    Network
    VLANs
    .
    The VLAN List screen opens.
  2. Click
    Create
    .
    The New VLAN screen opens.
  3. In the
    Name
    field, type a unique name for the VLAN.
  4. In the
    Tag
    field, type a numeric tag, between 1-4094, for the VLAN, or leave the field blank if you want the BIG-IP system to automatically assign a VLAN tag.
    The VLAN tag identifies the traffic from hosts in the associated VLAN.
  5. For the
    Interfaces
    setting:
    1. From the
      Interface
      list, select an interface number or trunk name.
    2. From the
      Tagging
      list, select
      Tagged
      or
      Untagged
      .
      Select
      Tagged
      when you want traffic for that interface to be tagged with a VLAN ID.
    3. If you specified a numeric value for the
      Customer Tag
      setting and from the
      Tagging
      list you selected
      Tagged
      , then from the
      Tag Mode
      list, select a value.
    4. Click
      Add
      .
    5. Repeat these steps for each interface or trunk that you want to assign to the VLAN.
  6. From the
    Configuration
    list, select
    Advanced
    .
  7. If you want the system to verify that the return route to an initial packet is the same VLAN from which the packet originated, select the
    Source Check
    check box.
  8. In the
    MTU
    field, retain the default number of bytes (
    1500
    ).
  9. If you want to base redundant-system failover on VLAN-related events, select the
    Fail-safe
    box.
  10. From the
    CMP Hash
    list, select the appropriate value depending on the location of the VLAN in the system:
    • On the VLAN coming in to the BIG-IP system (often called
      internal
      ), select
      Source Address
      .
    • On VLANs going out (often called
      external
      ), leave the value set to
      Default
      .
    • For traffic returning to the BIG-IP from the Internet, select
      Destination Address
      .
    • If using w-steering for value-added services, on the VLAN coming back to the BIG-IP system, select
      Source Address
      .
  11. Click
    Finished
    .
    The screen refreshes, and it displays the new VLAN in the list.
Create as many VLANs as needed for your configuration.

Creating a static bandwidth control policy

You can create a static bandwidth control policy to limit the bandwidth that traffic uses on the BIG-IP system.
  1. On the Main tab, click
    Acceleration
    Bandwidth Controllers
    .
  2. Click
    Create
    .
  3. In the
    Name
    field, type a name for the bandwidth control policy.
  4. In the
    Maximum Rate
    field, type a number and select the unit of measure to indicate the total throughput allowed for the resource you are managing.
    The number must be in the range from
    1 Mbps
    to
    1000 Gbps
    . This value is the amount of bandwidth available to all the connections going through this static policy.
  5. Click
    Finished
    .
For the bandwidth control policy to take effect, you must apply the policy to traffic, using a virtual server, packet filter, or route domain.

Creating an enforcement policy

If you want to classify and intelligently steer traffic, you need to create an enforcement policy. The policy describes what to do with specific traffic, and how to treat the traffic.
  1. On the Main tab, click
    Policy Enforcement
    Policies
    .
    The Policies screen opens.
  2. Click
    Create
    .
    The New Policy screen opens.
  3. In the
    Name
    field, type a name for the policy.
    When creating policies you plan to apply globally or to unknown subscribers, it is a good idea to include the word
    global
    or
    unknown
    in the policy name to distinguish these from other subscriber policies.
  4. From the Transactional list, select
    Enabled
    if you want the BIG-IP system to allow policy enforcement on each HTTP transaction.
  5. Click
    Finished
    .
    The system performance is significantly affected, depending on complexity of the classification and the type of policy action.
    The new enforcement policy is added to the policy list.
Now you must add rules to the enforcement policy to define traffic filters and actions.

Creating a rule for bandwidth control

If you want to use rate control, you need to have already created a bandwidth controller.
You can create a rule that provides bandwidth control. For example, the bandwidth controller might limit the total amount of bandwidth that can be used by application traffic, such as P2P.
  1. On the Main tab, click
    Policy Enforcement
    Policies
    .
    The Policies screen opens.
  2. Click the name of the enforcement policy you want to add rules to.
    The properties screen for the policy opens.
  3. In the Policy Rules area, click
    Add
    .
    The New Rule screen opens.
  4. In the
    Name
    field, type a name for the rule.
  5. In the
    Precedence
    field, type an integer that indicates the precedence for the rule in relation to the other rules. Number 1 has the highest precedence. Rules with higher precedence are evaluated before other rules with lower precedence.
    All rules in a policy are run concurrently. Precedence takes effect when there are conflicting rules. The conflict occurs when the traffic matches two rules and the policy actions from these rules differ. For example, if you have rule 1 with precedence 10 and
    Gate Status
    disabled for a search engine, and you have rule 2 with precedence 11 and
    Gate Status
    enabled, then rule 1 is processed first because it has higher precedence. Rules conflict if they have identical or overlapping classification criteria (for the traffic that matches more than one rule). In some cases, different policy actions are not conflicting, and hence, applied in parallel.
  6. In the
    Classification
    setting, filter the application traffic to which you want to apply bandwidth control.
    1. For
      Match Criteria
      , select
      Match
      .
    2. For
      Category
      , select
      P2P
      (or other application traffic you want to limit on the network).
    3. Click
      Add
      .
  7. In the Forwarding area, ensure that
    Gate Status
    is set to
    Enabled
    .
  8. In the
    Rate Control
    setting, for
    Bandwidth Controller
    , select the name of the bandwidth controller that you created to limit P2P (or other application) traffic.
  9. Click
    Finished
    .
You have created a rule to restrict the total bandwidth usage for all P2P traffic to the
Maximum Rate
specified in the static bandwidth control policy.
The enforcement policy needs to be associated with the virtual servers required for PEM. You can do this by creating a listener (recommended), or you can edit the virtual servers to specify the enforcement policy as a global policy, and enable classification.

Creating a listener: example

You create a listener to complete the preliminary setup on the BIG-IP system; in this case, to apply bandwidth management as a global enforcement policy.
  1. On the Main tab, click
    Policy Enforcement
    Data Plane Listeners
    .
    The Date Plane Listeners screen opens.
  2. Click
    Add
    .
    The New Virtual Group screen opens.
  3. In the
    Name
    field, type a unique name for the listener.
  4. For the
    Source
    setting, type the IP address or network from which the virtual server will accept traffic.
  5. In the
    Destination Address
    field, type the IP address of the virtual server. For example,
    10.0.0.1
    or
    10.0.0.0/24
    .
    When you use an IPv4 address without specifying a prefix, the BIG-IP system automatically uses a
    /32
    prefix.
    You can use a catch-all virtual server (
    0.0.0.0
    ) to specify all traffic that is delivered to the BIG-IP system. Configure the source and destination setting, during forwarding mode only. In the relay mode, the client does not have an IP address and the DHCP provides the client with an IP address.
    The system will create a virtual server using the address or network you specify.
  6. For the
    Service Port
    setting, type or select the service port for the virtual server.
  7. Subscriber provisioning using RADIUS is enabled by default. If your system is using RADIUS for snooping subscriber identity, you need to specify VLANs and tunnels. If you are not using RADIUS, you need to disable it.
    • For the
      VLANs and Tunnels
      setting, move the VLANs and tunnels that you want to monitor for RADIUS traffic from the
      Available
      list to the
      Selected
      list.
    • If you do not want to use RADIUS, from the
      Subscriber Identity Collection
      list, select
      Disabled
      .
  8. In the Policy Provisioning area, for
    Global Policy
    , move the enforcement policy you created for bandwidth control to
    High Precedence
    .
    The system applies the policy with bandwidth control to all traffic.
  9. Click
    Finished
    .
    The Policy Enforcement Manager creates a listener.
When you create a listener, the Policy Enforcement Manager also creates virtual servers for each type of traffic (TCP, UDP, or both), and a virtual server for HTTP traffic. The system sets up classification and assigns the appropriate policy enforcement profile to the virtual servers. If you are connecting to a RADIUS authentication server, a virtual server for RADIUS is also added.
Now you can send traffic through the network. All traffic classified as P2P traffic is limited to the
Maximum Rate
specified in the static bandwidth control policy. Once the maximum rate is reached, no additional P2P traffic is allowed on the network.
