WCCP
About WCCPv2 redirection on the BIG-IP system
The BIG-IP® system includes support for Web Cache Communication Protocol version 2
(WCCPv2).
WCCPv2
is a content-routing protocol developed by Cisco®
Systems. It provides a mechanism to redirect traffic flows in real time. The primary purpose of
the interaction between WCCPv2-enabled routers and a BIG-IP® system is to
establish and maintain the transparent redirection of selected types of traffic flowing through
those routers.To use WCCPv2, you must enable WCCPv2 on one or more routers connected to the BIG-IP® system, and configure a service group on the BIG-IP system that includes the router
information. The BIG-IP system then receives all the network traffic from each router in the
associated service group, and determines both the traffic to optimize and the traffic to which to
apply a service.
In configuring WCCPv2 on a network, you define a
service group
on the BIG-IP
system, which is a collection of WCCPv2 services configured on the BIG-IP system. A WCCPv2
service
in this context is a set of redirection criteria and processing
instructions that the BIG-IP system applies to any traffic that a router in the service group

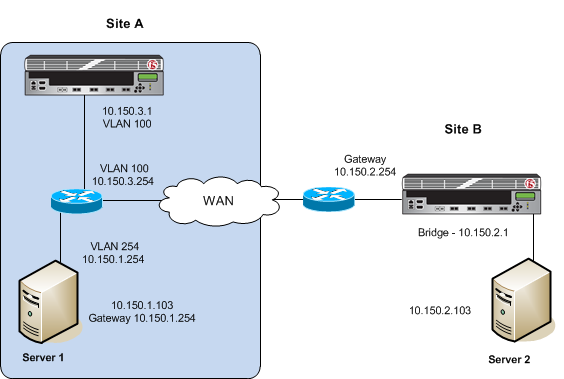

redirects to the BIG-IP system. Each service matches a service identifier on the router.The following illustration shows a one-arm configuration on one side of the WAN and an inline
(bridge) configuration on the other side.
Example of a one-arm configuration

A common deployment of the WCCPv2 protocol
In certain cases, it is not advantageous or even possible to deploy the BIG-IP® system inline. For example, in the case of a collapsed backbone where
the WAN router and the LAN switch are in one physical device, you might not be able to
deploy the BIG-IP system inline.
If you choose not to deploy the BIG-IP system inline, you can use a one-arm deployment.
In a
one-arm deployment
, the BIG-IP system has a single (hence, one-arm)
connection to the WAN router or LAN switch. The WAN router (or switch) redirects all
relevant traffic to the BIG-IP system. In this configuration, the WAN router typically
uses Web Cache Communication Protocol version 2 (WCCPv2) to redirect traffic to the

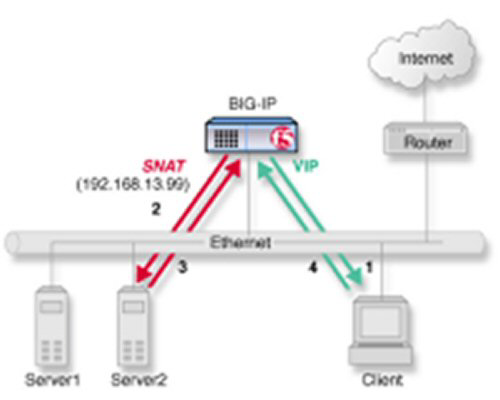

BIG-IP system.Network topology for a one-arm connection

The traffic flow sequence in this illustration is as follows:
- The client initiates a session.
- A WAN router redirects traffic to the BIG-IP system.
- The BIG-IP1 processes traffic and sends it back to the WAN router.
- The WAN router forwards traffic across the WAN.
