Forward Proxy Chaining with APM

BIG-IP system forward proxy chaining and APM benefits

The BIG-IP system supports forward proxy chaining which enables connection to a next hop proxy server. Access Policy Manager (APM®) brings these abilities to forward proxy chaining:
  • Offload authentication from and support authentication to the next hop on the client's behalf.
  • Support single sign-on to the next hop and to resources at the next hop.
  • Select different proxy servers for different requests.
  • Select different SSO configurations for different requests.

Interoperability characteristics for forward proxy chaining

In a forward proxy chain, Access Policy Manager (APM®) selects the next hop proxy server, and interacts with it and resource servers behind it.
A proxy server can be located in the cloud. It can be located in another department of an enterprise.
For the BIG-IP system, proxy server, and resource servers behind the proxy server, let's focus on these configuration characteristics.
Forward proxy mode
APM can be configured to act as an explicit or as a transparent forward proxy. The proxy server can be configured to act as explicit or transparent forward proxy. APM supports any combination of forward proxy modes.
SSL bypass mode
APM can be configured for SSL bypass or SSL intercept. The proxy server can be configured for SSL bypass or SSL intercept. APM supports all combinations of SSL bypass mode.
Authentication
Authentication might be configured on one or more servers:
  • On APM, you can configure no authentication or any type of authentication that APM supports for an SWG-Explicit or SWG-Transparent access profile.
  • On a proxy server, if you have HTTP Basic, NTLM, or Kerberos authentication configured, APM should authenticate to the proxy server. You can also have no authentication configured on the proxy server.
  • On a resource server, if you have HTTP Basic, NTLM, or Kerberos authentication configured, APM should authenticate to the resource server. You can also have no authentication configured on the resource server.
Single sign-on
APM supports these types of SSO configuration to the proxy server or to a resource server: HTTP Basic, NTLMv1, NTLMv2, or Kerberos.
To a large extent, APM supports combinations of these configuration characteristics. However, given the number of possible configuration combinations and the varying capabilities of proxy servers, some configuration constraints can exist. Refer to
BIG-IP Access Policy Manager: Secure Web Gateway
and to Release Note: BIG-IP APM (for the product version you are using) on the AskF5 web site located at
support.f5.com
.

Configuration essentials for forward proxy chaining

When configured to act as an explicit or transparent forward proxy, Access Policy Manager (APM®) supports forward proxy chaining, with or without an SWG subscription. These configuration elements are key to forward proxy chaining:
  • One or more pools of proxy servers. All servers in a pool must support the same forward proxy mode: explicit or transparent.
  • A per-request policy that includes a Proxy Select agent, which specifies a pool of proxy servers.
    Only the Proxy Select agent signals that a connection must be made to a next hop. A Pool Assign agent does not.
  • An HTTP Proxy Connect profile configured with its state disabled.
  • The virtual server that processes HTTPS traffic for the forward proxy configuration with the disabled HTTP Proxy Connect profile specified.

Overview: Offloading authentication from the next hop

In this example, Access Policy Manager (APM®) performs authentication on behalf of the proxy server and the resource servers.

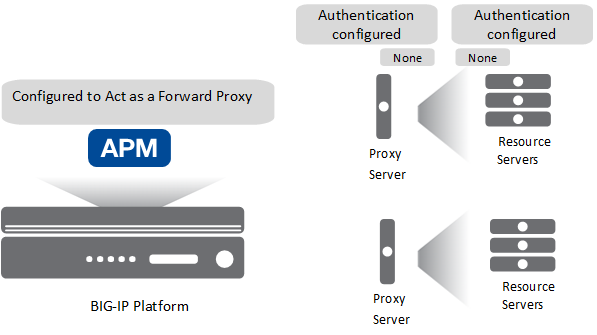

Expected initial configuration

Task summary

You need an access policy configured with any type of authentication that APM supports for an SWG-Explicit or SWG-Transparent access profile type, and a per-request policy that selects the next hop.

Configuring an access policy for authentication

You configure an access policy to authenticate users on behalf of a proxy server.
You can configure any type of authentication that Access Policy Manager (APM) supports for the access profile type (SWG-Explicit or SWG-Transparent) that is used in your forward proxy configuration.
This example uses LDAP.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. Locate the access profile for the forward proxy configuration you are updating.
    Look in the
    Profile Type
    field for
    SWG-Explicit
    or
    SWG-Transparent
    .
  3. In the Per-Session Policy column, click the
    Edit
    link
    The visual policy editor opens the access policy in a separate screen.
  4. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  5. On the Logon tab, select
    Logon Page
    and click the
    Add Item
    button.
    The Logon Page Agent properties screen opens.
  6. Click
    Save
    .
    The properties screen closes and the policy displays.
  7. On a policy branch, click the
    (+)
    icon to add an item to the policy.
  8. On the Authentication tab, select
    LDAP Auth
    and click
    Add Item
    .
    A Properties screen opens.
  9. For
    Server
    , select the LDAP server you want to use from the list.
    Servers are defined in the
    Access > Authentication
    area of the Configuration utility.
  10. For
    SearchDN
    , type the base node of the LDAP server search tree where you want to start the search.
  11. For
    SearchFilter
    , type the search criteria to use when querying the LDAP server for the user's information.
    Session variables are supported as part of the search query string.
    When you type a string, enclose it in parentheses.
    For example, type
    (sAmAccountName=%{session.logon.last.username})
    or
    (sAmAccountName=%{subsession.logon.last.username})
    .
  12. For
    UserDN
    , specify the Distinguished Name (DN) of the user.
  13. Click
    Save
    .
    The properties screen closes and the policy displays.
  14. Click the
    Apply Access Policy
    link to apply and activate the changes to the policy.

Configuring a per-request policy to select the next hop

Before you start, you must have configured a pool of proxy servers that all support the same forward proxy mode: explicit or transparent. (Create pools using
Local Traffic
Pools
.)
You create a per-request policy that uses a Proxy Select agent to select the next hop in a forward proxy chain.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  5. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  6. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  7. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  8. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  9. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Overview: Using NTLM pass-through to the next hop

NTLM pass-through
describes a configuration where authentication is not specified on Access Policy Manager (APM®), but where NTLM authentication is configured at the next hop or at a resource server behind the next hop.

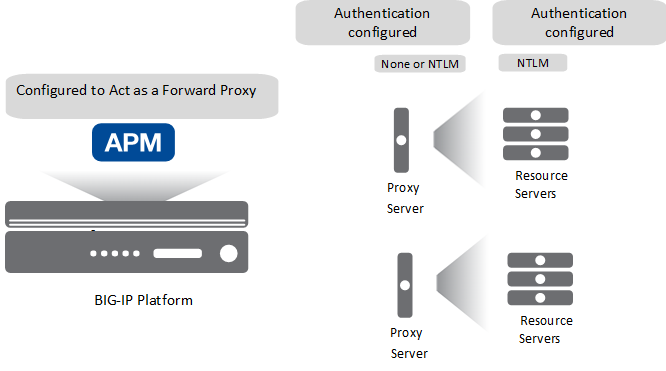

Expected initial configuration
APM supports NTLM pass-through only for HTTP traffic, and only when both APM and the proxy server are configured for explicit forward proxy.
To support this configuration, you need an access policy, but no specific configuration is required in it. You also need a per-request policy configured to select the next hop.

Configuring a per-request policy to select the next hop

Before you start, you must have configured a pool of proxy servers that all support the same forward proxy mode: explicit or transparent. (Create pools using
Local Traffic
Pools
.)
You create a per-request policy that uses a Proxy Select agent to select the next hop in a forward proxy chain.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  5. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  6. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  7. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  8. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  9. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Overview: Inserting HTTP headers for authentication to the next hop

Access Policy Manager (APM®) supports inserting the X-Authenticated-User HTTP header and, optionally, the X-Forwarded-For HTTP header to authenticate on the user's behalf to a next hop proxy server or to a resource server behind the proxy. In this example, you can configure either HTTP Basic or NTLM authentication on the proxy server or on the resource server.
Expected initial configuration

Task summary

You need an access policy configured with any type of authentication that APM supports for an SWG-Explicit or SWG-Transparent access profile type and a per-request policy that inserts the header and selects the next hop.

Task list

Configuring an access policy for authentication

You configure an access policy to authenticate users on behalf of a proxy server.
You can configure any type of authentication that Access Policy Manager (APM) supports for the access profile type (SWG-Explicit or SWG-Transparent) that is used in your forward proxy configuration.
This example uses LDAP.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. Locate the access profile for the forward proxy configuration you are updating.
    Look in the
    Profile Type
    field for
    SWG-Explicit
    or
    SWG-Transparent
    .
  3. In the Per-Session Policy column, click the
    Edit
    link
    The visual policy editor opens the access policy in a separate screen.
  4. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  5. On the Logon tab, select
    Logon Page
    and click the
    Add Item
    button.
    The Logon Page Agent properties screen opens.
  6. Click
    Save
    .
    The properties screen closes and the policy displays.
  7. On a policy branch, click the
    (+)
    icon to add an item to the policy.
  8. On the Authentication tab, select
    LDAP Auth
    and click
    Add Item
    .
    A Properties screen opens.
  9. For
    Server
    , select the LDAP server you want to use from the list.
    Servers are defined in the
    Access > Authentication
    area of the Configuration utility.
  10. For
    SearchDN
    , type the base node of the LDAP server search tree where you want to start the search.
  11. For
    SearchFilter
    , type the search criteria to use when querying the LDAP server for the user's information.
    Session variables are supported as part of the search query string.
    When you type a string, enclose it in parentheses.
    For example, type
    (sAmAccountName=%{session.logon.last.username})
    or
    (sAmAccountName=%{subsession.logon.last.username})
    .
  12. For
    UserDN
    , specify the Distinguished Name (DN) of the user.
  13. Click
    Save
    .
    The properties screen closes and the policy displays.
  14. Click the
    Apply Access Policy
    link to apply and activate the changes to the policy.

Inserting the HTTP header and selecting the next hop

Before you start, make sure that the proxy servers at the next hop are capable of processing the HTTP header you insert.
You configure a per-request policy to insert an X-Authenticated-User HTTP header with the value of a successfully authenticated user name to authenticate to the next hop proxy server or to resource servers behind it.
You cannot use
HTTP Headers
following an
SSL Bypass
agent in the policy. If you need to use SSL Bypass for proxy chaining, you should do it within an
HTTP_PROXY_CONNECT
iRule event. However, you can use
HTTP Headers
after
SSL Intercept
.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  5. On the General Purpose tab, select
    HTTP Headers
    and click
    Add Item
    .
    A Properties screen opens.
  6. In the
    HTTP Header Modify
    area, click
    Add new entry
    .
  7. For
    Header Operation
    , retain the default value
    insert
    .
  8. In the
    Header Name
    field, type
    X-Authenticated-User
    .
  9. In the
    Header Value
    field, type the value of a successfully authenticated username.
    For example, type
    %{session.logon.last.userrname}
    .
  10. To also add an X-Forwarded-For HTTP header, perform these substeps:
    1. In the
      HTTP Header Modify
      area, click
      Add new entry
      .
    2. In the
      Header Name
      field, type
      X-Forwarded-For
      .
    3. In the
      Header Value
      field, type the value of the client IP address.
      For example, type
      %{session.user.clientip}
      .
  11. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
  12. Add any additional items you want to the policy.
  13. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  14. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  15. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  16. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  17. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  18. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Configuration constraints for X-Authenticated-User header

Before configuring Access Policy Manager (APM®) to forward X-Authenticated-User and X-Forwarded-For headers to a third-party proxy server, consider the capabilities of the specific proxy server. How a proxy server responds to X-Authenticated-User and X-Forwarded-For headers is completely dependent on the proxy server capabilities, and on the settings that a proxy server might provide for resource protection. Not all proxy servers can process the headers. Others might process and trust the headers but, based on configuration settings, require authentication regardless.

Overview: Authenticating with HTTP Basic to the next hop

With no authentication configured on Access Policy Manager (APM®), you can still use HTTP Basic to authenticate to a next hop proxy server.
You don't need any particular configuration in the access policy. You do need to select the next hop proxy, and specify static credentials in the Proxy Select agent in the per-request policy.

Configuring a policy for HTTP Basic at the next hop

Before you start, you must have configured a pool of proxy servers that are all configured to support the same forward proxy mode: explicit or transparent. (Pools are configured in the
Local Traffic
Pools
area of the product.)
You configure a per-request policy to select the next hop in a forward proxy chain and provide static credentials for HTTP Basic authentication.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  5. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  6. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  7. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  8. For
    Username
    and
    Password
    , type the user name and password that APM can use to authenticate to the proxy server.
  9. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Troubleshooting Basic authentication at the next hop proxy server

The table lists some activities that you might observe with forward proxy chaining between Access Policy Manager (APM) and a third-party proxy server that uses Basic authentication. The table provides additional explanation.
Activity
Description
A client achieves single sign-on to a next hop proxy server that uses Basic authentication. However, the configuration on Access Policy Manager (APM) configuration does not include SSO.
The initial client request includes one these HTTP headers:
Proxy Authorization
or
Authorization
. This can happen when, for example, the user logged on as a domain user. Some third-party proxy servers accept these credentials at the initial request.
Packet captures show that a next hop proxy server rejected an initial client request with one of these HTTP headers:
Proxy Authorization
or
Authorization
.
Some third-party proxy servers deny such an initial request because the header is not expected. The proxy server then sends HTTP status code 407 (Proxy Authentication Required) or 401 (Authentication Required). APM responds to the HTTP code. If Basic SSO is configured, APM invokes it.

Overview: Configuring Basic or NTLM SSO to the next hop

Access Policy Manager (APM®) supports the HTTP Basic, Kerberos, NTLMv1, and NTLMv2 types of SSO configuration to and behind a next hop proxy server. This example specifies the configuration for a Basic or NTLM type SSO. Authentication can be configured on the proxy server or on a resource server behind it.

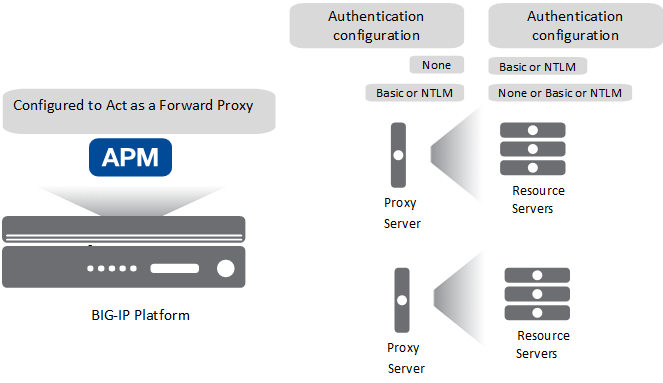

Expected initial configuration

Task summary

You need an access policy to gather and cache user credentials. You need a per-request policy to specify an SSO configuration and select the next hop proxy.

Task list

Configuring an access policy for SSO to the next hop

To support SSO to the next hop proxy server in a forward proxy chain or to a resource server behind the next hop, you configure an access policy to collect credentials and cache them.
This example policy uses the Logon Page item to collect credentials; you can use other items.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. In the Per-Session Policy column, click the
    Edit
    link for the access profile you want to configure.
    The visual policy editor opens the access policy in a separate screen.
  3. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  4. On the Logon tab, select
    Logon Page
    and click the
    Add Item
    button.
    The Logon Page Agent properties screen opens.
  5. Click
    Save
    .
    The properties screen closes and the policy displays.
  6. On a policy branch, click the
    (+)
    icon to add an item to the policy.
  7. On the Assignment tab, select
    SSO Credential Mapping
    and click
    Add Item
    .
    A properties screen opens.
  8. Click
    Save
    .
    The properties screen closes and the policy displays.

Configuring Basic or NTLM SSO to the next hop

Before you start, you need to have configured:
  • An HTTP Basic, NTLMv1, or NTLMv2 SSO configuration.
    SSO configurations are configured in the
    Access
    Single Sign-On
    area of the product.
  • A pool of proxy servers, each of which is configured for the same forward proxy mode: explicit or transparent.
    Pools are configured in the
    Local Traffic
    Pools
    area of the product.
To support SSO from Access Policy Manager (APM) in a forward proxy chain, you configure a per-request policy to select an SSO configuration and later select the next hop.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  5. On the General Purpose tab, select
    SSO Configuration Select
    and click
    Add Item
    .
    A Properties screen opens.
  6. From
    SSO Configuration Name
    , select an SSO configuration, and click
    Save
    .
    The properties screen closes. The visual policy editor opens.
  7. Add any additional items you want to the policy.
  8. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  9. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  10. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  11. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  12. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  13. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.

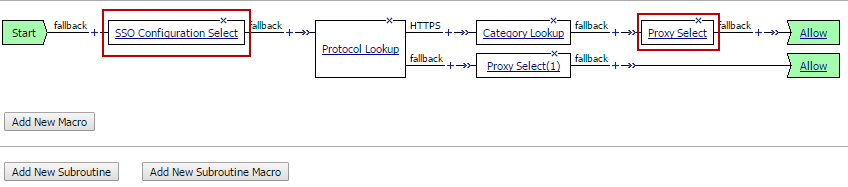

Example per-request policy with SSO Configuration Select and Proxy Select
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Configuration constraints for SSO to a resource server

Access Policy Manager (APM®) does not support SSO to a resource server for SSL bypass traffic when the resource server performs authentication.

Overview: Configuring Kerberos SSO to the next hop

Access Policy Manager (APM®) supports the HTTP Basic, Kerberos, NTLMv1, and NTLMv2 types of SSO configuration to and behind a next hop proxy server. This example specifies the configuration you need for Kerberos single sign-on to the next hop in a forward proxy chain.
APM does not support Kerberos SSO to a proxy server for HTTPS traffic.

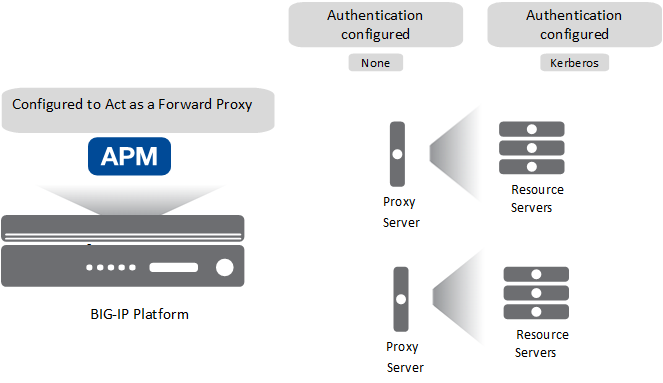

Expected initial configuration

Task summary

For Kerberos SSO, you need a delegation account in Active Directory for the next hop proxy server and a Kerberos SSO configuration in APM that references the delegation account.
For forward proxy chaining, you need an access policy to authenticate the user and cache credentials. You need a per-request policy to specify an SSO configuration and select the next hop proxy.

Task list

Configuring a delegation account for the next hop proxy server

To support SSO to a next hop proxy server with Kerberos authentication configured on it, you need a delegation account in Active Directory for the next hop proxy server.
  1. Open the Active Directory Users and Computers administrative tool, and create a new user account.
    The user account should be dedicated for delegation, and the
    Password never expires
    setting enabled.
  2. Set the service principal name (SPN) on the Windows server for the user account.
    For the support tools that you can use and for the commands that you can use, such as
    setspn
    and
    ktpass
    , refer to Microsoft documentation.
    If you use the
    ktpass
    command, it sets the SPN on the Windows server and creates a keytab file. Access Policy Manager (APM) Kerberos SSO does not need or use a keytab file.
  3. Verify the result of setting the SPN.
    This example is purely for illustration. Refer to Microsoft documentation for up-to-date commands and correct usage.
    C:\Users\Administrator>
    setspn
    -L
    apm4
    Registered ServicePrincipalNames for CN=fproxy1,OU=users,DC=myhostname,DC=lab,DC=mynet,DC=com: HTTP/fproxy1.myhostname.lab.mynet.com
    where
    fproxy1
    is the name of the user account that you created.
  4. Take note of the service principal name.
    You will need to type the service principal name in the Kerberos SSO configuration that you create in APM.
  5. Return to the Active Directory Users and Computers screen to open your account again.
    A Delegation tab should appear.
  6. Click the Delegation tab.
  7. Select
    Trust this user for delegation to specified services only
    .
  8. Select
    Use any authentication protocol
    , and add all your services to the list under
    Services to which this account can present delegated credentials
    .
    Every service should have Service Type HTTP (or http) and host name of the forward proxy server that you will use in your configuration.
  9. Click
    OK
    .
    This creates the new delegation account.

Configuring APM Kerberos SSO for the next hop proxy server

Before you start, you must have configured a delegation account in Active Directory for the next hop proxy server.
To support Kerberos single sign-on to a next hop proxy server from Access Policy Manager (APM), you must create a Kerberos SSO configuration.
To complete this task, you need to know the service principal name (SPN) for the delegation account.
  1. On the Main tab, click
    Access
    Single Sign-On
    Kerberos
    .
    The Kerberos screen opens.
  2. Click
    Create
    .
    The New SSO Configuration screen opens.
  3. In the
    Name
    field, type a name for the SSO configuration.
    The maximum length of a single sign-on configuration is 225 characters, including the partition name.
  4. From the
    Log Setting
    list, select one of the following options:
    • Select an existing APM log setting.
    • Click
      Create
      to create a new log setting.
  5. In the Credentials Source area, specify the credentials that you want cached for Single Sign-On.
  6. In the
    Kerberos Realm
    field, type the name of the realm in uppercase.
    For example, type
    MYHOSTNAME.LAB.MYNET.COM
    .
  7. In the
    Account Name
    field, type the name of the Active Directory account configured for delegation.
    Type the account name in SPN format.
    In this example
    HTTP/fproxy1.myhostname.lab.mynet.com@MYHOSTNAME.LAB.MYNET.COM
    ,
    fproxy1
    is the delegation account,
    fproxy1.myhostname.lab.mynet.com
    is its fully qualified domain name, and
    MYHOSTNAME.LAB.MYNET.COM
    is the realm.
  8. In the
    Account Password
    and
    Confirm Account Password
    fields, type the delegation account password.
  9. Click
    Finished
    .

Configuring an access policy for Kerberos SSO

You configure an access policy to support single sign-on to a next hop proxy server or to a resource server that has Kerberos authentication configured on it.
You need a logon item to collect credentials in this policy. You can use
HTTP 407 Response
(for explicit forward proxy), or
Logon Page
, or
HTTP 401 Response
(for transparent forward proxy). This example uses
HTTP 401 Response
.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. Locate the access profile for the forward proxy configuration you are updating.
    Look in the
    Profile Type
    field for
    SWG-Explicit
    or
    SWG-Transparent
    .
  3. In the Per-Session Policy column, click the
    Edit
    link.
    The visual policy editor opens the access policy in a separate screen.
  4. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  5. On the Logon tab, select
    HTTP 401 Response
    and click
    Add Item
    .
    A Properties screen opens.
  6. From the
    HTTP Auth Level
    list, select
    negotiate
    and click
    Save
    .
    In a transparent forward proxy configuration, APM does not support Kerberos request-based authentication
    The properties screen closes.
  7. Click the
    (+)
    icon on the
    negotiate
    branch.
    A popup screen opens.
  8. For Kerberos authentication to work correctly with forward proxy, you must assign the domain name for the forward proxy virtual server to a session variable:
    1. On the Assignment tab, select
      Variable Assign
      and click
      Add Item
      .
    2. Click
      Add new entry
      .
      An
      empty
      entry appears in the Assignment table.
    3. Click the
      change
      link in the new entry.
      A popup screen opens.
    4. In the left pane, retain the selection of
      Custom Variable
      and type this variable name:
      session.server.network.name
      .
    5. In the right pane, in place of
      Custom Variable
      , select
      Text
      and type the domain name for the proxy virtual server.
    6. Click
      Finished
      .
      The popup screen closes.
    7. Click
      Save
      .
      The properties screen closes. The policy displays.
  9. On a policy branch, click the
    (+)
    icon to add an item to the policy.
  10. On the Assignment tab, select
    SSO Credential Mapping
    and click
    Add Item
    .
    A properties screen opens.
  11. Click
    Save
    .
    The properties screen closes and the policy displays.

Configuring a per-request policy for Kerberos SSO

Before you start, you need to have configured a pool of proxy servers, each of which is configured for the same forward proxy mode: explicit or transparent. (Pools are configured in the
Local Traffic
Pools
area of the product.)
To support SSO in a forward proxy chain, you configure a per-request policy that selects a supported SSO configuration and later selects the next hop.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. Click the
    (+)
    icon anywhere in the subroutine to add a new item.
    A small set of actions are provided for building a subroutine.
    A popup screen displays actions on tabs, such as General Purpose and Authentication, and provides a search field.
  5. On the General Purpose tab, select
    SSO Configuration Select
    and click
    Add Item
    .
    A Properties screen displays.
  6. From
    SSO Configuration Name
    , select a Kerberos SSO configuration.
  7. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  8. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
  9. Add any additional items you want to the policy.
  10. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  11. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  12. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  13. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  14. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  15. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Per-request policy that selects SSO before selecting a next hop proxy server
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Overview: Configuring Kerberos SSO to a resource server

Access Policy Manager (APM®) supports the HTTP Basic, Kerberos, NTLMv1, and NTLMv2 types of SSO configuration to and behind a next hop proxy server. This example specifies the configuration you need for Kerberos single sign-on to a resource server after the next hop in a forward proxy chain.
APM supports this configuration for HTTP traffic only.
Expected initial configuration

Task summary

For Kerberos SSO, you need a delegation account in Active Directory for the next hop proxy server and a Kerberos SSO configuration in APM that references the delegation account and specifies
On 401 Status Code
as the value for the
Send Authentication
setting.
For forward proxy chaining, you need an access policy to authenticate the user and cache credentials. You need a per-request policy to specify an SSO configuration and select the next hop proxy.

Task list

Setting up a delegation account to support Kerberos SSO

Before you can configure Kerberos SSO in Access Policy Manager, you must create a delegation account in Active Directory.
For every server realm, you must create a delegation account in that realm.
  1. Open the Active Directory Users and Computers administrative tool and create a new user account.
    The user account should be dedicated for delegation, and the
    Password never expires
    setting enabled.
  2. Set the service principal name (SPN) on the Windows server for the user account.
    For the support tools that you can use, and for the commands, such as
    setspn
    and
    ktpass
    , refer to Microsoft documentation.
    If you use the
    ktpass
    command, it sets the SPN on the Windows server and creates a keytab file. APM Kerberos SSO does not need or use a keytab file.
  3. Verify the result of setting the SPN.
    This example is purely for illustration. Refer to Microsoft documentation for up-to-date commands and correct usage.
    C:\Users\Administrator>
    setspn
    -L
    apm4
    Registered ServicePrincipalNames for CN=apm4,OU=users,DC=yosemite,DC=lab,DC=dnet,DC=com: HTTP/apm4.yosemite.lab.dnet.com
    where
    apm4
    is the name of the user account that you created.
  4. Return to the Active Directory Users and Computers screen to open your account again.
    A Delegation tab should appear.
  5. Click the Delegation tab.
  6. Select
    Trust this user for delegation to specified services only
    .
  7. Select
    Use any authentication protocol
    , and add all your services to the list under
    Services to which this account can present delegated credentials
    .
    Every service should have Service Type HTTP (or http) and host name of the pool member or web application resource host that you will use in your configuration.
  8. Click
    OK
    .
    This creates the new delegation account.

Configuring APM Kerberos SSO for a resource server

Before you start, you must have configured a delegation account in Active Directory for Access Policy Manager (APM) .
To support Kerberos single sign-on authentication from Access Policy Manager (APM) to a resource server, you must create a Kerberos SSO configuration with the
Send Authentication
field set to
On 401 Status Code
.
To complete this task, you need to know the service principal name (SPN) for the delegation account.
  1. On the Main tab, click
    Access
    Single Sign-On
    Kerberos
    .
    The Kerberos screen opens.
  2. Click
    Create
    .
    The New SSO Configuration screen opens.
  3. In the
    Name
    field, type a name for the SSO configuration.
    The maximum length of a single sign-on configuration is 225 characters, including the partition name.
  4. From the
    Log Setting
    list, select one of the following options:
    • Select an existing APM log setting.
    • Click
      Create
      to create a new log setting.
  5. In the Credentials Source area, specify the credentials that you want cached for Single Sign-On.
  6. In the
    Kerberos Realm
    field, type the name of the realm in uppercase.
    For example, type
    MY.HOST.LAB.MYNET.COM
    .
  7. In the
    Account Name
    field, type the name of the Active Directory account configured for delegation.
    Type the account name in SPN format.
    In this example
    HTTP/apm4.my.host.lab.mynet.com@MY.HOST.LAB.MYNET.COM
    ,
    apm4
    is the delegation account,
    apm4.my.host.lab.mynet.com
    is its fully qualified domain name, and
    MY.HOST.LAB.MYNET.COM
    is the realm.
  8. In the
    Account Password
    and
    Confirm Account Password
    fields, type the delegation account password.
  9. For
    Send Authorization
    , select
    On 401 Status Code
    .
  10. Click
    Finished
    .

Configuring an access policy for Kerberos SSO

You configure an access policy to support single sign-on to a next hop proxy server or to a resource server that has Kerberos authentication configured on it.
You need a logon item to collect credentials in this policy. You can use
HTTP 407 Response
(for explicit forward proxy), or
Logon Page
, or
HTTP 401 Response
(for transparent forward proxy). This example uses
HTTP 401 Response
.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. Locate the access profile for the forward proxy configuration you are updating.
    Look in the
    Profile Type
    field for
    SWG-Explicit
    or
    SWG-Transparent
    .
  3. In the Per-Session Policy column, click the
    Edit
    link.
    The visual policy editor opens the access policy in a separate screen.
  4. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  5. On the Logon tab, select
    HTTP 401 Response
    and click
    Add Item
    .
    A Properties screen opens.
  6. From the
    HTTP Auth Level
    list, select
    negotiate
    and click
    Save
    .
    In a transparent forward proxy configuration, APM does not support Kerberos request-based authentication
    The properties screen closes.
  7. Click the
    (+)
    icon on the
    negotiate
    branch.
    A popup screen opens.
  8. For Kerberos authentication to work correctly with forward proxy, you must assign the domain name for the forward proxy virtual server to a session variable:
    1. On the Assignment tab, select
      Variable Assign
      and click
      Add Item
      .
    2. Click
      Add new entry
      .
      An
      empty
      entry appears in the Assignment table.
    3. Click the
      change
      link in the new entry.
      A popup screen opens.
    4. In the left pane, retain the selection of
      Custom Variable
      and type this variable name:
      session.server.network.name
      .
    5. In the right pane, in place of
      Custom Variable
      , select
      Text
      and type the domain name for the proxy virtual server.
    6. Click
      Finished
      .
      The popup screen closes.
    7. Click
      Save
      .
      The properties screen closes. The policy displays.
  9. On a policy branch, click the
    (+)
    icon to add an item to the policy.
  10. On the Assignment tab, select
    SSO Credential Mapping
    and click
    Add Item
    .
    A properties screen opens.
  11. Click
    Save
    .
    The properties screen closes and the policy displays.

Configuring a per-request policy for Kerberos SSO

Before you start, you need to have configured a pool of proxy servers, each of which is configured for the same forward proxy mode: explicit or transparent. (Pools are configured in the
Local Traffic
Pools
area of the product.)
To support SSO in a forward proxy chain, you configure a per-request policy that selects a supported SSO configuration and later selects the next hop.
If you include
SSL Intercept
or
SSL Bypass
agents in the policy, be sure to place them before other agents.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. To create a new per-request policy, click
    Create
    , type a name that is unique among all access profiles and per-request policies, select the accepted languages, and click
    Finished
    .
  3. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  4. Click the
    (+)
    icon anywhere in the subroutine to add a new item.
    A small set of actions are provided for building a subroutine.
    A popup screen displays actions on tabs, such as General Purpose and Authentication, and provides a search field.
  5. On the General Purpose tab, select
    SSO Configuration Select
    and click
    Add Item
    .
    A Properties screen displays.
  6. From
    SSO Configuration Name
    , select a Kerberos SSO configuration.
  7. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  8. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
  9. Add any additional items you want to the policy.
  10. Click the
    (+)
    icon anywhere in the per-request policy to add a new item.
  11. On the Traffic Management tab, select
    Proxy Select
    and click
    Add Item
    .
    A Properties popup screen opens.
  12. From the
    Pool
    list, select a pool of one or more proxy servers to serve as the next hop.
    All proxy servers in the pool that you select must support the forward proxy mode that you specify in the
    Upstream Proxy Mode
    setting.
  13. From
    Upstream Proxy Mode
    , select:
    • Explicit
      if the proxy servers in the pool support explicit forward proxy.
    • Transparent
      if the proxy servers in the pool support transparent forward proxy.
  14. For
    Username
    and
    Password
    , most of the time you can retain the default values (blank).
    These fields support the use of static credentials to authenticate the user at the next hop using HTTP Basic authentication.
  15. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
Per-request policy that selects SSO before selecting a next hop proxy server
Be sure to add a disabled HTTP Connect Profile to the virtual server that processes SSL traffic for the forward proxy configuration.
A per-request policy is not in effect unless it and an access profile are specified in virtual servers in the forward proxy configuration.

Configuration constraints for Kerberos SSO to a resource server

Access Policy Manager (APM®) does not support Kerberos SSO to a resource server for SSL traffic when: the resource server performs Kerberos authentication; and, the next hop proxy server simply passes the Kerberos credential to the resource server without performing Kerberos authentication.

Overview: Updating virtual servers for forward proxy chaining with APM

For forward proxy chaining, Access Policy Manager (APM®) requires an HTTP proxy connect profile configured with its state disabled. The HTTP proxy connect profile must be specified in the virtual server that processes the HTTPS traffic for the explicit or transparent forward proxy configuration.

Task summary

Disabling HTTP proxy connect for forward proxy chaining

For Access Policy Manager (APM) to support forward proxy chaining, you need an HTTP proxy connect profile with its default state disabled.
  1. On the Main tab, select
    Local Traffic
    Profiles
    Other
    HTTP Proxy Connect
    .
  2. Click
    Create
    .
  3. Type a name for the profile and, for the
    Parent Profile
    setting, retain
    http-proxy-connect
    .
  4. In the Settings area, for
    Default State
    clear the
    Enabled
    check box.
  5. Click
    Finished
    .

Updating a virtual server for forward proxy chaining with APM

For Access Policy Manager (APM) to support forward proxy chaining, you must specify an HTTP proxy connect profile on the virtual server that processes SSL traffic in the forward proxy configuration.
If this virtual server functions as a captive portal or processes HTTP traffic, you must retain the default value of
None
for the
HTTP Proxy Connect Profile
setting.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the name of the virtual server you want to modify.
  3. In the Configuration area from
    HTTP Proxy Connect Profile
    , select a profile that you know to be configured with the
    Default State
    setting disabled.
  4. Click
    Update
    to save the changes.

Virtual server Access Policy settings for forward proxy

F5 recommends multiple virtual servers for configurations where Access Policy Manager (APM) acts as an explicit or transparent forward proxy. This table lists forward proxy configurations, the virtual servers recommended for each, and whether an access profile and per-request policy should be specified on the virtual server.
Forward proxy
Recommended virtual servers (by purpose)
Specify access profile?
Specify per-request policy?
Explicit
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Yes
Yes
Reject traffic other than HTTP and HTTPS
N/A
N/A
Transparent Inline
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Only when a captive portal is also included in the configuration
Only when a captive portal is also included in the configuration
Forward traffic other than HTTP and HTTPS
N/A
N/A
Captive portal
Yes
No
Transparent
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Only when a captive portal is also included in the configuration
Only when a captive portal is also included in the configuration
Captive portal
Yes
No
