Manual Chapter

Configuring the BIG-IP System for Passive Monitoring

Overview: Configuring the BIG-IP System for Passive Monitoring

You can configure a physical interface on a BIG-IP ®system to operate in
passive mode
. In this mode, the interface accepts mirrored traffic from another device to collect data for analysis and intrusion detection.
The following hardware platform series do not support passive monitoring: 2000, 4000, i2000 and i4000.

Passive mode behavior

The BIG-IP system analyzes the mirrored traffic, drops it, and then sends the resulting analytics data and log messages to a remote analytics and logging server. The mirrored traffic never leaves the system, and the BIG-IP system never acts on the headers and payload.

Benefits of passive monitoring

You don't need to deploy the BIG-IP system in line with your BIG-IP application delivery controller (ADC), which means there's no need to make changes to your network infrastructure.

Sample configuration

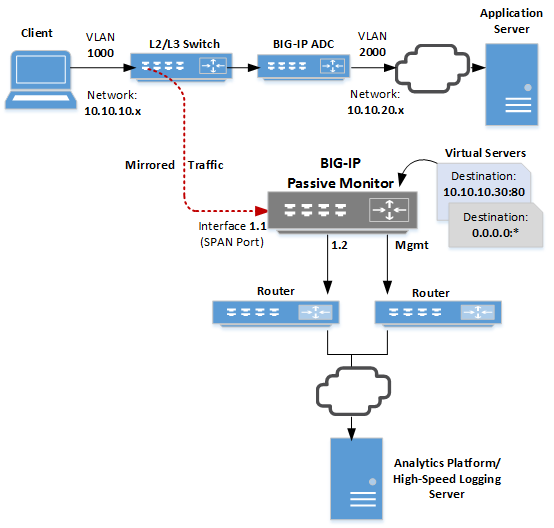

This illustration shows a configuration that includes a BIG-IP passive monitoring system.
As we see in the illustration, a Layer 2/Layer 3 switch receives client traffic on the
10.10.10.x
network. The traffic comes into the switch, which mirrors it to a SPAN port on the BIG-IP system. A
SPAN port
is an interface that can receive traffic mirrored to it from another device.
After analyzing the traffic, the BIG-IP system forwards all analytics data and log messages through interface
1.2
to a remote analytics and logging server and then discards its copy of the application traffic.
We've also configured two virtual servers to listen on the SPAN port. One virtual server listens for any mirrored HTTP traffic destined for a particular destination address on port 80, while the other listens for any traffic not caught by the HTTP virtual server.

Common use cases

Typical reasons for deploying a BIG-IP system as a passive monitoring device are:
  • To collect HTTP analytics data
  • To analyze mirrored traffic using a configured Application Security Manager (ASM) security policy. For more information, see the guide titled
    BIG-IP Application Security Manager: Implementations
    on the F5 website
    http://support.f5.com
    .
  • To collect application analytics data along with Subscriber-awareness made available by BIG-IP Policy Enforcement Manager (PEM)
  • To enable firewall services that report on possible infringements
  • To detect denial-of-service attacks with signaling to some external entity for triggering actions
  • To perform intrusion detection services
  • To perform behavioral analysis

Prerequisite configuration

Before you set up a BIG-IP system as a passive monitoring system, make sure you have configured these things:
  • A network device, such as a Layer 2/Layer 3 switch, configured to receive client application traffic and mirror it to the BIG-IP passive monitoring system.
  • A user account with a user role that grants permission to perform all tasks (Administrator, Resource Administrator, or Manager).
  • Provisioned the optional BIG-IP AVR module.

Other considerations

  • A BIG-IP system operating in passive mode can accept mirrored traffic either raw or tunneled. In the case of tunneled traffic, the tunnel must be terminated on the BIG-IP system prior to the system analyzing the traffic.
  • Global statistics do not differentiate between mirrored traffic and active traffic. However, statistics for an individual virtual server do differentiate between mirrored and active traffic because a virtual server applies to one type of traffic only.
  • Passive mode is not available for interfaces on certain blade models.
  • A trunk on which Link Aggregation Control Protocol (LACP) is enabled cannot operate as a passive monitoring interface.
  • When you assign a passive monitoring interface to a BIG-IP VLAN, any self IP addresses associated with that VLAN will no longer respond to ARP requests.

Task summary for passive monitoring

To configure the system to do passive monitoring, you designate an interface on the BIG-IP passive monitoring system as a SPAN port and assign the interface to the ingress VLAN. Then, you configure a Fast L4 profile to disable SYN cookie support and Packet Velocity® Asic (PVA) acceleration. Finally, you set up whatever virtual servers you need to listen for mirrored traffic.
The result is that the system will analyze ingress traffic and send log messages and analytics data to a remote analytics and high-speed logging server.
The following hardware platform series do not support passive monitoring: 2000, 4000, i2000 and i4000.

Configure an interface for passive monitoring

You can designate a physical interface on the BIG-IP ® system as a SPAN port. A
SPAN port
receives mirrored traffic for the purpose of doing passive monitoring of that traffic. Through passive monitoring, the system can collect data for the purpose of analytics or intrusion detection.
You can configure a trunk for passive monitoring. In this case, you must set the
Forwarding Mode
to
Passive
separately on each link of the trunk.
  1. On the Main tab, click
    Network
    Interfaces
    Interface List
    .
    The Interface List screen displays the list of interfaces on the system.
  2. In the Name column, click an interface number.
    This displays the properties of the interface.
  3. For the
    State
    setting, verify that the interface is set to
    Enabled
    .
  4. From the
    Forwarding Mode
    list, select
    Passive
    .
    If you do not see the
    Passive
    option, your hardware platform does not support passive monitoring. The following hardware platform series do not support passive monitoring: 2000, 4000, i2000 and i4000.
  5. Click the
    Update
    button.
After you do this task, an interface on a passive monitoring system can receive mirrored traffic from another network device.
Be sure to assign the interface to a VLAN. Otherwise, the interface remains in an uninitialized state.

Create a BIG-IP VLAN to accept mirrored traffic

Before performing this task, make sure that you have configured a VLAN with a tagged interface on the upstream switch that will mirror ingress application traffic and send it to this BIG-IP system.
For any BIG-IP interface that you've configured to receive mirrored application traffic, you must create a VLAN and assign the interface to the VLAN.
  1. On the Main tab, click
    Network
    VLANs
    .
    The VLAN List screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a name for the VLAN.
  4. In the
    VLAN ID
    field, type the same VLAN ID that you configured on the VLAN of the upstream switch that will send mirrored traffic to this BIG-IP system.
  5. For the
    Interfaces
    setting:
    1. From the
      Interface
      list, select the interface that you previously set to
      Passive
      forwarding mode.
    2. From the
      Tagging
      list, select
      Tagged
      .
      This is the recommended configuration.
    3. Click
      Add
      .
  6. Click
    Finished
    .
The BIG-IP system now has a VLAN capable of receiving mirrored application traffic from an an upstream switch on the network.

Configure a Fast L4 traffic filter for passive monitoring

You create a Fast L4 profile to disable the Packet Velocity® ASIC settings and disable the
SYN Challenge Handling
setting.
  1. On the Main tab, click
    Local Traffic
    Profiles
    Protocol
    Fast L4
    .
    The screen displays a list of Fast L4 profiles.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a name for the profile.
    An example of a profile name is
    my_http_fastl4_profile
    .
  4. On the right side of the screen, select the
    Custom
    check box.
  5. From the
    PVA Acceleration
    list, select
    None
    .
  6. Confirm that the
    PVA Flow Aging
    check box is cleared.
  7. Confirm that the
    PVA Flow Evict
    check box is cleared.
  8. For the
    PVA Offload Dynamic
    setting, clear the check box.
  9. From the
    SYN Challenge Handling
    list, select
    Disable Challenges
    .
  10. Click
    Finished
    .
After completing these steps, the BIG-IP system has a Fast L4 profile for filtering mirrored traffic coming into the system through a SPAN port.

Create a virtual server for mirrored HTTP traffic

Before you create the virtual server, make sure that you have provisioned the BIG-IP AVR module.
You create an HTTP virtual server (also known as a listener) on a BIG-IP passive monitoring device to intercept specific mirrored HTTP traffic. This is traffic that you want to collect analytics and intrustion detection data on and then forward the data to a remote server.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click
    Create
    .
    The New Virtual Server screen opens.
  3. In the
    Name
    field, type a unique name for the virtual server.
  4. From the
    Type
    list, select
    Performance (Layer 4)
    .
  5. In the
    Source Address
    field, type
    0.0.0.0/0
    .
  6. In the
    Destination Address
    field, type the destination address found in the destination IP address header of specific HTTP traffic that gets mirrored to the BIG-IP passive monitoring system.
    For example, if client traffic is destined for the IP address
    10.10.10.30
    , the BIG-IP passive monitoring system can listen for mirrored traffic with this destination address in its header in order to receive and analyze the mirrored traffic.
  7. In the
    Service Port
    field, type
    80
    , or select
    HTTP
    from the list.
  8. From the
    Configuration
    list, select
    Advanced
    .
  9. From the
    Protocol
    list, select
    TCP
    .
  10. From the
    Protocol Profile (Client)
    list, select the name of the Fast L4 profile you created earlier.
  11. From the
    HTTP Profile (Client)
    list, select the default HTTP profile named
    http
    .
    If you'd rather assign a custom profile, create a new HTTP profile before you create this virtual server, and then select the profile from this list.
  12. From the
    HTTP Profile (Server)
    list, select
    Use Client Profile
    .
  13. From the
    VLAN and Tunnel Traffic
    list, retain the default selection,
    All VLANs and Tunnels
    .
  14. For the
    Address Translation
    setting, verify that the check box is cleared.
  15. For the
    Port Translation
    setting, verify that the check box is cleared.
  16. From the
    HTTP Analytics Profile
    list, select
    analytics
    .
  17. From the
    TCP Analytics Profile
    list, select
    tcp-analytics
    .
  18. Click
    Finished
    .
You now have a virtual server configured to accept specific HTTP traffic coming into the interface designated as a SPAN port.

Create a virtual server for non-specific mirrored traffic

Before you create the virtual server, make sure that you have provisioned the BIG-IP AVR module.
You can create a wildcard virtual server (also known as a listener) on the BIG-IP passive monitoring device. The purpose of a
wildcard virtual server
is to intercept any mirrored traffic that the other virtual servers on the BIG-IP passive monitoring device don't already intercept. Once the wildcard virtual server receives the traffic, it can monitor the traffic for analytics and intrusion detection.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click
    Create
    .
    The New Virtual Server screen opens.
  3. In the
    Name
    field, type a unique name for the virtual server.
  4. From the
    Type
    list, select
    Performance (Layer 4)
    .
  5. In the
    Source Address
    field, type
    0.0.0.0/0
    .
  6. In the
    Destination Address
    field, type
    0.0.0.0
    to accept any IPv4 traffic.
  7. In the
    Service Port
    field, type
    *
    or select
    * All Ports
    from the list.
  8. From the
    Configuration
    list, select
    Advanced
    .
  9. From the
    Protocol
    list, select
    TCP
    .
  10. From the
    Protocol Profile (Client)
    list, select the name of the Fast L4 profile you created for filtering mirrored traffic.
  11. From the
    VLAN and Tunnel Traffic
    list, retain the default selection,
    All VLANs and Tunnels
    .
  12. For the
    Address Translation
    setting, verify that the check box is cleared.
  13. For the
    Port Translation
    setting, verify that the check box is cleared.
  14. From the
    TCP Analytics Profile
    list, select
    tcp-analytics
    .
  15. Click
    Finished
    .
You now have a virtual server configured to accept all traffic coming in through the interface designated as a SPAN port, except for traffic that specifically matches another virtual server on the system.

Create a pool of remote logging servers

Before creating a pool of log servers, gather the IP addresses of the servers that you want to include in the pool. Ensure that the remote log servers are configured to listen to and receive log messages from the BIG-IP system.
You create a pool of remote log servers to which the BIG-IP system can send log messages.
  1. On the Main tab, click the applicable path.
    • DNS
      Delivery
      Load Balancing
      Pools
    • Local Traffic
      Pools
    The Pool List screen opens.
  2. Click
    Create
    .
    The New Pool screen opens.
  3. In the
    Name
    field, type a unique name for the pool.
  4. Using the
    New Members
    setting, add the IP address for each remote logging server that you want to include in the pool:
    1. Type an IP address in the
      Address
      field, or select a node address from the
      Node List
      .
    2. Type a service number in the
      Service Port
      field, or select a service name from the list.
      Typical remote logging servers require port
      514
      .
    3. Click
      Add
      .
  5. Click
    Finished
    .

Create a remote high-speed log destination

Before creating a remote high-speed log destination, ensure that at least one pool of remote log servers exists on the BIG-IP system.
You create a log destination of the
Remote High-Speed Log
type to specify that log messages are sent to a pool of remote log servers.
  1. On the Main tab, click
    System
    Logs
    Configuration
    Log Destinations
    .
    The Log Destinations screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a unique, identifiable name for this destination.
  4. From the
    Type
    list, select
    Remote High-Speed Log
    .
    If you use log servers such as Remote Syslog, Splunk, or ArcSight, which require data be sent to the servers in a specific format, you must create an additional log destination of the required type, and associate it with a log destination of the
    Remote High-Speed Log
    type. With this configuration, the BIG-IP system can send data to the servers in the required format.
    The BIG-IP system is configured to send an unformatted string of text to the log servers.
  5. From the
    Pool Name
    list, select the pool of remote log servers to which you want the BIG-IP system to send log messages.
  6. From the
    Protocol
    list, select the protocol used by the high-speed logging pool members.
  7. Click
    Finished
    .

Create a formatted remote high-speed log destination

Before you start this task, ensure that at least one remote high-speed log destination exists on the BIG-IP system.
You create a formatted logging destination to specify that log messages are sent to a pool of remote log servers, such as Remote Syslog, Splunk, or ArcSight servers.
  1. On the Main tab, click
    System
    Logs
    Configuration
    Log Destinations
    .
    The Log Destinations screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a unique, identifiable name for this destination.
  4. From the
    Type
    list, select a formatted logging destination, such as
    IPFIX
    ,
    Remote Syslog
    ,
    Splunk
    , or
    ArcSight
    .
    ArcSight formatting is only available for logs coming from Advanced Firewall Manager (AFM), Application Security Manager (ASM), and the Secure Web Gateway component of Access Policy Manager (APM). IPFIX is not available for Secure Web Gateway. Remote Syslog formatting is the only type supported for logs coming from APM. The Splunk format is a predefined format of key value pairs.
    The BIG-IP system is configured to send a formatted string of text to the log servers.
  5. If you selected
    Remote Syslog
    , then from the
    Syslog Format
    list select a format for the logs, and then from the
    High-Speed Log Destination
    list, select the destination that points to a pool of remote Syslog servers to which you want the BIG-IP system to send log messages.
    For logs coming from Access Policy Manager (APM), only the BSD Syslog format is supported.
  6. If you selected
    Splunk
    or
    IPFIX
    , then from the
    Forward To
    list, select the destination that points to a pool of high-speed log servers to which you want the BIG-IP system to send log messages.
  7. Click
    Finished
    .

Create a publisher

Before you start this task, ensure that at least one destination associated with a pool of remote log servers exists on the BIG-IP system.
You can create a publisher to specify where the BIG-IP system sends log messages for specific resources.
  1. On the Main tab, click
    System
    Logs
    Configuration
    Log Publishers
    .
    The Log Publishers screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a unique, identifiable name for this publisher.
  4. For the
    Destinations
    setting, select a destination from the
    Available
    list, and move the destination to the
    Selected
    list.
    If you are using a formatted destination, select the destination that matches your log servers, such as Remote Syslog, Splunk, or ArcSight.
  5. Click
    Finished
    .

Create a logging filter

Before you start this task, ensure that at least one log publisher is configured on the BIG-IP system.
You create a custom log filter to specify the system log messages that you want to publish to a particular log.
  1. On the Main tab, click
    System
    Logs
    Configuration
    Log Filters
    .
    The Log Filters screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a unique, identifiable name for this filter.
  4. From the
    Severity
    list, select the level of alerts that you want the system to use for this filter.
    The severity level that you select includes all of the severity levels that display above your selection in the list. For example, if you select
    Emergency
    , the system publishes only emergency messages to the log. If you select
    Critical
    , the system publishes critical, alert, and emergency-level messages in the log.
  5. From the
    Source
    list, select the system processes from which messages will be sent to the log.
  6. In the
    Message ID
    field, type the first eight hex-digits of the specific message ID that you want the system to include in the log. Use this field when you want a log to contain only each instance of one specific log message.
    BIG-IP system log messages contain message ID strings in the format:
    xxxxxxxx:x:
    . For example, in this log message:
    Oct 31 11:06:27 olgavmmgmt notice mcpd[5641]: 01070410:5: Removed subscription with subscriber id lind
    , the message ID string is:
    01070410:5:
    . You enter only the first eight hex-digits:
    01070410
    .
  7. From the
    Log Publisher
    list, select the publisher that includes the destinations to which you want to send log messages.
  8. Click
    Finished
    .

Disable system logging

When you no longer want the BIG-IP system to log information about its internal systems, you can delete the log filter that you created. For example, when mitigating a DoS attack, if you created a log filter that includes only one specific message in the log, you can delete that log filter once you handle the attack.
  1. On the Main tab, click
    System
    Logs
    Configuration
    Log Filters
    .
    The Log Filters screen opens.
  2. Select the check box next to the name of the log filter that you want to delete. Click
    Delete
    , and then click
    Delete
    again.
