Manual Chapter

Synchronizing Access Policies

Overview: Syncing access policies with a Sync-Only device group

Syncing access policies from one BIG-IP Access Policy Manager® (APM®) device to another Access Policy Manager device, or to multiple devices in a device group, allows you to maintain up-to-date access policies on multiple APM devices, while adjusting appropriate settings for objects that are specific to device locations.
To synchronize access policies between multiple devices, you configure a Sync-Only device group that includes the devices between which you want to synchronize access policies.
To add devices to a device group, the devices must all belong to the same trust domain.
For policy sync to work seamlessly, the Sync-Only device group configuration must specify an automatic type of sync. However, the process to perform a policy sync remains manual. The process involves selecting an access policy, running a sync, and resolving conflicts as needed.

Task summary

Understanding policy sync device group setup for Active-Standby pairs

To add devices to a device group, all devices must belong to the same local trust domain. If you want to sync access policies with a device that does not belong to the local trust domain, but also belongs to a Sync-Failover group, you must reset the trust between the devices and remove them from the Sync-Failover device group. (For more information, see
BIG-IP Device Service Clustering: Administration
on the AskF5 web site located at
http://support.f5.com/
.)
After you establish device trust between your BIG-IP system and the devices, you can add them to a Sync-Failover group again.

Understanding policy sync for Active-Standby pairs

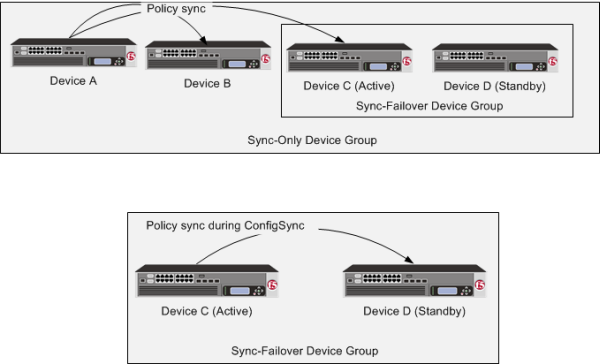

Access policy synchronization in Sync-Only and Sync-Failover device groups
Policy sync during ConfigSync for Active-Standby pair

Before you configure device trust

Before you configure device trust, you should consider the following:
  • Only version 11.x or later systems can join the local trust domain.
  • You can manage device trust when logged in to a certificate signing authority only. You cannot manage device trust when logged in to a subordinate non-authority device.
  • If you reset trust authority on a certificate signing authority by retaining the authority of the device, you must subsequently recreate the local trust domain and the device group.
  • As a best practice, you should configure the ConfigSync and mirroring addresses on a device before you add that device to the trust domain.

Establishing device trust

Before you begin this task, verify that:
  • Each BIG-IP device that is to be part of the local trust domain has a device certificate installed on it.
  • The local device is designated as a certificate signing authority.
You perform this task to establish trust among devices on one or more network segments. Devices that trust each other constitute the
local trust domain
. A device must be a member of the local trust domain prior to joining a device group.
By default, the BIG-IP software includes a local trust domain with one member, which is the local device. You can choose any one of the BIG-IP devices slated for a device group and log into that device to add other devices to the local trust domain. For example, devices
Bigip_1
,
Bigip_2
, and
Bigip_3
each initially shows only itself as a member of the local trust domain. To configure the local trust domain to include all three devices, you can simply log into device
Bigip_1
and add devices
Bigip_2
and
Bigip_3
to the local trust domain; there is no need to repeat this process on devices
Bigip_2
and
Bigip_3
.
  1. On the Main tab, click
    Device Management
    Device Trust
    Device Trust Members
    .
  2. Click
    Add
    .
  3. From the
    Device Type
    list, select
    Peer
    or
    Subordinate
    .
  4. Type a device IP address, administrator user name, and administrator password for the remote BIG-IP device with which you want to establish trust. The IP address you specify depends on the type of BIG-IP device:
    • If the BIG-IP device is an appliance, type a management IP address (IPv4 or IPv6) for the device.
    • If the BIG-IP device is a VIPRION device that is not licensed and provisioned for vCMP, type a primary cluster management IP address (IPv4 or IPv6) for the cluster.
    • If the BIG-IP device is a VIPRION device that is licensed and provisioned for vCMP, then type a cluster management IP address (IPv4 or IPv6) for the guest.
    • If the BIG-IP device is an Amazon Web Services EC2 device, type one of the Private IP addresses created for this EC2 instance.
  5. Click
    Retrieve Device Information
    .
  6. Verify that the certificate of the remote device is correct, and then click
    Device Certificate Matches
    .
  7. In the
    Name
    field, verify that the name of the remote device is correct.
  8. Click
    Add Device
    .
After you perform this task, the local device is now a member of the local trust domain. Also, the BIG-IP system automatically creates a special Sync-Only device group for the purpose of synchronizing trust information among the devices in the local trust domain, on an ongoing basis.
Repeat this task to specify each device that you want to add to the local trust domain.

Configuring a Sync-Only device group for access policy sync

You configure a device group with specific settings for use in synchronizing access policies across devices. You can perform this task on any BIG-IP device within the local trust domain.
When you initiate the sync of an access policy to a device group, the only device groups that you can select are those configured with the settings specified in this task.
  1. On the Main tab, click
    Device Management
    Device Groups
    .
  2. On the Device Groups list screen, click
    Create
    .
    The New Device Group screen opens.
  3. In the
    Name
    field, type a name for the device group.
  4. From the
    Group Type
    list, select
    Sync-Only
    .
  5. For the
    Members
    setting, select a host name from the
    Available
    list for each BIG-IP device that you want to include in the device group. Use the Move button to move the host name to the
    Includes
    list.
    The list shows any devices that are members of the device's local trust domain.
  6. From the
    Sync Type
    list, select one of these options:
    • Automatic with Incremental Sync
      - F5 Networks recommends that you select this option for optimal performance.
    • Automatic with Full Sync
  7. Click
    Finished
    .
You now have a device group that you can select when you initiate policy sync for an access policy.

Synchronizing a policy across devices initially

After you set up a sync-only device group for your Access Policy Manager devices, you can sync a policy from one device to other devices in the group. You can perform a policy sync from any device in the group.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Policy Sync
    .
    A list of policies and related sync status information opens. The sync status is either:
    Policies with no sync pending
    No synchronization is currently in progress for policies on this list.
    Policies with sync pending
    A synchronization is in progress for these policies. Select a policy from this list to view the Sync Details or Resolve Conflicts panel for it.
  2. Select a policy and click the
    Sync Policy
    button.
    The
    Policy Sync
    screen opens.
  3. From the
    Device Group
    list, select the device group to which to sync the policy.
    This list displays only Sync-Only device groups with automatic sync and full sync enabled.
  4. In the
    Description
    field, type a description of the reason for the policy sync operation.
  5. From the
    Ignore errors due to Variable Assign Agent during sync
    list, select whether to ignore errors caused by syncing the variable assign agent.
    If the policy includes a Variable Assign action, errors occur when resources are missing from the target device. If you select
    Yes
    , you might need to manually configure the resources on the target device.
  6. Click
    Sync
    .
    The sync process begins.
The policy is synced between devices in the device group.
A policy sync operation takes 25-30 seconds, depending on the number of devices.

Configuring static resources with policy sync

A BIG-IP Access Policy Manager might exist in a different physical location from another BIG-IP in the same device group, and might use different resources that are specific to that location or local network. For example, different authentication servers might exist in each location. Configure static resources to set these static resources for devices in different locations.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Policy Sync
    .
    If policies are present and configured for sync, a list of policies and related sync status information opens.
  2. Select a policy and click the
    Sync Policy
    button.
    The
    Policy Sync
    screen opens.
  3. Click the
    Advanced Settings
    button, then click
    Static Resources
    .
    The list displays a name, type, and
    Location Specific
    check box for each resource. You might need to configure a location-specific resource differently on a remote system. With the Location Specific check box selected, the first time a resource is synced as part of a policy, you must resolve its configuration on the remote system. Subsequent policy sync operations do not modify a previously synced location-specific resource.
    Many resource types are marked as location-specific by default. If a resource is not location-specific in this configuration, clear the
    Location Specific
    check box.
  4. Click the
    OK
    button.
    The APM Policy Sync screen is displayed.
  5. Click the
    Sync
    button.
The policy is synced between devices in the device group.
If this is the first time you sync a policy with location-specific resources, or you have added location-specific resources to the policy sync operation, you must resolve the location-specific issues on each affected target system.

Configuring dynamic resources with policy sync

When policies are configured with the Variable Assign action, some dynamically assigned resources might not be available on sync target machines. You can specify that such resources are included in a policy sync operation and will be created on the target devices.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Policy Sync
    .
    A list of policies and related sync status information opens.
  2. Select a policy and click the
    Sync Policy
    button.
    The
    Policy Sync
    screen opens.
  3. Click the
    Advanced Settings
    button, then click
    Dynamic Resources
    .
    The list displays a name, type,
    Dynamic Resource
    , and
    Location Specific
    check box for each resource.
  4. Select the dynamic resources by clicking the check boxes.
  5. Click the
    OK
    button.
    The APM Policy Sync screen is displayed.
  6. Click the
    Sync
    button.
The policy is synced between devices in the device group.
Resolve the location-specific issues on each affected target system.

Resolving policy sync conflicts

After you sync a policy, you might need to resolve conflicts on the target devices. Conflicts occur when a policy contains new location-specific resources.
  1. On a target system that requires conflicts to be resolved, on the Main tab, click
    Access
    Profiles / Policies
    Policy Sync
    .
    A list of policies and related sync status information opens.
  2. From the
    Policies with Sync Pending
    list, select a policy for which you want to resolve conflicts.
    If conflicts exist, the Resolve Conflicts panel displays one entry and an Unresolved link for each location-specific or dynamic resource that is in conflict.
  3. Click an
    Unresolved
    link.
    A popup window opens displaying two panes.
    • A navigation pane with one or more groups of settings. In the navigation pane, an icon indicates that data is required.
    • A data entry pane in which you can type or select values. The data entry pane displays the values from the source device, with labels for required fields asterisked (
      *
      ) and filled with yellow.
  4. Select a group of settings from the left pane, and type or select the required information in the right pane until you have added the required information.
    You can fill in the required information only, or any other information and settings you wish to configure.
    In the navigation pane, an icon indicates that required information for a group of settings is complete.
  5. Click the
    OK
    button.
    The popup window closes. If no more
    Unresolved
    links remain, the
    Finish
    button is active.
  6. After you resolve all conflicts, click the
    Finish
    button.
Access Policy Manager creates the resolved policy on the device. After sync is completed on all target devices, sync status on the source device will be updated to
Sync completed
.

About ignoring errors due to the Variable Assign agent

The
Ignore errors due to Variable Assign Agent during sync
setting affects system behavior only when a Variable Assign agent is included in an access policy, and the Variable Assign agent uses resources.
The user name and password fields are not considered to be resources.
If you set
Ignore errors due to Variable Assign Agent during sync
to
Yes
:
  • If you do not select any dynamic resources, after the policy sync completes you must create all needed resources on each target system.
  • If you select the appropriate dynamic resources, after the policy sync completes, you must resolve any conflicts that exist on the target systems. If you do not select all the dynamic resources that are required, you must create them on each target system.
If you set
Ignore errors due to Variable Assign Agent during sync
to
No
:
  • If you do not select any dynamic resources, an error is displayed and the policy sync does not start.
  • If you select the appropriate dynamic resources, after the policy sync completes, you must resolve any conflicts that exist on the target systems.

Implementation result

To summarize, you now have synchronized access policies between devices in a sync-only device group.

Understanding sync details

On the
Sync Details
tab, you can see sync status for an access policy.
Column
Description
Device
The specific device to which the access policy was synced.
Sync Status
One of the following:
  • Sync initiated
    - This status indicates that the sync is in progress, initiated from this device.
  • Sync Completed
    - This status indicates that the sync completed successfully to the specified device.
  • Not available
    - This status indicates that the device to which the sync was initiated was not available, or not available yet.
  • Sync cancelled
    - This status indicates that the sync was cancelled before it could complete to the specified device.
  • User Changes Failed
    - This status indicates that policy creation failed after the administrator resolved the conflicts. Sync success is set to Standby.
  • Pending location specific updates
    - This status indicates that the access policy on the specified device requires updates because of conflicts due to location-specific information. Resolve the conflicts to complete the sync successfully.
Status End Time
The time at which the last status entry completed on the specific device.
Sync Status Details
More information about the Sync Status for a specific device.

Understanding sync history

On the
Sync History
tab, you can see the sync history for an access policy.
Column
Description
Last sync
The last time a sync was initiated for this access policy.
Last Sync Status
The outcome of the last sync for this access policy.
Device Group
The device group to which the access policy was synced.
Description
A clickable icon that presents information about the sync operation for the device group.
Non Location Specific Objects
An access policy was created with certain resources which the sync process indicates are not location-specific, but that might in fact be location-specific on the target device. This column lists such objects, which you can then verify by checking the objects on the remote systems, and modifying if necessary.
