Manual Chapter : Policies for APM (with SWG) as a Secure Web Gateway

Applies To:

Show Versions Show Versions

BIG-IP APM

  • 16.0.1, 16.0.0, 15.1.0
Manual Chapter

Policies for APM (with SWG) as a Secure Web Gateway

Overview: Controlling forward proxy traffic with SWG

With an SWG subscription, when you configure a per-request policy to control forward proxy access using URL categories, the Category Lookup agent can use standard categories (from the URL database) or any custom URL categories that you might have created or both. For non-encrypted traffic, Category Lookup can also be configured to return safe search results to your users. Additional analytics agents are available to scan URL responses for malware and scan URL requests for further filtering.

Task summary

Example policy: Categorize and scan traffic for malware

In this example per-request policy, a Category Lookup item obtains a list of categories and a response web page. If Category Lookup returns a value that specifies the response needs to be scanned to determine the appropriate category, Response Analytics runs.
Response Analytics is available only with an SWG subscription.
Response Analytics scans the response for malicious embedded content and passes an analysis to the URL Filter Assign item. URL Filter Assign uses the analysis, if provided, and the specified filter to determine whether to allow the request.
Process of Response Analytics contributing analysis results to URL filter assign
Policy with category lookup, response analytics, and URL filter assign

Example policy: URL database category-specific access control

This example uses two standard URL categories, Entertainment and Jobsearch, that are available on a BIG-IP system with an SWG subscription. In this per-request policy example, only recruiters are allowed to access URLs in the job search category. The policy also restricts access to entertainment sites during business hours.

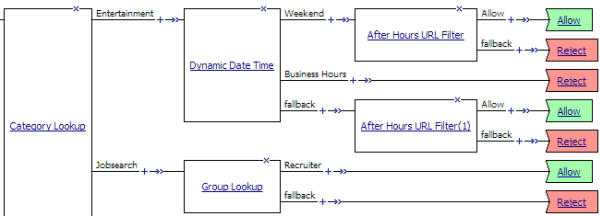

Category-specific access restrictions
Policy that restricts the Entertainment category to     weekends and the Jobsearch category to recruiters.

Configuring an access policy for forward proxy with SWG

You configure an access policy to support explicit forward proxy or transparent forward proxy. If you plan to use branching by group or class attribute in your per-request policy, you add items to the access policy to populate that information. You can also add access policy items to collect credentials and to authenticate a user or add access policy items to identify the user transparently.
If you include authentication in your access policy and the first site that a user accesses uses HTTP instead of secure HTTP, passwords are passed as clear text. To prevent this from happening, F5 recommends using Kerberos or NTLM authentication.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. In the Per-Session Policy column, click the
    Edit
    link for the access profile you want to configure.
    The visual policy editor opens the access policy in a separate screen.
  3. Click the
    (+)
    icon anywhere in the access policy to add a new item.
    Only an applicable subset of access policy items is available for selection in the visual policy editor for any access profile type.
    A popup screen opens, listing predefined actions on tabs such as General Purpose, Authentication, and so on.
  4. If you specified an NTLM Auth configuration in the access profile, verify that authentication succeeded.
    1. On the Authentication tab, select
      NTLM Auth Result
      .
    2. Click
      Add Item
      .
      A properties popup screen opens.
    3. Click
      Save
      .
      The properties screen closes. The policy displays.
  5. To add Kerberos authentication to an access policy for forward proxy, add
    HTTP 407 Response
    (for explicit forward proxy) or
    HTTP 401 Response
    (for transparent forward proxy); then follow it with these actions in order:
    Variable Assign
    , and
    Kerberos Auth
    .
    This example uses
    HTTP 407 Response
    . You can replace it with
    HTTP 401 Response
    .
    In a transparent forward proxy configuration, APM does not support Kerberos request-based authentication
    1. On a policy branch, click the plus symbol
      (+)
      to add an item to the policy.
    2. On the Logon tab, select
      HTTP 407 Response
      and click
      Add Item
      .
      A properties screen opens.
    3. From the
      HTTP Auth Level
      list, select
      negotiate
      and click
      Save
      .
      The properties screen closes.
    4. Click the
      (+)
      icon on the
      negotiate
      branch.
      A popup screen opens.
    5. On the Assignment tab, select
      Variable Assign
      and click
      Add Item
      .
      For Kerberos authentication to work correctly with forward proxy, you must assign the domain name for the proxy virtual server to a session variable.
    6. Click
      Add new entry
      .
      An
      empty
      entry appears in the Assignment table.
    7. Click the
      change
      link in the new entry.
      A popup screen opens.
    8. In the left pane, retain the selection of
      Custom Variable
      and type this variable name:
      session.server.network.name
      .
    9. In the right pane, in place of
      Custom Variable
      , select
      Text
      and type the domain name for the proxy virtual server.
    10. Click
      Finished
      .
      The popup screen closes.
    11. Click
      Save
      .
      The properties screen closes. The policy displays.
    12. On a policy branch, click the plus symbol
      (+)
      to add an item to the policy.
    13. On the Authentication tab, select
      Kerberos Auth
      and click
      Add Item
      .
      A properties screen opens.
    14. From the
      AAA Server
      list, select an existing server.
    15. From the
      Request Based Auth
      list, select
      Disabled
      .
    16. Click
      Save
      .
      The properties screen closes and the policy displays.
    The
    Max Logon Attempts Allowed
    setting specifies attempts by an external client without a Kerberos ticket to authenticate on forward proxy.
  6. To identify a user transparently using information provided by a Secure Web Gateway (SWG) user identification agent, perform these steps:
    For this step of the access policy to succeed, you must have installed and configured either the F5 DC Agent or the F5 Logon Agent. Either agent is supported on a BIG-IP system with an SWG subscription only.
    1. On a policy branch, click the plus symbol
      (+)
      to add an item to the policy.
    2. From the Authentication tab, select
      Transparent Identity Import
      and click
      Add Item
      .
      The transparent identity import access policy item searches the database in the IF-MAP server for the client source IP address. By default, this access policy item has two branches: associated and fallback.
      A properties screen opens.
    3. Click
      Save
      .
      The visual policy editor opens.
    4. Add any additional access policy items to the fallback or associated branches.
      For example, you might add Kerberos authentication on the fallback branch.
  7. To supply LDAP group information for use in the per-request policy, add an LDAP Query item anywhere in the policy and configure its properties:
    1. From the
      Server
      list, select an AAA LDAP server.
      An LDAP Query uses SSL connections when you select an LDAP AAA server that is configured for LDAPS.
    2. Specify the
      SearchDN
      , and
      SearchFilter
      settings.
      SearchDN is the base DN from which the search is done.
    3. Click
      Save
      .
    This item populates the
    session.ldap.last.attr.memberOf
    session variable.
  8. To supply Active Directory groups for use in the per-request policy, add an AD Query item anywhere in the policy and configure its properties:
    1. From the
      Server
      list, select an AAA AD server.
    2. Select the
      Fetch Primary Group
      check box.
      The value of the primary user group populates the
      session.ad.last.attr.primaryGroupID
      session variable.
    3. Click
      Save
      .
  9. To supply RADIUS class attributes for use in the per-request policy, add a RADIUS Auth item anywhere in the policy and configure its properties:
    1. From the
      Server
      list, select an AAA RADIUS server.
    2. Click
      Save
      .
    This item populates the
    session.radius.last.attr.class
    session variable.
  10. Click the
    Apply Access Policy
    link to apply and activate the changes to the policy.

Creating a per-request policy

You can create a per-request policy to ensure greater security on your system.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. Click
    Create
    .
    The General Properties screen opens.
  3. In the
    Name
    field, type a name for the policy.
    A per-request policy name must be unique among all per-request policy and access profile names.
  4. Leave
    Policy Type
    set to
    All
    .
  5. For most cases, leave
    Incomplete Action
    set to
    Deny
    .
  6. In the
    Languages
    setting, select the accepted languages.
  7. Click
    Finished
    .
    The policy name appears on the Per-Request Policies screen.

Configuring a policy to scan for malware and provide safe search

This task specifies elements and options that are supported only on a BIG-IP system with an SWG subscription.
You configure per-request policy to control access to forward proxy with these agents: Category Lookup to categorize requests and to provide safe search results to your users; Response Analytics (after Category Lookup) to scan the output response web page for malware, if indicated, and to provide a result to the next agent; and, URL Filter Assign to determine whether to allow or block a request.
This task does not specify a complete per-request policy.
  1. On the Main tab, click
    Access
    Profiles / Policies
    Per-Request Policies
    .
    The Per-Request Policies screen opens.
  2. In the
    Name
    field, locate the policy that you want to update, then in the
    Per-Request Policy
    field, click the
    Edit
    link.
    The visual policy editor opens in another tab.
  3. On a policy branch, click the
    (+)
    icon to add an item to the policy.
    The actions you can use for building a per-request policy are displayed on a popup screen with actions on tabs, such as Authentication, Classification, and General Purpose, and a search field.
  4. On the Classification tab, select
    Category Lookup
    , and then click
    Add Item
    .
    A popup Properties screen opens.
  5. For
    Categorization Input
    , select an option based on the type of traffic to process:
    • For HTTP traffic, select
      Use HTTP URI (cannot be used for SSL Bypass decisions)
      . If selected, the
      SafeSearch Mode
      field displays set to
      Enabled
      .
    • For SSL-encrypted traffic, select
      Use SNI in Client Hello (if SNI is not available, use Subject.CN)
      or
      Use Subject.CN in Server Cert
      .
    • For connections that are passing through an upstream proxy, select
      Use HTTP Connect Hostname
      . It uses information from the HTTP Connect header and matches only the hostname. The Category Lookup agent functions only on the transparent HTTP virtual servers and fails if the policy is attached to explicit HTTP virtual servers.
    Early in the per-request policy, you can insert a Protocol Lookup agent to provide separate branches for HTTPS and HTTP traffic.
  6. For
    Category Lookup Type
    , select the types of categories to look through for the URL.
    • Custom categories first, then standard categories if not found
      - Select to look through custom categories; then, if the URL is not found, look through the standard categories that the URL database maintains.
    • Always process full list of both custom and standard categories
      - Select to look through custom categories and standard categories.
    • Process standard categories only
      - Select to look through standard categories only.
    Category Lookup compiles a list of one or more categories for the URL.
  7. Click
    Save
    .
    The properties screen closes. The visual policy editor displays.
  8. On a branch after a Category Lookup item, add a
    URL Filter Assign
    agent and, in its properties, select a URL filter.
  9. To trigger inspection of response web page contents, on a branch after a Category Lookup item and before a URL Filter Assign item, insert a
    Response Analytics
    agent and specify its properties:
    1. In the
      Max Buffer Size
      field, type the number of bytes to buffer.
    2. In the
      Max Buffer time
      field, type the number of seconds to retain response data in the buffer.
    3. For the
      Reset on Failure
      field, retain the default value
      Enabled
      to send a TCP reset if the server fails.
      If
      Reset on Failure
      is enabled, the TCP reset occurs whenever the category lookup fails, for example, if the SWG URLF license expires. Clients receive no response from the server in this case and requests fail. You can configure the policy to branch on failure and specify what you want to happen (such as Allow, Reject, or specify another path).
    4. For each type of content that you want to exclude from analysis, click
      Add new entry
      and then select a type from the list.
      The
      All-Images
      type is on the list by default because images are not scanned.
    5. Click
      Finished
      .
      The popup screen closes.
    6. Click
      Save
      .
      The popup screen closes. The visual policy editor displays.
A per-request policy goes into effect when you add it to a virtual server. Depending on the forward proxy configuration, you might need to add the per-request policy to more than one virtual server.

Blocking outgoing social media requests

This configuration is specific to a BIG-IP system with an SWG subscription. To use this procedure, you must already have a per-request policy configured that contains Category Lookup.
You might want to block outgoing requests to social media, particularly chat requests. To do this, you must insert two items after Category Lookup in the per-request policy: Request Analytics followed by URL Filter Assign. Policy: Category Lookup followed by Response Analytics followed by  URL Filter Assign
  1. Open a per-request policy for editing.
  2. Click the
    (+)
    icon after the
    Category Lookup
    item to add a new item.
    A popup screen opens, displaying tabs such as General Purpose and Logon.
  3. On the General Purpose tab, select
    Request Analytics
    and click
    Add Item
    .
    The popup screen closes. A new popup screen displays the properties for the newly added item.
  4. Click
    Save
    .
    The popup screen closes. The newly added item displays in the per-request policy.
  5. After the newly added
    Request Analytics
    item, click the
    (+)
    icon.
  6. On the General Purpose tab, select
    URL Filter Assign
    and click
    Add Item
    .
  7. From the
    URL Filter
    list, select a URL filter and click
    Save
    .
    A URL Filter Assign must follow the Request Analytics agent in addition to following the Response Analytics agent.
The resulting per-request policy might include these items on a branch: Category Lookup, Request Analytics, URL Filter Assign, Response Analytics, and URL Filter Assign.

Adding a per-request policy to the virtual server

To add per-request processing to a configuration, associate the per-request policy with the virtual server.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the name of the virtual server.
  3. In the Access Policy area, from the
    Per-Request Policy
    list, select the policy that you configured earlier.
  4. Click
    Update
    .
The per-request policy is now associated with the virtual server.

Virtual server Access Policy settings for forward proxy

F5 recommends multiple virtual servers for configurations where Access Policy Manager (APM) acts as an explicit or transparent forward proxy. This table lists forward proxy configurations, the virtual servers recommended for each, and whether an access profile and per-request policy should be specified on the virtual server.
Forward proxy
Recommended virtual servers (by purpose)
Specify access profile?
Specify per-request policy?
Explicit
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Yes
Yes
Reject traffic other than HTTP and HTTPS
N/A
N/A
Transparent Inline
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Only when a captive portal is also included in the configuration
Only when a captive portal is also included in the configuration
Forward traffic other than HTTP and HTTPS
N/A
N/A
Captive portal
Yes
No
Transparent
Process HTTP traffic
Yes
Yes
Process HTTPS traffic
Only when a captive portal is also included in the configuration
Only when a captive portal is also included in the configuration
Captive portal
Yes
No

About Response Analytics and the order of policy items

The Response Analytics per-request policy item is for use only on a BIG-IP system with an SWG subscription.
The Response Analytics per-request policy item makes an HTTP request and waits for the HTTP response before it completes. As a result to function properly, any policy items that rely on the information in the HTTP request or that attempt to modify the HTTP request must always precede the Response Analytics item. Specifically, the Category Lookup and HTTP Headers items must not follow a Response Analytics item.
You must enforce this ordering to ensure that your per-request policy functions as you intend.

About Safe Search and supported search engines

Safe Search is supported only on a BIG-IP system with an SWG subscription.
Safe Search is a search engine feature that can prevent offensive content and images from showing up in search results. Safe Search can also protect video searches on Google, Bing, and Yahoo search engines.
Safe Search can be enabled in a per-request policy using the Category Lookup item. Secure Web Gateway (SWG) with Safe Search enabled supports these search engines: Ask, Bing, DuckDuckGo, Google, Lycos, and Yahoo. Some search engines, such as Google and Yahoo, use SSL by default; in this case, Safe Search works only when SWG is configured with SSL forward proxy.
For Safe Search filtering to work correctly, URLs for the supported search engine sites must not be added to a custom category. The search engine's domain must remain categorized in the Search Engines and Portals URL category.
