OAuth Bearer Single Sign-On Method

Overview: Configuring SSO OAuth Bearer using passthrough

You can configure OAuth Bearer SSO as passthrough to use the JSON Web Token (JWT) received from the client. The OAuth scope check authenticates the client, and sends the received token to the backend server.
Before you start, you need to have created an access policy, access profile, and a virtual server to meet your needs. Here we configure OAuth Bearer SSO using the passthrough option for the token source.

Creating an OAuth bearer SSO configuration for passthrough

You create an OAuth bearer SSO configuration when you want to allow single-sign on using an OAuth token. In this task, the token is retrieved from the client, and is generated on an external OAuth authorization server.
  1. On the Main tab, select
    Access
    Single Sign-On
    OAuth Bearer
    .
    The OAuth Bearer Configurations screen opens.
  2. Click
    Create
    .
    The New SSO Configuration screen opens.
  3. In the
    Name
    field, type a name for the SSO configuration.
    The maximum length of a single sign-on configuration is 225 characters, including the partition name.
  4. For
    Send Token
    , select when to send the token:
    • To always send the token, select
      Always
      .
    • To send the token when you receive a 4xx response from the server, select
      On 4xx Response
      and choose one or more 4xx responses.
  5. For
    Log Settings
    , select the log settings to use for the access event logs.
    By default, the log settings specified in the access profile are used. You can also create custom log settings or use the
    default-log-setting
    for this SSO configuration. Click
    +
    to create custom settings.
  6. If getting the JWK token from the client, for
    Token Source
    , select
    Passthrough
    , and select a server from the
    OAuth Server
    list.
  7. Click
    Finished
    .
When you configure an APM access policy that supports single sign-on, it includes an
SSO Configuration
property. Select the SSO bearer configuration from the object where you want to put SSO into effect.
For example, to use OAuth Bearer SSO, you need an access profile, access policy, and a virtual server. The access profile being used in this configuration must contain an OAuth Bearer SSO configuration. The virtual server needs to specify the access profile.

Example access policy configuration using passthrough

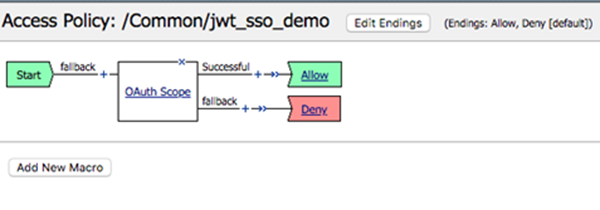

Here is an example access policy configured using passthrough. The JWT token received from the client is used, it goes through the OAuth scope check, and if the check is successful, the received JWT token is sent to the backend server.

Overview: Configuring SSO OAuth Bearer to create JWT

You can configure OAuth Bearer SSO to create, sign, and send a JSON Web Token (JWT) to backend applications that require an access token.
Setting this up requires performing the following tasks:
  • Create claims for the JWT, as needed
  • Create a JSON Web Key (JWK) configuration
  • Create an OAuth Bearer SSO configuration
  • Associate the OAuth Bearer configuration with the access profile
  • Use AAA (AD query), SAML, or other authentication method in the access policy
  • Assign the access profile to the virtual server
Before you start, you need to have created an access policy, access profile, and a virtual server to meet your needs. Here we add the OAuth Bearer SSO configuration to your environment.

About OAuth Bearer SSO

Bearer tokens are tokens that OAuth 2.0 uses to authorize clients to access protected resources.
OAuth Bearer SSO provides a JSON Web Token (JWT) in the form of a bearer token to the backend resource server. You can configure OAuth Bearer SSO as passthrough (where the JWT received from the client is used), or have APM generate and sign the JWT token for the backend SSO.

Configuring JWT claims

You can configure the claims that you want to include in the JSON Web Tokens (JWTs). (A
claim
specifies a string, and optionally, a value, that represents a resource.) This is only required if you plan to specify claims in your JWTs.
  1. On the Main tab, select
    Access
    Federation
    OAuth Authorization Server
    Claim
    .
  2. Click
    Create
    .
  3. In the
    Name
    field, type a name for the configuration.
  4. From
    Claim Type
    , select the required claim type from the list. Available options are
    String
    ,
    Number
    ,
    Boolean
    , or
    Custom
    .
  5. In the
    Claim Name
    field, type a name for the claim.
    The following names are reserved claim names, and you cannot use them in OAuth claim configuration:
    iss
    ,
    aud
    ,
    sub
    ,
    exp
    ,
    nbf
    ,
    iat
    ,
    jti
    ,
    x-jti
    ,
    at_hash
    ,
    c_hash
    ,
    azp
    ,
    acr
    ,
    amr
    ,
    sub-jwk
    ,
    nonce
    ,
    auth_time
    ,
    _claim_names
    ,
    _claim_sources
    ,
    scope
    ,
    scope_data
    ,
    token_type
    ,
    username
    , and
    id_token
    .
  6. In the
    Claim Value
    field, type a value for the claim depending on its type.
    Claim Type
    Value can be
    String
    Enter ASCII characters or session variable in the Claim Value field. Do not encapsulate the provided claim value in the escaped quotes (\").
    Number
    Enter a valid number or a session variable in the Claim Value field.
    Boolean
    Enter
    true
    ,
    false
    , or a session variable in the Claim Value field.
    Custom
    Select this option when the claim value is a JSON value type array, object, or null in the Claim Value field.
    When the Claim Type is set to Custom, you can use both Object (array, null) or String (claim type String is recommended) in the claim value. Ensure the string value is encapsulated in the escaped quotes (\"). For example, if an array contains strings, number, boolean, and null, encapsulate only the string values in quotes within the array. Claim Value = [\"example\", \"Strings\", 5, true, null].
  7. Click
    Save
    .
    The newly created claim displays on the list.
You associate claims with tokens an OAuth bearer SSO configuration.

Configuring JSON web keys (JWKs)

A JSON web key configuration specifies a cryptographic JSON web key (JWK). You configure JWKs for the system to use to sign the JSON web tokens that it issues. For example, you use JWK key configurations when setting up OAuth bearer single sign-on.
  1. On the Main tab, select
    Access
    Federation
    JSON Web Token
    Key Configuration
    .
    The Key Configuration screen opens.
  2. Click
    Create
    .
  3. In the
    Name
    field, type a name.
  4. In
    ID
    , type the ID.
  5. For
    Type
    , select
    RSA
    ,
    Octet
    , or
    Elliptic Curve
    .
    Additional parameters display for the type that you select.
  6. For
    Signing Algorithm
    , select any one.
  7. For the
    Octet
    type, you only need to configure one additional setting:
    1. In
      Shared Secret
      , type the secret.
      To maximize the security of the algorithm, use enough characters so that the resulting key size matches the block size for the signing algorithm: for
      HS256
      , 32 characters; for
      HS384
      , 48 characters; for
      HS512
      , 64 characters.
    2. Click
      Save
      .
      The newly created JWK displays on the list.
  8. For the
    RSA
    or
    Elliptic Curve
    key types, configure the settings in the Certificates areas:
    1. For
      Certificate File
      , select a certificate.
      Do not select the default certificate when the BIG-IP system is on a chassis platform or is included in an HA pair. F5 strongly discourages the use of the default certificate in a JWK in any configuration.
    2. For
      Certificate Key
      , select one.
      Do not use the default key when the BIG-IP system is on a chassis platform or is included in an HA pair. F5 strongly discourages the use of the default key in a JWK in any configuration.
    3. For
      Key Passphrase
      , type a passphrase.
    4. For
      Certificate Chain
      , select one.
      If this field is filled in, values for the parameters are auto-generated.
  9. Click
    Save
    .
    The newly created JWK configuration displays in the list.

Creating an OAuth bearer SSO configuration to generate JWT

You create an OAuth bearer SSO configuration when you want to allow single-sign on using an OAuth token. SSO generates a signed JWT (JSON web token) and sends it to the backend as an OAuth bearer token.
  1. On the Main tab, select
    Access
    Single Sign-On
    OAuth Bearer
    .
    The OAuth Bearer Configurations screen opens.
  2. Click
    Create
    .
    The New SSO Configuration screen opens.
  3. In the
    Name
    field, type a name for the SSO configuration.
    The maximum length of a single sign-on configuration is 225 characters, including the partition name.
  4. For
    Send Token
    , select when to send the token:
    • To always send the token, select
      Always
      .
    • To send the token when you receive a 4xx response from the server, select
      On 4xx Response
      and choose one or more 4xx responses.
  5. For
    Log Settings
    , select the log settings to use for the access event logs.
    By default, the log settings specified in the access profile are used. You can also create custom log settings or use the
    default-log-setting
    for this SSO configuration. Click
    +
    to create custom settings.
  6. For
    Token Source
    , select
    Generate JWT
    and follow the remaining steps in this task to define the JWT.
  7. For
    Issuer
    , type the URL for the JWT issuer. For example,
    https://jwt-issuer.com
    .
  8. In
    Subject
    , retain the default value,
    %{session.assigned.uuid}
    , or type a subject for the JWT.
    The session variable
    session.assigned.uuid
    contains the UUID that the system assigns to the session after the access policy completes.
  9. To increase performance until the cached JWT expires, click
    Enable Token Cache
    to store the token in cache for the session and reuse it as needed.
  10. For
    Access Token Lifetime
    , type the number of minutes you want the JWT access token to be considered valid.
    The default is 5 minutes.
  11. From
    Signing Key
    , select the JWK key configuration previously created for signing the token.
  12. For
    Audience
    , add the audience claim or claims for which the JWT access token is intended. This is a list of values. Each value in this list can be a string, URI, or session variable.
  13. For
    Scope
    , type one or more space-separated scope strings (using the ASCII character set) or session variables. For example,
    openid phone email
    .
    For example, to create a JWT claim called
    scope
    , specify it here. You cannot use reserved words such as
    scope
    as the name of a JWT claim.
  14. If you created claims for the token, for
    JWT Claims
    , move the previously created claims you want to use to the
    Selected
    list.
  15. The other fields are not required but you can set them if needed.
  16. Click
    Finished
    .
When you configure an APM object that supports single sign-on, it includes an
SSO Configuration
property. Select the SSO bearer configuration from the object where you want to put SSO into effect.

OAuth Bearer SSO configuration settings

These settings are available when you create an OAuth Bearer SSO configuration.

General Properties for OAuth Bearer SSO configuration

Setting
Value
Additional Information
Name
Name of the SSO configuration.
The name must begin with a letter, or underscore, and contain only letters, numbers, underscores, dashes, and periods. Maximum length including the partition name is 225 characters. Avoid using global reserved words in the name, such as all, delete, disable, enable, help, list, none, show, or None.
SSO Method
Displays the type of SSO configuration.
Cannot be changed.
Headers
Header name-value pairs to send with the SSO method.
Available when you select
Advanced
from the
General Properties
list.
Send Token
Specifies when to send the token (for OAuth Bearer).
Specify
Always
to always send the token.
Specify
On 4xx Response
to send the token when you receive a 4xx response from the server; select
On 400
,
On 401
, and/or
On 403
. The system first forwards the user's HTTP request to the web server without inserting the token. If the server requests authentication by responding with a 4xx status code (that is enabled), the system retries the request with the token.
Log Settings
Specifies which log settings to use for the access event logs. By default, the log settings specified in the access profile are used.
You can create custom log settings or use the default-log-settings for this SSO configuration. Click + to create custom settings.

Passthrough OAuth Bearer SSO configuration settings

These are the settings to use when the bearer token is retrieved from another source.
Setting
Value
Additional Information
Token Source
Specifies
Passthrough
to indicate that the user has a token from another source.
Default value
OAuth Server
Specifies the OAuth server that provided the token.
Required value

Generate JWT OAuth Bearer SSO configuration settings

These are the settings to use when the system generates and signs the OAuth bearer token. For this configuration, you need to have created a JWK key configuration and optional JWT claims.
Setting
Value
Additional Information
Token Source
Specifies
Generate JWT
to indicate that you want the system to create a JWT access token.
The system creates a JWT token and sends it to the backend server as an OAuthBearer token.
Issuer
Specifies the issuer of the JWT.
This must be a URI and it is mandatory. For example,
https://authserver/oauth2
.
Subject
Specifies what the token is intended for.
The value can be a string, URI, or session variable, such as
%{session.assigned.uuid}
.
Enable Token Cache
When selected, stores the token in cache for the session and reuses it; enabling the cache provides increased performance.
When cleared, the token is generated for every request.
Access Token Lifetime
Specifies the number of minutes a JWT access token is considered valid.
The default is 5 minutes.
Ignore Expired Certificate Validation
When selected, the certificate is used for signing a JWT access token even if it is expired.
When cleared, the system sends an error message if the certificate has expired.
Signing Key
Specifies a JSON web key (JWK) configuration for signing the token.
It is mandatory. You can create JWKs in
Access
Federation
JSON Web Token
Key Configuration
.
Audience
Specifies the audience claim for which the JWT access token is intended.
This is a list of values. Each value in this list can be a string, URI, or session variable. For example,
https://newapp
.
Scope
Specifies one or more space-separated scope strings (using the ASCII character set) or session variables.
For example,
openid phone email
.
JWT Claims
Specifies a list of claims that define additional information that you want to transmit as part of the JWT access token.
You can create claims in
Access
Federation
OAuth Authorization Server
Claim
.

Adding OAuth bearer SSO to an access profile

You add an OAuth bearer SSO configuration to an access profile if you want to allow single sign-on using an OAuth bearer token.
You can also select an SSO configuration from a portal access resource.
  1. On the Main tab, click
    Access
    Profiles / Policies
    .
    The Access Profiles (Per-Session Policies) screen opens.
  2. Click the name of the access profile that you want to edit.
    The properties screen opens.
  3. Click
    SSO / Auth Domains
    on the menu bar.
    The SSO Across Authentication Domains screen opens.
  4. From the
    SSO Configuration
    list, select the OAuth bearer SSO configuration you want the access profile to use.
    Other settings on the screen are not relevant when using an OAuth bearer SSO configuration.
  5. Click
    Update
    .
An access profile goes into effect when it is associated with a virtual server.

Example access policy configurations generating JWTs

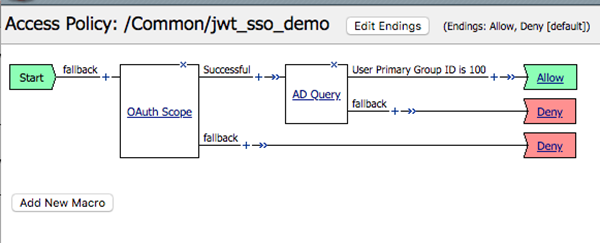

Here is an example access policy using an OAuth scope check. If the check is successful, an AD Query retrieves more user data. Then, SSO generates the JWT access token with the retrieved infromation and sends it to the backend server.

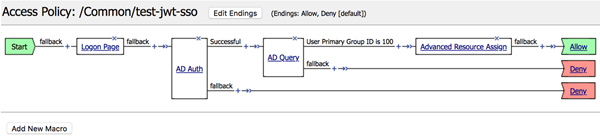

Here is an example access policy configured with an AAA agent. It goes through the OAuth scope check. If the check is successful, an AD Query retrieves more user data. Then, SSO generates the JWT token with the retrieved infromation and send to the backend server.

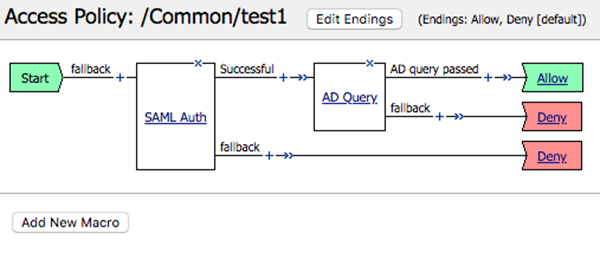

Here is an access policy configured with a SAML SP agent. SAML authentication retrieves the SAML2.0 bearer token and validates.

Adding the access profile to the virtual server

You associate the access profile with the virtual server so that the system can apply the profile to incoming traffic.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the name of the virtual server you want to modify.
  3. In the Access Policy area, from the
    Access Profile
    list, select the access profile that you configured earlier.
  4. Click
    Update
    to save the changes.
