Introducing Local Traffic Policies

About Local Traffic Policies

The BIG-IP system provides Local Traffic Policies that simplify the way in which you can manage traffic associated with a virtual server. Using policies involves three basic steps: you create a draft policy, publish the policy, and then associate the published policy with a virtual server. Each policy includes a matching strategy for the specified rules, as well as conditions and actions configured within each rule, to manage traffic.
Local Traffic Policies that have been upgraded from BIG-IP software version 12.0, or earlier, appear in the Published Policies list.

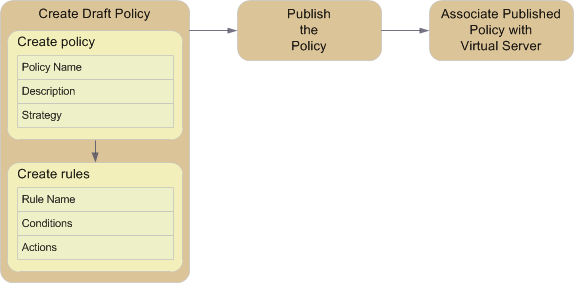

Basic steps for creating and using policies
Basic steps for creating and using policies

About local traffic policy matching

BIG-IP
local traffic policies
 comprise a prioritized list of rules that match defined conditions and run specific actions, which you can associate with a virtual server that directs traffic accordingly. For example, you might create a policy that determines whether a client is using a mobile device, and then redirects its requests to the applicable mobile web site's URL.

About strategies for local traffic policy matching

Each BIG-IP local traffic policy requires a matching strategy to determine which rule applies if more than one rule matches.
The BIG-IP local traffic policies provide three predefined policy matching strategies: a first-match, best-match, and all-match strategy. Each policy matching strategy prioritizes rules according to the rule's position within the Rules list.
As needed, you can create a user-defined best-match strategy to customize the precedence (order of preference) of added operands and selectors. For example, to meet your preferred operand and selector combinations, you might create a user-defined best-match strategy that changes the precedence of added operands and selectors, compared to the predefined best-match strategy.
In a best-match or first-match strategy, a rule without conditions becomes the default rule, when the rule is the last entry in the Rules list.
Policy matching strategies
Matching strategy
Description
all-match strategy
An
all-match strategy
 starts the actions for all rules in the Rules list that match.
In an all-match strategy, when multiple rules match, but specify conflicting actions, only the action of the best-match rule is implemented. A best-match rule can be the lowest ordinal, the highest priority, or the first rule that matches in the Rules list.
best-match strategy
A
best-match strategy
 selects and starts the actions of the rule in the Rules list with the best match, as determined by the following factors.
  1. A best-match strategy selects the rule with the most conditions, ignoring details about the conditions.
  2. If a rule with the most conditions is not determined, then the best-match strategy selects the rule with the highest priority condition types. The best-match strategy sorts the condition types, highest priority first, comparing one at a time until a higher priority is found. For example, a priority sequence of 0,1,3,4,6 wins over 0,1,3,5,7 because 4 is a higher priority than 5.
  3. If a rule with the highest priority condition types is not determined, then the best-match strategy selects the rule with equal match types over other match types, such as starts-with, ends-with, or contains, and processes according to condition type priority.
  4. If a rule of equal match types is not determined, then the best-match strategy uses an ordinal (the precedence of the operand).
In a best-match strategy, when multiple rules match and specify an action, conflicting or otherwise, only the action of the best-match rule is implemented. A best-match rule can be the lowest ordinal, the highest priority, or the first rule that matches in the Rules list.
first-match strategy
A
first-match strategy
 starts the actions for the first rule in the Rules list that matches.

About rules for local traffic policy matching

BIG-IP local traffic policy
rules
 match defined conditions and start specific actions. You can create a policy with rules that are as simple or complex as necessary, based on the passing traffic. For example, a rule might simply determine that a client's browser is a Chrome browser that is not on an administrator network, and restrict access to certain administrative tools. Or a rule might determine that a request URL starts with
/video
, that the client is a mobile device, and that the client's subnet does not match
172.27.56.0/24
, and then that the request to a video file is designed for mobile devices on a Content Delivery Network (CDN).

About logical operators for conditions and rules

Local traffic policy rules provide you with different types of logical operators for matching conditions, which are determined by the order and configuration of the conditions within and between the rules. The different types of logical operators that you can configure are AND logical operators for conditions within a rule, and OR logical operators for values within a condition and for conditions between rules. When AND logical operators apply, then all logical operators must match the matching strategy. When OR logical operators apply, then any logical operator must match the matching strategy.

AND logical operators for conditions within a rule

When you create a rule, you can configure two or more conditions that use AND logic within that rule. For example, you can create Rule1 with two conditions, a and b, which use AND logic when Rule1 is used by the matching strategy. This means that all conditions within a rule must succeed in order to be used by a matching strategy.

OR logical operators for values within a condition and for conditions between rules

When you configure multiple values within a condition, OR logic determines if any matching value within the condition succeeds. For example, you can create a condition configured with two or more values. The matching strategy uses OR logic to determine if any configured value matches.
Similarly, when you create two or more rules, you can configure each rule with applicable conditions that use OR logic between the rules. For example, you can create Rule1 with a set of conditions, and Rule 2 with another set of conditions. The matching strategy uses OR logic to determine if a rule matches.

Examples

These examples show the logical operation of three conditions (a, b, and c) and two rules (Rule1 and Rule2).
In this first example, consider the following scenario, where you want to match condition a or b, and c ((a | b) & c). You can configure this logic by creating Rule1 to use conditions a and c (a & c), and Rule 2 to use conditions b and c (b & c). The result is when Rule1 matches the strategy, conditions a and c (a & c) are used, or when Rule 2 matches, conditions b and c (b & c) are used.
In this second example, consider the scenario where you want to match conditions a and b, or c ((a & b) | c). You can configure this logic by creating Rule1 to use conditions a and b, and Rule2 to use condition c. The result is when Rule1 matches the strategy, both conditions a and b are used, or when Rule2 matches the strategy, condition c is used.

About conditions for local traffic policy matching

The
conditions
 for a local traffic policy rule define the necessary criteria that must be met in order for the rule's actions to be applied. For example, a policy might include the following condition type and settings, which, when met by a request, would allow the rule's specified actions to be applied.
Option
Setting
Condition Type
HTTP Host
Selector
host
Condition
is
Values
www.siterequest.com
You can apply one or more conditions to a rule, as needed.
Conditions for local traffic policy matching
Condition Type
Description
Client SSL
Inspects the properties of the SSL connection on the client side of the device.
  • cipher
    . Specifies the cipher name.
  • cipher bits
    . Specifies the cipher strength by means of the number of bits.
  • protocol
    . Specifies the SSL protocol name.
CPU Usage
Specifies a condition that is determined by CPU usage during 15-second, 1-minute, or 5-minute intervals.
Geo. IP
Specifies a condition that is based on the properties of the geographical location of the IP address.
  • continent
    . Matches a two-character continent code, for example, AF (Africa), AN (Antarctica), AS (Asia), OC (Oceania), NA (North America), or SA (South America).
  • country code
    . Matches a two-character country code, as defined in ISO-3166-2.
  • country name
    . Matches the full name of a country.
  • isp
    . Matches the Internet Service Provider associated with the address.
  • organization
    . Matches the organization associated with the address.
  • region code
    . Matches the abbreviation of a state, province, or country-specific region.
  • region name
    . Matches the full name of a state, province, or country-specific region.
HTTP Basic Auth.
Inspects the username and password specified for basic authentication for the HTTP request.
  • password
    . Matches the basic authentication password.
  • username
    . Matches the basic authentication username.
HTTP Cookie
Inspects the cookie header of an HTTP request, proxy request, or proxy connect.
HTTP Header
Matches any HTTP Header.
HTTP Host
Matches the host of an HTTP request, proxy request, or proxy connect.
  • host
    . Matches the host name.
  • port
    . Matches the port number.
  • full string
    . Matches the full host header string.
HTTP Method
Inspects the HTTP Method for the request or proxy request, for example, GET, POST, or HEAD.
HTTP Referer
Inspects the HTTP Referer header or parts of the URI.
  • extension
    . Matches the document extension, for example,
    cgi
    .
  • host
    . Matches the DNS host name or IP address.
  • path
    . Matches the URI path, for example,
    /path
    .
  • path segment
    . Matches the path segment by numerical index.
  • port
    . Matches the numeric port number, for example,
    80
    .
  • query parameter
    . Matches the value of the query parameter by name.
  • query string
    . Matches the full query string, for example,
    a=b&c=d
    .
  • scheme
    . Matches the scheme, for example, http, https, or ftp.
  • unnamed query parameter
    . Matches the value of the query parameter by numerical index.
  • URL category
    . Matches various parts of the URI or the entire URI.
  • full string
    . Matches the full URI, for example,
    http://example.com/path/to/page.cgi?a-b&c=d
    .
HTTP Set Cookie
Inspects the Set Cookie header of an HTTP response or proxy response.
  • domain
    . Matches the value of the domain specified by the named cookie.
  • expiry
    . Matches the time when validity of the named cookie expires in RFC 6265 format (
    Wdy, DD Mon YYYY HH:MM:SS GMT
    ).
  • path
    . Matches the path of the named cookie.
  • value
    . Matches the value of the named cookie specified by the parameter.
  • version
    . Matches the version of the named cookie.
HTTP Status
Inspects the status of the HTTP response or proxy response.
  • code
    . Matches the numeric HTTP response status code.
  • text
    . Matches the HTTP response status string, for example,
    Authentication Required
    .
  • full string
    . Matches the full HTTP status response, including the code and text.
HTTP URI
Inspects the URI on a request, HTTP proxy request, or HTTP proxy connect and matches parts of or the entire URI.
  • extension
    . Matches the file extension in the URI, for example,
    html
     or
    cgi
    .
  • host
    . Matches the host name in the URI.
  • path
    . Matches the URI path.
  • path segment
    . Matches a part of the URI path by a numeric index.
  • port
    . Matches the port number in the URI.
  • query parameter
    . Matches the value of the named query parameter from the query string.
  • query string
    . Matches the text specified in the query string.
  • scheme
    . Matches the scheme, for example, http, https, ftp, or file.
  • unnamed query parameter
    . Matches the value of a query parameter by a numeric index instead of by a name index.
  • URL category
    . Matches various parts of the URI or the entire URI.
  • full string
    . Matches a specified full text string.
HTTP User Agent
Specifies a condition that is based upon the User Agent header.
  • browser type
    . Matches the browser name or type.
  • browser version
    . Matches the browser version string.
  • device make
    . Matches the make of the device.
  • device model
    . Matches the model of the device.
  • token
    . Matches a string associated with a specified parameter.
HTTP Version
Inspects the version of an HTTP request, response, proxy request, proxy connect, or proxy response.
  • major
    . Matches the numeric major part of the HTTP version.
  • minor
    . Matches the numeric minor part of the HTTP version.
  • protocol
    . Matches the HTTP protocol.
  • full string
    . Matches the full version string.
IP Reputation
Inspects the IP reputation on IP addresses observed in a flow matching any, or all, values, for example,
Web Attacks
.
SSL Certificate
Inspects the properties of an SSL certificate.
SSL Extension
Inspects the SSL extensions that are negotiated during the
HELLO
 phase.
  • alpn
    . Matches the application layer protocol negotiation.
  • npn
    . Matches the next protocol negotiation.
  • server name
    . Matches the server name indication.
TCP
Inspects and matches the parameters associated with TCP connections.
  • address
    . Matches the specified IP address. The IP address is the address associated with the external interface remote end of the connection.
  • mss
    . Compares the TCP maximum segment size on the external network interface.
  • port
    . Matches the port number. The specified port is associated with the external interface, remote end of the connection.
  • route domain
    . Compares traffic with the specified route domain number on the external network interface.
  • rtt
    . Inspects the round-trip time on the external network interface.
  • vlan
    . Compares traffic with the specified vlan on the external network interface.
  • vlan id
    . Compares traffic with the specified vlan ID number on the external interface.
WebSocket
Specifies a condition based upon the properties of a websocket's connection.
  • extension
    . Matches the value of the
    Sec-WebSocket-Extensions
     header.
  • key
    . Matches the value of the
    masking-key
    .
  • protocol
    . Matches the value of the
    Sec-WebSocket-Protocol
     header.
  • version
    . Matches the value of the
    Sec-WebSocket-Version
     header.

About datagroup types for conditions

Conditions for a local traffic policy enable you to assign a datagroup type and value to an operand, as applicable. For example, you could configure a condition for an HTTP Referer host that ends with a datagroup value of
partner-domains
.
This table describes the datagroup types and supported comparison operators.
Datagroup types for comparison operators
Datagroup type
Comparison operator
string
  • equals
  • starts-with
  • ends-with
  • contains
IP address
  • matches
number
  • equals

About actions for a local traffic policy rule

The
actions
 for a local traffic policy rule determine how traffic is handled. For example, actions for a rule could include the following ways of handling traffic.
  • Blocking traffic
  • Rewriting a URL
  • Logging traffic
  • Adding a specific header
  • Controlling SSL forward or HTTP explicit proxy
  • Redirecting traffic to a different pool member
  • Selecting a specific Web Application policy
Actions for local traffic policy matching
Action Type
Description
Enable
Enables the following actions.
  • cache
    . Enables caching for a connection.
  • compression
    . Enables compression for a connection.
  • decompression
    . Enables decompression for a connection.
  • http
    . Enables HTTP filter processing.
  • request adapt
    . Enables request adaptation, optionally sending traffic to a specified internal virtual server.
  • response adapt
    . Enables response adaptation, optionally sending traffic to a specified internal virtual server.
  • client ssl
    . Enables encrypted connections to the client.
  • server ssl
    . Enables encrypted connections for backend servers.
  • ssl intercept
    . Enables SSL intercept in intercept mode.
  • http proxy
    . Enables the HTTP explicit proxy.
  • http uri rewrite
    . Enables the rewriting of HTTP URIs into proxy form.
  • http connect
    . Enables HTTP proxy connect.
  • websocket
    . Enables WebSocket processing.
  • tcp nagle
    . Enables Nagle's algorithm on a connection.
Disable
Disables the following actions.
  • cache
    . Disables caching for a connection.
  • compression
    . Disables compression for a connection.
  • decompression
    . Disables decompression for a connection.
  • http
    . Disables HTTP filter processing.
  • LTM policy
    . Disables LTM Policy processing on a request-by-request basis.
  • persistence
    . Disables persistence.
  • request adapt
    . Disables request adaptation, optionally sending traffic to a specified internal virtual server.
  • response adapt
    . Disables response adaptation, optionally sending traffic to a specified internal virtual server.
  • client ssl
    . Disables plaintext connections to the client.
  • server ssl
    . Disables encrypted connections to backend servers.
  • ssl intercept
    . Disables ssl intercept in bypass mode.
  • http proxy
    . Disables the HTTP explicit proxy.
  • http uri rewrite
    . Disables the rewriting of HTTP URIs into proxy form.
  • http connect
    . Disables HTTP proxy connect.
  • websocket
    . Disables WebSocket processing.
  • tcp nagle
    . Disables Nagle's algorithm on a connection.
Forward traffic
Controls where a connection is forwarded.
  • node
    . Forwards the connection to the specified node.
  • pool
    . Forwards the connection to the specified pool.
  • virtual server
    . Forwards the connection to the specified virtual server.
Insert
Inserts an HTTP Header into the request, response, HTTP proxy connect, HTTP proxy request, or HTTP proxy response.
  • http cookie
    . Inserts an HTTP Cookie header into the request, response, HTTP proxy connect, or HTTP proxy request.
  • http header
    . Inserts an HTTP Header into the request, response, HTTP proxy connect, HTTP proxy request, or HTTP proxy response.
  • http referer
    . Inserts an HTTP Referer header into the request, response, HTTP proxy connect, HTTP proxy request, or HTTP proxy response.
  • http set cookie
    . Inserts an HTTP Set Cookie header into the response or HTTP proxy response.
Remove
Removes an HTTP Header from the request, response, HTTP proxy connect, HTTP proxy request, or HTTP proxy response.
  • http cookie
    . Removes an HTTP Cookie header from the request, HTTP proxy request, or HTTP proxy connect.
  • http header
    . Removes an HTTP Header from the request, response, HTTP proxy request, HTTP proxy connect, or HTTP proxy response.
  • http referer
    . Removes an HTTP Referer header from the request.
  • http set cookie
    . Removes an HTTP Set Cookie header from the response or HTTP proxy response.
Replace
Replaces an HTTP Header from the request, response, HTTP proxy connect, HTTP proxy request, or HTTP proxy response.
  • http header
    . Replaces the HTTP Header in the request, response, HTTP proxy request, HTTP proxy connect, or HTTP proxy response.
  • http host
    . Replaces the HTTP Host header in the request, HTTP proxy request, or HTTP proxy connect.
  • http referer
    . Replaces the HTTP Referer header in the request, HTTP proxy request, or HTTP proxy connect.
  • http uri
    . Replaces the HTTP URI, path, or string in the request, HTTP proxy request, or HTTP proxy connect.
  • http connect
    . Replaces the HTTP Connect header in the request, HTTP proxy request, HTTP proxy connect, HTTP proxy response, client accepted, server connected, or SSL client hello.
Redirect
Redirects traffic to a different URL.
Reset traffic
Resets the connection.
Log
Writes messages to the local or remote system log.
Persist session
Controls how a connection is persisted.
  • carp
    . Persists the connection by using a Cache Array Routing Protocol algorithm.
  • cookie hash
    . Persists the connection by using a cookie hash method.
  • cookie insert
    . Persists the connection by using a cookie insert method.
  • cookie passive
    . Persists the connection by using a cookie passive method.
  • cookie rewrite
    . Persists the connection by using a cookie rewrite method.
  • destination address
    . Persists the connection based on the destination IP address.
  • hash
    . Persists the connection by using a cookie hash method.
  • source address
    . Persists the connection based on the source IP address.
  • universal
    . Persists the connection based on a user-defined key.
Set variable
Sets a Tcl variable in the runtime environment.

About Tcl command substitutions

Certain BIG-IP local traffic policy actions support Tcl command substitutions, giving you significant flexibility in configuring policies. Tcl command substitutions provide quick, read-only access to immediately available runtime data, such as information about a current request’s URI, or a header or cookie in the request or response.
Any Tcl command that requires a delay, for example, the
after
 command, or that requires waiting for results from a request outside of the Traffic Management Microkernel (TMM), is not supported and might not succeed.

Considerations when using Tcl command substitutions

When using Tcl command substitutions, the following guidelines apply.
  • Memory and CPU capacity determine a maximum number of rules for active policies; however, excessive Tcl command substitutions can degrade performance.
  • Tcl command substitutions are primarily intended for reading and returning data.

Tcl command substitution example

The following Tcl command is an example of a Tcl command substitution that can be used within a policy.
"tcl:[HTTP::uri]"
Each Tcl command must include a prefix of
tcl:
. If the
tcl:
 prefix is omitted, the command is interpreted as a plain string.

About options for conditions and actions

You can apply options to conditions and actions, as determined by the selected condition or action type. For example, you might want to constrain a condition based on the case-sensitivity of a string, which is easily applied by selecting the applicable option for that condition.
Options for conditions
Condition Type
Options
Client SSL
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
CPU Usage
Not applicable.
Geo. IP
  • Apply to traffic on remote/local side of external/internal interface.
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Basic Auth.
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Cookie
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Header
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Host
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Method
  • Use case sensitive string comparison.
HTTP Referer
  • Use normalized URI. The normalization applied includes a lower case scheme and URI, including hostnames, removing a trailing period (.) character, and percent encoding. For percent encoding, bytes not allowed in a URI are normalized to their percent encoded representation.
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Set Cookie
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Status
Not applicable.
HTTP URI
  • Use normalized URI. The normalization applied includes a lower case scheme and URI, including hostnames, removing a trailing period (.) character, and percent encoding. For percent encoding, bytes not allowed in a URI are normalized to their percent encoded representation.
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP User Agent
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
HTTP Version
  • Use case sensitive string comparison.
Applies only to
protocol
 and
full string
 settings.
IP Reputation
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
SSL Certificate
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
SSL Extension
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
TCP
  • Apply to traffic on remote/local side of external/internal interface.
  • Use case sensitive string comparison.
WebSocket
  • Skip this condition if it is missing from the request.
  • Use case sensitive string comparison.
Options for actions
Action Type
Options
Enable
Not applicable.
Disable
Not applicable.
Forward traffic
Override default forward action using:
  • SNAT
     and
    disable
    /
    automap
    .
  • SNAT Pool
     and pool name.
  • VLAN:
    (none)
  • VLAN: VLAN Name
Insert
Not applicable.
Remove
Not applicable.
Replace
Not applicable.
Redirect
Not applicable.
Reset traffic
Not applicable.
Log
Facility:
  • local0
     (default)
  • local1
  • local2
  • local3
  • local4
  • local7
  • syslog
  • security
  • autopriv
  • daemon
  • kern
  • cron
  • ftp
  • lpr
  • mail
  • news
  • uucp
Priority:
  • debug
  • info
     (default)
  • notice
  • warning
  • error
Send log message to remote server:
  • Host
  • Port
Persist session
Not applicable.
Set variable
Not applicable.

Common tmsh commands for local traffic policies

You can use
tmsh
 commands with policies, as necessary. Common commands include those in the table.
Common tmsh commands for local traffic policies
Description
tmsh Command
Create a draft policy.

(tmos)# create ltm policy /Common/Drafts/policy_name strategy first-match
Publish a draft policy.

(tmos)# publish ltm policy /Common/Drafts/policy_name
List all draft policies.

(tmos)# show ltm policy /Common/Drafts/*
List all published policies.

(tmos)# show ltm policy
List configuration details for a draft policy.

(tmos)# list ltm policy /Common/Drafts/policy_name
List configuration details for a published policy.

(tmos)# list ltm policy policy_name

Creating a draft local traffic policy

You can use BIG-IP local traffic policy matching to direct traffic in accordance with rules, which are applied as determined by the specified strategy, conditions, and actions.
Local traffic policies that have been upgraded from BIG-IP software version 12.0, or earlier, appear in the Published Policies list.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Click
    Create
    .
    The New Policy screen opens.
  3. In the
    Policy Name
     field, type a unique name for the policy.
  4. In the
    Description
     field, type a description for the policy.
  5. From the
    Strategy
     list, select a matching strategy.
  6. Click
    Create Policy
    .
    The policy is created and the Rules area appears.
  7. In the Rules area, click
    Create
    .
  8. In the Match all of the following conditions area, click
    +
    .
  9. From the
    Client SSL
     list, select a condition type, and configure the applicable settings and available options.
  10. In the Match all of the following conditions area, click
    +
     to add an additional condition, as necessary, and configure the applicable settings and available options.
  11. In the Do the following when the traffic is matched area, click
    +
    .
  12. From the
    Enable
     list, select an action type, and configure the applicable settings and available options.
  13. In the Do the following when the traffic is matched area, click
    +
     to add an additional action, as necessary, and configure the applicable settings and available options.
  14. Click
    Save
    .
The policy appears in the Draft Policies list.

Publishing a local traffic policy

Before you can publish a local traffic policy, a draft policy must be available.
After you create a draft local traffic policy, you need to publish the policy, and then associate the published policy with a virtual server.
Local traffic policies that have been upgraded from BIG-IP software version 12.0, or earlier, appear in the Published Policies list.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Select the check box of the draft policy to publish.
  3. Click
    Publish
    .
    The draft policy is removed from the Draft Policies list, and the modified published policy appears in the Published Policies list.
The draft local traffic policy is published and available to assign to a virtual server.

Modifying a published local traffic policy

You must have a published local traffic policy available, before you can modify its settings.
You can modify a published local traffic policy, by creating a draft policy from the published policy, making any necessary changes, and then publishing the modified draft policy. You cannot modify a published policy directly; you can only modify a draft policy. If the published local traffic policy is associated with a virtual server, the modified policy settings are updated in the associated virtual server.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Click the name of a published policy.
  3. Click
    Create Draft
    .
    A draft policy of the same name appears in the Draft Policies list.
    When you publish a policy, the draft policy is removed from the Draft Policies list.
  4. Click the name of the draft policy.
  5. Modify the applicable settings.
  6. Click
    Save
    .
  7. Click
    Save Draft
    .
    The Policy List Page screen opens.
  8. Select the check box of the draft policy to publish.
  9. Click
    Publish
    .
    The draft policy is removed from the Draft Policies list, and the modified published policy appears in the Published Policies list.
The published local traffic policy is updated.

Reordering local traffic draft policy rules

Before you can reorder local traffic policy rules, there must be a draft policy with multiple rules available.
You cannot reorder rules in a published policy.
You can reorder rules within a draft policy, as needed.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Click the name of a draft policy.
  3. Click and drag the rule or rules that you want to reorder into the preferred sequence.
  4. Click
    Save Draft
    .
    The Policy List Page screen opens.
Rules in the draft local traffic policy appear in the sequence order that you configured.

Associating a published local traffic policy with a virtual server

After you publish a local traffic policy, you associate that published policy with the virtual server created to handle application traffic.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the name of the virtual server you want to modify.
  3. On the menu bar, click
    Resources
    .
  4. In the Policies area, click the
    Manage
     button.
  5. For the
    Policies
     setting, select the local traffic policy you created from the
    Available
     list and move it to the
    Enabled
     list.
  6. Click
    Finished
    .
The published policy is associated with the virtual server.

Cloning a local traffic policy

You can clone (copy) either a draft or published BIG-IP local traffic policy to create a different draft policy with the same settings of the original policy. After you clone the local traffic policy, you can modify it as necessary, publish it, and associate it with a virtual server.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Click the name of a policy.
  3. Click
    Clone
    .
    The
    Policy Name
     field becomes cleared.
  4. In the
    Policy Name
     field, type a unique name for the policy.
  5. Click
    Create Policy
    .
    The Draft Policy screen opens.
  6. In the
    Description
     field, type a description for the policy.
  7. From the
    Strategy
     list, select a matching strategy.
  8. In the Rules area, click
    Create
    .
  9. In the Match all of the following conditions area, click
    +
    .
  10. From the
    Client SSL
     list, select a condition type, and configure the applicable settings and available options.
  11. In the Match all of the following conditions area, click
    +
     to add an additional condition, as necessary, and configure the applicable settings and available options.
  12. In the Do the following when the traffic is matched area, click
    +
    .
  13. From the
    Enable
     list, select an action type, and configure the applicable settings and available options.
  14. In the Do the following when the traffic is matched area, click
    +
     to add an additional action, as necessary, and configure the applicable settings and available options.
The policy appears in the Draft Policies list.

Creating a user-defined local traffic policy matching strategy

You can create a new local traffic policy matching strategy, based on a best-match policy matching strategy type. A user-defined best-match strategy can customize the precedence (order of preference) of added operands and selectors, compared to the predefined best-match policy.
  1. On the Main tab, click
    Local Traffic
    Policies
    Strategy List
    .
    The Strategy List screen opens.
  2. Click
    Create
    .
    The New Strategy screen opens.
  3. In the
    Name
     field, type a unique name for the strategy.
  4. From the
    Operands
     list, select an operand, configure the applicable settings, and click
    Add
    .
  5. Click
    Finished
    .
The new user-defined best-match policy matching strategy appears in the Strategy List screen.

Deleting a local traffic policy

You can delete BIG-IP local traffic policies when they become obsolete or are no longer used.
  1. On the Main tab, click
    Local Traffic
    Policies
    Policy List
    .
    The Policy List Page screen opens.
  2. Select the check box for each policy that you want to delete.
  3. Click
    Delete
    .
    The Confirm delete? popup screen opens.
  4. Click
    OK
    .
The system deletes the policies that you selected.
Contact Support Contact Support

Have a Question?

Support and Sales >

About F5

Education

F5 Sites

Support Tasks




©2023 F5, Inc. All rights reserved.


Trademarks Policies Privacy California Privacy Do Not Sell My Personal Information
