Configuring Credential Protection

Overview: Configuring credential protection

You can use Access Policy Manager (APM) together with a DataSafe profile to protect logon credentials from potential man-in-the-middle attacks.
When you configure credential protection, credentials that users type on the login page are not visible in browser developer tools.

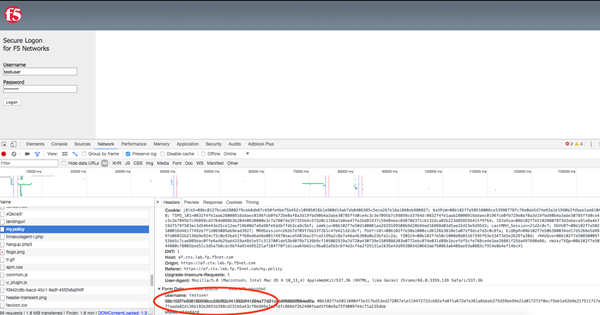

In the example shown here, the password variable name is obfuscated, and the password value is encrypted within the browser itself.
Here we describe how to add credential protection manually to a system that has an access policy with a logon page specified.
For a simpler, automated setup procedure, you can instead follow the steps in the Guided Configuration template for Credential Protection (
Access
Guided Configuration
). You can still customize the components when you use Guided Configuration.

Before you begin configuring credential protection...

To configure advanced credential protection on BIG-IP Access Policy Manager, you need to have Fraud Protection (FPS) provisioned.
You also need to have a system with
  • A working access policy
  • An access profile with a logon page for the policy
  • An external virtual server with the access profile associated with it
For details on creating access policies, refer to the BIG-IP APM documentation on AskF5 at support.f5.com.

Creating a service profile

You create a service profile to connect Access Policy Manager with another F5 Module, in this case, to allow for credential protection using DataSafe in access policies.
  1. On the Main tab, click
    Local Traffic
    Profiles
    Other
    Service
    .
    The Service profile list screen opens.
  2. Click
    Create
    .
  3. In the
    Name
     field, type
    fps-service
    .
  4. For
    Parent Profile
    , leave it set to the default unless you want to inherit settings from another service profile. Then select the parent profile.
  5. Click the
    Custom
     check box to enable settings.
  6. From the
    Type
     list, select
    F5 Module
     to connect to another F5 service, in this case, Credential Protection.
  7. Click
    Finished
    .
The
fps-service
 profile is created. Later, you specify this service profile on the internal virtual server.
Next, you create a DataSafe profile.

Creating a DataSafe profile for credential protection

To ensure proper application layer protection of logon credentials for Access Policy Manager, you need a DataSafe profile with a URL called
/my.policy
, and the profile cannot allow login if encryption fails.
To simplify your work, Access Policy Manager includes a default profile called
access-logonpage-protection-datasafe
 that protects all Access logon pages. You can skip this task and just use the default. Here we show you where to find the profile, describe its contents, and mention settings that you can optionally edit.
  1. On the Main tab, click
    Security
    Data Protection
    BIG-IP DataSafe
    .
    The BIG-IP DataSafe screen opens.
  2. In the list, click
    access-logonpage-protection-datasafe
    .
    The DataSafe Profile Properties screen opens.
  3. You can review and edit the properties, however, you can use this profile as is to protect logon credentials.
  4. Optional: Click the
    Customize All
     check box to make the settings editable.
  5. Optional: If you previously created a Log Publisher for a remote Syslog server, select it from the
    Log Publisher
     list.
  6. Optional: If you previously created a Log Publisher for the local Syslog server, select it from the
    Local Log Publisher
     list.
  7. You do not need to change any of the
    Advanced
     settings on the General Settings screen.
    The paths in the Advanced settings are automatically generated and only need to be changed if they conflict with paths used by your application (which is highly unlikely).
    The default DataSafe profile does not treat URLs as case-sensitive, and the Advanced setting that controls this cannot be changed after the policy is created. If you want to make URLs case-sensitive, you need to create a new DataSafe profile. In the Advanced settings, select
    URLs are case sensitive
    .
  8. Click
    URL List
    .
    The one URL listed
    /my.policy*
     is required for logon protection in Access policies. Do not change it.
  9. Click
    /my.policy*
     to see how it is configured.
    Values for
    username
    ,
    password
    ,
    _F5_challenge
    , and
    _F5_verify_password
     parameters are set to be encrypted and obfuscated.
  10. In the my.policy URL, for the
    Parameters
     section, disable the
    Obfuscate
     for all paramaters.
  11. On the left, click
    Advanced
    Application Layer Encryption
    .
    1. Ensure the
      Advanced
      Application Layer Encryption
      Real-Time Encryption
       is enabled.
    2. Ensure the
      Advanced
      Application Layer Encryption
      HTML Field Obfuscation
      is disabled.
  12. Copy the following function to
    General Settings
    Advanced
    Additional function
     to be run before JavaScript load:
    function(C){
    var org_submit = HTMLFormElement.prototype.submit;
    HTMLFormElement.prototype.submit = function(){
    var pass = this.elements.password;
    var oldFormPass = document.forms[0].elements.__password;
    if(pass && oldFormPass){
    pass.setAttribute('name', '__' + pass.name);
    pass.value = oldFormPass.value;
    }
    return org_submit.apply(this, arguments)
    }
    }
  13. Ensure that
    Allow Login on Encryption Failure
     is not selected.
    Clearing this option sets the DataSafe profile to fail-close. This means that if, during the submit operation, DataSafe is unable to encrypt or decrypt the protected fields, credential protection remains in effect for the current user session. Also, all subsequent operations of sending credentials will be encrypted.
    When this option is disabled as it is for credential protection, it increases the risk of user account lockout in case of encryption/decryption failure of user credentials.
  14. If you changed any settings, click
    Save
    .
    The DataSafe profile is saved.
You have viewed and optionally edited the default DataSafe profile that you can use for credential protection in Access policies. For more details on creating DataSafe profiles, refer to
BIG-IP DataSafe Configuration
.
Next, create an internal virtual server with which you associate the DataSafe profile and other profiles required for credential protection.

Creating an internal virtual server for credential protection

Before you can perform this task, you need to have created a service profile of type F5 Module.
An
internal virtual server
 provides a method for sending a request to another service. On the BIG-IP system, you create an internal virtual server and assign the TCP, HTTP, and service profiles to set up credential protection.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click
    Create
    .
    The New Virtual Server screen opens.
  3. In the
    Name
     field, type a name for the virtual server, such as
    fps-service-vs
    .
  4. From the
    Type
     list, select
    Internal
    .
  5. Next to
    Configuration
    , select
    Advanced
     to display additional options.
  6. From the
    Protocol
     list, select
    TCP
    .
  7. From the
    Protocol Profile (Client)
     list, select
    tcp
    .
  8. From the
    HTTP Profile (client)
     list, select
    http
    .
  9. From the
    Service Profile
     list, select
    fps-service
    , the service profile of type
    F5 Module
     created previously.
  10. For
    Source Address Translation
    , select
    Automap
    .
  11. Clear the
    Address Translation
     check box to disable it.
  12. Clear the
    Port Translation
     check box to disable it.
  13. Click
    Finished
    .
The internal virtual server for credential protection is created.
Next, you associate the DataSafe profile with the internal virtual server.

Associating a DataSafe profile with the internal virtual server

Part of configuring credential protection on Access Policy Manager requires that you associate a DataSafe profile with the internal virtual server you created. Here we associate the default DataSafe profile included with the system.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the internal virtual server created for credential protection, such as
    fps-service-vs
    .
  3. On the menu bar, from the Security menu, choose Policies.
  4. From the
    Anti-Fraud Profile
     list, select
    Enabled
    , and then from the
    Profile
     list, select
    access-logonpage-protection-datasafe
    , the default DataSafe profile (or one you created for credential protection).
  5. Click
    Update
     to save the changes.
The DataSafe profile is associated with the internal virtual server.
Next, you create a connector profile to which you can associate the internal virtual server.

Creating a connector profile for credential protection

You create a connector profile to connect credential protection to both the internal and external virtual servers.
  1. On the Main tab, click
    Local Traffic
    Profiles
    Other
    Connector
    .
    The New Connector Profile screen opens.
  2. In the
    Name
     field, specify a unique name for the connector profile, such as
    fps-connector
    .
  3. From the
    Parent Profile
     list, retain the default value (
    connector
    ), or select another existing profile of the same type.
  4. Click the
    Custom
     check box.
  5. From the
    Entry Virtual Server
     list, select
    fps-service-vs
    , or the internal virtual server created for credential protection.
  6. Use defaults for the other settings.
  7. Click
    Finished
    .
The connector profile is created.
Next, you associate this connector profile with the standard (external) virtual server associated with the access profile.

Associating the connector profile with the virtual server

You need to have a virtual server set up with an access profile associated with it. The access profile needs to have a logon page for an access policy.
You associate a connector profile with the standard (external) virtual server that requires credential protection.
  1. On the Main tab, click
    Local Traffic
    Virtual Servers
    .
    The Virtual Server List screen opens.
  2. Click the standard access policy virtual server that needs credential protection.
  3. In the Configuration area, select
    Advanced
    .
  4. From the
    Connector Profile
     list, select the profile you created for credential protection, such as
    fps-connector
    .
  5. Click
    Update
     to save the changes.
The connector profile is associated with the external virtual server that is protected by an access policy. The logon page in the policy now has credential protection. The application is protected from man-in-the-middle attacks.
You can test whether the credentials are protected by inspecting the logon page while it is displayed in the browser. The credentials that users type on the login page are not visible in browser inspection tools.
