Access Policy Item Reference

About logon items

Logon items either display on a logon screen, or specify and present a logon screen to a user.

Only the Virtual Keyboard item displays on a logon screen.

Logon screens display input fields, and in some cases messages. The items that present a logon screen accept user input and store it in session variables for use in another access policy item; typically, that is an authentication item and it usually follows a logon item in an access policy.

When you work with a logon item, you can usually change some aspect of the logon experience.

Language on the screen: Access Policy Manager (APM) provides the text displayed on the logon screen translated into a number of languages. (Languages are specified in the access profile.) Selecting a language in a logon item translates the text to that language. Translated text can be used as is or customized further.
Text on the screen: APM provides default labels for the user input fields and for any messages that can be displayed on the logon screen. The text can be edited.
Fields on the screen: The logon page item provides up to five fields that can be displayed or not. The type for each field is user-selectable: password, text, select (from a list).

Some logon items include authentication-specific settings. These logon items are appropriate in specific cases only:

HTTP 401 error: The HTTP 401 Response logon item is appropriate in response to an HTTP 401 error. It can precede HTTP Basic or Kerberos authentication, or both.
HTTP 407 error: The HTTP 407 Response logon item is appropriate in response to an HTTP 407 error. It can precede HTTP Basic or Kerberos authentication, or both. It is applicable for use with Secure Web Gateway (SWG) explicit forward proxy only.
Standalone VMware View client: The VMware View logon page is for use with a standalone VMware View client. It presents a logon screen that is customized for the selected authentication type (from a set of supported types).

About the Citrix Logon prompt

A Citrix logon prompt action creates a Citrix logon prompt for the policy, and you typically add this item after a Client Type action. You can configure the logon prompt to set a domain-only, two-factor or otp-challenge Citrix authentication type.

The Citrix logon prompt action provides these configuration elements and options:

Citrix Authentication Type: Specifies the type of authentication.
domain-only
Displays a single logon prompt that contains a domain field.
two-factor
Displays a single logon prompt with two password fields.
otp-challenge
Displays an otp-challenge prompt with the one-time-password field.

Additionally, customization options specify text and language to display on the screen.

Import: Click
Import
to import a previously exported citrix logon prompt customization file.
Language: Specifies the language to use to customize this logon prompt. Selecting a language causes the content in the remaining fields to display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Logon Page Input Field # number: Specifies the text to display on the logon page to prompt for input for the second field.

About the External Logon page

An External Logon page action provides a link to a logon page on an external server. An external solution can then provide robust logon credentials to the access policy. A logon action typically precedes the authentication action that checks the credentials provided on the logon page.

When an access policy reaches the External Logon page action:

Access Policy Manager sends an HTML page containing JavaScript code that redirects users to the external server.

The client submits a post_url variable. This post_url variable is used by the external application to return a value to the access policy. When the user completes authentication on the external server, the external server posts back to the URL specified in this variable, to continue the session.

The value of post_URL is in the format:

http(or https)://Access_Policy_Manager_URI/my.policy

. The Access_Policy_Manager_URI is the URI visible to the user, taken from the HTTP Host header value sent by the browser.

An External Logon Page action provides these configuration elements and options:

External Logon Server URI: Specifies the URI of the external logon server.
Split domain from full username: Specifies
Yes
or
No
.

Yes
- specifies that when a username and domain combination is submitted (for example,
marketing\jsmith
or
jsmith@marketing.example.com
), only the username portion (in this example,
jsmith
) is stored in the session variable
session.logon.last.username
.

No
- specifies that the entire username string is stored in the session variable.

About HTTP 401 Response

The HTTP 401 Response action sends an HTTP 401 Authorization Required Response page to capture HTTP Basic or Negotiate authentication.

For a per-request policy subroutine, HTTP 401 Response supports HTTP Basic authentication only.

The HTTP 401 Response action provides up to three branches: Basic, Negotiate, and fallback. Typically, a basic type of authentication follows on the Basic branch and a Kerberos Auth action follows on the Negotiate branch.

An HTTP 401 Response action provides these configuration elements and options.

Basic Auth Realm: Specifies the authentication realm for use with Basic authentication.
HTTP Auth Level: Specifies the authentication required for the policy.

none
- specifies no authentication.

basic
- specifies Basic authentication only.

negotiate
- specifies Kerberos authentication only.
This option is not available for a per-request policy subroutine.

basic+negotiate
- specifies either Basic or Kerberos authentication.
This option is not available for a per-request policy subroutine.

The action provides customization options that specify the text to display on the screen.

Language: Specifies the language to use to customize this HTTP 401 response page. Selecting a language causes the content in the remaining fields display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Logon Page Input Field #1: Specifies the text to display on the logon page to prompt for input for the first field. When
Language
is set to
en
, this defaults to
Username
.
Logon Page Input Field #2: Specifies the text to display on the logon page to prompt for input for the second field. When
Language
is set to
en
, this defaults to
Password
.
HTTP response message: Specifies the text that appears when the user receives the 401 response, requesting authentication.

About HTTP 407 Response

The HTTP 407 response action sends an HTTP 407 Proxy Authentication Required page to capture HTTP Basic or Negotiate authentication. The HTTP 407 Response action provides three branches: Basic, Negotiate, and fallback. Typically, a basic type of authentication follows on the Basic branch and a Kerberos Auth action follows on the Negotiate branch. An HTTP 407 response action provides these configuration elements and options:

The action provides 407 response settings.

Basic Auth Realm: Specifies the authentication realm for use with Basic authentication.
HTTP Auth Level: Specifies the authentication required for the access policy.

none
- specifies no authentication.

basic
- specifies Basic authentication only.

negotiate
- specifies Kerberos authentication only.

basic+negotiate
- specifies either Basic or Kerberos authentication.

The action provides customization options that specify the text to display on the screen.

Language: Specifies the language to use to customize this HTTP 407 response page. Selecting a language causes the content in the remaining fields display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Logon Page Input Field #1: Specifies the text to display on the logon page to prompt for input for the first field. When
Language
is set to
en
, this defaults to
Username
.
Logon Page Input Field #2: Specifies the text to display on the logon page to prompt for input for the second field. When
Language
is set to
en
, this defaults to
Password
.
HTTP response message: Specifies the text that appears when the user receives the 407 response, requesting authentication.

About Logon Page

A logon page action prompts for a user name and password, or other identifying information. The logon page action typically precedes the authentication action that checks the credentials provided on the logon page. The logon page action provides up to five customizable fields and enables localization.

The logon page action provides these configuration options and elements.

When configured in a per-request subroutine, some screen elements and options described here might not be available.

Split domain from full username: Specifies
Yes
or
No
.

Yes
- specifies that when a username and domain combination is submitted (for example,
marketing\jsmith
or
jsmith@marketing.example.com
), only the username portion (in this example,
jsmith
) is stored in the session variable
session.logon.last.username
.

No
- specifies that the entire username string is stored in the session variable.
CAPTCHA configuration: Specifies a CAPTCHA configuration to present for added CAPTCHA security on the logon page.
Type: Specifies the type of logon page input field:
text
,
password
,
select
,
checkbox
, or
none
.

text
Displays a text field, and shows the text that is typed in that field.

password
Displays an input field, but displays the typed text input as asterisks.

select
Displays a list. The list is populated with values that are configured for this field.

checkbox
Displays a check box.

none
Specifies that the field is not displayed on the logon page.
Post Variable Name: Specifies the variable name that is prepended to the data typed in the text field. For example, the POST variable
username
sends the user name input
omaas
as the POST string
username=omaas
.
Session Variable Name (or Subsession Variable Name): Specifies the session variable name that the server uses to store the data typed in the text field. For example, the session variable
username
stores the username input
omaas
as the session variable string
session.logon.last.username=omaas
.
A per-request policy subroutine uses subsession variables in place of session variables.
Clean Variable: Specifies whether to clear any value from the variable before presenting the logon page to the user; to clean the variable, select
Yes
. Defaults to
No
.
Values: Specifies values for use on the list when the input field type is
select
.
Read Only: Specifies whether the logon page agent is read-only, and always used in the logon process as specified. You can use
Read Only
to add logon POST variables or session variables that you want to submit from the logon page for every session that uses this access policy, or to populate a field with a value from a session variable. For example, you can use the On-Demand Certificate agent to extract the
CN
(typically the user name) field from a certificate, then you can assign that variable to
session.logon.last.username
. In the logon page action, you can specify
session.logon.last.username
as the session variable for a read only logon page field that you configure. When Access Policy Manager displays the logon page, this field is populated with the information from the certificate
CN
field (typically the user name).

Additionally, customization options specify text and an image to display on the screen.

Language: Specifies the language to use to customize this logon page. Selecting a language causes the content in the remaining fields to display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Form Header Text: Specifies the text that appears at the top of the logon box.
Logon Page Input Field # number: Specifies the text to display for each input field (number 1 through 5) that is defined in the Logon Page Agent area with
Type
set to other than
none
.
Logon Button: Specifies the text that appears on the logon button, which a user clicks to post the defined logon agents.
Front Image: Specifies an image file to display on the logon page. The
Replace Image
link enables customization and the
Revert to Default Image
discards any customization and use the default logon page image.
Save Password Check Box: Specifies the text that appears adjacent to the check box that allows users to save their passwords in the logon form. This field is used only in the secure access client, and not in the web client.
New Password Prompt: Specifies the prompt displayed when a new Active Directory password is requested.
Verify Password Prompt: Specifies the prompt displayed to confirm the new password when a new Active Directory password is requested.
Password and Password Verification do not Match: Specifies the prompt displayed when a new Active Directory password and verification password do not match.
Don't Change Password: Specifies the prompt displayed when a user should not change password.
Change Password: Specifies the message that is displayed to the user when they need to change the password.
Logon Page Original URL: Specifies the text to display in a link for a user who is already logged on.
Yes: Specifies a possible response to a logon page query or challenge.
No: Specifies a possible response to a logon page query or challenge.

About OAuth Logon

The OAuth logon page action prompts for a user name and password, or other identifying information. This action creates a logon page in a per-session policy (or in a per-request policy subroutine), and is typically added before the authentication action that checks the credentials provided on the logon page. The logon page action provides customizable fields and enables localization.

The OAuth logon page action provides these configuration options and elements.

When configured in a per-request subroutine, some screen elements and options described here might not be available.

Split domain from full username: Specifies
Yes
or
No
.

Yes
- specifies that when a username and domain combination is submitted (for example,
marketing\jsmith
or
jsmith@marketing.example.com
), only the username portion (in this example,
jsmith
) is stored in the session variable
session.logon.last.username
.

No
- specifies that the entire username string is stored in the session variable.
CAPTCHA configuration: Specifies a CAPTCHA configuration to present for added CAPTCHA security on the logon page.
Type: Specifies the type of logon page input field:
text
,
password
,
select
,
checkbox
, or
none
.

text
Displays a text field, and shows the text that is typed in that field.

password
Displays an input field, but displays the typed text input as asterisks.

select
Displays a list. The list is populated with values that are configured for this field.

checkbox
Displays a check box.

radio
Displays radio buttons; users select among buttons labeled with values that they configure for this field.

none
Specifies that the field is not displayed on the logon page.
Post Variable Name: Specifies the variable name that is prepended to the data typed in the text field. For example, the POST variable
username
sends the user name input
omaas
as the POST string
username=omaas
.
Session Variable Name (or Subsession Variable Name): Specifies the session variable name that the server uses to store the data typed in the text field. For example, the session variable
username
stores the username input
omaas
as the session variable string
session.logon.last.username=omaas
.
A per-request policy subroutine uses subsession variables in place of session variables.
Clean Variable: Specifies whether to clear any value from the variable before presenting the logon page to the user; to clean the variable, select
Yes
. Defaults to
No
.
Values: Specifies values for use for a select
or radio
type logon page input field. To configure values, click the field. A popup window opens where users can specify values and any text that they want to display in place of a value.
Read Only: Specifies whether the logon page agent is read-only, and always used in the logon process as specified. You can use
Read Only
to add logon POST variables or session variables that you want to submit from the logon page for every session that uses this access policy, or to populate a field with a value from a session variable. For example, you can use the On-Demand Certificate agent to extract the
CN
(typically the user name) field from a certificate, then you can assign that variable to
session.logon.last.username
. In the logon page action, you can specify
session.logon.last.username
as the session variable for a read only logon page field that you configure. When Access Policy Manager displays the logon page, this field is populated with the information from the certificate
CN
field (typically the user name).

Additionally, customization options specify text and an image to display on the screen.

Import: Click Import
to import a previously exported logon customization file.
Language: Specifies the language to use to customize this logon page. Selecting a language causes the content in the remaining fields to display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Form Header Text: Specifies the text that appears at the top of the logon box.
Logon Page Input Field # number: Specifies the text to display for each input field (number 1 through 4) that is defined in the Logon Page Agent area with
Type
set to other than
none
.
Input Field # number Values: Specifies values that are used to label radio buttons (for the radio type of logon page input field) or values to include on a list (for the select type of logon page input field).
Logon Button: Specifies the text that appears on the logon button, which a user clicks to post the defined logon agents.
Front Image: Specifies an image file to display on the logon page. The
Replace Image
link enables customization and the
Revert to Default Image
discards any customization and use the default logon page image.
Save Password Check Box: Specifies the text that appears adjacent to the check box that allows users to save their passwords in the logon form. This field is used only in the secure access client, and not in the web client.
New Password Prompt: Specifies the prompt displayed when a new Active Directory password is requested.
Verify Password Prompt: Specifies the prompt displayed to confirm the new password when a new Active Directory password is requested.
Password and Password Verification do not Match: Specifies the warning that the user sees when the passwords typed in the
New Password Prompt
and
Verify Password Prompt
boxes do not match.
Don't Change Password: Specifies the prompt displayed when a user should not change password.
Change Password: Specifies the message that is displayed to the user when they need to change the password.
Logon Page Original URL: Specifies the text to display in a link for a user who is already logged on.
Yes: Specifies a possible response to a logon page query or challenge.
No: Specifies a possible response to a logon page query or challenge.

About the virtual keyboard

A virtual keyboard displayed on the logon screen prevents password characters from being typed on the physical keyboard. The virtual keyboard appears on the logon screen when a user clicks in the password field. A user then types the password by clicking the characters on the virtual keyboard, instead of typing them on the physical keyboard.

A virtual keyboard action applies to all logon page actions that follow it in the access policy.

The virtual keyboard action provides these configuration elements and options:

Virtual Keyboard: Specifies whether the onscreen virtual keyboard is enabled or disabled.
Move Keyboard After Every Keystroke: Specifies whether the onscreen keyboard moves after the user enters a keystroke with a mouse click.
Allow Manual Input: Specifies whether a user can type the password with the physical keyboard, in addition to clicking keys on the virtual keyboard.

About the VMware View logon page action

A VMware View logon page action can display a message or can request Windows, RSA SecurID, or RADIUS logon credentials. A logon action typically precedes the authentication action that checks the credentials provided on the logon page.

The VMware View logon page provides these configuration elements and options:

VMware View logon screen: Specifies the type of logon screen to display:

Windows Password
- requests Windows logon credentials.

RSA SecurID
- requests RSA SecurID logon credentials.

RADIUS
- requests RADIUS credentials.

Disclaimer
- displays a message dialog box; for example, to display acceptable use terms.
VMware View Windows Domains: Specifies domain names separated by commas; for use with the Windows Password screen.
VMware View RADIUS Auth Label: Specifies the name of the RADIUS authentication provider to display on the RADIUS logon screen in a message similar to this one:
Please provide your Auth Label credentials

The VMware View logon page action also provides customization options to specify the text to display on the screen:

Language: Specifies the language to use to customize this logon page. Selecting a language causes the content in the remaining fields display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Logon Page Input Field #1: Specifies the text to display on the logon page to prompt for input for the first field. When
Language
is set to
en
, this defaults to
Username
.
Logon Page Input Field #2: Specifies the text to display on the logon page to prompt for input for the second field. When
Language
is set to
en
, this defaults to
Password
.
Disclaimer message: Specifies a message to display in the disclaimer logon screen.

About authentication items

Authentication items perform authentication or authentication-related functions, such as:

Verify credentials (or a PIN or a token)

Inspect SSL certificates

Check SSL certificate revocation status

Verify the result of passwordless authentication

Perform accounting, and so on.

An authentication item usually follows a logon item or another authentication item in an access policy. An access policy can contain any number of authentication items.

An administrator that configures authentication items can make these choices:

Specify an AAA server (or pool in cases where high availability is supported) against which to authenticate. Access Policy Manager (APM) supports many types of AAA servers.

Inspect the SSL certificate presented during the initial SSL handshake, or specify on-demand certificate authentication (to re-negotiate the SSL connection). On-demand authentication is not supported in every type of access configuration.

Select a Certificate Revocation Location (CRL) or Online Certificate Status Protocol (OCSP) responder for verifying revocation status.

Other configuration objects must be created before configuring an authentication item or before a particular type of authentication is fully configured and working.

About AD Auth

An AD Auth action authenticates a user against an AAA Active Directory server. An authentication action typically follows a logon action that collects credentials.

When configured in a per-request policy subroutine, some screen elements and options described here might not be available.

Type: Specifies Authentication, the type of this Active Directory action.
Server: Specifies an Active Directory server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Cross Domain Support: Specifies whether AD cross domain authentication support is enabled for this action.
Complexity check for Password Reset: Specifies whether Access Policy Manager (APM) performs a password policy check. APM supports these Active Directory password policies:

Maximum password age

Minimum password age

Minimum password length

Password must meet complexity requirements

APM must retrieve all related password policies from the domain to make the appropriate checks on the new password.
Because this option might require administrative privileges, the administrator name and password might be required on the AAA Active Directory server configuration page.
Enabling this option increases overall authentication traffic significantly because APM must retrieve password policies using LDAP protocol and must retrieve user information during the authentication process to properly check the new password.
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.
Max Password Reset Attempts Allowed: Specifies the number of times that APM allows the user to try to reset password.

About AD Query

An AD Query action performs a query against an AAA Active Directory server. An AD Query action provides these configuration elements and options:

The LDAP communication channel between BIG-IP APM and Microsoft Active Directory AAA server is secured and encrypted using Simple Authentication and Security Layer (SASL).

Type: Specifies Query, the type of this Active Directory action.
Server: Specifies an Active Directory server; servers are defined in the

Access

Authentication

area of the Configuration utility.
SearchFilter: Specifies the search criteria to use when querying the Active Directory server for the user's information. Session variables are supported as part of the search query string.
Fetch Primary Group: Specifies whether to retrieve a user's primary group Distinguished Name for use in the access policy.

Cross Domain Support: Specifies whether AD cross domain authentication support is enabled for this action.
Fetch Nested Groups: When disabled, associates the user only to the groups to which they belong directly. When enabled, associates the user to all groups that are nested under the groups that they directly belong to. For example, if the user belongs to Group 1 and Group 2, and Group1 is a member of Group 3 and Group 4, enabling this setting allows the user to obtain privileges from all groups.

Complexity check for Password Reset: Specifies whether Access Policy Manager (APM) performs a password policy check. APM supports these Active Directory password policies:

Maximum password age

Minimum password age

Minimum password length

Password must meet complexity requirements

APM must retrieve all related password policies from the domain to make the appropriate checks on the new password.
Because this option might require administrative privileges, the administrator name and password might be required on the AAA Active Directory server configuration page.
Enabling this option increases overall authentication traffic significantly because APM must retrieve password policies using LDAP protocol and must retrieve user information during the authentication process to properly check the new password.
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Max Password Reset Attempts Allowed: Specifies the number of times that APM allows the user to try to reset password.
Prompt user to change password before expiration: Specifies whether to warn the user at a set time before the password expires and provide the option to change the password.
Required Attributes (optional): By default, the server loads all user attributes if no required attributes are specified. However, system performance can improve if fewer attributes are returned. Click the
Add New Entry
button to add a new attribute to the Active Directory query action.

About Client Cert Inspection

The Client Cert Inspection agent checks the result of the SSL handshake that occurs at the start of a session. It does not, however, negotiate an SSL session. It relies on settings in a client SSL profile that is added to the virtual server. The Client Cert Inspection item can provide the result of the SSL handshake, including certificate revocation status when the client SSL profile specifies a certificate revocation list (CRL).

If using the Client Cert Inspection agent in a per-request policy subroutine, you must have an On-Demand Cert agent configured before it in the same subroutine.

The Client Cert Inspection action provides two branches: Successful and fallback.

About CRLDP Auth

A CRLDP Auth action retrieves a Certificate Revocation List (CRL) from a network location (

distribution point

). A distribution point is either an LDAP Uniform Resource Identifier (URI), a directory path that identifies the location where the CRLs are published, or a fully qualified HTTP URL. An CRLDP Auth action provides these configuration elements and options:

CRLDP Server: Specifies a CRLDP server; servers are defined in the

Access

Authentication

area of the Configuration utility.

A CRLDP Auth action is valid for use in a per-request policy subroutine when placed after an On-Demand Cert Auth action.

About HTTP Auth

A HTTP Auth action authenticates a user against an HTTP AAA server. An HTTP Auth action provides these configuration elements and options:

AAA Server: Specifies an HTTP AAA server; servers are defined in the

Access

Authentication

area of the Configuration utility.

About Kerberos Auth

A Kerberos Auth action retrieves user credentials using a Kerberos ticket.

In an access policy, an HTTP 401 Response action typically precedes a Kerberos Auth action.

A Kerberos Auth action provides these configuration elements and options:

AAA Server: Specifies a Kerberos server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Request Based Auth: Specifies whether per request based authentication is enabled. When disabled, authentication occurs only while executing the access policy.
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.
Extract Group SIDs: Specifies whether to allow the APM Kerberos Authentication module to extract user group membership SIDs from the Kerberos authentication ticket. A security identifier (SID) is a unique value of variable length used to identify a user or group. The default value is
Disabled
.

Enabled
: To allow the Kerberos authentication module to extract the user group membership SIDs from the authentication ticket and save the SIDs in a session variable. Selecting this option displays the
Session Variable for Group SIDs
setting.

Disabled
: To disallow extracting group SIDs.
Session Variable for Group SIDs: Specifies a custom variable name for the session variable used to store extracted Group SIDs. The default value is
session.kerberos.last.groupsids
.

About LDAP Auth

An LDAP Auth action authenticates a user against an AAA LDAP server. An LDAP Auth action provides these configuration elements and options.

When configured in a per-request policy subroutine, some screen elements and options described here might not be available.

Type: Specifies Authentication, the type of this LDAP action.
Server: Specifies an LDAP server; servers are defined in the

Access

Authentication

area of the Configuration utility.
SearchDN: Specifies the base node of the LDAP server search tree to start the search with.
SearchFilter: Specifies the search criteria to use when querying the LDAP server for the user's information. Session variables are supported as part of the search query string. Parentheses are required around search strings; (
sAmAccountName
=%{
session.logon.last.username
})
UserDN: Specifies the Distinguished Name (DN) of the user. The DN can be derived from session variables.
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.

About LDAP Query

An LDAP Query action performs a query against an AAA LDAP server. An LDAP Query action provides these configuration elements and options:

Type: Specifies Query, the type of this LDAP action.
Server: Specifies an LDAP server; servers are defined in the

Access

Authentication

area of the Configuration utility.

SearchDN: Specifies the base node of the LDAP server search tree to start the search with.

SearchFilter: Specifies the search criteria to use when querying the LDAP server for the user's information. Session variables are supported as part of the search query string. When strings are used, they must be enclosed in parentheses; for example, (
sAmAccountName
=%{
session.logon.last.username
}).
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Fetch groups to which the user or group belong: Specifies how to fetch groups; associates the groups to the user or the group.
None
- Do not fetch groups.
Direct
- Fetch only those groups to which the user or group belong directly.
All
- Fetch groups to which the user or group belong directly; then fetch all groups that are nested under those groups. For example, if the user belongs to Group 1 and Group 2, and Group 1 is a member of Group 3 and Group 4, selecting
All
associates all four groups to the user. Alternatively, if the group is Group 1, selecting
All
associates Group 3 and Group 4 to Group 1.
Fetch users that belong to the group: Specifies how to fetch users that are members of the group; associates the users to the group.
None
- Do not fetch groups.
Direct
- Fetch only those users that belong to the group directly.
All
- Fetch users that belong to the group directly and, if other groups are nested under the group, fetch users that belong to those groups also. For example, if the group (for example, Group 1) is a member of Group 3 and Group 4, selecting
All
associates the members (users) of all three groups to the group.
Required Attributes (optional): By default, the server loads all user attributes if no required attributes are specified. However, system performance can improve if fewer attributes are returned.

About LocalDB Auth

The LocalDB Auth action can authenticate a user against a local user database instance. The LocalDB Auth action can lock a user out of a local user database instance if they fail to log on within a specified number of attempts.

For enhanced security, typically, Local Database actions should be placed before and after a LocalDB Auth action to read and write user information to track non-static users (those not created by an administrator) that attempt repeatedly to logon and fail.

A LocalDB Auth action provides these configuration elements and options.

LocalDB Instance: Specifies a local user database instance.
Max Logon Attempts Allowed: A number from 1 to 5.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.

About NTLM Auth Result

If NTLM authentication occurs, it happens before the access policy runs. The NTLM Auth Result action checks the result and provides two branches: Successful and fallback.

About OAuth Authorization

When Access Policy Manager (APM®) is configured to act as an OAuth authorization server, an OAuth Authorization agent must be present in the access policy.

The OAuth Authorization agent provides these elements and options.

Prompt for Authorization: Enabled
- Displays the OAuth Authorization page. The page requests authorization for the client application to access a list of scopes and presents the options to allow or to deny access.
Disabled
- Does not display the OAuth Authorization page.
Subject: Type the name of a subject claim (for JSON web tokens).
Audience: Specifies the audiences for the claims (for JSON web tokens).
Scope / Claim Assign: Specifies the scopes or the claims for which authorization is requested. If no scopes or claims are specified here, the ones configured in APM for the client application are used.
Customization: Customize the messages that display on the OAuth authorization page when
Prompt for Authorization
is set to
Enabled
:
Language
- Specifies the language in which you want to customize the fields for this OAuth Authorization agent page.
You select languages in this section only for the purpose of customization. The language used in a policy is determined by the user's browser settings. The default language for a per-session policy is determined in the access profile and not in the policy.
Authorize Message
- Specifies the initial wording for the prompt.
Scope Message
- Specifies the wording that precedes the list of scopes that are specified in the Scope / Claim Assign area of this screen.
Allow Message
- Provides the label for the button that allows access.
Deny Message
- Provides the label for the button that denies access.

About OAuth Client

An OAuth Client agent is a policy item that requests authorization and tokens from an OAuth server. An OAuth Client can also get scope data on a per-request basis. The OAuth Client agent provides these configuration elements and options:

Using Dynamic Server: Specifies whether to dynamically select OAuth servers based on the configured session variable.
Using Dynamic Server, you can provision a single authorization server to multiple clients in a user group or multiple authorization servers to various clients using the same session variable. Defaults to
Disabled
.

Disabled
- The client directs requests to the OAuth server selected in the
Server
drop-down list.

Enabled
- The client uses session variables to dynamically select the OAuth server assigned to the client. You may assign the session variable for the OAuth Server to which this client directs requests using iRule or Variable Assign action. Enabling this option displays the
Dynamic Server
field.
Dynamic Server: Specifies the session variable to dynamically select the OAuth server to which this client directs requests. For example,
%{session.oauth.clientserver}
.

You may assign the session variable for the OAuth Server to which this client directs requests using iRule or Variable Assign action. Displays when
Using Dynamic Server
is set to
Enabled
.
Server: Specifies the OAuth server to which this OAuth client directs requests.
Grant Type: Specifies the type of grant that the OAuth client uses.

Authorization code
- The client redirects the resource owner to the OAuth server to request an authorization code.

Password
- The client uses resource owner password credentials to request an access token from the OAuth server.
OpenID Connect: Specifies whether the agent uses OpenID Connect for authorization. Displays when
Grant Type
is set to
Authorization code
. Defaults to
Disabled
.
To function correctly when enabled, the OAuth provider (associated with the selected
Server
) must be configured to support JSON web tokens.
OpenID Connect Flow Type: Specifies the OpenID Connect flow type to use:
Authorization code
or
Hybrid
. Displays when
OpenID Connect
is set to
Enabled
.
OpenID Connect Hybrid Response Type: Specifies the response type to use for an OpenID Connect hybrid flow:
code-idtoken
,
code-token
, or
code-idtoken-token
. Displays when
OpenID Connect Flow Type
is set to
Hybrid
.
Authentication Redirect Request: Specifies an auth-redirect-request type request, which redirects a user to an OAuth server. Displays when
Grant Type
is set to
Authorization code
.
Token Request: Specifies a token-request type of request.
Refresh Token Request: Specifies a token-refresh-request type of request. APM uses this request on a per-request basis.
OpenID Connect UserInfo Request: Specifies an openid-userinfo-request type of request. Displays when
OpenID Connect
is set to
Enabled
. JWT access tokens can be submitted for an OpenID Connect UserInfo request; however, issuing id_tokens alongside an opaque token is not supported.
Redirection URI: Specifies the URI for the OAuth server to redirect a user back to the OAuth client. Displays when
Grant Type
is set to
Authorization code
.
Scope: Specifies one or more strings separated by spaces; for example
contacts photo email
. The strings are defined by the OAuth authorization server. Your best source of information for the strings that a particular OAuth authorization server defines could be APIs for OAuth 2.0 scopes on developer sites for OAuth providers.
For the
Authorization code
grant type, an OAuth authorization server prompts the user to grant or deny access to the scopes. For the
Password
grant type, an OAuth authorization server grants permission to the requested scopes based on the user providing resource owner password credentials.

Requests are configured in the

Access

Federation

OAuth Client / Resource Server

Requests

area of the product.

About OAuth Scope

The OAuth Scope agent validates JSON web tokens (JWT) or validates scopes for opaque tokens. The OAuth Scope item provides these elements and options:

Token Validation Mode: Internal
- In this mode, the agent validates JSON web tokens (JWT).

External
- In this mode, the agent makes requests to an OAuth authorization server to get scopes associated with a token and to get scope data, such as a user's email address or contact list.

JWT Provider List: Specifies a list of OAuth providers that support JWT. The agent validates JWT from any of these providers when configured. Displays when
Token Validation Mode
is set to
Internal
.
Provider lists are configured in the

Access

Federation

JSON Web Token

Provider List

area of the product.
Using Dynamic Server: Specifies whether to dynamically select OAuth servers based on the configured session variable.
Using Dynamic Server, you can provision a single authorization server to multiple clients in a user group or multiple authorization servers to various clients using the same session variable. Defaults to
Disabled
.

Disabled
- The client directs requests to the OAuth server selected in the
Server
drop-down list.

Enabled
- The client uses session variables to dynamically select the OAuth server assigned to the client. You may assign the session variable for the OAuth Server to which this client directs requests using iRule or Variable Assign action. Enabling this option displays the
Dynamic Server
field.
Dynamic Server: Specifies the session variable to dynamically select the OAuth server to which this client directs requests. For example,
%{session.oauth.clientserver}
.

You may assign the session variable for the OAuth Server to which this client directs requests using iRule or Variable Assign action. Displays when
Using Dynamic Server
is set to
Enabled
.
Server: Specifies the OAuth server from which to request scope data or to request the list of scopes associated with an access token. Displays when
Token Validation Mode
is set to
External
and
Using Dynamic Server
is set to
Disabled
.
Scopes Request: Specifies a validation-scopes-request type request. This request type retrieves a list of scopes associated with the token. Displays when
Token Validation Mode
is set to
External
.
OpenID Connect UserInfo Request: Specifies an openid-userinfo-request type request where the client sends the request using either GET or POST. Displays when
Token Validation Mode
is set to
External
.

External

mode, you can add multiple scope data requests to the agent. Click

Add New Entry

and specify:

Scope Name: Specifies the name of a scope for which you are requesting data. (The external OAuth provider specifies the names of the scopes that it supports.)
Request: Specifies a scope-data-request type request. This is optional. If the provider does not require this type of request to obtain additional information from an authorization server, you do not need to fill in this field.

You can configure requests here:

Access

Federation

OAuth Client / Resource Server

Requests

About OCSP Auth

An OCSP Auth action retrieves the revocation status of an X.509 certificate by sending the certificate information to a remote Online Certificate Status Protocol (OCSP) responder. Typically, an OCSP Auth action follows an action that receives an X.509 certificate. Either a Client Cert Inspection or On-Demand Cert Auth action can receive the X.509 certificate from a user. Either action populates session variables with data that OCSP Auth uses. Similarly, a Machine Cert Auth action can receive an X.509 certificate from a machine and populate session variables.

A CRLDP Auth action is valid for use in a per-request policy subroutine when placed after an On-Demand Cert Auth action.

An OCSP Auth action provides these configuration elements and options:

OCSP Responder: Specifies the OCSP Responder AAA configuration object, defined in the Access Policy AAA servers area of the Configuration utility.
Certificate Type: Specifies the expected type of certificate:
User
or
Machine
.

About On-Demand Cert Auth

Typically, when a client makes an HTTPS request, an SSL handshake request occurs at the start of an SSL session. If the client SSL profile skips the initial SSL handshake, an On-Demand Cert Auth action can re-negotiate the SSL connection from an access policy by sending a certificate request to the user. This prompts a certificate screen to open. After the user provides a valid certificate, the On-Demand Cert Auth action checks the result of certificate authentication. The agent verifies the value of the session variable

session.ssl.cert.valid

to determine whether authentication was a success.

When configuring on-demand certification authentication in a per-request policy, avoid having any other agent before the On-Demand Cert Auth agent if the client SSL profile on the virtual server has the

Client Certificate

field set to

ignore

. This configuration makes the per-request policy re-execute the subroutine when it reaches the On-Demand Cert Auth agent. This can cause the per-request policy to go to the unexpected branch on each agent located before On-Demand Cert Auth agent.

The On-Demand Cert Auth action provides one configuration option,

Auth Mode

, with two supported modes:

Request: With this mode, the system requests a valid certificate from the client, but the connection does not terminate if the client does not provide a valid certificate. Instead, this action takes the fallback route in the access policy. This is the default option.
Require: With this mode, the system requires that a client provides a valid certificate. If the client does not provide a valid certificate, the connection terminates and the client browser stops responding.
For an iPod or an iPhone, the
Require
setting must be used for On-Demand certificate authentication. To pass a certificate check using Safari, the user is asked to select the certificate multiple times. This is expected behavior.

On-demand certificate authentication does not work when added to a subroutine for a per-request policy that is part of a forward proxy configuration.

About OTP Generate

The OTP Generate action can generate a one-time use time-limited password. This action does not send the one-time password to a user. Typically, an OTP Generate action precedes other actions that send the password (the Email action, for example) and then verify it (OTP Verify action). The OTP Generate action provides these configuration options:

OTP length: Specifies the length of the one-time password. Defaults to 6.
OTP timeout: Specifies the number of seconds that the password is valid. Defaults to 300.

About OTP Verify

In an access policy, the OTP Verify action checks for a match between a user-entered password and the one-time password generated previously by the OTP Generate action. The OTP Verify action also verifies that the one-time password has not expired. The OTP Verify action provides this configuration option:

Max Logon Attempts Allowed: Limits the number of logon attempts.

About RADIUS Acct

A RADIUS Acct action reports user session information to an external RADIUS accounting server; it does not perform authentication.

A RADIUS Acct action provides these configuration elements and options:

AAA Server: Specifies the RADIUS server; servers are defined in the

Access

Authentication

area of the Configuration utility.

Username Source: Specifies the session variable name from which the RADIUS Accounting server should read the username. The default value is
%{session.logon.last.username}
.

About RADIUS Auth

A RADIUS Auth action authenticates a client against an external RADIUS server. A RADIUS Auth action provides these configuration elements and options.

When configured in a per-request policy subroutine, some screen elements and options described here might not be available.

AAA Server: Specifies the RADIUS accounting server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.

Username Source: Specifies the session variable name from which RADIUS agent should read the username. The default value is
%{session.logon.last.username}
.

Password Source: Specifies the session variable name from which RADIUS agent should read the password. The default value is
%{session.logon.last.password}
.

About RSA SecurID

An RSA SecurID action authenticates a user name and PIN code or token against a SecurID server. In an access policy, an authentication action typically follows a logon action that collects credentials. An RSA SecurID action provides these configuration elements and options:

AAA Server: Specifies the RSA SecurID server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Show Extended Error: When enabled, causes comprehensive error messages generated by the authentication server to display on the user's logon page. This setting is intended only for use in testing, in a production or debugging environment. If enabled in a live environment, your system might be vulnerable to malicious attacks. (When disabled, displays non-comprehensive error messages generated by the authentication server on the user's logon page.)
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.

Username Source: Specifies the session variable name from which RSA SecurID Auth agent should read the username. The default value is
%{session.logon.last.username}
.

Password Source: Specifies the session variable name from which RSA SecurID Auth agent should read the password. The default value is
%{session.logon.last.password}
.

About SAML Auth

The SAML Auth action authenticates against an external SAML Identity Provider (IdP). This action is for use when the BIG-IP system is configured as a SAML service provider and supports connections initiated at SAML service providers.

The SAML Auth action provides this configuration element:

AAA server: Specifies a local SP service that is associated with a SAML IdP. The local SP service configuration uniquely identifies the SP and specifies its security requirements..
IdPs are specified in SAML IdP connector configurations.

Attribute Consuming Service: Specifies the name of one of the attribute consuming service associated with the server. The index associated with the selected attribute consuming service is included in the SAML authentication request generated. The identity provider maps the index to the list of attributes derived from the metadata previously shared and returns those attributes in the SAML response. For example, the SP may include an Attribute Consuming Index in a SAML request to get the attributes of an authenticated user.

Force Authentication: Allows the SP to include the ForceAuthn flag in an Authentication request at runtime. The options are:
Enable
- Overrides the Service Provider Force Authentication setting and always adds
ForceAuthn=true
to the Authentication request. Uses the Force Authentication setting on the Service Provider (

Access

Federation

SAML Service Provider

).
Disable
- Overrides the Service Provider Force Authentication setting and always adds
ForceAuthn=false
to the Authentication request.
Use AAA server setting (the default)
- Uses the same Force Authentication setting as the Service Provider (

Access

Federation

SAML Service Provider

).
Session variable setting
- Specifies that you want to use a session variable to control the ForceAuthn flag included in the Authentication request.

Force Authentication Session Variable: When Force Authentication is set to
Session variable setting
, specifies a session variable that controls the value of the ForceAuthn flag included in the Authentication request, as follows.
If the session variable resolves to 1 at runtime, APM adds
ForceAuthn=true
to the Authentication request overriding the Force Authentication setting on the Service Provider.
If the session variable resolves to 0 at runtime, APM adds
ForceAuthn=false
to the Authentication request overriding overriding the Force Authentication setting on the Service Provider.
If the session variable is not found at runtime or resolves to a value other than 1 or 0, then the Force Authentication setting on the Service Provider controls the behavior of the ForceAuthn flag included in the Authentication request.

About TACACS+ Acct

A TACACS+ Acct action adds Terminal Access Controller Access Control System (TACACS+) accounting to an access policy. The accounting service sends

start

and

stop

accounting records to the remote server.

A TACACS+ Acct action provides these configuration elements and options:

AAA Server: Specifies the TACACS+ accounting server; servers are defined in the

Access

Authentication

area of the Configuration utility.

About TACACS+ Auth

A TACACS+ Acct action authenticates a user against a Terminal Access Controller Access Control System (TACACS+) server. In an access policy, an authentication action typically follows a logon action that collects credentials. A TACACS+ Acct action provides these configuration elements and options:

AAA Server: Specifies the TACACS+ accounting server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Max Logon Attempts Allowed: Specifies the number of user authentication logon attempts to allow. A complete logon and password challenge and response is considered as one attempt. The default value is 3
. You can set this field to a value of 1-5
.
For a per-request policy subroutine, equivalent functionality is supported through subroutine settings.

About Transparent Identity Import

A Transparent Identity Import action obtains an IP-address-to-username-mapping, if it exists, from an IF-MAP server located on the BIG-IP system. If the mapping exists, the user identity is assumed to be known.

An IF-MAP server exists and is populated when the F5 DC Agent is installed, configured, and operating correctly in your network.

A Transparent Identity Import action provides two branches: Associated and fallback.

About assignment items

Most assignment items support assigning resources to a session. In contrast, the Variable Assign item supports assigning values to existing variables, to existing configuration elements, and to variables that you define yourself.

Resource assignment: A resource assignment item is usually placed immediately prior to an
Allow
ending on a branch in an access policy. At that point, any branching (based on client type or geolocation, and so on), client software checks, SSL client certificate checks, and authentication items are complete. Resource assignment supports:

Selection of the resources that are needed to establish a network access, portal access, or application access session, including a webtop and any ACLs.

Mapping resources to an Active Directory or LDAP group.

Overriding the pool assignment made in a virtual server.

Resource assignment also supports selection of resources for bandwidth control, enforcement of Secure Web Gateway (SWG) schemes, and so on.
Variable assignment: A variable assignment item is placed where needed in an access policy. Variable assignment items can support:

Replacing the value of one configuration object, such as a subnet, with another configuration object of the same type.

Replacing the value of a session variable.

Taking a value from an AAA attribute (which must be already available in the session, retrieved by another item), and assigning the attribute value to a variable.

Creating a variable for any reason (for example, storing a value for later retrieval or using the value in arithmetic operations).

Using Tcl expressions to derive values and assign them to variables.

About ACL Assign

An ACL Assign action dynamically assigns static access control lists (ACLs). ACLs then apply only to clients that reach such an assignment action in the access policy. An ACL Assign action provides these configuration elements and options: selection of static ACLs from those configured in Access Policy Manager.

When no ACLs are assigned in an access policy, the default behavior allows access. When an ACL is assigned in an access policy, it can restrict resources to only those specified in the ACL provided that the last ACE in the list is configured to reject any connection not matched by a previous entry.

The Advanced Resource Assign action also supports ACL assignment.

About AD Group Resource Assign

The AD Group Resource Assign action enables users to create entries that specify Active Directory groups and assign resources to them.

The LDAP communication channel between BIG-IP APM and Microsoft Active Directory AAA server is secured and encrypted using Simple Authentication and Security Layer (SASL).

An AD Group Resource Assign action provides these configuration elements and options:

Groups: Specifies the AD groups to which resources are assigned. A list of groups can be imported through the AD AAA server and created manually by typing group names.
Resources: Specifies Static ACLS, Network Access resources, App Tunnels, and so on to assign to the selected groups. Any resource on the system can be assigned to a group. The system limits apply; for example, only one webtop should be assigned to a group.

About AD Group SID Resolver

An AD Group SID Resolver action enables users to build Active Directory group cache and resolve group SIDs to group names.

The LDAP communication channel between BIG-IP APM and Microsoft Active Directory AAA server is secured and encrypted using Simple Authentication and Security Layer (SASL).

An AD Group SID Resolver action provides these configuration elements and options:

Type: Specifies Group SID Resolver, the type of this Active Directory action.
Server: Specifies an Active Directory server; servers are defined in the

Access

Authentication

area of the Configuration utility.
Trusted Domains: Specifies the Active Directory trusted domain. Select the Active Directory trusted domain you want to use from the list. You can select either a server or a trusted domain for Active Directory authentication, but not both. You can select a trusted domain only if you enable the Cross Domain Support option.

Cross Domain Support: Specifies whether AD cross domain authentication support is enabled for this action.

Select
Enabled
to support cross domain authentication. This allows enterprise users from different domains to authenticate successfully in the rules for the policy. If you use a non-canonical domain name, such as
domain
, instead of
domainname.companyintranet.com
, you must use a custom variable agent to map the non-canonical domain name to a full domain name used by the Active Directory agent. Otherwise, an Active Directory authentication error can occur because the Active Directory agent is unable to authenticate users, such as
user@domainname
.

Select
Disabled
to disallow cross domain authentication support.
Session Variable for Group SIDs (in): Specifies the custom variable name for the input session variable used to store extracted Group SIDs. The default value is
session.kerberos.last.groupsids
. The variable name should be the same as that configured in Kerberos Auth agent in the
Session Variable for Group SIDs
field.
Session Variable for Group Names (out): Specifies the custom variable name for the output session variable used to store resolved Group Names in DN format. The default value is
session.ad.last.attr.memberOf
.

About Advanced Resource Assign

The Advanced Resource Assign action enables assignment of resources.

An Advanced Resource Assign action provides these configuration elements and options:

Resource type: Specifies a type of resource (one per tab), and on each tab provides a check list or radio button list of such resources for selection. Resource types include: Network Access, Portal Access, App Tunnels, Remote Desktops, Static ACLs, SAML, Webtops, Webtop Links, Webtop Sections, and Static Pools.

About BWC Policy

The BWC Policy action enables users to assign bandwidth control (BWC) policies to the traffic that passes through the virtual server.

A BWC Policy action provides these configuration elements and options:

Static BWC policies: Specifies one or more static BWC policies from those configured on the BIG-IP system.
Dynamic BWC Policy: Specifies the name of one dynamic BWC policy that was configured to shape traffic for Citrix clients that support MultiStream ICA.
Very High Citrix BWC Category: Specifies the name of the category in the BWC policy that assigns a percentage of the maximum bandwidth to a very high level of Citrix traffic.
High Citrix BWC Category: Specifies the name of the category in the BWC policy that assigns a percentage of the maximum bandwidth to a high level of Citrix traffic.
Medium Citrix BWC Category: Specifies the name of the category in the BWC policy that assigns a percentage of the maximum bandwidth to a medium level of Citrix traffic.
Low Citrix BWC Category: Specifies the name of the category in the BWC policy that assigns a percentage of the maximum bandwidth to a low level of Citrix traffic.
For more information, refer to
BIG-IP Access Policy Manager: Third-Party Integration Implementations
on the AskF5 web site (
http://support.f5.com/kb/en-us.html
).

About Citrix Smart Access

The Citrix Smart Access action enables users to assign Citrix SmartAccess filters to the session. A filter is a name; it is defined in a Citrix software product.

A Citrix Smart Access action provides these configuration elements and options:

Assignment: One or more entries each of which specifies the name of a filter. The name must match the name that is specified in the Citrix software product.

For more information, refer to

BIG-IP Access Policy Manager: Third-Party Integration Implementations

on the AskF5 web site (

http://support.f5.com/kb/en-us.html

About Dynamic ACLs

dynamic ACL

is an ACL whose ACL entries are defined during access policy execution time, and the entries are stored and enforced for that particular Access session. The source of ACL entries is a session variable having content that can be sourced from external sources such as ActiveDirectory, LDAP, RADIUS, or internal sources such as iRules, data groups, or any combination of the above.

Access Policy Manager supports dynamic ACLs in F5 ACL format, and in a subset of the Cisco ACL format.

A dynamic ACL action includes these configuration elements and options:

Source: Specifies a type of session variable (
Custom
or
CiscoAV-PairVSA
) and the source session variable from which the dynamic ACL is derived. For
Custom
dynamic ACL entries, this is any session variable that is populated with an F5 format ACL. For
CiscoAV-PairVSA
dynamic ACL entries, this is predefined as
session.radius.last.attr.vendor-specific.1.9.1
.
ACL: Specifies the dynamic ACL container configured on the BIG-IP system. Dynamic ACL objects are empty container ACLs that you define on the system.
Format: Specifies the format (F5 or Cisco) used to define the ACL.

To succeed, a dynamic ACL action must follow actions that populate the session variables with ACLs.

About LDAP Group Resource Assign

The LDAP Group Resource Assign action enables users to create entries that specify LDAP groups and assign resources to them.

An LDAP Group Resource Assign action provides these configuration elements and options:

Groups: Specifies the LDAP groups to which resources are assigned. A list of groups can be imported through the LDAP AAA server and created manually by typing group names.
Resources: Specifies Static ACLS, Network Access resources, App Tunnels, and so on to assign to the selected groups. Any resource on the system can be assigned to a group. The system limits apply; for example, only one webtop should be assigned to a group.

About Links, Sections and Webtop Assign

The Links, Sections and Webtop Assign action can assign a preconfigured webtop links, webtop sections and a webtop to a session.

A Links, Sections and Webtop Assign action provides these configuration elements and options:

Webtop Links: Specifies one or more webtop links.
Webtop links apply only to a full webtop.
Webtop Sections: Specifies one or more webtop sections for grouping links on the webtop.
Webtop sections apply only to a full webtop.
Webtop: Specifies one webtop. This can be a full webtop, portal access webtop, or a network access webtop.

About RDG Policy Assign

The RDG policy assign action assigns an RDG-RAP access profile to a session. RDG-RAP is a type of access profile that runs each time the client requests a new connection to a host that is behind Access Policy Manager. When the profile runs, the per-session policy determines whether the client should have access to the target host.

Click

Add/Delete

to display and select one RDG-RAP access profile from among those defined on the BIG-IP system.

About Pool Assign

The Pool Assign agent can dynamically assign a local traffic pool; it provides this configuration element only: selection of a static pool.

In a per-session policy, the Pool Assign agent enables session-based pool selection from among valid pools in this priority order: a pool selected by an iRule that is defined for the virtual server takes precedence over any other; a static pool defined in the Pool Assign agent takes precedence over a static pool defined for the virtual server.

In a per-request policy, the Pool Assign agent enables request-based pool selection for reverse proxy (LTM+APM) only. In a per-request policy, the Pool Assign agent specifies the pool to use.

In a per-request policy, using the Pool Assign agent in a forward proxy configuration does not work and is not supported.

About Resource Assign

The Resource Assign action assigns connection resources to a session.

A Resource Assign action provides these configuration elements and options:

Network Access: Specifies the names of one or more network access resources.
Portal Access: Specifies the names of one or more portal access resources.
App Tunnel: Specifies the names of one or more application tunnels.
Remote Desktop: Specifies the names of one or more remote desktops.
SAML: Specifies the names of one or more SAML resources.

About Route Domain and SNAT Selection

The Route Domain and SNAT Selection action enables dynamic assignment of a route domain and of SNAT.

A Route Domain and SNAT Selection action provides these configuration elements and options:

Route Domain: Specifies a route domain. Enables route domain-based policy routing, sending a user to another route domain based on the outcomes of previous branches in the access policy.
SNAT: Specifies a SNAT to provide secure network address translation (SNAT) to the self IP address of the BIG-IP device, or to choose from a pool of configured internal addresses for SNAT. SNAT precedence is determined according to the following rules:

First, if a SNAT is defined in a Network Access resource configuration, APM uses that SNAT.

If there is no SNAT defined in the Network Access resource, or the resource is another type, the APM takes the SNAT from this assignment in the access policy.

If there is no SNAT assigned in the access policy, the APM uses the SNAT from the virtual server definition.

About SSO Credential Mapping

The SSO Credential Mapping action caches the user name and password for use with single sign-on (SSO) applications in the enterprise. This action enables users to forward stored user names and passwords to applications and servers automatically, without having to input credentials repeatedly.

The SSO Credential Mapping action provides these configuration elements and options.

SSO Token Username: One of these:

Username from Logon Page
- when selected, the Tcl expression that APM® uses to obtain the username from session variables displays; it is read-only.

sAMAccountName from Active Directory
- when selected, the Tcl expression that APM uses displays; it is read-only.

sAMAccountName from LDAP Directory
- when selected, the Tcl expression that APM uses displays; it is read-only.

Custom
- when selected, the last-displayed Tcl expression remains in the entry field. This field can be edited; another Tcl expression can be entered.
SSO Token Password: One of these:

Password from Logon Page
- when selected, the Tcl expression that APM uses to obtain the username from session variables displays; it is read-only.

Custom
- when selected, the last-displayed Tcl expression remains in the entry field. This field can be edited.

About Variable Assign

The Variable Assign action can includes one or more entries. An entry specifies a variable and assigns a value to it.

2-pane screen: custom variable in left pane and custom expression in right pane. — A variable assign entry screen as it displays initially

In the entry screen, the variable is specified in the left pane and the value is specified in the right pane.

A Variable Assign action provides these configuration elements and options for the variable:

Custom Variable: Specifies a variable name. It can be any name including the name of a session variable or the name of a perflow variable.
For a per-session policy, when the policy runs it recognizes only existing perflow variables.
Predefined Variables: Specifies a predefined session variable or perflow variable name, which must be selected from the
Variable
list. The type of variable (session or perflow) that is available for selection depends on the selected
Group
:
Per-Session Variables
or
Per-Request Variables
.
For
Per-Request Variables
, the
Scratchpad, Custom
, and
Primary Category
perflow variables are available for use in the per-request policy and in per-request policy subroutines. You can, for example, pass the value of a session variable into the per-request policy in one of these variables.
Unsecure or Secure: Specifies whether the variable is secure. A secure variable is stored in encrypted form in the session database. The value of a secure variable is not displayed in the session report, or logged by the logging agent.

A Variable Assign action provides these configuration elements and options for the value:

Custom Expression: Specifies a Tcl expression. The result of the expression is used as the value.
AAA attribute: Specifies the name of the attribute that contains the value:
Agent Type
- specifies the type of AAA server: AD, LDAP, or RADIUS.
Attribute Type
- specifies the attribute type to use depending on the agent type:
Use user's attribute
- for AD agent.
Use user's primary group attribute
- for AD agent.
Use LDAP attribute
- for LDAP agent.
Use RADIUS attribute
- for RADIUS agent.
Agent type attribute name
- specifies the name of the attribute that contains the value.
Text: Specifies a text string to use as the value. The text entered in this field is used as is.
Session Variable: Specifies the name of a session variable from which to get the value.

About VMware View Policy

A VMware View Policy action provides the ability to enable USB redirection for View desktop resources, and to pass Start Session Script Variables for VMware View connections for supported View clients.

A VMware View Policy action provides these configuration elements and options:

USB redirection: Disabled - Disables USB redirection. This is the default setting.

Enabled - Enables USB redirection.
Preferred Client for Webtop: Specifies the VDI client on APM webtop:

Prompt User - Specifies to prompt the user for selection of client. This is the default setting.

HTML5 - Specifies to use the HTML5 client for webtop.

Native - Specifies to use the native client for webtop.
VMware View Start Session Script Variables: Specify variables and values to pass to the VMware View Connection Server (VCS) for use in a Start Session Script that you have configured on the VCS.

About endpoint security (server-side) access policy items

In endpoint security (server-side) actions, the server queries clients and makes policy decisions based on information that a client presents to the server. For example, the Client Type action presents a query to find out what type of client is connecting, and routes the client to the different policy branches based on the results of the query. Endpoint security (server-side) access policy items do not require installation of client components.

About Client for MS Exchange

The Client for MS Exchange action determines whether a client is using Microsoft Exchange or ActiveSync protocols. This action includes two default branches: Client for MS Exchange and fallback. The Client for MS Exchange branch indicates that the client uses the Microsoft Exchange or ActiveSync protocol. A client for Microsoft Exchange is not a typical web browser and Access Policy Manager (APM) has the following restrictions on Client for MS Exchange access policy branches.

Behavioral restrictions: APM does not attempt to perform authentication retries.

A logon page action automatically works in clientless mode. (The access policy must include a logon page action.)

Except for the logon page, APM cannot provide responses that require additional user input.
Limited supported actions: Microsoft Exchange devices support only the following actions. Therefore, only these actions are supported on a Client for MS Exchange access policy branch.

Authentication actions:

AD Auth

AD Query

Client Cert Inspection

HTTP Auth

LDAP Auth

LDAP Query

NTLM Auth

RADIUS Auth

RADIUS Accounting

RSA SecurID Authentication

Endpoint security (server-side) actions:

Client-Side Capability

Client OS

Landing URI

IP Geolocation Match

About Client OS

The Client OS action detects the operating system of the remote client. Access Policy Manager detects this using information from the HTTP header. The action provides separate branches for separate operating systems. This action can be very useful at the beginning of an access policy. Each branch can include actions that are specific to a client operating system.

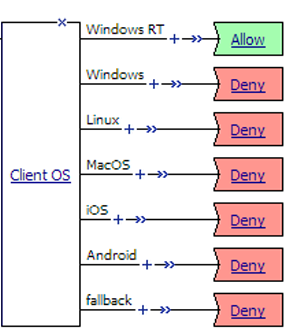

This figure shows the Client OS action and default branches, configured to allow access to clients on the Windows RT operating system and to deny access to all others.

Client OS action with Windows RT branch ending set to Allow and other branch endings set to Deny — Client OS item with Allow ending configured on Windows RT branch

In practice, actions would be specified on the access policy branches and might include logon actions, authentication actions, and other actions.

About Client Type

The Client Type action determines whether the client is using a full browser, the BIG-IP Edge Client, or another client to access the Access Policy Manager (APM). This action makes it possible to specify different actions for different client types in one access policy and, as a result, to use one virtual server for traffic from different client types. This figure shows the Client Type action as it looks when first added to an access policy.

What the Client Type action looks like when initially added to an access policy — Client Type

By default, the Client Type action includes these branches:

Edge Portal: Indicates that the user is connecting with the BIG-IP Edge Portal mobile app.
Windows Inbox F5 VPN Client: Indicates the user is connecting using the Windows Inbox F5 VPN client.
F5 Access: Indicates the user is connecting using F5 Access.
Machine Tunnel: Use this branch to configure an access policy to detect the machine tunnel client type.
Edge Client: Indicates that the user is connecting with the BIG-IP Edge Client or BIG-IP Edge Client app, supported on multiple devices and operating systems.
Citrix Receiver: Indicates that the user is connecting using a later Citrix Receiver client. Use this branch to configure authentication for later Citrix Receiver clients (iOS, Mac, and Android).
Citrix Receiver (legacy): Indicates that the user is connecting using an earlier Citrix Receiver client (identified with PN Agent). Use this branch to configure authentication for legacy Citrix Receiver clients (Windows and Linux).
VMware View: Indicates that the user is connecting using a VMware Horizon View client. Use this branch to configure an access policy to authenticate View Client using VMware View logon pages.
Microsoft RDP Client: Indicates the user is connecting using Microsoft RDP Client . Use this branch to configure an access policy to authorize resource requests from Microsoft RDP clients.
MS-OFBA Compliant: Indicates the user is connecting using MS-OFBA (Microsoft Office Forms Based Authentication) supported office applications. Use this branch to configure an access policy that allow users to open, use, and authenticate Microsoft Office applications.
Full or Mobile Browser: Indicates the user is connecting with a Windows web browser or a mobile browser.
fallback: Indicates the user is connecting with another method.

APM supports the client types on multiple operating systems. Refer to AskF5 (

support.f5.com

) to look up the supported operating systems and versions in the compatibility matrix for your version of APM.

To create additional branching for a client type based on operating system, you can add a client operating system (Client OS) action on the client type branch.

About Client-Side Capability

Starting from the APM Clients release 7.1.5, the APM Clients do not use browser plugins. So, the Client-Side Capability agent should not be used to determine if a client is capable of running the client-side endpoint security checks or of establishing VPN, Dynamic or Static Application tunnels.

The Client-Side Capability action determines whether the client is fully capable of running endpoint security (client-side) actions. The Client-Side Capability action includes two branches.

Branch	Description
Full	Indicates that the user is connecting with a client that has full client-side check support.
fallback	Indicates that the user is connecting with a client that does not fully support client-side checks.

This action can be very useful as one of the first checks in an access policy. The

Full

branch can include the required client-side checks for those clients that are capable, while the fallback branch can lead to access policy branches for other clients.

This figure shows an example in which the Client-Side Capability action is used to verify that the client is capable of running a client-side check before running the client-side check for antivirus software.

Client-Side Capability action with Anti-Spyware action on the Full branch and no action on the fallback branch. — Client-side capability check before a client-side check

In practice, an access policy would usually include a logon action, an authentication action, and other actions.

About the Date Time action

The Date Time action checks the date or the time to support date- and time-based access. The Date Time action provides two default branch rules:

Weekend: Defined as Saturday and Sunday.
Business Hours: Defined as 8:00am to 5:00pm.

The Date Time action provides these conditions for defining branch rules.

Time From: Specifies a time of day. The condition is true at or after the specified time.
Time To: Specifies a time of day. This condition is true before or at the specified time.
Date From: Specifies a date. This condition is true at or after the specified date.
Date To: Specifies a date. This condition is true before or at the specified date
Day of Week: Specifies a day. The condition is true for the entire day (local time zone).
Day of Month: Specifies the numeric day of month. This condition is true for this day every month (local time zone).

About IP Geolocation Match

The IP Geolocation Match action determines a user's physical location by comparing the user's IP address to an internal database. The IP Geolocation Match action can make a match based on one or more location parameters.

The default branch rule is

IP Geolocation Country code is

The IP Geolocation Match action provides these conditions for defining branch rules.

IP Geolocation Continent code is: Specifies that the user’s IP address must match the specified continent code.
IP Geolocation Country code is: Specifies that the user’s IP address must match the specified country code.
IP Geolocation Country name is: Specifies that the user’s IP address must match the specified country name.
IP Geolocation State/Region is: Specifies that the user’s IP address must match the specified region or state.

About IP Reputation Lookup

When an IP Reputation Lookup agent is included in an access or per-request policy, Access Policy Manager (APM) searches for the IP address in the IP intelligence database. The IP intelligence database contains only IP addresses that are considered untrustworthy, along with a category for each that describes why it is not trusted.

APM provides these default branch rules for the IP Reputation action.

Bad: The IP address exists in the IP intelligence database. The expression for this branch rule includes every IP reputation category. For example, the rule includes expressions such as IP Reputation is: Spam Sources OR IP Reputation is: Proxy, and so on. If any IP reputation category is acceptable at your site, you should update this rule or create and use another rule.
Good: The IP address is not found in the IP intelligence database.
fallback: The IP intelligence database is inaccessible for some reason. This can be due to a misconfiguration or a problem with a license or Internet connectivity.

About IP Subnet Match

The IP Subnet Match action determines whether the client IP address matches an IP subnet. The IP Subnet Match action provides this configuration option:

IP Subnet Match

- specifies a subnet, such as 10.0.0.0/8.

About Jailbroken or Rooted Device Detection

The Jailbroken or Rooted Device detection action determines whether a mobile device is jailbroken or rooted. This action provides two default branches: Jailbroken or Rooted Device and fallback.

The Jailbroken or Rooted Device detection action works only while using F5 Access or BIG-IP Edge Client.

About Landing URI

The Landing URI action checks the landing URI with which the user accessed the access policy. The default Landing URI action includes two branches.

Branch	Description
Landing URI	Indicates that the user is connecting with a URI that matches a specified landing URI. Specifies /uri1 or /uri1/ as the default landing URI. To use this action, it is required to edit the branch rules to specify an actual landing URI.
fallback	Indicates that the user is connecting with a different landing URI.

This figure shows a branch rule that determines whether the address that the user typed includes the string

/owa

/owa/

, either of which is part of the typical landing URI for an Outlook Web Access connection.

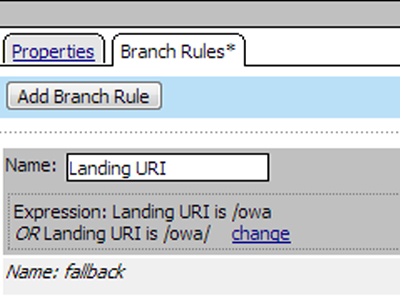

Changing the Landing URI branch rule value from /uri1 to /owa — Landing URI branch rule with updated expression

About the License action

The License action provides the ability to create branch rules based on license use. It can check the number of remaining licenses against an absolute value or the percentage of licenses remaining against a threshold. A License action can check access licenses, connectivity licenses, and concurrent users.

The License action supplies the default branch rule -

Remaining Global Access license count is above percentage threshold

. This branch rule can be deleted or changed. The License action supplies these conditions for configuring branch rules:

Remaining Global Access License count is above absolute value

- checks number of remaining global access licenses against the number that you specify.

Remaining Global Access License count is above percentage threshold

- checks percentage of global access licenses that remain against the threshold that you specify.

Remaining Global Connectivity License count is above absolute value

- checks number of remaining global connectivity licenses against the number that you specify.

Remaining Global Connectivity License count is above percentage threshold

- checks percentage of global connectivity licenses that remain against the threshold that you specify.

Remaining Concurrent User count is above absolute value

- checks number of remaining access licenses for the access profile against the number that you specify.

Remaining Concurrent User count is above percentage threshold

- checks percentage of concurrent access licenses for the access profile that remain against the threshold that you specify.

If the license check does not match the specified conditions, the access policy sends the user to the fallback branch.

About Managed Endpoint Notification

The Managed Endpoint Notification action sends a push notification of an unauthorized device access to a client device through an endpoint management system.

The Managed Endpoint Notification action provides these settings and options:

Endpoint Management System: Specifies the endpoint management system. The default is
None
. Select the endpoint management system server you want to use from the list.
Message: Specifies a push notification message that is sent to a client device through an endpoint management system.

About Managed Endpoint Status

The Managed Endpoint Status action checks for device compliance against the configured Endpoint Management System (EMS). You can configure an access policy to perform compliance checks for connected devices.

The Managed Endpoint Status action provides the following settings:

Endpoint Management System: Specifies the endpoint management system. The default is
None
. Select the endpoint management system server you want to use from the list.

By default, the Managed Endpoint Status action includes these branches:

compliant: Indicates the user is connecting with a device compliant with the configured Endpoint Management System.
not compliant: Indicates the user is connecting with a device not compliant with the configured Endpoint Management System.
fallback: Indicates the user is connecting with another method.

About endpoint security client-side items

Endpoint security is a strategy for ensuring that a client device does not present a security risk before it is granted a remote access connection to the network.

Endpoint security verifies that desktop antivirus and firewall software is in place, systems are patched, keyloggers or other dangerous processes are not running, and sensitive data is not left behind in web caches and other vulnerable locations.

Configuring endpoint security (client-side) access policy items enables verification actions and other security-enhancing actions:

On a Linux, Mac, or Windows client, client-side items can confirm that software meets requirements and can confirm the presence or absence of files and processes.

On a Windows client, client-side items can confirm the registry, open a protected workspace, or perform cache and session control.

About client-side action requirements and alternatives

Endpoint security (client-side) access policy items require installation of client components. Access Policy Manager uses ActiveX controls or browser plug-ins to collect information about client systems.

Not all clients support browser add-ons or allow browser software installation. For these clients, the server-side security process can inspect HTTP headers to gather information about the client operating system and browser type. The server-side Client Capability action determines whether a client is capable of running client-side actions.

About the Antivirus action

The Antivirus action checks for antivirus software on the client computer. When checking for multiple antivirus types, if one antivirus type matches the software on the client system, the action passes, regardless of other antivirus conditions that are specified in the action.

Note:
Antivirus refers to Anti-Malware which is a combination of Antivirus and Anti-spyware action. Refer to the K47251182 article for more information.

An Antivirus action provides these settings and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the antivirus software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
State: Specifies one of these states:
Enabled
- when selected, the action verifies that the antivirus software is enabled
Disabled
- when selected, the action verifies that the antivirus software is disabled.
Unspecified
- when selected, the action does not verify the state of the software.
Version: Specifies a version; when specified, the antivirus action verifies the version of the software.
Engine Version: Specifies the engine version number; when specified, the antivirus action verifies this information.
DB Version: Specifies the database version number; when specified, the antivirus action verifies this information.
DB Age Not Older Than (days): Specifies the database age in days; when specified, the antivirus action verifies this information.
Last Scan Time Not Older Than (days): Specifies a number of days; when specified, the antivirus action verifies that the last scan did not occur more than the specified number of days ago.

About the Firewall action

The Firewall action checks for firewall software on the client computer. When this action includes checks for multiple firewall types, if one firewall type matches the software on the client computer, the action passes, regardless of other firewall conditions that are specified in the action.

A firewall action provides these settings and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the firewall software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
State: Specifies one of these states:

Enabled
When selected, the action verifies that the firewall software is enabled

Disabled
When selected, the action verifies that the firewall software is disabled.

Unspecified
When selected, the action does not verify the state of the software.
Version: Specifies a version; when specified, the firewall action verifies the version of the software.

About Hard Disk Encryption

The Hard Disk Encryption action checks for hard disk encryption software on a client computer. When this action includes checks for multiple hard disk encryption types, if one of the specified hard disk encryption types matches the software on the client system, the action passes, regardless of other hard disk encryption conditions that are specified in the item.

A Hard Disk Encryption action provides these settings and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the hard disk encryption software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
Encryption State: Specifies one of these states:

Enabled
When selected, the action verifies that all disk volumes are encrypted on the client.

Disabled
When selected, the action verifies all disk volumes are not encrypted on the client.

Unspecified
When selected, the action verifies that hard disk encryption software is installed on the client.
Version: Specifies a version; when specified, the Hard Disk Encryption action verifies the version of the software.

About Linux File

The Linux File action can verify the presence of specific files and can verify one or more file properties in situations where doing so increases confidence in the security of the client system. If a file with the described properties exists, the access policy passes the client to the successful branch. If the file does not exist, or a file exists but one or more properties are not correct, the access policy passes the client to the fallback branch.

The Linux File action provides the following configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
FileName: Specifies the file name for which to check; for example
csound
.
MD5: Specifies the MD5 checksum. An MD5 checksum provides easily computable verification of the identity of a file using a cryptographic hash algorithm. The MD5 checksum is a 32-digit hexadecimal value. For example, the checksum for a zero-byte file is always
d41d8cd98f00b204e9800998ecf8427e
.
Size: Specifies the size of the file in bytes. The default value is
0
which is the same as not specifying a size; a size of zero (0) is not verified.
A zero-byte file is specified with the MD5 checksum for a zero-byte file in the
MD5
field.
Date: Specifies the file last modified date.
The date must be translated first to GMT, and then to a 24-hour clock.

About Linux Process

The Linux Process action can verify that one or more particular processes are or are not running on a client system.

The Linux Process action provides these configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Expression: Specifies a Boolean expression to use to check for a process. The expression can include these wildcards: * and ?, and parentheses ( ) to combine values, and the logical operators AND, OR, and NOT. This is the syntax for a process check expression:
"
process name
" | (EXPRESSION) | NOT EXPRESSION | EXPRESSION AND EXPRESSION | EXPRESSION OR EXPRESSION

Double quotes (" ") are required around each process name.

Here is an example expression:

"httpd" AND NOT "smtpd"

. Using this expression, the Linux Process action verifies that the HTTP daemon (httpd) is running on the system, and that the SMTP daemon (smtpd) is not running. Using another example expression,

("process1" OR "process2") AND "process3*"

, the action verifies the presence of either process1 or process2, and a process with a name that is process3 or starts with process3.

About Mac File

The Mac File action can verify the presence of specific files and can verify one or more file properties in situations where doing so increases confidence in the security of the client system. If a file with the described properties exists, the access policy passes the client to the successful branch. If the file does not exist, or a file exists but one or more properties are not correct, the access policy passes the client to the fallback branch.

The Mac File action provides the following configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
FileName: Specifies the file name for which to check; for example,
C:\Windows\Demo\demofile.txt
.
The file name should include the full path of the file.
MD5: Specifies the MD5 checksum. An MD5 checksum provides easily computable verification of the identity of a file using a cryptographic hash algorithm. The MD5 checksum is a 32-digit hexadecimal value. For example, the checksum for a zero-byte file is always
d41d8cd98f00b204e9800998ecf8427e
.
Size: Specifies the size of the file in bytes. The default value is
0
which is the same as not specifying a size; a size of zero (0) is not verified.
A zero-byte file is specified with the MD5 checksum for a zero-byte file in the
MD5
field.
Date: Specifies the file last modified date.
The date must be translated first to GMT, and then to a 24-hour clock.

About Mac Process

The Mac Process action can verify that one or more particular processes are or are not running on a client system.

The Mac Process action provides these configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Expression: Specifies a Boolean expression to use to check for a process. The expression can include these wildcards: * and ?, and parentheses ( ) to combine values, and the logical operators AND, OR, and NOT. This is the syntax for a process check expression:
"
process name
" | (EXPRESSION) | NOT EXPRESSION | EXPRESSION AND EXPRESSION | EXPRESSION OR EXPRESSION

Double quotes (" ") are required around each process name.

Here is an example expression:

"httpd" AND NOT "smtpd"

. Using this expression, the Mac Process action verifies that the HTTP daemon (httpd) is running on the system, and that the SMTP daemon (smtpd) is not running. Using another example expression,

("process1" OR "process2") AND "process3*"

, the action verifies the presence of either process1 or process2, and a process with a name that is process3 or starts with process3.

About Machine Cert Auth

A Machine Certificate Auth action can check for the existence of fields in a machine certificate to ensure that Windows and Mac client systems comply with your security policy.

Client-specific requirements
Client	Description
Windows	The Machine Cert Auth action accesses the machine certificate private key; admin privilege is required to do this. A user that runs without admin privilege cannot successfully run this check unless the machine certificate checker service is installed on the machine. (The Machine Certificate Checker Service is available for inclusion in the Windows client package from the Secure Connectivity area of Access Policy Manager.)
Mac	The Machine Cert Auth action accesses the machine certificate private key. If the certificate is stored in a keychain other than user’s own keychain, such as the system keychain, then an ACL is required for non-admin users to be able to access this private key.

The Machine Certificate Auth action provides the following configuration elements and options:

Certificate Store Name: Specifies the certificate store name that the action attempts to match. The certificate store can be a system store with a predefined name, such as MY, or a user-defined name. The store name can contain alphanumeric characters. The Machine Cert Auth action treats MY as the default store name for both Mac and Windows clients.
Certificate Store Location: Specifies the type and location of the store that contains the certificate, either the local machine or the current user. For a Windows client, the store locations are in the following registry locations:

LocalMachine
When specified, the action searches in
HKEY_LOCAL_MACHINE
for the machine certificate.

CurrentUser
When specified, the action searches in
HKEY_CURRENT_USER
for the machine certificate.

For a Mac client, the store locations are keychains in the following domains:

LocalMachine
When specified, the action searches in the keychain specified in
Certificate Store Name
in the system preference domain.

CurrentUser
When specified, the action searches in the keychain specified in
Certificate Store Name
in the user preference domain.

For a Mac client, the following examples apply.

If
Certificate Store Name
is set to
System.keychain
and
Certificate Store Location
is set to
LocalMachine
, the action searches for the machine certificate in
/Library/Keychains/System.keychain
.

If
Certificate Store Name
is set to
login.keychain
and
Certificate Store Location
is set to
CurrentUser
, the action searches for the machine certificate in
/Library/Keychains/login.keychain
and then searches for the machine certificate in
/Users/username/Library/Keychains/login.keychain

If
Certificate Store Name
is set to
MY
then the action searches for the machine certificate in the default keychain of
Certificate Store Location
.
CA Profile: Specifies the certificate authority profile for the particular machine certificate.
Save Certificate in a session variable: Specifies
Enabled
or
Disabled
. When
Enabled
, specifies that the complete encrypted text of the machine certificate be saved in a session variable,
session.check_machinecert.<name>.cert.cert
.
Allow User Account Control right elevation prompts: Specifies
Yes
or
No
. When set to
Yes
, a UAC prompt for users with admin-level privileges is allowed. When set to
No
the UAC prompt for non-admin users is suppressed, which can cause a failure to verify the machine certificate. This setting does not affect users without admin-level privileges. If the Machine Certificate Checker Service is installed and
Allow User Account Control right elevation prompts
is set to
Yes
, the following scenarios occur:

Users with administrator privilege are prompted for UAC.

Standard users who use Machine Certificate Checker service will not be prompted for UAC.

Guest users who use Machine Certificate Checker service will not be prompted for UAC.

If the Machine Certificate Checker Service is installed and
Allow User Account Control right elevation prompts
is set to
No
, the following scenarios occur:

Users with administrator privilege are not prompted for UAC.

Standard users who use Machine Certificate Checker service will not be prompted for UAC.

Guest users who use Machine Certificate Checker service will not be prompted for UAC.

If you do not install Machine Certificate Checker Service and set
Allow User Account Control right elevation prompts
to
Yes
, the following scenarios occur:

Users with administrator privilege are prompted for UAC.

Standard users will fail to verify machine certificate.

Guest users will fail to verify machine certificate.

If you do not install Machine Certificate Checker Service and set
Allow User Account Control right elevation prompts
to
No
, the following scenarios occur:

Users with administrator privilege will fail to verify machine certificate.

Standard users will fail to verify machine certificate.

Guest users will fail to verify machine certificate.
Match Subject CN with FQDN: Specifies
Yes
or
No
. When set to
Yes
, specifies that the common name in the machine certificate matches the computer's fully qualified domain name (FQDN) such as,
CHR-L-SMITH2.MARKETING.SITEREQUEST.COM
.
Match subject Alt Name with FQDN: Specifies a regular expression used to extract content from the first subgroup matched in the Subject Alternative Name, and then to compare the extracted content with the machine's FQDN.
The order of RDNs is the same as is displayed; the required separator is a comma , .
Here are some examples of regex extraction.

Partial extraction. For example,
.*DNS Name=([^,]+).*
" or
.*Other Name:Principal Name=([^,]+).*
. For a regular expression
.*DNS Name=([^,]+).*
, the value of the DNS Name field is extracted for matching.

Whole extraction. Using
(.*)
specifies that the entire SubjectAltName content be extracted for matching.
Match Issuer: Specifies a regular expression that is used to match the Issuer content against the specified pattern.
The order of RDNs is the same as is displayed; the required separator is a comma , .
Here are some examples of regex extraction.

Partial match.
CN=.*, OU=FP, O=F5, L=San Jose, S=CA, C=US

Exact match.
E=test@f5.com, CN=f5clientrootcert, OU=es, O=f5, L=london, S=chertsey, C=uk
Match Serial Number: Specifies a serial number that must be an exact match for the certificate serial. The hex string must be specified in the same order as it is displayed by OpenSSL and Windows certificate tools. For example,
33:AA:7B:82:00:01:00:00:00:33
.

About Machine Info

The Machine Info action retrieves MAC addresses for network adapters on Mac, Linux, and Windows clients. It retrieves additional information on Windows clients

After retrieving the information, the Machine Info action creates session variables and stores the values in them. Session variables can be used in Tcl expressions and are also available for configuring an expression using the expression builder pull-down menu item

Machine Info

The Machine Info action collects the following information and creates the following session variables.

Information	Session variable name
CPU Name	session.machine_info.cpu.name
CPU Vendor ID	session.machine_info.cpu.vendor
CPU Description	session.machine_info.cpu.description
CPU maximum clock	session.machine_info.cpu.max_clock
Motherboard manufacturer	session.machine_info.motherboard.manufacturer
Motherboard serial number	session.machine_info.motherboard.sn
Motherboard product	session.machine_info.motherboard.product
BIOS manufacturer	session.machine_info.bios.manufacturer
BIOS serial number	session.machine_info.bios.sn
BIOS version	session.machine_info.bios.version
Number of network adapters	session.machine_info.net_adapter.count
First network adapter name	session.machine_info.net_adapter.list.0.name
Second network adapter name	session.machine_info.net_adapter.list.1.name
First network adapter MAC address (Collected from Linux, Mac, and Windows clients)	session.machine_info.net_adapter.list.0.mac_address
Second network adapter MAC address (Collected from Linux, Mac, and Windows clients)	session.machine_info.net_adapter.list.1.mac_address
Number of hard drives	session.machine_info.hdd.count
First hard drive model number	session.machine_info.hdd.list.0.model
Second hard drive model number	session.machine_info.hdd.list.1.model
First hard drive serial number	session.machine_info.hdd.list.0.sn
Second hard drive serial number	session.machine_info.hdd.list.1.sn

About Patch Management

The Patch Management action can check for patch management software on the client system. When this action includes checks for multiple patch management types, if one specified type matches, the action passes, regardless of other conditions that are specified in the action.

The Patch Management action provides the following configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the antivirus software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
Automatic Updates: Specifies one of these values:

Enabled
When selected, the action verifies that patch management software is running on the client system.

Disabled
When selected, the action verifies that patch management software is not running on the client system.

Unspecified
When selected, the action does not perform either verification.
Version: Specifies a version; when specified, the Patch Management action verifies the version of the software.
Max Allowed No. of Missing Critical Updates: Specifies a number; when specified, the action verifies that the number of missing critical updates for the software is less than this number.

About Public File Sharing

The Public File Sharing action checks for peer-to-peer software on the client system and ends the session if the result changes.

The Peer-to-Peer action provides these configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Check for software in the list, and: Specifies one of these options:

pass if at least one listed software matches
When selected, the action sends traffic to the successful branch if at least one software item in the list matches the software that is present on the client system.

fail if unlisted software found
-When selected, the action sends traffic to the fallback branch when any software that is not included in the list is found on the system. In this case, the list functions as a whitelist; if any endpoint software is found on the client system that is not included in the list, the check fails and traffic goes to the fallback branch.

fail if any listed software matches
When selected, the action sends traffic to the fallback branch when any software item in the list is found on the client system. In this case, the list functions as a blacklist.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the peer-to-peer software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
State: Specifies one of these values:

Enabled
When selected, the action verifies that peer-to-peer software is running on the client system.

Disabled
When selected, the action verifies that peer-to-peer software is not running on the client system.

Unspecified
When selected, the action does not verify the state.
Version: Specifies a version; when specified, the Peer-to-Peer action verifies the version of the software.

About System Health Agent

The System Health Agent action checks for health agent software on Windows-based client systems. When this action includes checks for multiple health agent types, if one specified type matches the software on the client system, the action passes, regardless of other health agent conditions that are specified in the action.

A System Health Agent action provides these settings and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Platform: Specifies a platform. The default is
Any
. When a platform is selected, the Vendor ID and Product ID lists update to include the products and vendors that are supported for that platform according to the EPSEC package that is installed on the BIG-IP system.
A link to a report that includes the antivirus software that Access Policy Manager currently supports is available on the BIG-IP system Welcome page.
Vendor ID: Specifies a vendor ID (from the list of supported vendors) or
Any
.
Product ID: Specifies a product ID (from the list of supported products) or
Any
.
Version: Specifies a version; when specified, the System Health Agent action verifies the version of the software.
Policy Compliance: Specifies one of these values:

Enabled
- when selected, the action verifies that the client is compliant with the health policy specified by the site administrator.

Disabled
- when selected, the agent verifies that the client is out of compliance with the health policy specified by the site administrator.

Unspecified
- when selected, that action does not check for policy compliance.

About Windows Cache and Session Control

The Windows Cache and Session Control action can clean up after and control a session in a number of ways.

The Windows Cache and Session Control action, and the Windows Protected Workspace action, are not compatible and should not be used in the same session. The cache cleaner feature does not work on browsers with no plug-in capability.

The Windows Cache and Session Control action provides these configuration elements and options:

Clean temporary Internet files and cookies: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action deletes temporary files and cookies after logout.
Clean forms and passwords autocomplete data: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action clears autocomplete entries in forms and fields after logout.
Empty Recycle Bin: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action empties the system Recycle Bin after logout.
Empty Temporary Folder: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action empties the system Recycle Bin after logout.
Force session termination if the browser or Webtop is closed: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action deletes files from the temporary folder that were created or modified during the session. Uses the session creation (cache cleaner start) timestamp to determine the files to delete.
Remove dial-up entries used by Network Access client: Specifies
Disabled
or
Enabled
. When set to
Enabled
, the action removes dial-up networking entries after logout.
Terminate session on User Inactivity: Specifies
Disabled
or
n minutes
, or
n hours
or
Custom
and a number of minutes. When not set to
Disabled
, the action terminates the session after the specified amount of time elapses.
Lock workstation on User Inactivity: Specifies
Disabled
or
n minutes
, or
n hours
or
Custom
and a number of minutes. When not set to
Disabled
, the action locks the workstation after the specified amount of time elapses.

About the Windows File action

A Windows File action can verify the presence of specific files and can verify one or more file properties in situations where doing so increases confidence in the security of the client system. If a file with the described properties exists, the access policy passes the client to the successful branch. If the file does not exist, or a file exists but one or more properties are not correct, the access policy passes the client to the fallback branch.

The Windows File action provides the following configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
FileName: Specifies the file name for which to check; for example,
notepad.exe
can be used to check for Windows Notepad.
MD5: Specifies the MD5 checksum. An MD5 checksum provides easily computable verification of the identity of a file using a cryptographic hash algorithm. The MD5 checksum is a 32-digit hexadecimal value. For example, the checksum for a zero-byte file is always
d41d8cd98f00b204e9800998ecf8427e
.
Size: Specifies the size of the file in bytes. The default value is
0
which is the same as not specifying a size; a size of zero (0) is not verified.
A zero-byte file is specified with the MD5 checksum for a zero-byte file in the
MD5
field.
Signer: Specifies the signer for the file. This can be left blank to omit checking for a signer.
Date: Specifies the file last modified date.
The date must be translated first to GMT, and then to a 24-hour clock.
Version: Specifies the version of the file. This can be left blank to omit checking for a version.
Version Comparison: Specifies the version comparison operator:

=
Specifies that the version to check for is the exact version specified in the
Version
field.

<
Specifies that the version to check for is a higher number than the version number specified in the
Version
field.

>
Specifies that the version to check for is a lower number than the version number specified in the
Version
field.

About Windows Info

The Windows Info action determines whether the client uses particular versions of the Windows operating system and has applied specific patches or updates to Windows. The Windows Info action supplies several default branch rules for various Windows operating system versions or Windows operating system version and service pack combinations.

The Windows Info action supplies these conditions for defining branch rules.

Windows platform is: Specifies a platform; supported platforms are available for selection on a list.
Windows patch n is installed: Specifies a patch version or service pack number, such as SP1.

About Windows Process

The Windows Process action can verify that one or more particular processes are or are not running on a client system.

The Windows Process action provides these configuration elements and options:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Expression: Specifies a Boolean expression to use to check for a process. The expression can include these wildcards: * and ?, and parentheses ( ) to combine values, and the logical operators AND, OR, and NOT. This is the syntax for a process check expression:
"process name" | (EXPRESSION) | NOT EXPRESSION | EXPRESSION AND EXPRESSION | EXPRESSION OR EXPRESSION

Double quotes (" ") are required around each process name.

Here is an example expression:

("winlogon.exe" AND "GoogleDesktop.exe") AND NOT "gator*"

. The expression checks running Windows processes for the presence of the winlogon.exe and GoogleDesktop.exe processes and the absence of any process with gator in the name.

About Windows Protected Workspace

The Windows Protected Workspace action configures a temporary Windows user workspace for a session. This workspace contains temporary Desktop and My Documents folders. The protected workspace control deletes the temporary workspace and all of the folder contents at the end of the session.

The Windows Protected Workspace and the Windows Cache and Session Control actions are not compatible and should not be used in the same session.

Close Google Desktop Search: Specifies whether to close Google Desktop Search before starting protected workspace.
Allow user to temporarily switch from Protected Workspace: Specifies whether a user can switch from the protected workspace. When set to
Enabled
, the action provides a link so that the user can temporarily switch from the protected workspace.
Allow user to use printers: Specifies whether a user can use printers.
Allow write access to USB flash drives: Specifies whether a user can write from the protected workspace to USB flash drives:

Disabled
does not allow users to write to any USB flash drives from the protected workspace.

All USB flash drives
allows a user to write to any USB flash drive from the protected workspace.

Only IronKey Secure Flash Drives
allows a user to write only to specialized, highly secured flash drives created by IronKey, Inc., from the protected workspace.
Allow user to burn CDs: Specifies whether a user can burn CDs from within the protected workspace.
Allow user to choose storage location: Specifies whether a user can choose the storage location for protected workspace files:

Enabled
allows users to select a storage location.

Disabled
stores files in the user's Document and Settings directory.
Enable persistent storage: Specifies whether data is saved on the system after the Protected Workspace session is closed:

Enabled
allows users to save encrypted data from the Protected Workspace session on the local system after the session exits. The files are automatically decrypted and available in the next Protected Workspace session.

Disabled
prevents users from storing Protected Workspace data in persistent storage.
Password protect new storage: Specifies whether the protected workspace requires a password to access data in persistent storage.

Enabled
requires the user to set a password to access persistent storage data.

Disabled
uses the default encryption and decryption, which is based on the server group name and storage device volume serial number.
Clean memory on exit from PWS: Specifies whether, upon exit, Protected Workspace tries to clean up the system paging file and RAM to remedy information leaks.

Enabled
allows Protected Workspace to perform a cleanup. The cleanup procedure stresses the system and can considerably increase session cleaning time.

Disabled
allows Protected Workspace to skip the cleanup.
Server group name: Specifies a group name for the server. This name is arbitrary, but limits persistent storage to that group name. For example, if a user connects to a protected workspace on a server with group name GroupA, and persistent storage is enabled, the user data is available when reconnecting to a server with the group nameGroupA. However, if the user then connects to a server with persistent storage enabled, and the server group name GroupB, persistent data from the GroupAProtected Workspace session is not available in the new session, and a new persistent storage is defined

About Windows Registry

The Windows Registry action verifies the existence or absence of certain keys and values in the Windows system registry database based on user-entered key values or Boolean expressions. Windows Registry can also fetch the value of a key and store it in a session variable, provided that the client is configured to allow the value to be fetched.

The Windows Registry action provides these configuration elements:

Continuously check the result and end the session if it changes: Specifies
Enabled
or
Disabled
.
When
Enabled
, if the client does not respond for five minutes, the server ends the session.
Expression: Specifies a Boolean expression.

This is the syntax for registry checker expressions:

"key" comparison_operatordata

"key"."value" >> "variable_name"

"key"."value" comparison_operatordata

"key"."value" ISPR

“key”: Represents a path in the Windows registry. Quotation marks are required around the path. If quotation marks exist as part of the registry path, they should be doubled (requires two sets of quotation marks).
“value”: Represents the name of the value. Quotation marks are required. If quotation marks exist as part of the value name, they should be doubled (requires two sets of quotation marks).
comparison_operator: Represents a comparison operator (< <= > >= =) or ISPR. ISPR verifies that a key or value is present. The equal sign (=) and the double equal sign (==) specify equality.
Windows Registry does not support comparison of binary data.
data: Represents the content to compare against. Any spaces, commas, slashes, tabs, or other delimiters in the data must be enclosed in quotation marks. Data is interpreted as a version number when formatted like this: d.d[.d][.d]”,
d,d[,d][,d]
(where d is a number). Data is interpreted as a date when formatted like this:
mm/dd/yyyy
.
>>: This is the GET operator; it fetches the value of a key provided that the client is configured to allow the value to be fetched.
The GET operator supports these Windows Registry data types only: REG_DWORD, REG_SZ, and REG_MULTI_SZ. The maximum recommended amount of data that a GET operator returns should be kept within 1 KB.
All sub-expressions of a compound expression are evaluated even if they are joined by OR operators. Windows Registry values are sent to the server for successful fetch operations even if the overall expression is evaluated to false.
"variable_name": Represents the variable into which the GET operator stores the value of the key. When a GET operation is successful, the registry value retrieved from the client is saved in a session variable in this format:
session.windows_check_registry.last.data.
variable_name. Quotation marks are required. The variable name can include alphanumeric symbols, underscores, dots, and hyphens only and must be no more than 64 characters long.

Example expressions
Expression	Description
`"HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Internet Explorer"."Build">>"IEBuild"`	Checks for the presence of the specified path in the registry and stores the value in the variable session.windows_check_registry.last.data. `IEBuild`.
`"HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\InternetExplorer"`.`"Version"`>= `"6.0.2900.2180"`	Checks that the Internet Explorer version is greater than or equal to the value specified.
`"HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\InternetExplorer"`."`Version"`>= `"5.0.2800.0"` AND `"HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\InternetExplorer"`.`"Version"` >= `"6.0.2900.0"`	Checks for the presence of Internet Explorer. With this registry check, the Internet Explorer version must be greater than or equal to 5.0.2800.0, and less than or equal to 6.0.2900.0.

About 32-bit registry keys on a 64-bit Windows client

On 64-bit Windows systems, the Windows Registry action can check for registry keys in the 64-bit registry or the 32-bit registry. The following registry root key names are supported:

An HKEY value that includes the bit value 32 can provide a 32-bit view of a 64-bit registry. This is the perspective used by 32-bit applications running on a 64-bit operating system. An HKEY value that includes the bit value 64 can provide a 64-bit view of the registry. This is the perspective used by native 64-bit applications.

Keys without a bit value specified use the default Windows registry redirectors, as specified by Microsoft. On a 32-bit Windows system, the number of bits specified in a registry key name is ignored.

About general purpose items

General purpose items can be used in any case and can be placed anywhere in a policy. These items support:

Logging a message and variables

Sending email

Displaying a message

Processing an iRule

Providing a choice between two options

Running user-configured rules

Reading from and writing to a local user database

When an administrator adds these items to an access policy, the administrator specifies the message (to log, to display, to email), any options that a user can choose, the iRule to process, and so on, to suit the situation.

About the Decision Box action

A Decision Box action presents two options to the user. These options are presented as link text, preceded by images.

A Decision Box action can be useful after a client fails an endpoint security check, or after a user fails to authenticate. When this occurs, a branch rule can provide an option to allow the user to continue onto a guest or quarantine network that provides only limited access to a segregated subnet. The other branch can provide an option to log out, and present the user with a logon denied ending.

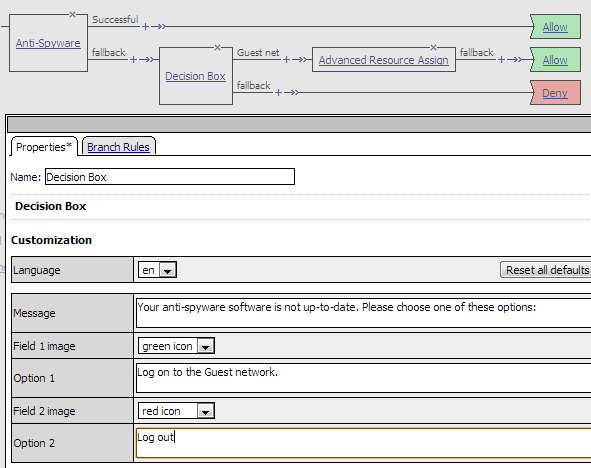

On fallback branch after anti-spyware action, decision box assigns a webtop on the Guest net if user accepts that option; otherwise access is denied. — Configuring a decision box to appear after a failed endpoint security check (with decision box detail)

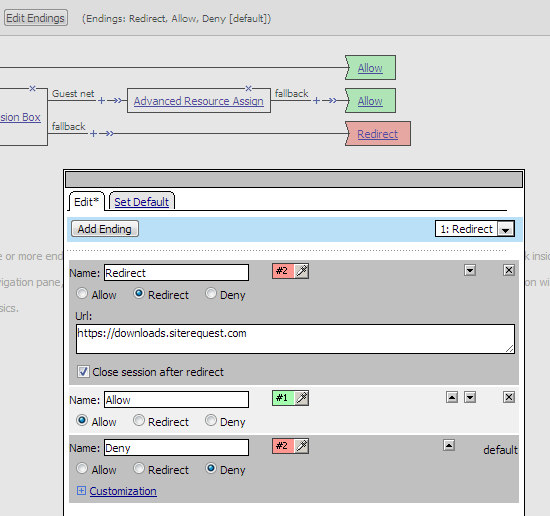

Another use of the Option 2 branch is to allow the user to continue to a redirect ending that takes the user to a helpful URL, for example, to the web site of an antivirus vendor to download virus database updates.

About the Email action

An Email action can send email. An Email action provides these configuration options and elements:

SMTP Configuration: Specifies an SMTP configuration on the BIG-IP system.
From: Specifies the sender which can be a string or a session variable name or both. For example:
APM@vs-%{session.server.network.name}
To: Specifies the recipient. This can be a fully qualified email address or a session variable name; for example:
%{session.ad.last.attr.mail}
CC: Specifies recipients to be copied on the mail. This can be fully qualified email addresses or session variable names.
Subject: Specifies the subject of the email message. This can be a string, a session variable name, or a combination of strings and session variable names.
Message: Specifies the message to send. This can be a string, a session variable name, or a combination of strings and session variable names. Note: New lines should be specified with the <br/> tag.

About the Empty action

An Empty action has no explicit configuration. The action allows a user to create rules only, using the Branch Rules tab.

About iRule Event

An iRule Event action adds iRule processing to an access policy or to a per-request policy subroutine at a specific point. An iRule Event provides one configuration option: ID, which specifies an iRule event ID.

iRule event access policy items must be processed and completed before the access policy can continue.

An iRule Event action can occur anywhere in an access policy or a per-request policy subroutine.

About Local Database

The Local Database action can read and write information about a user in a local user database.

Changes that an administrator makes to a local user database, whether from the Configuration utility or the command line, can override the changes that this action makes.

A Local Database action provides the following configuration elements and options:

LocalDB Instance: Specifies a local user database instance from a list.
User Name: Specifies a user name from a list.
The same user name can exist in more than one local user database.
Allow User Create: Specifies whether to create a user dynamically when trying to write information for a user that is not in the database already.
Dynamically created users exist temporarily and are regularly purged from the database. Static users, created by an administrator using the Configuration Utility or the command line, are not purged.
Add new entry: Specify actions that read from and write to specific database properties.

An entry includes these elements:

Action: Specifies
Read
or
Write
.
Destination: Specifies where to store the value that is being read or written.For the
Read
action,
Destination
specifies a variable; the value that is read from the database is stored in this variable. The default variables are:

session.localdb.groups

session.localdb.locked_out

session.localdb.login_failures

Alternatively, the variable can be any text string. When using non-default variables, verify the expressions used in any other item that reads or manipulates local database variables in the same session; ensure that the expressions use the same string.

For the
Write
action,
Destination
specifies a DB property (selectable from a list). The value of an expression is stored in this DB property. The
DB Property
list includes these items:

locked_out
- a number; when 0, the user is not locked out. When greater than 0, the user is locked out.

login_failures
- a number; the number of login failures currently recorded for the user.

groups
- text; names of membership groups specified for the user in the local user database.
Groups specified in the local user database are not verified against external systems.
Source: Specifies where to get the value to read or to write. For
Read
, specifies a database property (selectable from a list) to read. For
Write
, specifies an expression, the value of which will be written.

About the Logging action

The Logging action can be used in an access policy or in a per-request policy. In an access policy, the Logging action adds logging for session variables to the access policy. In a per-request policy, the Logging action can add logging for both session variables and perflow variables to the per-request policy.

This action is useful for tracing the variables that are created for a specific category, or in a specific branch.

A session variable might or might not exist at the time of logging; depending on the result of the access policy branch, or results of processing the access policy.

The Logging action provides these configuration elements and options:

Log Message: For an access policy, specifies text to add to the log file. For a per-request policy, specifies the message text and the session and per-flow variables to add to the message. Complete variable names must be typed. Wildcards are not supported for per-request policies. An example log message for a per-request policy follows.
The system found this URL %{perflow.category_lookup.result.url} in these categories %{perflow.category_lookup.result.categories} and placed it into this category %{perflow.category_lookup.result.primarycategory}.

An HTTPS request was made to this host %{perflow.category_lookup.result.hostname}; the per-request policy set SSL bypass to %{perflow.ssl_bypass_set}.

Requests from this platform %{session.client.platform} were made during this session %{perflow.session.id}.
Add new entry: Specify actions that read from and write to specific database properties. Click the
Add New Entry
button to add a new logging agent to the action.
Session Variables: Specifies a session variable from a list of predefined session variables or a custom session variable.
This option is available only when adding the Logging action to an access policy.

About the Message Box action

A Message Box action presents a message to the user, and prompts the user to click a link to continue. The message box has no effect on the user's access to the network or the preceding or following access policy checks. A message box can be used, for example, to warn a user about a redirect to a guest network, or that the client certificate failed to authenticate, or to display a message about the results of a rule branch in the access policy.

A Message Box action provides these configuration elements and options:

Language: Specifies the language to use to customize this logon page. When a user selects a language, the content in the remaining fields display in the selected language.
Languages on the list reflect those that are configured in the access profile.
Message: Specifies the message to present to the user.
Link: Specifies the message that appears as the link text.

Subscriptions

Product Usage

Trials

Registration Keys

Downloads

Applies To:

BIG-IP APM

Access Policy Item Reference

About logon items

About the Citrix Logon prompt

About the External Logon page

About HTTP 401 Response

About HTTP 407 Response

About Logon Page

About OAuth Logon

About the virtual keyboard

About the VMware View logon page action

About authentication items

About AD Auth

About AD Query

About Client Cert Inspection

About CRLDP Auth

About HTTP Auth

About Kerberos Auth

About LDAP Auth

About LDAP Query

About LocalDB Auth

About NTLM Auth Result

About OAuth Authorization

About OAuth Client

About OAuth Scope

About OCSP Auth

About On-Demand Cert Auth

About OTP Generate

About OTP Verify

About RADIUS Acct

About RADIUS Auth

About RSA SecurID

About SAML Auth

About TACACS+ Acct

About TACACS+ Auth

About Transparent Identity Import

About assignment items

About ACL Assign

About AD Group Resource Assign

About AD Group SID Resolver

About Advanced Resource Assign

About BWC Policy

About Citrix Smart Access

About Dynamic ACLs

About LDAP Group Resource Assign

About Links, Sections and Webtop Assign

About RDG Policy Assign

About Pool Assign

About Resource Assign

About Route Domain and SNAT Selection

About SSO Credential Mapping

About Variable Assign

About VMware View Policy

About endpoint security (server-side) access policy items

About Client for MS Exchange

About Client OS

About Client Type

About Client-Side Capability

About the Date Time action

About IP Geolocation Match

About IP Reputation Lookup

About IP Subnet Match

About Jailbroken or Rooted Device Detection

About Landing URI

About the License action

About Managed Endpoint Notification

About Managed Endpoint Status

About endpoint security client-side items

About client-side action requirements and alternatives

About the Antivirus action

About the Firewall action

About Hard Disk Encryption

About Linux File

About Linux Process
