Manual Chapter : Adding a URL branching rule

Applies To:

  • BIG-IP APM

    21.0.0, 17.5.1, 17.5.0, 17.1.3, 17.1.2, 17.1.1, 17.1.0, 17.0.0, 16.1.6, 16.1.5, 16.1.4, 16.1.3, 16.1.2, 16.1.1, 16.1.0, 15.1.10, 15.1.9

Adding a URL branching rule

You must have a per-request policy.

Add a URL branching rule to provide branching for different URLs to allow different authentication methods.

  1. From the Main tab, click Access > Profiles / Policies > Per-Request Policies.

  2. Find the policy you want to edit, and in the Per-Request Policy column, click Edit.

  3. Add a URL branching rule by clicking the plus symbol, then the Classification tab, then selecting URL Branching. Click Add Item.

  4. Click the Branch Rules tab.

  5. In the Name field, type the name of the branch for MFA. For example, admin.

  6. Next to Expression: URL contains: domain.com, click Change.

  7. In the URL contains field, type the URL for users who are required to use MFA. For example, https://app.example.com/admin/*.

    Important: Rules are evaluated in order, so specify the most specific rule first. In this example, we specify the <url>/admin/* rule first, because this URL requires MFA, and it is more specific than the next rule, <url>/*. If we specified the less specific rule first, all traffic would be sent to primary authentication, and MFA would not be used.

  8. Click Finished.

  9. From Insert Before, select fallback, then click Add Branch Rule.

  10. In the Name field, type the name of the branch that does not use MFA. For example, non-admin.

  11. Next to Expression: Empty click change.

  12. Click Add Expression.

  13. From Condition, select Substring.

  14. In the URL contains field, type the URL to match for all other non-MFA traffic. For example, https://app.example.com/*.

    Tip: You are not required to use substring as the condition when specifying a URL. You can use equals for an exact match, prefix or suffix for prefix or suffix matching, or glob for glob matching.

  15. Click Finished.

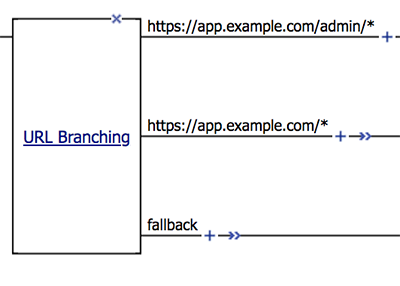

    This is an example of the URL Branching access policy item configured to branch for MFA and non-MFA authentication.
