Example: Basing step-up authentication on a custom value

In this example, the Variable Assign agent stores a value in a predefined custom variable.

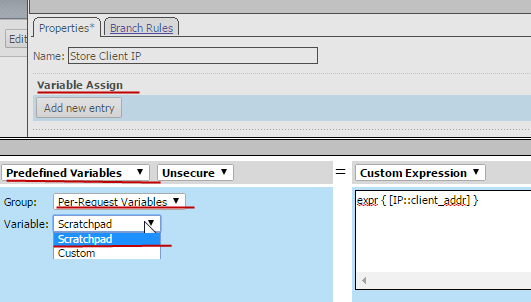

In the illustration, Predefined Variables is selected, Group is set to Per-Request Variables, and Variable is set to Scratchpad. An iRule in the Custom Expression field gets the value, which is the client IP address.
