Manual Chapter : Example: Using additional criteria to determine when to step up

Applies To:

  • BIG-IP APM

    21.0.0, 17.5.1, 17.5.0, 17.1.3, 17.1.2, 17.1.1, 17.1.0, 17.0.0, 16.1.6, 16.1.5, 16.1.4, 16.1.3, 16.1.2, 16.1.1, 16.1.0, 15.1.10, 15.1.9

back-action Example: Step-up authentication for an IP address change

Updated Date: 04/30/2026

Example: Using additional criteria to determine when to step up

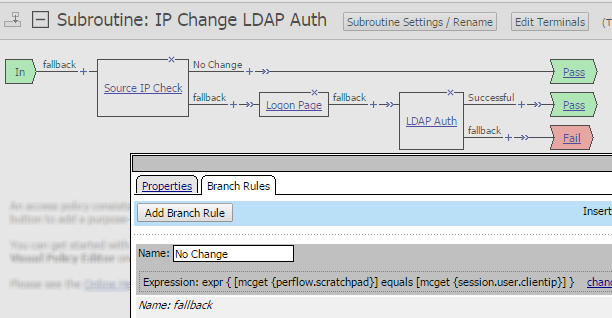

In this example, a change in the client IP address (stored in the gating criteria, perflow.scratchpad) triggers the step-up authentication subroutine to run. However, we want the user to authenticate using LDAP only if the client IP address is not the same one that started the session. An agent in the subroutine, Source IP Check (configured from the Empty agent), makes this comparison.
