Planning a BIG-IQ Centralized Management Deployment
Which type of centralized management solution do you want to
deploy?
There are two license types for a centralized management
solution, one for BIG-IQ device management and one for a data collection
device (DCD).
BIG-IQ device management
F5 BIG-IQ Centralized Management is a platform
that you use as a tool to help you manage BIG-IP devices and all of
their services (such as LTM, AFM, ASM, and so forth), from one
location. BIG-IQ can manage up to 200 (physical, virtual, or vCMP)
BIG-IP devices and handle licensing for up to 5,000 unmanaged
devices.
Using BIG-IQ helps you more
efficiently manage your BIG-IP devices. That means you and your
co-workers don't have to log in to individual BIG-IP systems to get
your job done. Instead, you can discover, upgrade, deploy policy
changes, manage licenses, and more, from just one place.
From BIG-IQ, you can manage a variety of tasks
from software updates to health monitoring, and traffic to security.
And because permissions for users are role-based, you can limit
access to just a few trusted administrators to minimize downtime and
potential security issues. You can also allow users to view or edit
only those BIG-IP objects that they need to do their job.
Here's an example of how BIG-IQ can fit into a
data center. This topology does not include any data collection
devices, so statistical analytics, and event or alert management are
not supported.

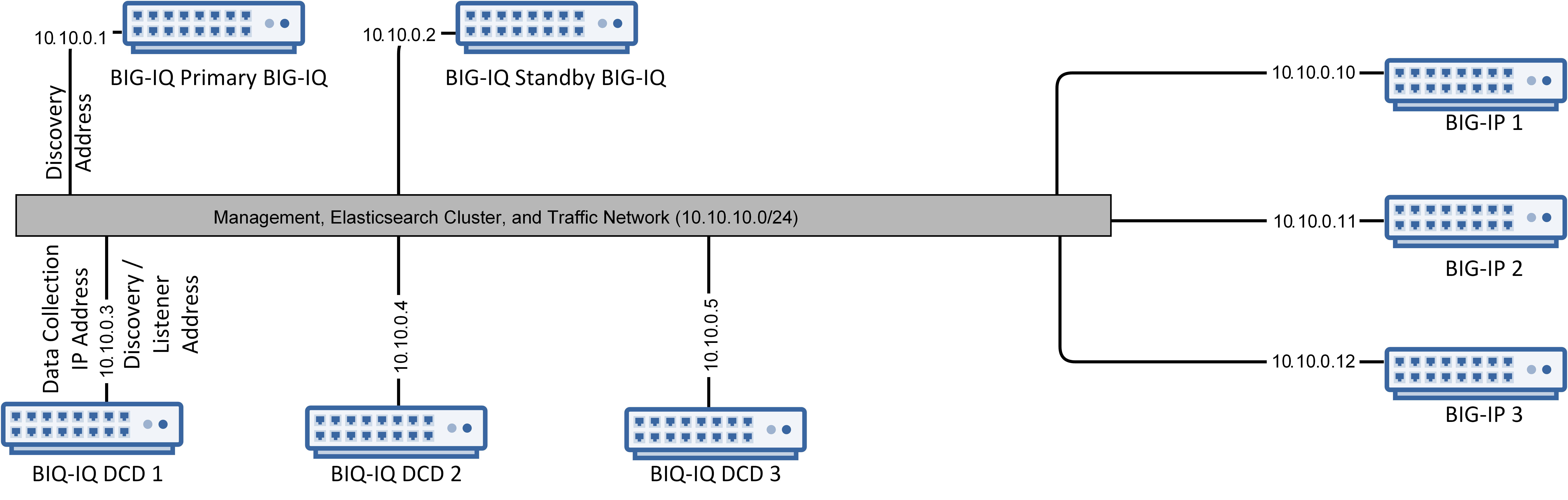

Centralized Management network
topology
Data collection device
A
data collection
device
(DCD) is a specially provisioned BIG-IQ system
that you use to manage and store alerts, events, and statistical
data from one or more BIG-IP systems. The next diagram illustrates a
simplified example of how DCDs add to your BIG-IQ Centralized

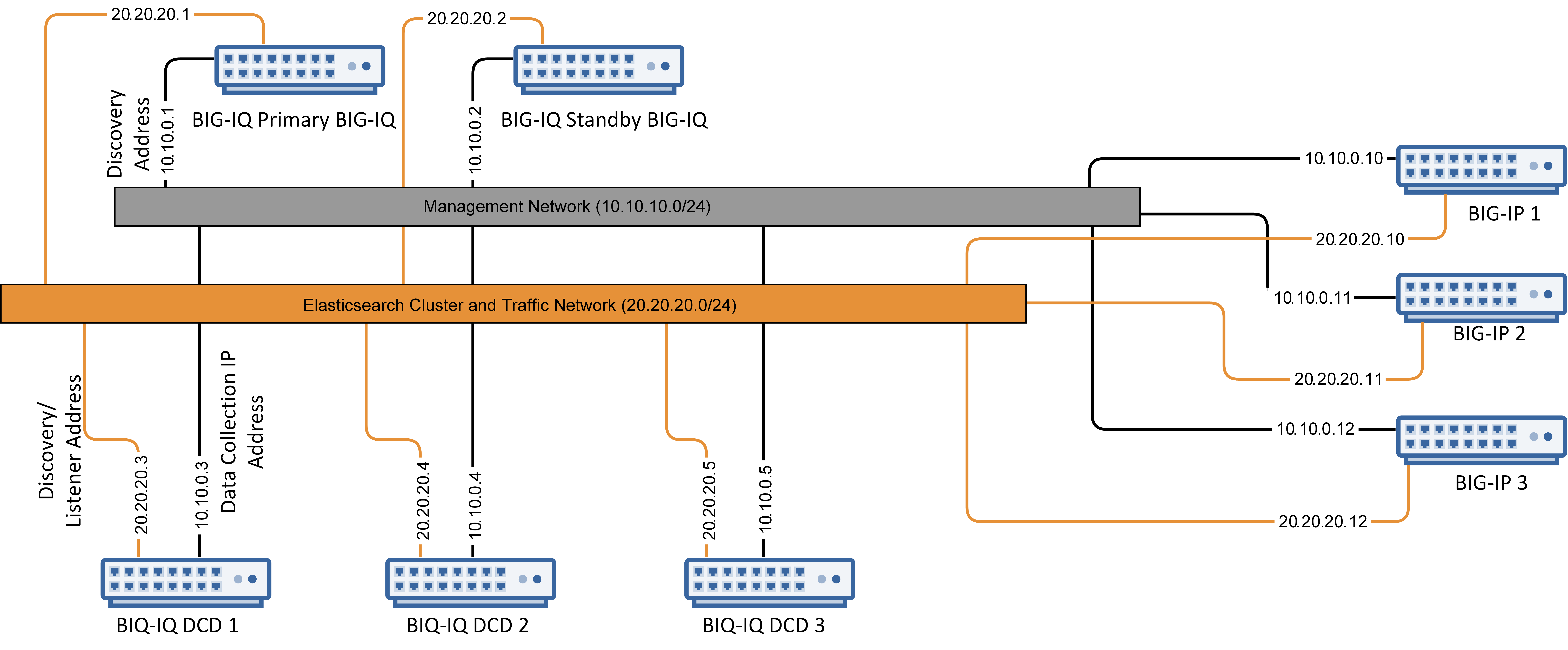

Management solution. Centralized Management network
topology with DCDs
BIG-IQ Centralized Management documentation set
BIG-IQ Centralized Management documentation set is located
on AskF5 at https://support.f5.com. Click the
Product Manuals
link under Resources, and select BIG-IQ Centralized Management
from the
product list, and select the appropriate version.Title | Use to: |
|---|---|
F5 BIG-IQ Centralized Management Virtual Editions
Setup guides | Set up BIG-IQ Virtual Edition (VE) as a guest in a
virtual environment using supported hypervisors. |
Planning and Implementing an F5 BIG-IQ Centralized
Management Deployment | Plan deployment, license, and set up the BIG-IQ
system in your network. |
F5 BIG-IQ Centralized Management: Core
Concepts | Find out more about the concepts about the core
functionality included with BIG-IQ Centralized Management. |
F5 BIG-IQ Centralized Management DCD Sizing
Guide | Determine the resources that are required to handle
the data generated by the BIG-IP devices you manage. Requirements vary
according to the type and amount of data you generate. |
F5 BIG-IQ Centralized Management: Authentication,
Roles, and User Management |
|
F5 BIG-IQ Centralized Management: Monitoring and
Reports |
|
F5 BIG-IQ Centralized Management: Device |
|
F5 BIG-IQ Local Traffic & Network
Implementations | Manage:
|
F5 BIG-IQ Centralized Management: Security | Manage:
|
F5 BIG-IQ Centralized Management: Access |
|
F5 BIG-IQ Centralized Management: Fraud Protection
Service | Set up, manage, and monitor alerts for fraud
protection. |
F5 Platform Guide: BIG-IQ 7000 Series | Set up and manage the BIG-IQ 7000 hardware
platform. |
F5 BIG-IQ Centralized Management Use Case: Provide
Role-Based User Access to an Application | Give role-based user access to a SharePoint
application. |
F5 BIG-IQ Centralized Management: Auto-Scale in a
VMware Environment | Start auto-scaling BIG-IP VE devices in a VMware
environment to manage applications. |
F5 BIG-IQ Centralized Management: Auto-Scale in an
AWS Cloud | Start auto-scaling BIG-IP VE devices in an AWS cloud
to manage applications. |
F5 BIG-IQ Centralized Management: Auto-Scale in an
Azure Cloud | Start auto-scaling BIG-IP VE devices in an Azure cloud
to manage applications. |
BIG-IQ Centralized Management: Monitoring and
Managing Application Services | Monitor the health and statistics for your
application services. |
F5 BIG-IQ Centralized Management upgrade
guides | Upgrade BIG-IQ Centralized Management and BIG-IQ
Logging Node to the most recent software version. |
Release notes | Find information about the current software release,
including a list of associated documentation, a summary of new features,
enhancements, fixes, known issues, and available workarounds. |
AskF5 Articles and Tech Notes | Read responses and resolutions to known issues. Tech
Notes provide additional configuration instructions and how-to
information. |
What elements make up a centralized management solution?
An F5 BIG-IQ Centralized Management solution can involve a
number of different elements. The topology for these elements depends on your
needs, and on whether you include data collection devices (DCDs) in your
solution. A typical solution can include the following elements:
- BIG-IQ system(s)
- BIG-IP devices
- Data collection devices (optional)
- Remote storage devices (optional)
BIG-IQ Centralized Management system
Using BIG-IQ Centralized Management, you can centrally
manage your BIG-IP devices, performing operations such as backups,
licensing, monitoring, and configuration management. And because access
to each area of BIG-IQ is role-based, you can limit access to users,
thus maximizing work flows while minimizing errors and potential
security issues.
BIG-IP device
A BIG-IP device runs a number of licensed components
designed around application availability, access control, and security
solutions. These components run on top of F5 TMOS. This custom operating
system is an event driven operating system designed specifically to
inspect network and application traffic and make real-time decisions
based on the configurations you provide. The BIG-IP software runs on
both hardware and virtualized environments.
BIG-IQ data collection device
A
data collection
device
(DCD) is a specially provisioned BIG-IQ system that
you use to manage and store alerts, events, and statistical data from
one or more BIG-IP systems. Configuration tasks on the BIG-IP system determine when
and how alerts or events are triggered on the client. The alerts or
events are sent to a BIG-IQ data collection device, and the BIG-IQ
system retrieves them for your analysis. When you opt to collect
statistical data from the BIG-IP devices, the DCD periodically (at an
interval that you configure) retrieves those statistics from your
devices, and then processes and stores that data.
The group of data collection devices and BIG-IQ systems
that work together to store and manage your data are referred to as the
data collection cluster
. The
individual data collection devices are generally referred to as nodes
. Remote storage device
The remote storage device is necessary only when your
deployment includes a data collection device (DCD) and you plan to store
backups of your events, alerts, and statistical data for disaster
recovery requirements. Remote storage is also required so that you can
retain this data when you upgrade your software.
Network Requirements for a BIG-IQ Centralized Management
Deployment
Before you deploy a
Centralized Management solution
Before you begin to deploy a BIG-IQ® system, you should complete these preparations.
- Determine the deployment scenario that works best for your needs.
- Create the interfaces, communications, and networks needed to support your deployment scenario
- Configure your network (including switches and firewalls) to permit BIG-IQ network traffic to flow based on the deployment scenario you choose.
- Assemble the passwords, IP addresses, and licensing information needed for the BIG-IQ cluster components.
Things to consider when
planning a deployment
To successfully deploy a BIG-IQ® Centralized Management solution, you may need to coordinate with
several people in your company.
If you use BIG-IQ virtual editions, you might need to coordinate with the people who manage
your virtual environment, so they can provision the virtual machines with the required amount of
CPUs, memory, and network interfaces. Further, you’ll need to coordinate with the people who
manage the storage for the virtual machines to make sure each virtual machine is provisioned with
the necessary storage to support the BIG-IQ environment. You also might need to provide the
virtual environment team a copy of the BIG-IQ virtual machine image (available from https://downloads.f5.com),
depending how they operate.
If you use BIG-IQ 7000 devices in your network, you need to coordinate with the people who
manage the data center where the BIG-IQ devices are housed to make arrangements for the devices
to be racked, powered on, and connected to your network.
There are also several tasks to coordinate with your networking team:
- IP address allocation for the BIG-IQ nodes, depending on your deployment model.
- Creation of networks, VLANs, and so on dependent on your deployment model.
- Any routing configuration required to ensure traffic passes between the BIG-IQ nodes and the BIG-IP devices.
- Additional networking configuration required to support the BIG-IQ system's operation.
Finally, you may need to coordinate with your network firewall administrators, depending on the
network configuration at your company. The BIG-IQ software needs to communicate between BIG-IQ
nodes and BIG-IP systems; and, if there are firewalls in the network path, firewall rules
probably need to be configured to permit that traffic. For additional detail about required
network ports and protocols, refer to
Open ports required for data collection device cluster deployment
on support.f5.com
.Determining the
network configuration needed for your deployment
There
are three common deployment scenarios for the F5BIG-IQ® system. The scenario most appropriate for you
depends on what you want to do.
What functions does your deployment need to
perform? | Which hardware components and networks do you
need? | Which deployment type should you choose? |
|---|---|---|
Manage and configure BIG-IP® devices. For example, take backups, license
virtual editions, and configure local traffic and security policies.
| Simple management and configuration | All you need is one or more BIG-IQ system and the BIG-IP
devices you want to manage. This configuration uses a single management network.
|
Manage and configure BIG-IP devices. Collect and view Local Traffic, DNS, and Device statistical
data from the BIG-IP devices. Collect, manage, and view
events and alerts from BIG-IP devices provisioned with the APM®, FPS®, or
ASM® components. | You need one or more BIG-IQ systems, data collection
devices, and an external storage device. This configuration requires a single
management network and an internal BIG-IQ cluster network. | Advanced management and configuration |
Manage and configure BIG-IP devices. Collect and view Local Traffic, DNS, and Device statistical
data from the BIG-IP devices. Collect, manage, and view
events and alerts from BIG-IP devices provisioned with the APM, FPS, or ASM
components. Separate network traffic to support large,
distributed deployments of the F5 BIG-IQ Centralized Management solution for
improved performance, security, and interactions in multiple data center
environments. Managing Disaster Recovery Scenarios .)
| You need one or more BIG-IQ systems, data collection
devices, and an external storage device. This configuration requires an external
network, a management network, and an internal BIG-IQ cluster network. | Large-scale, distributed management and
configuration |
Network environment
for simple management and configuration
To deploy a simple management and configuration environment, all you need
is one or more BIG-IQ systems and the BIG-IP devices that you want to manage. The number of
BIG-IQ systems you need depends on how much redundancy your business requires. A second system
provides high availability failover capability. You can also add data collection devices
(DCDs) to this configuration.
The simple management and configuration uses a single management network.
The BIG-IQ system uses traffic on the management network to do these things:
- Enable bidirectional traffic between the BIG-IQ systems and the BIG-IP devices.
- Enable traffic between the BIG-IQ systems. If you use a secondary high availability BIG-IQ system, this traffic keeps the state information synchronized.
- Provide access the BIG-IQ user interface. You can also use it to access the BIG-IQ system using SSH if you need to use the command line interface.
The number of devices of each type that will best meet your company's needs depends on a number of factors. Refer to the
F5 BIG-IQ Centralized Management: Data Collection Device Sizing Guide
on support.f5.com
for details.This figure illustrates the network topology required for a simple
management and configuration deployment and includes the optional DCDs needed for analytics or
alert and event monitoring.
Centralized
Management network topology
Use the form to record the IP address for each device in the BIG-IQ
deployment.
Device type | Management IP address(es) |
|---|---|
Primary BIG-IQ system | |
Secondary BIG-IQ system | |
BIG-IP devices |
Network environment
for advanced management and configuration
To deploy the advanced management and configuration environment, you need
BIG-IQ systems, data collection devices (DCDs), and an optional external storage device for
backing up alert, event, and statistical data. The optimal topology for this configuration
uses a single management network and a DCD cluster network.
With the addition of the DCD cluster, you can manage alerts and events on your managed devices as well as monitor performance analytics.
The number of devices of each type that will best meet your company's needs depends on a number of factors. Refer to the
F5 BIG-IQ Centralized Management: Data Collection Device Sizing Guide
on support.f5.com
for details.The BIG-IQ system uses traffic on the management network to do these
things:
- Enable bidirectional traffic between the BIG-IQ systems and the BIG-IP devices.
- Enable traffic between the BIG-IQ systems. If you use a secondary high availability BIG-IQ system, this traffic keeps the state information synchronized.
- Provide access to the BIG-IQ user interface. You can also use it to access the BIG-IQ system using SSH if you need to run manual commands.
The DCD cluster network is
used to replicate data to maintain the BIG-IQ Centralized Management cluster.
It is best practice to
isolate the traffic between BIG-IQ cluster nodes for performance and improved security.
This figure illustrates the optimal network topology for an advanced
management and configuration deployment.
Centralized
management and enhanced monitoring network topology
Use the form to record the IP addresses for the devices in the BIG-IQ
deployment.
Device type | Management IP addresses | DCD cluster IP addresses |
|---|---|---|
Primary BIG-IQ system | ||
Secondary BIG-IQ system | ||
Data collection device management IP addresses | ||
BIG-IP devices | ||
Remote storage device |
Network environment
for large-scale, distributed management and configuration
To deploy a large-scale, distributed management and configuration
environment, you need BIG-IQ systems, data collection devices, and an optional external
storage device for backing up alert, event, and statistical data. This configuration needs an
internal network, a management network, and a DCD cluster network.
The BIG-IQ system uses traffic on the management network to do these
things:
- Enable traffic between the BIG-IQ systems. If you use a secondary high availability BIG-IQ system, this traffic keeps the state information synchronized.
- Provide access to the BIG-IQ user interface. You can also use it to access the BIG-IQ system using SSH if you need to run manual commands.
The DCD cluster network is
used to provide communication between the BIG-IQ system and the DCD nodes, and to replicate
data that maintains the BIG-IQ Centralized Management cluster.
It is best practice to
isolate the traffic between BIG-IQ cluster nodes for performance and improved security.
The internal network is
used to route bidirectional traffic between the BIG-IQ Centralized Management cluster and the
BIG-IP devices.
With the addition of the DCD cluster, you can manage alerts and events on your managed devices as well as monitor performance analytics.
The number of devices of each type that will best meet your company's needs depends on a number of factors. Refer to the
F5 BIG-IQ Centralized Management: Data Collection Device Sizing Guide
on support.f5.com
for details.This figure illustrates the network topology required for this
deployment.
Centralized
management, enhanced monitoring, and improved performance network topology
Use the form to record the IP addresses for the devices in the BIG-IQ
deployment.
Device type | Management IP addresses | DCD cluster network IP addresses | Internal network IP addresses |
|---|---|---|---|
Primary BIG-IQ system | |||
Secondary BIG-IQ system | |||
Data collection device management IP addresses | |||
BIG-IP devices | |||
Remote storage device |
Determine the resources required for deployment
The CPU, RAM, and disk space requirements for the devices in your BIG-IQ deployment are determined by a number of factors, including:
- How many BIG-IP devices your BIG-IQ deployment manages, and which services are provisioned on the managed BIG-IP devices?
- Does your BIG-IQ deployment collect statistics data from your managed BIG-IP devices??
- Does your BIG-IQ deployment collect alerts and events data, from the managed BIG-IP devices?
When you deploy the BIG-IQ software, you can choose 95 GB or 500 GB of disk space. If you choose 500 GB, only 95 GB of the 500 GB is allocated initially. You must allocate extra disk space beyond 95 GB before you can use it. Usually, the extra storage space is for DCDs. However, there are also situations in which BIG-IQ devices can use the extra space. For example, you might want to store a large number of UCS backups. Or, your business needs might require you to store multiple versions of the BIG-IQ software so you can upgrade back and forth between BIG-IQ versions.
Deployment type | Device Type | CPU | RAM | Disk Space |
|---|---|---|---|---|
BIG-IQ deployment with statistics collection enabled, as well as alerts and events. | BIG-IQ | 8 See When do the BIG-IQ devices need additional resources? | 32 GB See When do the BIG-IQ devices need additional resources? | Generally, 95 GB; or 500GB if extra space is needed. |
DCD | 8 | 32 GB | Initially, 500 GB. VE disk space can be extended further as needed. | |
BIG-IQ deployment with alerts and events enabled. | BIG-IQ | 4 See When do the BIG-IQ devices need additional resources? | 16 GB See When do the BIG-IQ devices need additional resources? | Generally, 95 GB; or 500GB if extra space is needed. |
DCD | 4 See When do the DCDs need additional resources? | 16 GB See When do the DCDs need additional resources? | Initially, 500 GB. VE disk space can be extended further as needed. | |
BIG-IQ deployment without statistics collection, alerts, or events. | BIG-IQ | 4 or 8 See When do the BIG-IQ devices need additional resources? | 16, 32, or 64 GB See When do the BIG-IQ devices need additional resources? | Generally, 95 GB; or 500GB if extra space is needed. |
CPU and RAM pairings other than those listed above have not been tested.
When do the BIG-IQ devices need additional resources?
When the number of managed BIG-IP devices in your BIG-IQ deployment exceeds the specified thresholds, F5 recommends that you allocate 8 CPUs and either 32 or 64 GB of RAM to your BIG-IQ devices.
The following table lists the threshold for each BIG-IP service. For example, if your BIG-IQ deployment manages more than 32 BIG-IP devices provisioned with Access, allocate additional resources to your BIG-IQ devices.
A BIG-IQ managing devices... | Needs 32 GB to manage more than: |
|---|---|
provisioned with Access | 32 devices |
provisioned with ADC | 80 devices |
provisioned with ASM | 40 devices |
provisioned with DNS | 100 devices |
provisioned with FPS | 50 devices |
deployed in a VMware service scaling group | 100 devices |
deployed in an AWS or Azure service scaling group | 50 devices |
This is a rough approximation. Depending on the number of objects on each BIG-IP device. When your managed BIG-IP devices are provisioned with multiple modules, the RAM requirement increases.
When do the DCDs need additional resources?
For a broader consideration of the factors that can impact the CPU, RAM, and disk space requirements for DCD devices, refer to the
BIG-IQ Centralized Management DCD Sizing Guide
.For work flows that describe how to manage your disk space, refer to the
BIG-IQ Centralized Management: Data Collection
Device Disk Space Management Guide
on support.f5.com
. Port requirements for a BIG-IQ solution
The BIG-IQ systems and data collection devices require bidirectional
communication with the BIG-IP devices in your network to successfully manage them. The
ports required must be open to allow for this required two-way communication. You might
have to contact a firewall or network administrator to verify that these ports are open, or
to have them opened if they are not.
The ports required for your BIG-IQ solution depend on a number of
factors such as the services running on the devices you manage, the BIG-IP version running
on those devices, and the number of subnets configured on your network.
For further information on how to configure ports for BIG-IP interfaces,
refer to: https://support.f5.com/csp/article/K15612
Daemons running on BIG-IQ
Before you upgrade BIG-IQ Centralized Management, it's
important to take inventory of the status of the running daemons. Then after you upgrade, you
can verify that they're in the same state, and make any necessary modifications. To view the
daemons, type the following command:
admin@(ip-10-1-1-4)(cfg-sync Standalone)(Active)(/Common)(tmos)# show /sys service
.Daemon | Example of status |
|---|---|
admd
|
down, Not provisioned
|
alertd
|
run (pid 6579) 22 hours
|
apmd
|
down, Not provisioned
|
asm
|
down, Not provisioned
|
autodosd
|
down, Not provisioned
|
avrd
|
down, Not provisioned
|
bigd
|
run (pid 5338) 22 hours
|
bigiqsnmpd
|
run (pid 5035) 22 hours
|
captured
|
down, Not provisioned
|
cbrd
|
run (pid 6117) 22 hours
|
chmand
|
run (pid 5678) 22 hours
|
clusterd
|
down, not required
|
csyncd
|
run (pid 5038) 22 hours
|
datasyncd
|
down, Not provisioned
|
dnscached
|
down, Not provisioned
|
dosl7d
|
down, Not provisioned
|
dosl7d_attack_monitor
| down, Not provisioned
|
dwbld
| down, Not provisioned
|
elasticsearch
|
run (pid 5041) 22 hours
|
errdefsd
|
run (pid 6112) 22 hours
|
eventd
|
run (pid 5043) 22 hours
|
evrouted
|
run (pid 6583) 22 hours
|
f5_update_checker
|
down, No action required
|
fpuserd
|
down, Not provisioned
|
fslogd
|
down, Not provisioned
|
grafana
|
run (pid 6107) 22 hours
|
gtmd
|
down, Not provisioned
|
guiserver
|
run (pid 6105) 22 hours
|
gunicorn
|
run (pid 6587) 22 hours
|
hwpd
|
down 22 hours, normally up
|
icontrolportald
|
run (pid 5337) 22 hours
|
iprepd
|
run (pid 6113) 22 hours
|
istatsd
|
run (pid 6109) 22 hours
|
lacpd
|
down, not required
|
lind
|
run (pid 6116) 22 hours
|
mcpd
|
run (pid 6110) 22 hours
|
merged
|
run (pid 6938) 22 hours
|
mgmt_acld
|
down, Not provisioned
|
monpd
|
run (pid 6578) 22 hours
|
named
|
run (pid 4855) 22 hours
|
nokiasnmpd
|
down, not enabled
|
ntlmconnpool
|
run (pid 6111) 22 hours
|
pabnagd
|
down, Not logging node
|
pccd
|
down, Not provisioned
|
pgadmind
|
run (pid 7310) 22 hours
|
pkcs11d
|
down, not required
|
restjavad
|
run (pid 4853) 22 hours
|
rethinkdb
|
run (pid 15058) 21 hours, 1 start
|
scriptd
|
run (pid 5344) 22 hours
|
sdmd
|
down, sdmd is not provisioned
|
searchd
|
run (pid 5343) 22 hours
|
sflow_agent
|
run (pid 6937) 22 hours
|
shmmapd
|
down, Not provisioned
|
snmpd
|
run (pid 5674) 22 hours
|
sod
|
run (pid 4810) 22 hours
|
statsd
|
run (pid 5336) 22 hours
|
syscalld
|
run (pid 6939) 22 hours
|
tamd
|
run (pid 5679) 22 hours
|
tmipsecd
|
run (pid 5341) 22 hours
|
tmm
|
run (pid 6581) 22 hours
|
tmrouted
|
run (pid 6581) 22 hours
|
tokumond
|
run (pid 7311) 22 hours
|
tokumx
|
run (pid 6580) 22 hours
|
webd
|
run (pid 6941) 22 hours
|
wr_urldbd
|
down, Not provisioned
|
zrd
|
down, Not provisioned
|
zxfrd
|
run (pid 5034) 22 hours
|
Passwords required for BIG-IQ system deployment
To install and configure a BIG-IQ system or data collection device (DCD) cluster, you use the default passwords for all of the devices. For DCD clusters, if you intend to schedule regular snapshots of your logging data (as recommended), you need root access credentials for the machine on which you plan to store these snapshots.
User Name | Default Password | Access Rights/Role |
|---|---|---|
admin | admin | This user type can access all aspects of the BIG-IQ system from the system's user interface. |
root | default | This user has access to all aspects of the BIG-IQ system from the system's console command line. |
Licenses required for
BIG-IQ system deployment
To install and configure a BIG-IQ system or data collection
device cluster, you need a license for each device.
BIG-IP device configuration requirements for viewing statistics in BIG-IQ
Before you can enable statistics collection for centralized management, you must ensure that the BIG-IP device has the proper configuration. The proper configuration varies depending on the version of the BIG-IP device. The minimum supported BIG-IP device is version 12.1.0. BIG-IQ has limited visibility for BIG-IP devices prior to 13.1.0.5.
To enable all BIG-IQ visibility features, the BIG-IP devices require the following:
- BIG-IP version 13.1.0.5 or later.
- AVR provisioning.
- To display HTTP statistics, each virtual server must be attached to an HTTP analytics profile.
- Ensure that your network and firewall settings allow for bidirectional communication between your BIG-IP and BIG-IQ data collection devices.
