Setting Up Devices for a VMware Environment

What elements do I need to define so the service scaling group can create devices?

There are three main elements to specify when you define the BIG-IP devices for your service scaling group (SSG):
  • License pool
  • IP pool
  • Device template

License Pools

You license BIG-IP VE devices in an SSG from a license pool. For this example, we're using a utility license pool, billed in a specific unit of measure (hourly, daily, monthly, or yearly). You identify the license pool in the device template, then the SSG assigns licenses from that pool as they are needed. When the devices are no longer required, the license is returned to the license pool. You can opt to automatically submit a license usage report to F5 to calculate billing based on the licensed services, duration of the license grant, and the unit-of-measure pricing.

IP Pools

BIG-IQ uses IP pool addresses in a couple of ways.
When the SSG scaling rules trigger the creation of a new device (referred to also as
spinning up
), the SSG uses a device template. When you create a device template, you specify a pool of IP addresses to use when BIG-IQ spins up new devices. The scaling group assigns these addresses as self IP addresses when it creates a new device.
IP pools are also used for service templates. When you define the virtual servers for the applications that run on the devices in your SSG, you can specify that the virtual servers use addresses from an IP pool.

Device Templates

When BIG-IQ spins up new devices, it uses the device template that you created that contains all of the configuration objects that makes up those devices. All of the devices are configured identically, so your application managers have exactly what they need to manage their applications.

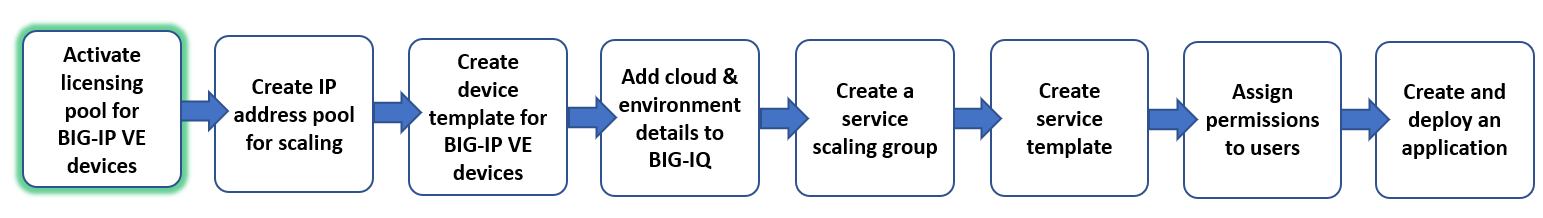

Activate a utility pool license

To activate your license, you'll need your base registration key which you get from F5 Networks, typically in the form of an email.
Before you can use this procedure to automatically contact the F5 license server for license activation, make sure your F5 BIG-IQ Centralized Management system:
  • Is connected to the public internet.
  • Is able to access the
    activate.f5.com
    site.
  • Has existing firewalls that allow port 443 to pass through.
You activate a utility pool license for BIG-IQ to use for each new BIG-IP VE device that it creates in the cloud.
  1. At the top of the screen, click
    Devices
    .
  2. On the left, click
    LICENSE MANAGEMENT
    Licenses
    .
  3. Click the
    Add License
    button.
  4. In the
    Base Registration Key
    field, type or paste the registration key, and into the
    Add-on Keys
    field, type or paste any associated add-on keys.
  5. For the
    Activation Method
    setting, select
    Automatic
    .
  6. Review the user legal agreement and if you agree, select the
    I have read and agree to the terms of this license
    check box.
When the activation status displays as
Active
, you can use this license to create BIG-IP VE devices in a cloud environment.

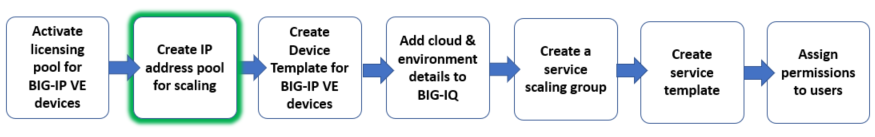

Create an IP address pool for auto-scaling BIG-IP VE devices

You create an IP address pool so that you can control the IP addresses that the service scaling group (SSG) uses for the self IP or management addresses on the virtual machines that it creates. You can also use this pool of IP addresses for the virtual servers that are used in the applications that you deploy to the devices in your SSG.
  1. At the top of the screen, click
    Devices
    then, on the left, click
    IP Pools
    .
    The screen displays the list of the IP pools defined on this device.
  2. Click
    Create
    .
    The Create New IP Pool screen opens.
  3. Fill in the details for this IP address pool and then click
    Save & Close
    .
    This creates a new IP pool that you can now use in the cloud environment.

Before you create a device template for a service scaling group

This is a list of things you'll need to set up your device template for auto-scaling BIG-IP VE devices.
Before you create your device template, you might want to gather some, or all, of the following information specific to creating the BIG-IP VE devices that deploy to the service scaling group (SSG):
  • If you want to specify the port for communication between BIG-IQ and the BIG-IP VE devices, determine what you want to use.
  • The licenses to use for licensing new BIG-IP VE devices.
  • The lookup server IP address, host name, or FDQN of the first DNS to use as well as the NTP server and timezone you want the BIG-IP VE devices to use.
    Do not configure DNS for AWS and Azure.
    The VLAN interface for the virtual or physical port to connect the BIG-IQ to your managed devices, an optional tag you want to use in the packet header of this VLAN, and an optional frame size (MTU).
  • The self IP addresses you want to use for the BIG-IP VE devices
  • The port lockdown settings you want to use.
  • If you use an IP pool alias, you'll need to get the one you specified for your cloud environment, because the environment alias must match the device template alias.
  • Static route settings you want to use for newly-created BIG-IP VE devices. These routes are displayed in the destination column of your routing table.
  • The admin user credentials required to access the devices in the SSG.
    If you're using local authentication with a password enforcement policy, you'll have to meet the criteria it specifies for the admin account you created for accessing BIG-IP VE devices.

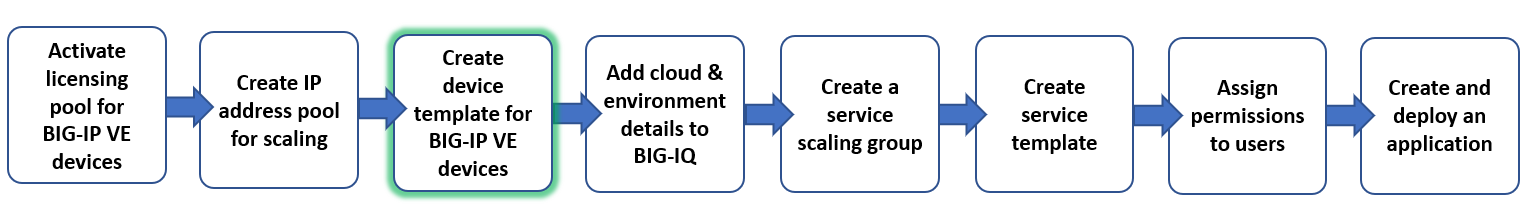

Create a device template for auto-scaled BIG-IP VE devices

You create a new device template to specify a base configuration to create devices in a service scaling group (SSG). When you deploy the SSG, BIG-IQ uses the device template settings to create new virtual devices in your cloud environment.
  1. At the top of the screen, click
    Devices
    then, on the left, click
    DEVICE TEMPLATES
    .
  2. Click the
    Create
    button.
  3. Click each object needed for the device template you need to create so you can specify the values appropriate for the devices in your SSG.
    The table lists the object types you can configure along with details about how the SSG uses those details.
    Object
    This is where you specify:
    Notes
    Configuration
    The text for a hostname prefix and/or suffix to help you identify new BIG-IP VE devices in the you cloud environment.
    The default route and management port used to communicate between BIG-IQ and the BIG-IP VE devices in the SSG.
    You must configure a hostname so that you can identify issues revealed through device specific analytics.
    You can use any port except for 8443.
    License
    Specific license pool you want to use to license new BIG-IP VE devices.
    You must specify a license pool for the devices in an SSG.
    Provisioning
    Components you want installed on new BIG-IP VE devices.
    You must at least select Local Traffic Manager (LTM). You also need Application Visibility and Reporting (AVR) so that analytic data from your devices can trigger scaling events.
    DNS & NTP
    Details about the lookup and NTP server settings and time zone.
    You must specify an NTP server so all of the devices in the SSG have the same time reference. This must be a server that has the same time as the managing BIG-IQ system.
    Management IP
    Select an IP pool from the menu, then select an option:
    If you select an
    IP Pool
    or
    IP Pool Alias
    , type the alias of the IP pool.
    If you select
    DHCP
    , the DHCP service on that network will provide an IP address.
    If you select an
    IP Pool
    or
    IP Pool Alias
    , you'll need to perform a few extra steps. Refer to the following section for instructions.
    VLANs
    Interface for the virtual or physical port to connect BIG-IQ to your managed devices.
    Optional tag you want to use in the packet header of this VLAN and Optional frame size (MTU).
    You must specify a VLAN for the devices in an SSG.
    By default, BIG-IP devices use the standard Ethernet frame size of 1518 bytes (1522 bytes if VLAN tagging is used) with the corresponding MTU of 1500 bytes. For BIG-IP devices that support Jumbo Frames, you can specify another MTU value.
    Self-IPs
    IP address and VLAN details, including port lockdown options.
    You must specify self IP addresses for the devices in an SSG.
    You must specify self IP addresses for the devices in an SSG.
    Do not remove or rename the external self IP or application deployments to this SSG will fail.
    For an IPv4 address, you must specify a /32 IP address per RFC 3021. You must type the full netmask. Specifying the prefix length in bits is not supported.
    If you use an IP pool for your self IP addresses, the pool name you specify in the template must match the name you specify when you configure the VMware environment.
    Routes
    Static route settings for new BIG-IP VE devices.
    For destination, you can use the self IP address for this route. It displays in the destination column of the routing table
    Root account
    Root user account for new BIG-IP VE devices.
    It is good practice to provide root access so that you can access the devices for troubleshooting.
    User accounts
    Select the role and specify a user name and password for users you want to provide access to new BIG-IP VE devices.
    In addition to alphanumeric input, you can use all punctuation characters for the password.
    Or, if you are using local authentication and have created a
    password enforcement policy, the password must meet the criteria specified in the password enforcement policy.
When you finish defining your new template, you can use it to create a new application that deploys to your BIG-IP devices.
