Manual Chapter : Configuring Subscriber Discovery based on DHCP

Applies To:

Show Versions Show Versions

BIG-IP LTM

  • 16.0.1, 16.0.0, 15.1.8, 15.1.7, 15.1.6, 15.1.5, 15.1.4, 15.1.3, 15.1.2, 15.1.1, 15.1.0, 15.0.1, 15.0.0

BIG-IP PEM

  • 16.0.1, 16.0.0, 15.1.8, 15.1.7, 15.1.6, 15.1.5, 15.1.4, 15.1.3, 15.1.2, 15.1.1, 15.1.0, 15.0.1, 15.0.0
Manual Chapter

Configuring Subscriber Discovery based on DHCP

Overview: Configuring subscriber discovery based on DHCP

The Policy Enforcement Manager uses DHCP to discover subscribers. The DHCP consists of two components, which includes a protocol for delivering host-specific parameters from a DHCP server to a host, and the ability to allocate network addresses to hosts. The BIG-IP system processes the DHCP traffic between subscribers and DHCP server and extracts of the subscriber's identity and other information that is important for subscriber handling.
The BIG-IP DHCP module has two functional modes:
  • Relay mode: The DHCP-Relay agent handles the DHCP traffic from the subscriber, modifies it as required, and relays it to the DHCP server according to the configuration.
  • Forward or pass-through mode: The DHCP module does not relay the messages or modify the message in this mode.
In both modes, the DHCP module snoops the DHCP packets, parses relay-agent options and the allocated IP address, and then extracts session information. The relay-agent options are option 82 for DHCPv4 and options 37 and 38 for DHCPv6.

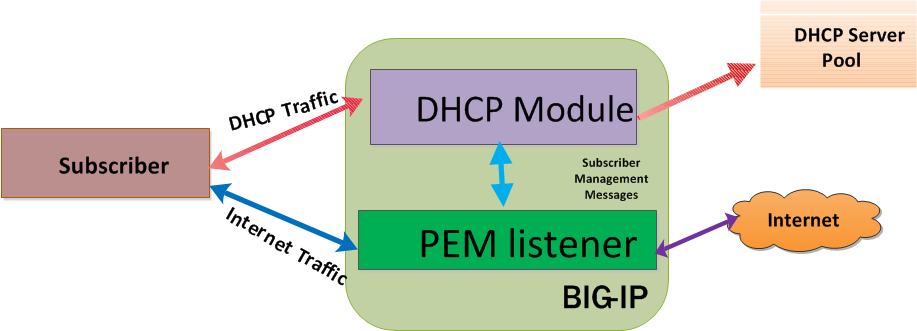

Subscriber Discovery through DHCP
The DHCP module monitors the clients DHCP traffic after the initial IP allocation and snoops for DHCP lease renewal packets, releasing of the IP address, and reconfiguring requests. This determines when the BIG-IP system can safely delete the session.

Creating a listener for DHCPv4 discovery virtual

You can use DHCP to discover subscribers in order to handle traffic for policy enforcement. For subscribers discovered through DHCP, an identifier comprises of relay agent information option (option 82) and MAC address, as configured in the corresponding DHCP profile.
  1. On the Main tab, click
    Subscriber Management
    Control Plane Listeners
    .
    The Control Plane Listeners page opens.
  2. Select
    DHCPv4
    from the profiles list, and click
    Add
    .
    The New DHCPv4 Discovery Virtual screen opens.
  3. In the
    Name
    field, type a unique name for the listener.
  4. In the
    Description
    field, type a description of the listener.
  5. For the
    Source
    setting, type the IP address or network from which the virtual server will accept traffic.
  6. In the
    Destination Address
    field, type the IP address of the virtual server. For example,
    10.0.0.1
    or
    10.0.0.0/24
    .
    When you use an IPv4 address without specifying a prefix, the BIG-IP system automatically uses a
    /32
    prefix.
    You can use a catch-all virtual server (
    0.0.0.0
    ) to specify all traffic that is delivered to the BIG-IP system. Configure the source and destination setting, during forwarding mode only. In the relay mode, the client does not have an IP address and the DHCP provides the client with an IP address.
    The system will create a virtual server using the address or network you specify.
  7. From the
    VLAN and Tunnel Traffic
    list, select
    Enabled on
    . Then, for the
    VLANs and Tunnels
    setting, move the VLAN or VLANs on which you want to allow the virtual servers to share traffic from the
    Available
    list to the
    Selected
    list.
  8. For the
    VLANs and Tunnels
    setting, move the VLANs and tunnels that you want to monitor from the
    Available
    list to the
    Selected
    list.
  9. For the
    DHCP Mode
    setting, select
    Relay
    or
    Forward
    to specify the mode in which the DHCP client requests are sent.
  10. For the
    Pool Member Configuration
    setting, add the DHCP virtual servers that are to be members of the pool. Type the
    Member IP Address
    and
    Port
    number, then click
    Add
    .
  11. From the
    Subscriber Discovery
    list, select
    Enabled
    . Then, for the
    Subscriber ID Format
    setting, select the format you want to implement.
    Format
    Description
    MAC Address
    Uses the subscriber ID as the MAC address through which the subscriber ID goes through.
    Relay Agent Option: Suboption ID 1
    Uses the relay agent first option suboption ID.
    Relay Agent Option: Suboption ID 1 + <Separator> + Suboption ID 2
    Uses the relay agent first and second suboption IDs.
    MAC Address + <Separator> + Relay Agent Option: Suboption ID 1
    Uses the MAC Address and the relay agent first suboption ID.
    MAC Address + <Separator> + Relay Agent Option: Suboption ID 1 <Separator> + Suboption ID 2
    Uses the relay agent first option suboption ID.
    TCL Expression
    Uses the TCL expression to format the subscriber ID.
  12. From the
    Authentication Settings
    list, select
    Enabled
    . Then, select the virtual server name from the
    Authentication Virtual
    list. Select the
    User Name Format
    you want to implement.
    The
    User Name Format
    has the same options as the
    Subscriber ID Format
    , in the Subscriber Discovery setting.
  13. Click
    Finished
    .
    The Policy Enforcement Manager creates a listener.
When you create a new DHCPv4 discover virtual, the Policy Enforcement Manager also creates a corresponding DHCPv4 profile.

Creating a DHCPv4 profile for policy enforcement

You can create a DHCP profile when you want to configure the DHCP virtual to use Relay mode or Pass-through mode.
  1. On the Main tab, click
    Local Traffic
    Profiles
    Services
    DHCPv4
    .
  2. Click
    Create
    .
    The New DHCPv4 Profile screen opens.
  3. In the
    Description
    field, type a descriptive text that identifies the profile.
  4. From the
    Parent Profile
    list, select the default
    dhcpv4
    profile.
  5. Select the
    Custom
    check box.
  6. In the Protocol and Proxy Settings Features area, make a selection from the
    DHCP Mode
    list.
    Option
    Description
    Relay
    When in relay mode, a virtual server relays Dynamic Host Control Protocol (DHCP) client requests and applies unicast IP addresses as the relayed message destination.
    Forward
    When in forward mode, a virtual server forwards Dynamic Host Control Protocol (DHCP), and does not modify, client requests for an IP address to one or more DHCP servers.
  7. For the
    Idle Timeout
    setting, type the number of seconds that a BIG-IP DHCP connection is idle before the connection is eligible for deletion.
  8. For the
    Max Hops
    setting, select the
    Custom
    check box to enable this option. Type the maximum expected number of relay agents that the messages should pass through, before reaching the DHCPv4 server.
  9. For the
    Default TTL
    setting, select the
    Custom
    check box to enable this option. Type the time to live (TTL) value that you want to set for each outgoing DHCP packet.
  10. For the
    Default Lease Time
    setting, select the
    Custom
    check box to enable this option. Type the time, in seconds, of the default value of the DHCPv4 lease time.
  11. For the
    TTL Decrement Amount
    setting, select the
    Custom
    check box to enable this option. Type the amount that the DHCP virtual will use to decrement the TTL for each outgoing DHCP packet.
  12. For the
    Transaction Timeout
    setting, select the
    Custom
    check box to enable this option. Type the number of seconds, taken to internally process the messages.
  13. If you want the DHCP module to insert option 82, for the
    Insert Relay Agent ID (Option 82)
    setting, select the
    Custom
    check box.
  14. If you want the DHCP relay agent to remove option 82 from the server to client traffic, for the
    Remove Relay Agent ID From Client Messages
    setting, select the
    Custom
    check box to enable this option.
  15. From the
    Subscriber Discovery
    list, select
    Enabled
    . Then, for the
    Subscriber ID Format
    setting, select the format you want to implement.
    Format
    Description
    MAC Address
    Uses the subscriber ID as the MAC address through which the subscriber ID goes through.
    Relay Agent Option: Suboption ID 1
    Uses the relay agent first option suboption ID.
    Relay Agent Option: Suboption ID 1 + <Separator> + Suboption ID 2
    Uses the relay agent first and second suboption IDs.
    MAC Address + <Separator> + Relay Agent Option: Suboption ID 1
    Uses the MAC Address and the relay agent first suboption ID.
    MAC Address + <Separator> + Relay Agent Option: Suboption ID 1 <Separator> + Suboption ID 2
    Uses the relay agent first option suboption ID.
    TCL Expression
    Uses the TCL expression to format the subscriber ID.
  16. From the
    Authentication Settings
    list, select
    Enabled
    . Then, select the virtual server name from the
    Authentication Virtual
    list. Select the
    User Name Format
    you want to implement.
    The
    User Name Format
    has the same options as the
    Subscriber ID Format
    , in the Subscriber Discovery setting.
  17. Click
    Finished
    .
The DHCPv4 profile that you created can be chosen from the DHCPv4 profiles in
Local Traffic
Virtual Servers
Virtual Server List
New Virtual Server
, only if you choose DHCP as a virtual type.

Creating a listener for DHCPv6 discovery virtual

You can use DHCPv6 to discover subscribers in order to handle traffic for policy enforcement. For each subscriber discovered through DHCPv6, an identifier comprises of remote-id, subscriber-id options (options 37 and 38) and MAC address, as configured in the corresponding DHCPv6 profile.
  1. On the Main tab, click
    Subscriber Management
    Profiles
    DHCPv6
    .
    The DHCPv6 page open
  2. Select
    DHCPv6
    from the profiles list, and click
    Add
    .
    The New DHCPv6 Discovery Virtual screen opens.
  3. In the
    Name
    field, type a unique name for the listener.
  4. In the
    Description
    field, type a description of the listener.
  5. For the
    Source
    setting, type the IP address or network from which the virtual server will accept traffic.
  6. In the
    Destination Address
    field, type the IP address of the virtual server. For example,
    ffe1::0020/64
    or
    2001:ed8:77b5:2:10:10:100:42/64
    .
    For DHCPv6 discovery virtual, the source and destination should be any (::/0).
    The system will create a virtual server using the address or network you specify.
  7. From the
    VLAN and Tunnel Traffic
    list, select
    Enabled on
    . Then, for the
    VLANs and Tunnels
    setting, move the VLAN or VLANs on which you want to allow the virtual servers to share traffic from the
    Available
    list to the
    Selected
    list.
  8. For the
    VLANs and Tunnels
    setting, move the VLANs and tunnels that you want to monitor from the
    Available
    list to the
    Selected
    list.
  9. For the
    DHCP Mode
    setting, select
    Relay
    or
    Forward
    to specify the mode in which the DHCP client requests are sent.
  10. For the
    Pool Member Configuration
    setting, add the DHCP virtual servers that are to be members of the pool. Type the
    Member IP Address
    and
    Port
    number, then click
    Add
    .
  11. From the
    Subscriber Discovery
    list, select
    Enabled
    . Then, for the
    Subscriber ID Format
    setting, select the format you want to implement.
    Format
    Description
    MAC Address
    Uses the subscriber ID as the MAC address through which the subscriber ID goes through.
    MAC Address + <Separator> + Option 37
    Uses the MAC address and the remote ID relay agent option.
    MAC Address + <Separator>+ Option 37 <Separator> + Option 38
    Uses the MAC address, the remote ID relay agent option and the subscriber ID option.
    MAC Address + <Separator> + Option 38
    Uses the MAC address and the subscriber ID option.
    Option 37
    Uses the remote ID relay agent option.
    Option 37 <Separator> + Option 38:
    Uses the remote ID relay agent option and the subscriber ID option.
    Option 38
    Uses the subscriber ID option.
    TCL Expression
    Uses the TCL expression to format the subscriber ID.
  12. From the
    Authentication Settings
    list, select
    Enabled
    . Then, select the virtual server name from the
    Authentication Virtual
    list. Select the
    User Name Format
    you want to implement.
    The
    User Name Format
    has the same options as the
    Subscriber ID Format
    , in the Subscriber Discovery setting.
When you create a new DHCPv6 discover virtual, the Policy Enforcement Manager also creates a corresponding DHCP profile.

Creating a DHCPv6 profile for policy enforcement

You can create a DHCP profile when you want to configure the DHCP virtual to use Relay mode or Pass-through mode.
  1. On the Main tab, click
    Local Traffic
    Profiles
    Services
    DHCPv6
    .
  2. In the
    Description
    field, type a descriptive text that identifies the profile.
  3. From the
    Parent Profile
    list, select the default
    dhcpv6
    profile.
  4. Select the
    Custom
    check box.
  5. In the Protocol and Proxy Settings Features area, make a selection from the
    DHCP Mode
    list.
    Option
    Description
    Relay
    When in relay mode, a virtual server relays Dynamic Host Control Protocol (DHCP) client requests and applies unicast IP addresses as the relayed message destination.
    Forward
    When in forward mode, a virtual server forwards Dynamic Host Control Protocol (DHCP), and does not modify, client requests for an IP address to one or more DHCP servers.
  6. For the
    Idle Timeout
    setting, type the number of seconds that a BIG-IP DHCP connection is idle before the connection is eligible for deletion.
  7. For the
    Max Hops
    setting, select the
    Custom
    check box to enable this option. Type the maximum expected number of relay agents that the messages should pass through, before reaching the DHCPv4 server.
  8. For the
    Default Lease Time
    setting, select the
    Custom
    check box to enable this option. Type the time, in seconds, of the default value of the DHCPv4 lease time.
  9. For the
    Transaction Timeout
    setting, select the
    Custom
    check box to enable this option. Type the number of seconds, taken to internally process the messages.
  10. If you want the DHCP module to insert option 37, for the
    Insert Remote ID (Option 37)
    setting, select the
    Custom
    check box .
  11. If you want the DHCP module to insert option 38, for the
    Insert Remote ID (Option 38)
    setting, select the
    Custom
    check box to enable this option .
  12. If you want the DHCP relay agent to remove option 37 from the server to client traffic, for the
    Remove Subscriber Agent ID From Client Messages
    setting, select the
    Custom
    check box.
  13. If you want the DHCP module to remove option 38 from the server to client traffic, for the
    Remove Relay Agent ID From Client Messages
    setting, select the
    Custom
    check box.
  14. From the
    Subscriber Discovery
    list, select
    Enabled
    . Then, for the
    Subscriber ID Format
    setting, select the format you want to implement.
    Format
    Description
    MAC Address
    Uses the subscriber ID as the MAC address through which the subscriber ID goes through.
    MAC Address + <Separator> + Option 37
    Uses the MAC address and the remote ID relay agent option.
    MAC Address + <Separator>+ Option 37 <Separator> + Option 38
    Uses the MAC address, the remote ID relay agent option and the subscriber ID option.
    MAC Address + <Separator> + Option 38
    Uses the MAC address and the subscriber ID option.
    Option 37
    Uses the remote ID relay agent option.
    Option 37 <Separator> + Option 38:
    Uses the remote ID relay agent option and the subscriber ID option.
    Option 38
    Uses the subscriber ID option.
    TCL Expression
    Uses the TCL expression to format the subscriber ID.
  15. From the
    Authentication Settings
    list, select
    Enabled
    . Then, select the virtual server name from the
    Authentication Virtual
    list. Select the
    User Name Format
    you want to implement.
    The
    User Name Format
    has the same options as the
    Subscriber ID Format
    , in the Subscriber Discovery setting.
  16. Click
    Finished
    .
The DHCPv6 profile that you created can be chosen from the DHCPv6 profiles in
Local Traffic
Virtual Servers
Virtual Server List
New Virtual Server
, only if you choose DHCP as a virtual type.

Creating a listener for RADIUS subscriber discovery

You can create listeners that specify the RADIUS discovery virtual for extracting subscriber information from the RADIUS packets. Creating a listener does preliminary setup tasks on the BIG-IP system for application visibility, intelligent steering, bandwidth management, and reporting.
  1. On the Main tab, click
    Subscriber Management
    Control Plane Listeners
    .
    The Control Plane Listeners page opens.
  2. From the Subscriber Discovery Virtuals area, select
    RADIUS
    , and click
    Add
    .
    The New RADIUS Discovery Virtual screen opens.
  3. In the
    Name
    field, type a unique name for the RADIUS discovery virtual.
  4. In the
    Description
    field, type a description of the listener.
  5. For the
    Source
    setting, type the IP address or network from which the virtual server will accept traffic.
  6. In the
    Destination Address
    field, type the IP address of the virtual server. For example,
    10.0.0.1
    or
    10.0.0.0/24
    .
    When you use an IPv4 address without specifying a prefix, the BIG-IP system automatically uses a
    /32
    prefix.
    You can use a catch-all virtual server (
    0.0.0.0
    ) to specify all traffic that is delivered to the BIG-IP system. Configure the source and destination setting, during forwarding mode only. In the relay mode, the client does not have an IP address and the DHCP provides the client with an IP address.
    The system will create a virtual server using the address or network you specify.
  7. To use network address translation, from the
    Source Address Translation
    list, select
    Auto Map
    .
    The system treats all of the self IP addresses as translation addresses.
  8. From the
    VLAN and Tunnel Traffic
    list, select
    Enabled on
    . Then, for the
    VLANs and Tunnels
    setting, move the VLAN or VLANs on which you want to allow the virtual servers to share traffic from the
    Available
    list to the
    Selected
    list.
  9. For the
    Pool Member Configuration
    setting, add the RADIUS discovery virtual servers that are to be members of the pool. Type the
    Member IP Address
    and
    Port
    number, then click
    Add
    .
  10. Click
    Finished
    .
    The Policy Enforcement Manager creates a RADIUS virtual server, and displays in the subscriber discovery list.
When you create a RADIUS discovery virtual for a subscriber, the Policy Enforcement Manager creates a corresponding profile (
Policy Enforcement
Listeners
Control Virtual Servers
).
