Per Client Per TMM

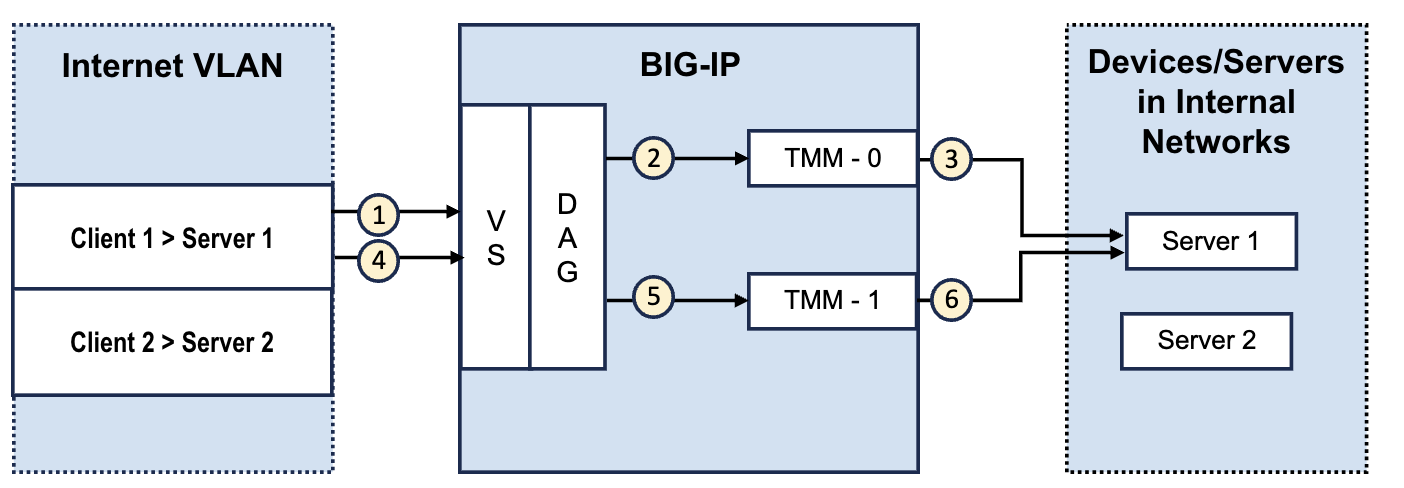

BIG-IP creates a new outgoing connection for each originating connection. This connection will be reused for subsequent connections by the same client on the same TMM.
- Client 1 Message arrives on a Virtual Server (VS)
- Message is disaggregated to TMM-0
- TMM-0 sends the message to the server and creates a new connection
- Second message arrives from the same client
- Message is disaggregated to TMM-1.
- TMM-1 creates a new connection for the same client.
The DAG distributes the messages between available TMMs based on DAG configuration and traffic.
