Manually Synchronizing Application Security Configurations

Overview: Manually synchronizing ASM systems

This implementation describes how to set up two BIG-IP systems running Application Security Manager™ (ASM) so that you can synchronize their security policies and configurations. With this implementation, the BIG-IP systems can fail over to one another, and you can manually sync all of the BIG-IP configuration data, including ASM policy data.

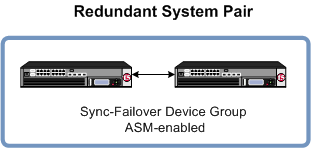

Manually synchronizing ASM configuration data
Synchronizing two ASM systems
The two BIG-IP systems are set up for redundancy: one active and the other standby. Both systems are in the local trust domain and in the same Sync-Failover device group. If one system is unavailable, the other system begins to process application traffic. You can manually synchronize the systems. The ASM™ configurations and security policies are duplicated on both systems.
You can use this implementation as the basis for more complex configurations. For example, if you have multiple redundant pairs each supporting a different web application, you can use this implementation to set up each pair. You could create a Sync-Failover device group for each pair and then synchronize the data within each pair only. In this configuration, you all devices reside in the local trust domain.

About device management and synchronizing application security configurations

You can use device management to set up several BIG-IP systems running Application Security Manager (ASM) so that the systems synchronize their security policies and configurations, and fail over to one another if a system goes offline for any reason. By using application security synchronization, you can set up application security and create security policies on one system, and can propagate them to other systems in an application security device group. In BIG-IP ASM, a
device group
 is two or more BIG-IP devices using the same configuration and providing consistent security policy enforcement.
You can set up application security synchronization, for example, behind an Application Delivery Controller where multiple BIG-IP systems running Application Security Manager are deployed as members of a pool. The options and security policies on all of the systems stay in sync regardless of where you update them.
When you set up ASM synchronization, in addition to security policies, other settings such as custom attack signatures, logging profiles, SMTP configuration, anti-virus protection, system variables, and policy templates, are synchronized with all devices in the ASM-enabled device group.

Considerations for application security synchronization

When using device management with Application Security Manager™ (ASM™), you need to be aware of the following considerations that apply specifically to application security synchronization.
  • A BIG-IP system with Application Security Manager can be a member of only one ASM-enabled device group.
  • All BIG-IP systems in a device group must be running the same version (including hot fix updates) of Application Security Manager (version 11.0 or later).
  • The BIG-IP systems in the ASM-enabled device group synchronize application security configuration data and security policies, providing consistent enforcement on all the devices.
  • Real Traffic Policy Builder® can run on only one system per security policy. For example, you can set up automatic security policy building on one system that is a member of an ASM-enabled device group, the policy is built on that system and then automatically updated on all of the systems in the device group.
  • If using a VIPRION® platform (with multiple blades), it is considered one device, and you need to add only the master blade to the device trust and group.

Performing basic network configuration for synchronization

You need to perform basic networking configuration for each of the BIG-IP systems whose Application Security Manager (ASM) configurations you want to synchronize.
  1. Install the same BIG-IP system version (including any hot fixes) on each device.
  2. Provision LTM and ASM on each device (
    System
    Resource Provisioning
    ).
  3. On each device, create one or more VLANs, depending on your networking configuration (
    Network
    VLANs
    ).
  4. On each device, create a self IP (
    Network
    Self IPs
    ).
    When creating the self IP, set
    Traffic Group
     to
    traffic-group-local-only (non-floating)
    .
  5. On each device, create a default gateway, if needed (
    Network
    Routes
    ).
  6. On each device, configure DNS (
    System
    Configuration
    Device
    DNS
    ) and NTP (
    System
    Configuration
    Device
    NTP
    ) so they are set to the same time.
  7. Verify connectivity between the devices (self IP address to self IP address). For example, use this command to ensure communications:
    ping -I
    vlan_interface
    device_self_IP
  8. If your company requires special device certificates, install them on each device (
    System
    Device Certificates
     and click
    Import
    ).
The basic networking setup is complete for the BIG-IP ASM systems for which you want to share security policies and configurations.
Next, on each device, specify the IP address to use when synchronizing configuration objects to the local device:

Specifying an IP address for config sync

Before configuring the config sync address, verify that all devices in the device group are running the same version of BIG-IP system software.
You perform this task to specify the IP address on the local device that other devices in the device group will use to synchronize their configuration objects to the local device.
You must perform this task locally on each device in the device group.
  1. Confirm that you are logged in to the device you want to configure.
  2. On the Main tab, click
    Device Management
    Devices
    .
    This displays a list of device objects discovered by the local device.
  3. In the Name column, click the name of the device to which you are currently logged in.
  4. Near the top of the screen, click
    ConfigSync
    .
  5. From the
    Local Address
     list, retain the displayed IP address or select another address from the list.
    F5 Networks recommends that you use the default value, which is the self IP address for the internal VLAN. This address must be a non-floating (static) self IP address and not a management IP address.
    If the BIG-IP device you are configuring is accessed using Amazon Web Services, then the internal self IP address that you select must be an internal private IP address that you configured for this EC2 instance as the
    Local Address
    .
  6. Click
    Update
    .
After performing this task, the other devices in the device group can synchronize their configurations to the local device whenever a sync operation is initiated.

Establishing device trust

Before you begin this task, verify that:
  • Each BIG-IP device that is to be part of the local trust domain has a device certificate installed on it.
  • The local device is designated as a certificate signing authority.
You perform this task to establish trust among devices on one or more network segments. Devices that trust each other constitute the
local trust domain
. A device must be a member of the local trust domain prior to joining a device group.
By default, the BIG-IP software includes a local trust domain with one member, which is the local device. You can choose any one of the BIG-IP devices slated for a device group and log into that device to add other devices to the local trust domain. For example, devices
Bigip_1
,
Bigip_2
, and
Bigip_3
 each initially shows only itself as a member of the local trust domain. To configure the local trust domain to include all three devices, you can simply log into device
Bigip_1
 and add devices
Bigip_2
 and
Bigip_3
 to the local trust domain; there is no need to repeat this process on devices
Bigip_2
 and
Bigip_3
.
  1. On the Main tab, click
    Device Management
    Device Trust
    Device Trust Members
    .
  2. Click
    Add
    .
  3. From the
    Device Type
     list, select
    Peer
     or
    Subordinate
    .
  4. Type a device IP address, administrator user name, and administrator password for the remote BIG-IP device with which you want to establish trust. The IP address you specify depends on the type of BIG-IP device:
    • If the BIG-IP device is an appliance, type a management IP address (IPv4 or IPv6) for the device.
    • If the BIG-IP device is a VIPRION device that is not licensed and provisioned for vCMP, type a primary cluster management IP address (IPv4 or IPv6) for the cluster.
    • If the BIG-IP device is a VIPRION device that is licensed and provisioned for vCMP, then type a cluster management IP address (IPv4 or IPv6) for the guest.
    • If the BIG-IP device is an Amazon Web Services EC2 device, type one of the Private IP addresses created for this EC2 instance.
  5. Click
    Retrieve Device Information
    .
  6. Verify that the certificate of the remote device is correct, and then click
    Device Certificate Matches
    .
  7. In the
    Name
     field, verify that the name of the remote device is correct.
  8. Click
    Add Device
    .
After you perform this task, the local device is now a member of the local trust domain. Also, the BIG-IP system automatically creates a special Sync-Only device group for the purpose of synchronizing trust information among the devices in the local trust domain, on an ongoing basis.
Repeat this task to specify each device that you want to add to the local trust domain.

Creating a Sync-Failover device group

This task establishes failover capability between two or more BIG-IP devices. If an active device in a Sync-Failover device group becomes unavailable, the configuration objects fail over to another member of the device group and traffic processing is unaffected. You perform this task on any one of the authority devices within the local trust domain.
Repeat this task for each Sync-Failover device group that you want to create for your network configuration.
  1. On the Main tab, click
    Device Management
    Device Groups
    .
  2. On the Device Groups list screen, click
    Create
    .
    The New Device Group screen opens.
  3. In the
    Name
     field, type a name for the device group.
  4. From the
    Group Type
     list, select
    Sync-Failover
    .
  5. In the
    Description
     field, type a description of the device group.
    This setting is optional.
  6. From the
    Configuration
     list, select
    Advanced
    .
  7. For the
    Members
     setting, select a host name from the
    Available
     list for each BIG-IP device that you want to include in the device group, including the local device. Use the Move button to move the host name to the
    Includes
     list.
    The
    Available
     list shows any devices that are members of the device's local trust domain but not currently members of a Sync-Failover device group. A device can be a member of one Sync-Failover group only. Also, for vCMP-provisioned systems on platforms that contain a hardware security module (HSM) supporting FIPS multi-tenancy, the FIPS partitions on the guests in the device group must be identical with respect to the number of SSL cores allocated to the guest's FIPS partition and the maximum number of private SSL keys that the guest can store on the HSM.
  8. From the
    Sync Type
     list:
    • Select
      Automatic with Incremental Sync
       when you want the BIG-IP system to automatically sync the most recent BIG-IP configuration changes from a device to the other members of the device group. In this case, the BIG-IP system syncs the configuration data whenever the data changes on any device in the device group.
    • Select
      Manual with Incremental Sync
       when you want to manually initiate a config sync operation. In this case, the BIG-IP system syncs the latest BIG-IP configuration changes from the device you choose to the other members of the device group. We strongly recommend that you perform a config sync operation whenever configuration data changes on one of the devices in the device group.
    • Select
      Manual with Full Sync
       when you want to manually initiate a config sync operation. In this case, the BIG-IP system syncs the full set of BIG-IP configuration data from the device you choose to the other members of the device group. We strongly recommend that you perform a config sync operation whenever configuration data changes on one of the devices in the device group.
  9. In the
    Maximum Incremental Sync Size (KB)
     field, retain the default value of
    1024
    , or type a different value.
    This value specifies the total size of configuration changes that can reside in the incremental sync cache. If the total size of the configuration changes in the cache exceeds the specified value, the BIG-IP system performs a full sync whenever the next config sync operation occurs.
  10. For the
    Network Failover
     setting, select or clear the check box:
    • Select the check box if you want device group members to handle failover communications by way of network connectivity. This is the default value and is required for active-active configurations.
    • Clear the check box if you want device group members to handle failover communications by way of serial cable (hard-wired) connectivity.
    For active-active configurations, you must select network failover, as opposed to serial-cable (hard-wired) connectivity.
  11. In the
    Link Down Time on Failover
     field, use the default value of
    0.0
    , or specify a new value.
    This setting specifies the amount of time, in seconds, that interfaces for any external VLANs are down when a traffic group fails over and goes to the standby state. Specifying a value other than
    0.0
     for this setting causes other vendor switches to use the specified time to learn the MAC address of the newly-active device.
    This setting is a system-wide setting, and does not apply to this device group only. Specifying a value in this field causes the BIG-IP system to assign this value to the global bigdb variable
    failover.standby.linkdowntime
    .
  12. Click
    Finished
    .

Syncing the BIG-IP configuration to the device group

Before you sync the configuration, verify that the devices targeted for config sync are members of a device group and that device trust is established.
This task synchronizes the BIG-IP configuration data from the local device to the devices in the device group. This synchronization ensures that devices in the device group operate properly. When synchronizing self IP addresses, the BIG-IP system synchronizes floating self IP addresses only.
You perform this task on either of the two devices, but not both.
  1. On the Main tab, click
    Device Management
    Overview
    .
  2. In the Device Groups area of the screen, click the arrow next to the name of the relevant device group.
    The screen expands to show a summary and details of the sync status of the selected device group, as well as a list of the individual devices within the device group.
  3. In the Devices area of the screen, choose the device that shows a sync status of
    Changes Pending
    .
  4. In the Sync Options area of the screen, select
    Push the selected device configuration to the group
    .
  5. Click
    Sync
    .
    The BIG-IP system syncs the configuration data of the selected device to the other members of the device group.

Specifying IP addresses for failover communication

You perform this task to specify the local IP addresses that you want other devices in the device group to use for continuous health-assessment communication with the local device. You must perform this task locally on each device in the device group.
The IP addresses that you specify must belong to route domain
0
.
  1. Confirm that you are logged in to the device you want to configure.
  2. On the Main tab, click
    Device Management
    Devices
    .
    This displays a list of device objects discovered by the local device.
  3. In the Name column, click the name of the device to which you are currently logged in.
  4. Near the top of the screen, click
    Failover Network
    .
  5. Click
    Add
    .
  6. From the
    Address
     list, select an IP address.
    The unicast IP address you select depends on the type of device:
    Platform
    Action
    Appliance without vCMP
    Select a static self IP address associated with a VLAN on the internal network (preferably VLAN
    HA
    ) and the static management IP address or addresses currently assigned to the device. If the system is configured with both IPv4 and IPv6 management IP addresses, then by default, the system will use either of these addresses for failover communication if needed, for failover communication between devices.
    Appliance with vCMP
    Select a static self IP address associated with a VLAN on the internal network (preferably VLAN
    HA
    ) and the unique management IP address currently assigned to the guest. If a guest is configured with both IPv4 and IPv6 cluster management IP addresses, then by default, the system will use either of these addresses for failover communication if needed, for failover communication between devices.
    VIPRION without vCMP
    Select a static self IP address associated with a VLAN on the internal network (preferably VLAN
    HA
    ). If you choose to select unicast addresses only (and not a multicast address), you must also specify the existing per-slot static management IP address or addresses (IPv4, IPv6, or both) that you previously configured for each slot in the cluster. If you choose to select one or more unicast addresses and a multicast address, then you do not need to select the existing per-slot, static management IP addresses when configuring addresses for failover communication.
    VIPRION with vCMP
    On the vCMP host, select a self IP address that is defined on the guest and associated with a VLAN on the internal network (preferably VLAN
    HA
    ). If you choose to select unicast failover addresses only (and not a multicast address), you must also select the existing per-slot virtual static management IP address or addresses (IPv4, IPv6, or both) that you previously configured for each slot in the guest's virtual cluster. If you choose to select one or more unicast addresses and a multicast address, you do not need to select the existing per-slot virtual static, management IP addresses when configuring addresses for failover communication.
    Failover addresses should always be static, not floating, IP addresses.
  7. From the
    Port
     list, select a port number.
    We recommend using port
    1026
     for failover communication.
  8. To enable the use of a failover multicast address on a VIPRION platform (recommended), then for the
    Use Failover Multicast Address
     setting, select the
    Enabled
     check box.
  9. If you enabled
    Use Failover Multicast Address
    , either accept the default
    Address
     and
    Port
     values, or specify values appropriate for the device.
    If you revise the default
    Address
     and
    Port
     values, but then decide to revert to the default values, click
    Reset Defaults
    .
  10. Click
    Finished
    .
After you perform this task, other devices in the device group can send failover messages to the local device using the specified IP addresses.

Enabling ASM synchronization on a device group

You need to have already set up the BIG-IPsystems you want to synchronize in a device trust and a device group. Application Security Manager (ASM) must be provisioned on all the systems in the device group.
You can enable ASM synchronization on a device group to synchronize security policies and configurations on all devices in the device group. You do this task on one system; for example, the active system in an active-standby pair.
  1. On the Main tab, click
    Security
    Options
    Application Security
    Synchronization
    .
    The system displays a list of device groups of which this device is a member.
  2. For
    Device Group
    , select the device group whose members you want to synchronize.
  3. Click
    Save
    .
The BIG-IP ASM systems that you want to share security policies and configurations are part of a device group with ASM synchronization.

Synchronizing an ASM-enabled device group

You need to have set up the BIG-IP Application Security Manager (ASM) systems you want to synchronize in a Sync-Failover device group that is ASM-enabled.
You can manually synchronize security policies and configuration of systems in an ASM-enabled device group.
  1. On one system in the ASM-enabled failover device group, create an application security policy.
    Because the two systems are not in sync, you see a
    Changes Pending
     status message on the screen.
  2. Click the
    Changes Pending
     message.
    You can also click
    Device Management
    Overview
    .
    The Overview screen opens.
  3. In the Device Groups area of the screen, click the arrow next to the name of the relevant device group.
    The screen expands to show a summary and details of the sync status of the selected device group, as well as a list of the individual devices within the device group.
  4. In the Devices area of the screen, choose the device that shows a sync status of
    Changes Pending
    .
  5. In the Sync Options area of the screen, select
    Push the selected device configuration to the group
    .
  6. Click
    Sync
    .
    The BIG-IP system syncs the configuration data of the selected device to the other members of the device group.
  7. Verify that the devices are synchronized.
    For example, log in to another device in the device group and verify that the security policy you created also resides on that system. Click
    Security
    Application Security
    Security Policies
    and see if the policy is listed.
Except for static self IP addresses, the entire set of BIG-IP configuration data including ASM security policies and configuration is replicated on one or more devices in the ASM-enabled device group. If the active device is not available, the standby device becomes active and handles traffic.
You can create new security policies or update existing ones on any of the devices in the group, or update the ASM configuration options. You can manually synchronize changes you make on one device with the other devices in the ASM-enabled device group.

Implementation result

You have now set up two BIG-IP systems running Application Security Manager™ (ASM) so that you can synchronize their security policies and configurations. With this implementation, you manually synchronize the ASM and BIG-IP configurations.
The two BIG-IP systems are in the same Sync-Failover device group. If one system becomes unavailable, the other system begins processing application traffic.
Contact Support Contact Support

Have a Question?

Support and Sales >

About F5

Education

F5 Sites

Support Tasks




©2023 F5, Inc. All rights reserved.


Trademarks Policies Privacy California Privacy Do Not Sell My Personal Information
