Manual Chapter : System Settings

Applies To:

Show Versions Show Versions

F5OS-C

  • 1.6.1
Manual Chapter

System Settings

System settings overview

You can access system settings in the
system controller webUI and chassis partition
webUI.
Each webUI provides different settings.

Available system settings in the webUIs

This table lists the available system settings in the system controller and chassis partition webUIs:
System controller webUI
Chassis partition webUI
Alarms and Events
Alarms and Events
Controller Management
Cluster Details
System Inventory
High Availability
Log Settings
Log Settings
File Utilities
File Utilities
Time Settings
SNMP Configuration
SNMP Configuration
Configuration Backup
Configuration Backup
General
Licensing
Software Install Status
General

System alarms and events overview

You can view active system alarms and events in the
system controller
webUI and CLI.

Display system alarms and events from the webUI

The Alarms & Events screen is available in both the system controller and chassis partition webUIs. This screen lists the alert information for all performance and network indicators that have currently crossed a performance or health threshold. Use this screen to identify the specific object that is affected.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Alarm & Events
    .
  3. Choose from one of these actions:
    • To refresh the alarms or events list, click the
      Refresh
      icon on the right of the screen.
    • To display events result by time preference, click the down arrow next to
      Refresh
      icon, select a value from the list. The default value is one hour. For example, select five minutes to display any event that occurred in the last five minutes.
    • To display events by severity, select a value from the
      Severity
      list. The default value is WARNING.
    Option
    Description
    Emergency
    Emergency system panic messages
    Alert
    Serious errors that require administrator intervention
    Critical
    Critical errors, including hardware and file system failures
    Error
    Non-critical, but possibly important, error messages
    Warning
    Warning messages that should be logged and reviewed
    Notice
    Messages that contain useful information, but might be ignored
    Informational
    Messages that contain useful information, but might be ignored
    Debug
    Detailed messages used for troubleshooting

View active system alarm conditions from the CLI

You can view information about active system alarm conditions from the system controller CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. View a list of active system alarm conditions.
    show system alarms | tab
    This example shows a power supply unit (PSU) redundancy fault:
    syscon-1-active# show system alarms ID RESOURCE SEVERITY TEXT TIME CREATED –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––- 65796 psu-controller WARNING PSU redundancy fault detected 2021-07-01-11:11:11.992270499 UTC 65793 psu-2 ERROR PSU fault detected 2021-07-01-11:11:11.999825828 UTC

High Availability (HA) configuration overview

You can configure system controller high availability (HA) from Controller Management screen on the system controller webUI. The system controllers work together as a redundant pair. The default mode for system controller HA is Auto, which automatically selects the system controller that is best suited at the time as the active controller and fails over only as needed.
The High Availability screen on the chassis partition webUI includes options for configuring chassis partition HA. High availability is already implemented for chassis partitions on the
VELOS
system.

Configure high availability for the system controllers from the webUI

You should not need to change system controller high availability (HA) to something other than the default configuration (Auto), but you can opt to change the configuration or initiate a failover from the active controller to the standby from the system controller webUI.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Controller Management
    .
  3. For the
    Preferred Node
    field, select
    System Controller 1
    or
    System Controller 2
    to act as an active system controller, or choose
    Auto
    (recommended).
    Changing the Preferred Node configuration creates a failover event and ends the session if you select the system controller that is currently acting as the standby. Wait 30 seconds and then start a new session with either the floating IP address or the active system controller IP address after the change has completed.
    Hardware health conditions of the system controllers always take precedence. If one of the system controllers is not healthy, the chassis partition will ignore the preference and synchronize with the healthy system controller.
  4. To force a failover to occur immediately, click
    Failover
    .
    The
    Failover
    button is available only when
    Preferred Node
    field is set to
    Auto
    .
    You would do this only if you want the current standby system controller to become the active system controller.

Configure high availability for the system controllers from the CLI

You can change the preferred system controller high availability (HA) mode from either the system controller or chassis partition CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Change system controller high availability/redundancy to a specified mode.
    system redundancy config mode [
    auto
    |
    prefer-1
    |
    prefer-2
    }
    These redundancy modes are available:
    Option
    Description
    auto
    System chooses preferred mode automatically. This is the default value.
    prefer-1
    Prefer controller-1 to be active.
    prefer-2
    Prefer controller-2 to be active.
    This example shows configuring controller-1 as the preferred active system controller from the system controller CLI:
    syscon-1-active(config)# system redundancy config mode prefer-1
  5. Commit the configuration changes.
    commit

System security overview

You can access settings for hardening the security of your system in the
system controller or chassis partition
webUI.

Allow list overview

An allow list enables you to specify either specific IPv4 or IPv6 addresses, ports, or a netmask as an accepted source that can access the system.
When the IP address is configured and saved to the system allow list, only traffic coming from that IP address and port is accepted by the system's management interface. You can also edit or delete entries in the allow list after you have configured them.

Configure the system allow list from the webUI

You can configure the system allow list from either the system controller or chassis partition webUI. To edit an existing allow list entry, select the IP address that you want to edit. You cannot change the designated name, but you can change all other fields.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    System Security
    .
  3. In the Allowed IP Addresses area, click
    Add
    to add an IP address to the allow list.
  4. For
    Name
    , enter a descriptive name for the IP address.
  5. For
    IPv4/IPv6
    , select
    IPv4
    or
    IPv6
    .
  6. For
    Address
    , enter the IP address to be added to the allow list.
  7. For
    Prefix Length
    , enter or select the prefix length.
    The prefix length values must be between 1 and 32 for IPv4 and between 1 and 128 for IPv6.
  8. For
    Port
    , select a port number for the IP address.
    Available options are:
    • 443 (HTTPS): Allow only HTTP with SSL traffic on this IP address.
    • 80 (HTTP): Allow only HTTP traffic on this IP address.
    • 8888 (RESTCONF): Allow only RESTCONF traffic on this IP address.
    • 161 (SNMP): Allow only SNMP traffic on this IP address.
    • 7001 (VCONSOLE): Allow only VCONSOLE traffic on this IP address.
    • 22 (SSH): Allow only SSH traffic on this IP address.
  9. Click
    Save & Close
    .

Configure the system allow list from the CLI

You can configure the system allow list from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  3. Configure the system to allow traffic only from specified IP addresses.
    This is applicable only for ports 22, 161, 8888, 443, 80, and 7001.
    system allowed-ips allowed-ip <
    allowlist-profile-name
    > config [ ipv4 | ipv6 ] address <
    ip-address
    > port <
    port-number
    >
    prefix-length <
    subnet-prefix-length
    >
    This example adds a specified IPv4 address to the system allow list:
    syscon-1-active(config)# system allowed-ips allowed-ip test config ipv4 address 192.0.2.33 port 161 prefix-length 32
    This example adds a netmask to the system allow list:
    syscon-1-active(config)# system allowed-ips allowed-ip test config ipv4 address 12.13.14.0 port 161 prefix-length 24
  4. Commit the configuration changes.
    commit

Appliance mode overview

You can run the system in
appliance mode
. Appliance mode adds a layer of security removing user access to Root and Bash. Enabling appliance mode disables all Root and Bash shell access for the system.
You can enable appliance mode at each of these levels:
  • System
  • Tenant
Appliance mode is disabled at all levels, by default. You can enable it from the webUI or the CLI. The appliance mode option for the system is available to users with admin access under
SYSTEM SETTINGS
General
in the webUI. For tenants, it is available in the webUI under
TENANT MANAGEMENT
Tenant Deployments
.
These are the effects of enabling appliance mode at each of the different levels.
System-level appliance mode
  • Root or Bash access is disabled on the system.
  • Console access: Root or Bash access is disabled on the system. Users can log in to the system CLI from the console using an admin account.
Tenant appliance mode
  • Root access to the tenant is disabled by all means. Bash access is disabled for users (with a terminal shell flag enabled) inside the tenant.
  • Users can access the tenant only through the webUI or the CLI.
  • Tenant console access: Users can log in to the CLI from the virtual console using an admin account (with a terminal shell flag enabled).

Configure appliance mode from the webUI

You can enable appliance mode if you want to disable all root and Bash shell access.
For greater security, it is highly recommended that you configure the system controllers and chassis partitions to run in appliance mode.
From the system controller webUI, appliance mode disables root and Bash access to the controllers. From the chassis partition webUI, appliance mode limits access to the specific chassis partition to which you are connected. You can enable or disable the appliance mode for system controllers and partitions from their respective webUIs.
The appliance mode option for tenants is available in the chassis partition webUI under
TENANT MANAGEMENT
Tenant Deployments
.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    System Security
    .
  3. For
    Appliance Mode
    , in the Appliance Mode area, for
    Enable/Disable
    , select either
    Enabled
    or
    Disabled
    .
    The default value is
    Disabled
    .
  4. Click
    Save
    .

Configure appliance mode from the CLI

You can configure appliance mode from either the system controller or chassis partition CLI if you want to disable all root and Bash shell access.
For greater security, it is highly recommended that you configure the system controllers and chassis partitions to run in appliance mode.
From the system controller CLI, appliance mode disables root and Bash access to the controllers. From the chassis partition CLI, appliance mode limits access to the specific chassis partition to which you are connected.
The appliance mode option for tenants is available in the chassis partition CLI using the
tenants tenant <
tenant-name
> config appliance-mode
command sequence.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Enable appliance mode.
    system appliance-mode config [
    disabled
    |
    enabled
    ]
    In this example, you enable appliance mode on the system controllers:
    syscon-1-active(config)# system appliance-mode config enabled
  5. Commit the configuration changes.
    commit

LCD mode overview

The LCD touchscreen enables you to view system status and manage the system without attaching a console or network cable. You can configure the LCD to meet security requirements by changing to a more restrictive operational mode.
The LCD touchscreen supports these modes:
Standard
Allows access to all options.
Secure
Allows access only to management and setup options. A padlock icon displays next to limited options.
Disabled
Does not allow access to any options and displays only an image to indicate that the LCD touchscreen is disabled.

Configure the LCD mode from the webUI

You can configure the operational mode of the touchscreen LCD from either the system controller or chassis partition webUI.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    System Security
    .
  3. In the LCD area, for
    Mode
    , select one of these options:
    • Select
      Disabled
      to not allow access to any options; displays only an image to indicate that the LCD touchscreen is disabled.
    • Select
      Secure
      to allow access only to management and setup options; displays a padlock icon next to limited options.
    • Select
      Standard
      to allow access to all options.
  4. Click
    Save
    .

Cryptographic agility overview

Cryptographic agility on
F5
VELOS
systems enables you to replace cryptographic implementations for the httpd and sshd services. This applies to the F5OS management interface.

Configure the SSL cipher suite for sshd from the CLI

You can configure the sshd service from either the system controller or chassis partition CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure the sshd service.
    system security services service sshd config ciphers [ <
    string
    > ] kexalgorithms [ <
    string
    > ] macs [ <
    string
    > ]
    These are the available configuration options:
    Option
    Description
    ciphers
    User-specified ciphers. For example, aes128-cbc or aes128-ctr.
    The cipher string can take several additional forms. It can consist of a single cipher suite or a list of cipher suites containing a certain algorithm, or cipher suites of a certain type. You can combine lists of cipher suites into a single cipher string using the + character as a logical AND operation.
    kexalgorithms
    User-specified key exchange algorithms. For example, diffie-hellman-group14-sha1 or diffie-hellman-group14-sha256.
    You can combine lists of KEX algorithms into a single string using the + character as a logical AND operation.
    macs
    User-specified MAC algorithms. For example, hmac-sha2-512 or AEAD_AES_128_GCM.
    You can combine lists of MAC algorithms into a single string using the + character as a logical AND operation.
    This example shows configuring the sshd service:
    syscon-1-active(config)# system security services service ssh config ciphers [ aes128-ctr aes256-cbc ] kexalgorithms [ ecdh-sha2-nistp521 echd-sha2-nistp384 ] macs [ hmac-sha1 ]
  5. Commit the configuration changes.
    commit
After you commit the change, you are prompted to confirm the change. The service will then restart.

Configure the SSL cipher suite for httpd from the CLI

You can configure the SSL cipher suites used for the httpd service from either the system controller or chassis partition CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure one or more cipher suites for the httpd service.
    system security services service httpd config ssl-ciphersuite <
    string
    >
    In this example, you indicate that the system uses only the specified cipher suite:
    syscon-1-active(config)# system security services service httpd config ssl-ciphersuite ECDHE-RSA-AES256-GCM-SHA384
    In this example, you specify more than one cipher suite by separating the cipher suite names with a colon:
    syscon-1-active(config)# system security services service httpd config ssl-ciphersuite ECDHE-RSA-AES128-SHA:ECDHE-RSA-AES256-SHA
  5. Commit the configuration changes.
    commit
After you commit the change, you are prompted to confirm the change. The service will then restart.

Allowed SSL cipher suites for httpd service

When you configure ciphers for httpd, you can use multiple formats. You can specify a single cipher suite, such as RC4-SHA. You can also represent a list of cipher suites containing a certain algorithm or cipher suites of a certain type using a shortened name. For example, SHA1 represents all cipher suites using the digest algorithm SHA1, and SSLv3 represents all SSLv3 algorithms. You can combine lists of cipher suites into a single cipher string using the + character as a logical AND operation. For example, SHA1+DES represents all cipher suites containing the SHA1 and DES algorithms.
These are the allowed SSL cipher suites for general appliances:
  • ECDHE-RSA-AES256-GCM-SHA384
  • ECDHE-ECDSA-AES256-GCM-SHA384
  • ECDHE-RSA-AES256-SHA384
  • ECDHE-ECDSA-AES256-SHA384
  • ECDHE-RSA-AES256-SHA
  • ECDHE-ECDSA-AES256-SHA
  • DHE-DSS-AES256-GCM-SHA384
  • DHE-RSA-AES256-GCM-SHA384
  • DHE-RSA-AES256-SHA256
  • DHE-DSS-AES256-SHA256
  • DHE-RSA-AES256-SHA
  • DHE-DSS-AES256-SHA
  • DHE-RSA-CAMELLIA256-SHA
  • DHE-DSS-CAMELLIA256-SHA
  • ECDH-RSA-AES256-GCM-SHA384
  • ECDH-ECDSA-AES256-GCM-SHA384
  • ECDH-RSA-AES256-SHA384
  • ECDH-ECDSA-AES256-SHA384
  • ECDH-RSA-AES256-SHA
  • ECDH-ECDSA-AES256-SHA
  • AES256-GCM-SHA384
  • AES256-SHA256
  • AES256-SHA
  • CAMELLIA256-SHA
  • PSK-AES256-CBC-SHA
  • ECDHE-RSA-AES128-GCM-SHA256
  • ECDHE-ECDSA-AES128-GCM-SHA256
  • ECDHE-RSA-AES128-SHA256
  • ECDHE-ECDSA-AES128-SHA256
  • ECDHE-RSA-AES128-SHA
  • ECDHE-ECDSA-AES128-SHA
  • DHE-DSS-AES128-GCM-SHA256
  • DHE-RSA-AES128-GCM-SHA256
  • DHE-RSA-AES128-SHA256
  • DHE-DSS-AES128-SHA256
  • DHE-RSA-AES128-SHA
  • DHE-DSS-AES128-SHA
  • DHE-RSA-CAMELLIA128-SHA
  • DHE-DSS-CAMELLIA128-SHA
  • ECDH-RSA-AES128-GCM-SHA256
  • ECDH-ECDSA-AES128-GCM-SHA256
  • ECDH-RSA-AES128-SHA256
  • ECDH-ECDSA-AES128-SHA256
  • ECDH-RSA-AES128-SHA
  • ECDH-ECDSA-AES128-SHA
  • AES128-GCM-SHA256
  • AES128-SHA256
  • AES128-SHA
  • CAMELLIA128-SHA
  • PSK-AES128-CBC-SHA
These are the allowed SSL cipher suites for systems that have a FIPS software license applied. It does not apply to the F5 r5900-DF or r10900-DF platforms that have an embedded FIPS hardware security module (HSM).
  • ECDHE-RSA-AES128-GCM-SHA256
  • ECDHE-RSA-AES256-GCM-SHA384
  • ECDHE-RSA-AES128-SHA
  • ECDHE-RSA-AES256-SHA
  • ECDHE-RSA-AES128-SHA256
  • ECDHE-RSA-AES256-SHA384
  • ECDHE-ECDSA-AES128-GCM-SHA256
  • ECDHE-ECDSA-AES256-GCM-SHA384
  • ECDHE-ECDSA-AES128-SHA
  • ECDHE-ECDSA-AES256-SHA
  • ECDHE-ECDSA-AES128-SHA256
  • ECDHE-ECDSA-AES256-SHA384

Allowed SSL cipher suites for sshd service

When you configure ciphers for sshd, you enclose the cipher string in square brackets and include more than one by separating them with a space. These ciphers are allowed on the system.

Key algorithms

  • ecdh-sha2-nistp256
  • ecdh-sha2-nistp384
  • ecdh-sha2-nistp521
  • diffie-hellman-group16-sha512
  • diffie-hellman-group14-sha256
  • diffie-hellman-group14-sha1

Encryption algorithms

  • aes128-ctr
  • aes256-ctr
  • aes128-gcm@openssh.com
  • aes256-gcm@openssh.com
  • aes128-cbc
  • aes256-cbc

Message Authentication Code (MAC) Algorithms

  • umac-64-etm@openssh.com
  • umac-128-etm@openssh.com
  • hmac-sha2-256-etm@openssh.com
  • hmac-sha1-512-etm@openssh.com
  • hmac-sha1-etm@openssh.com
  • umac-64@openssh.com
  • umac-128@openssh.com
  • hmac-sha2-256
  • hmac-sha2-512
  • hmac-sha1

CLI idle timeout overview

For security purposes, you can configure how long management sessions can remain idle before you are logged out of the system. If you are connected using an SSH connection, the system closes the SSH connection after this time expires.

Configure the CLI timeout from the webUI

You can configure how long management sessions can remain idle before you are logged out of the system from either the system controller or chassis partition webUI. If you are connected using an SSH connection, the system closes the SSH connection after this time expires.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    System Security
    .
  3. In the Services area, for
    CLI Idle Timeout
    , enter a time, in seconds, for how long management sessions can remain idle before they time out.
    A value of 0 (zero) sets the time to infinity, so the user is never logged out. The timeout can be a value from 0 through 8192 seconds. The default value is 1800 seconds (30 minutes).
  4. Click
    Save
    .

Configure system idle timeout from the CLI

You can configure how long management sessions can remain idle before you are logged out of the system from the from either the system controller or chassis partition CLI. If you are connected using an SSH connection, the system closes the SSH connection after this time expires. You can also configure how long the system is inactive for a root user before the user is logged out of the system.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Configure the CLI system idle timeout setting for an admin user connected to the system.
    system settings config idle-timeout <
    time-in-seconds
    >
    A value of 0 (zero) sets the time to infinity, so the user is never logged out. The timeout can be a value from 0 through 8192 seconds. The default value is 1800 seconds (30 minutes).
    This example sets an idle timeout of 3600 seconds (one hour):
    syscon-1-active(config)# system settings config idle-timeout 3600
  4. Configure the SSH system idle timeout setting for a root user.
    system settings config sshd-idle-timeout <
    time-in-seconds
    >
    A value of 0 (zero) sets the time to infinity, so the user is never logged out. The timeout can be a value from 0 through 8192 seconds. The default value is 0 (zero).
    This example sets an SSH system idle timeout of 3600 seconds (one hour):
    syscon-1-active(config)# system settings config sshd-idle-timeout 3600
  5. Commit the configuration changes.
    commit

System inventory overview

The System Inventory screen on the system controller webUI enables you to see an inventory of all components on the
VELOS
system, including the system controllers, blades, power supply units (PSU), PSU controller, fan tray, and LCD. The inventory includes the component name, status, part number, and serial number.

View system inventory report from the webUI

You can view an inventory of all of the system components on the
VELOS
system, including the system controllers, blades, power supply units (PSU), PSU controller, fan tray, and LCD from the system controller webUI. The inventory includes the component name, status, part number, and serial number.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    System Inventory
    .
The system inventory displays, and you can review the information about the components on the
VELOS
system. An example is shown here.

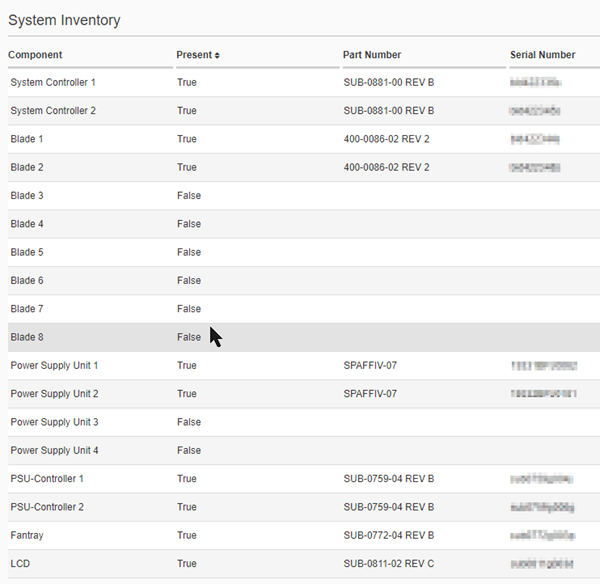

Example of system inventory

View system inventory report from the CLI

You can view an inventory of all of the system components on the
VELOS
system, including the system controllers, blades, power supply units (PSU), PSU controller, fan tray, and LCD from the system controller CLI. The inventory includes the component name, status, part number, and serial number.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. View information about system components.
    Add a specific component to show information only about that component or omit it to show information about all components.
    show components component [ <
    specific-component
    > ]
    In this example, you view details only about the system storage:
    syscon-1-active# show components component storage components component controller-1 storage state disks disk nvme0n1 state model "SAMSUNG MZ1LB960HAJQ-00007" state vendor Samsung state version EDA7602Q state serial-no S123NA0NA04567 state size 894.00GB state type nvme storage state disks disk sda state model DataTraveler state vendor Kingston state version 3.0 state serial-no 0000000005?? state size 28.00GB state type usb components component controller-2 storage state disks disk nvme0n1 state model "SAMSUNG MZ1LB960HAJQ-00007" state vendor Samsung state version EDA7602Q state serial-no S123NA0NA45678 state size 894.00GB state type nvme storage state disks disk sda state model DataTraveler state vendor Kingston state version 3.0 state serial-no 000000000123 state size 28.00GB state type usb

Log and report configuration overview

The
system controller and chassis partition webUIs include
options for configuring remote log servers and the log severity level for individual software components and services.
From the
webUIs
you can generate a system report, or QKView file, to collect configuration and diagnostic information from the
VELOS
system if you have any concerns about your system operation. The QKView file contains machine-readable (JSON) diagnostic data and combines the data into a single compressed tar.gz format file. You can upload the QKView file to F5 iHealth where you can get help to verify proper operation of the system and get help with troubleshooting and understanding any issues you might be having and ensure that the system is operating at its maximum efficiency.
You can view event logs and configure secure remote logging from the CLI. You can also send host log files, which are in the
/var/log
directory, as well as audit.log files to the remote server from the CLI.

Configure log settings from the webUI

You can add and display information about configured remote log servers from either the system controller or chassis partition webUIs. You can also change the log severity level for individual software components and services.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Log Settings
    .
  3. To add access to a
    Remote Log Server
    , click
    Add
    .
  4. In the
    Server
    field, enter the IPv4 address, IPv6 address, or fully qualified domain name (FQDN) of the remote server. After the remote log server is saved, you cannot modify the server address.
  5. In the
    Port
    field, enter the port number of the remote server.
    The default port value is 514.
  6. For
    Protocol
    , select
    UDP
    or
    TCP
    to choose between TCP or UDP input. When the TCP protocol is selected, the
    Authentication
    field displays.
  7. From the
    Facility
    list, select
    LOCAL0
    .
    F5OS supports only the LOCAL0 logging facility. All logs are directed to this facility, and it is the only one that you can use for remote logging.
  8. From the
    Severity
    list, select the severity level of the messages to log.
    Option
    Description
    Emergency
    Emergency system panic messages
    Alert
    Serious errors that require administrator intervention
    Critical
    Critical errors, including hardware and file system failures
    Error
    Non-critical, but possibly important, error messages
    Warning
    Warning messages that should be logged and reviewed
    Notice
    Messages that contain useful information, but might be ignored
    Informational
    Messages that contain useful information, but might be ignored
    Debug
    Detailed messages used for troubleshooting
  9. For
    Authentication
    , select the enable or disable option from the list. The default value is
    Disabled
    . This option is visible when the TCP protocol is selected while configuring the remote log server. If the UDP protocol is selected, the authentication value is saved as
    N/A
    .
  10. Click
    Save & Close
    .
  11. To delete a remote log server, select the server and click
    Delete
    .
  12. To view the
    Host Log Settings
    , click
    Show
    .
  13. For
    Host Log Forwarding
    , select the enable or disable radio button for remote forwarding. The default value is
    Disabled
    . When host log forwarding is enabled, the Include Standby Controller field displays.
  14. System Controller webUI: For
    Include Standby Controller
    , select true or false from the list to include the standby controllers and send the host log files to the active controller. The default value is
    False
    . This option is visible when the Host Log Forwarding option is enabled at the chassis level.
  15. Chassis Partition webUI: For
    Include Blades
    , select one or more blades from the list. This option is visible when the Host Log Forwarding option is enabled at the chassis partition level.
  16. For
    Selectors
    , select the required facility and severity options from the list. To add more selectors, click the add
    +
    icon. To remove the existing selectors, click the remove
    (X)
    icon.
  17. To add the required host log files to the
    Selected Files
    panel, at the chassis level, click the required host log files checkboxes.
    At the chassis partition level, you can only view the already selected and locked host files.
    The Selected Files option allows the host logs files to be forwarded from the directory and subdirectories.
  18. For
    Custom Log File
    , enter the log file in the text box and click
    Add
    to manually add host log file names to the Selected Files panel.
  19. For
    TLS Certificate & Key
    , click
    Show
    . It displays TLS Certificate and TLS Key options. If the authentication value is set as enabled for any of the remote log servers, you cannot be able to clear the TLS configuration fields.
  20. For
    CA Bundles
    , click
    Add
    to enter the name and TLS CA certificate. When any of the remote server authentication is enabled, you cannot delete the CA bundle.
  21. On the Log Settings screen, review the software component log levels for individual software components and adjust them as needed. Click
    Save
    if you made changes.
    The log levels determine at what level events (and all higher levels) are logged for each service.
    Informational
    is the default so all except debug-level events are logged.
  22. Click
    Save
    to save the log settings.

View event logs from the CLI

The system logs events to the
velos.log
file located in the
/var/log_controller
directory. To list files and view the contents of log files, you use the
file
command from either the system controller or chassis partition CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. List all files in the log directory.
    file list path [ log/confd/ | log/controller/ | log/host/ }
    This example shows an excerpt of the contents of the
    log/controller/
    directory:
    syscon-1-active# file list path log/controller/ entries { name afu-cookie date Wed Jun 15 19:52:37 UTC 2022 size 33B } entries { name cc-confd date Wed Jun 15 20:25:49 UTC 2022 size 581KB } entries { name cc-confd-hal date Wed Jun 15 19:52:10 UTC 2022 size 0B } ...
  4. Show the contents of a log file.
    file show [ log/confd/<
    filename
    > | log/controller/<
    filename
    > | log/host/<
    filename
    > ]
    This example shows the contents of the
    log/controller/velos.log
    file and uses the
    more
    option to paginate the output:
    syscon-1-active# file show log/controller/velos.log | more 2022-04-21T08:18:28-07:00 localhost.localdomain notice boot_marker: ---===[ BOOT-MARKER ]===--- 2022-04-21T08:19:39-07:00 controller-1.chassis.local notice boot_marker: ---===[ BOOT-MARKER ]===--- 2022-04-21T15:27:39.925830+00:00 controller-1 alert-service[8]: priority="Notice" version=1.0 msgid=0x2201000000000001 msg="Alert Service Starting..." version="3.10.2" date="Fri Apr 8 09:42:10 2022". 2022-04-21T15:27:39.926245+00:00 controller-1 alert-service[8]: priority="Info" version=1.0 msgid=0x6602000000000005 msg="DB is not ready". 2022-04-21T15:27:39.926264+00:00 controller-1 snmp-trapd[9]: priority="Notice" version=1.0 msgid=0x2101000000000007 msg="SNMP Trap Service Starting..." version="3.2.3" date="Fri Apr 8 09:43:28 2022". 2022-04-21T15:27:39.926274+00:00 controller-1 alert-service[8]: priority="Info" version=1.0 msgid=0x6602000000000005 msg="DB is not ready".
  5. Show only the most recent entries in a log file.
    file tail [ log/confd/<
    filename
    > | log/controller/<
    filename
    > | log/host/<
    filename
    > }
    This example shows the last ten lines of the
    velos.log
    file and uses the
    -f
    option to append output as the file grows:
    syscon-1-active# file tail -f log/controller/velos.log 2022-06-16T23:24:36.170220+00:00 controller-1 switchd[8]: priority="Notice" version=1.0 container="VCC-SWITCHD" msgid=0x1001000000000485 msg="Linkstatus change" PORT="1/mgmt0" LINKSTAT="DOWN". 2022-06-16T23:24:36.176481+00:00 controller-1 vcc-lacpd[82]: priority="Info" version=1.0 msgid=0x330100000000004e msg="" info_str="check_if_op_modify(): new oc_if_oper_status: 2 (1:UP 2:DOWN ... )". 2022-06-16T23:24:36.176820+00:00 controller-1 vcc-lacpd[82]: priority="Info" version=1.0 msgid=0x330100000000004e msg="" info_str="check_if_op_modify(): new oc_eth_port_speed: ns: 1857063266 id: 1980508219 ". 2022-06-16T23:24:36.267589+00:00 controller-1 switchd[8]: priority="Notice" version=1.0 container="VCC-SWITCHD" msgid=0x1001000000000485 msg="Linkstatus change" PORT="1/mgmt0" LINKSTAT="DOWN". 2022-06-16T23:24:36.425971+00:00 controller-1 vcc-lacpd[82]: priority="Info" version=1.0 msgid=0x330100000000004e msg="" info_str="CCLacpdWriteHdlr::delete_member(memberName=1/mgmt0) from ConfD". 2022-06-16T23:24:36.434091+00:00 controller-1 vcc-lacpd[82]: priority="Info" version=1.0 msgid=0x330100000000004e msg="" info_str="InterfaceCmObj::modifyOp: if_name=1/mgmt0 mode=FULL DUPLEX status=DOWN speed=10000#012". 2022-06-16T23:24:36.434371+00:00 controller-1 vcc-lacpd[82]: priority="Info" version=1.0 msgid=0x330100000000004e msg="" info_str="InterfaceCmObj::modifyOp: if_name=1/mgmt0 mode=FULL DUPLEX status=DOWN speed=0#012". 2022-06-16T23:25:09.324530+00:00 controller-1 platform-hal[8]: priority="Info" msg="NEBS is assumed to be true as chassis SEEPROM NEBS option couldn't be read" interface="job-2648493" apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.jobId=0 $parent.apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.treeUuid="90151e75-edcb-11ec-a487-024264410634" $parent.appKey="hal" actionKey="GET:chassis/nebs-capable" jobId=2648493 jobTreeUuid="90151e75-edcb-11ec-a487-024264410634" 2022-06-16T23:25:09.399391+00:00 controller-1 platform-hal[8]: priority="Info" msg="NEBS is assumed to be true as platform SEEPROM NEBS option couldn't be read" interface="job-2648493" actionKey="GET:chassis/nebs-capable" jobId=2648493 jobTreeUuid="90151e75-edcb-11ec-a487-024264410634" apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.jobId=0 $parent.apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.treeUuid="90151e75-edcb-11ec-a487-024264410634" $parent.appKey="hal" 2022-06-16T23:25:09.429431+00:00 controller-1 platform-hal[8]: priority="Info" msg="NEBS is assumed to be true as platform SEEPROM NEBS option couldn't be read" interface="job-2648493" actionKey="GET:chassis/nebs-capable" jobId=2648493 jobTreeUuid="90151e75-edcb-11ec-a487-024264410634" apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.jobId=0 $parent.apogeeUuid="a519fa20-ece4-11ec-a487-024264410634" $parent.treeUuid="90151e75-edcb-11ec-a487-024264410634" $parent.appKey="hal" _

Configure secure remote logging from the CLI

The system logs events to the
velos.log
file located in the
/var/log_controller
directory. To list files and view the contents of log files, you use the
file
command from the CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure secure remote logging. The default value is disabled.
    system logging remote-servers remote-server <
    name
    > config proto <
    proto
    > remote-port <
    port
    > authentication { disabled | enabled }
    This example enables secure remote logging:
    syscon-1-active(config)# system logging remote-servers remote-server test config proto test2 remote-port 80 authentication enabled
  5. Add authentication details for secure remote logging.
    system logging remote-servers remote-server <
    server-IP
    > config authentication
  6. Add certificate or key details for secure remote logging.
    system logging tls { certificate | key } <
    string
    >
  7. Add CA bundle details for secure remote logging.
    system logging tls ca-bundles ca-bundle <
    name
    > config name <
    name
    > content <
    ca-cert-contents
    >
    The certificate bundle that you specify must include the certificate chain of the certificate authority.
  8. Remove authentication details from secure remote logging.
    no system logging remote-servers remote-server <
    server-IP
    > config authentication
  9. Remove certificate or key details from secure remote logging.
    no system logging tls { certificate | key } <
    string
    >
  10. Remove CA bundle details from secure remote logging.
    no system logging tls ca-bundles ca-bundle
  11. Send log files to the remote server.
    You can send host log files, which are in the /var/log directory, or audit.log files to the remote server
    system logging host-logs config files file <
    file-name
    >
  12. Commit the configuration changes.
    commit
  13. Return to user (operational) mode.
    end
  14. Show authentication, certificate, key, and CA bundle details.
    show running-config system logging tls { certificate | key | ca-bundles } <
    string
    >

File utilities overview

You can use File Utilities to import, export, download, or delete files asynchronously depending on which directory you select to work in. All file transfers are done using the HTTPS protocol.

File import

You can import a file from an external server into the system controller or chassis partition from either the webUI or the CLI. HTTPS is the supported protocol. The remote host should be an HTTPS server with PUT/POST enabled and have a valid CA-signed certificate.
If you want to import the contents of a tar file, you need to extract the contents first before you can import them onto the
F5
system.
You can import files into these directories on a system controller :
  • images/staging
  • configs
You can import files into these directories on a chassis partition:
  • configs
  • images/import
  • images/staging
  • images/tenant

File export

You can export a file from a system controller or chassis partition to an external server from either the webUI or the CLI. HTTPS is the supported protocol. The remote host should be an HTTPS server with PUT/POST enabled and have a valid CA-signed certificate.
You can export files in these directories from a system controller:
  • configs
  • log/confd
  • log/controller
  • log/host
  • diags/core
  • diags/crash
  • diags/shared
  • images/import
  • images/staging
You can export files in these directories from the chassis partition:
  • configs
  • diags/core
  • diags/shared
  • images
  • log

File download

You can download files in these directories from a system controller to your local workstation from the webUI:
  • configs
  • diags/core
  • diags/crash
  • diags/shared
  • log/confd
  • log/controller
You can download files in these directories from a chassis partition to your local workstation from the webUI:
  • configs
  • diags/core
  • diags/shared
  • log

File upload

You can upload files in these directories from your local workstation to a system controller from the webUI:
  • configs
  • images/staging
You can upload files in these directories from your local workstation to a chassis partition from the webUI:
  • configs
  • images

File deletion

You can delete files (to which you have file permissions) on a system controller or a chassis partition only from the
diags/shared
or
configs
directories from either the webUI or the CLI.

Manage files from the webUI

File Utilities are available in both the system controller and chassis partition webUIs. You can use File Utilities to import, export, download, upload, or delete files asynchronously depending on which directory you select to work in. All file transfers are done using the HTTPS protocol.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    File Utilities
    .
  3. From the
    Base Directory
    list, browse the directories and click subfolders to view their contents and the commands that are available from each one.
    From a subfolder, click the left arrow next to the path to navigate back to the main folder.
  4. To import a file, click
    Import
    .
    1. In the popup, enter the
      URL
      of the file to import.
    2. Provide the
      Username
      and
      Password
      only if required by the remote host.
    3. Select
      Ignore Certificate Warnings
      if you want to skip warnings when importing files (such as if the remote host does not have a valid CA-signed certificate).
    4. Click
      Import File
      to begin the import.
  5. To export a file, select the file and click
    Export
    .
    1. In the popup, enter the
      Server URL
      for where to export the file.
    2. Provide the
      Username
      and
      Password
      only if required by the remote host.
    3. Select
      Ignore Certificate Warnings
      if you want to skip warnings when importing files.
    4. Click
      Export File
      to begin the export.
  6. To upload or download a file:
    1. Select the file and click
      Upload
      or
      Download
      .
      The selected file will be uploaded or downloaded.
  7. To delete a file, select the file and click
    Delete
    .
    On the system controller and chassis partition, you can delete files from
    diags/shared
    .
You can view the status of a file transfer operation to view its progress and see if it was successful. If an operation fails, hover over the warning icon to see the error that occurred.
A runtime error displays in the File Transfer status area, if an invalid operation is performed.

Manage MIB files from the webUI

MIB files can be managed from the File Utilities page in both the system controller and chassis partition webUIs. You can use File Utilities to export or download MIB files. File transfers are done using the HTTPS protocol.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    File Utilities
    .
  3. From the
    Base Directory
    list, select
    mibs
    .
  4. To export a MIB file, select the file and click
    Export
    .
    1. In the popup, enter the
      Server URL
      for where to export the file.
    2. Provide the
      Username
      and
      Password
      only if required by the remote host.
    3. Select
      Ignore Certificate Warnings
      if you want to skip warnings when importing files.
    4. Click
      Export File
      to begin the export.
  5. To download a file:
    1. Select the file and click or
      Download
      .
      The selected file will be downloaded.
You can view the status of a file transfer operation to view its progress and see if it was successful. If an operation fails, hover over the warning icon to see the error that occurred.
A runtime error displays in the File Transfer status area, if an invalid operation is performed.

View files from the CLI

You can view the contents of a file from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. View the contents of a file.
    file show <
    local-file-path
    >
    This example shows how to view the contents of the
    velos.log
    file:
    default-1# file show log/velos.log 2022-02-26T18:23:05.160009+00:00 controller-1(p1) partition-bladesd[7]: priority="Info" version=1.0 msgid=0x6602000000000005 msg="DB is not ready". 2022-02-26T18:23:05.161038+00:00 controller-1(p1) tcpdumpd-master[10]: priority="Notice" version=1.0 msgid=0x5402000000000002 msg="tcpdumpd-master starting" VERSION="1.3.18" DATE="Wed Feb 10 17:04:45 2021". 2022-02-26T18:23:05.161047+00:00 controller-1(p1) tcpdumpd-master[10]: priority="Notice" version=1.0 msgid=0x5402000000000004 msg="tcpdumpd-master args." ARGS="/usr/bin/tcpdumpd_master". 2022-02-26T18:23:05.161053+00:00 controller-1(p1) tcpdumpd-master[10]: priority="Notice" version=1.0 msgid=0x5402000000000004 msg="tcpdumpd-master args." ARGS="-r". 2022-02-26T18:23:05.161057+00:00 controller-1(p1) tcpdumpd-master[10]: priority="Notice" version=1.0 msgid=0x5402000000000004 msg="tcpdumpd-master args." ARGS="1". 2022-02-26T18:23:05.161062+00:00 controller-1(p1) tcpdumpd-master[10]: priority="Notice" version=1.0 msgid=0x5402000000000004 msg="tcpdumpd-master args." ARGS="-l". 2022-02-26T18:23:05.161067+00:00 controller-1(p1) partition-bladesd[7]: priority="Info" version=1.0 msgid=0x6602000000000005 msg="DB is not ready". ...

Import files from the CLI

You can import a file from an external serve onto your system from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Import a file.
    file import [ remote-port <
    port-number
    > } username <
    user
    > password <
    password
    > remote-host <
    ip-address-or-fqdn
    > remote-file <
    remote-file-path
    > remote-url <
    full-remote-url
    > local-file <
    local-file-path
    > [insecure] web-token <
    remote-system-token
    >
    The
    insecure
    option ignores certificate warnings during the transfer.
    This example shows how to import a file to the system controller:
    file import username admin password remote-url https://files.company.com/images/BIGIP-1x.x.x.x-x.x.xxx.ALL-F5OS.qcow2.zip local-file images/staging
    This example shows how to import a file to the chassis partition:
    file import username admin password remote-url https://files.company.com/images/BIGIP-1x.x.x.x-x.x.xxx.ALL-F5OS.qcow2.zip local-file images
  3. Return to user (operational) mode.
    end
  4. Optionally, you can check the file transfer status.
    file transfer-status file-name <
    local-file-path
    >

Cancel a file transfer from the CLI

You can cancel an in-progress file import onto your system from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Get the operation identifier for the file transfer process.
    show file transfer-operations
    A summary similar to this example displays:
    syscon-1-active# show file transfer-operations file transfer-operations transfer-operation images/import/iso/F5OS-C-1.6.0-1234.CONTROLLER.iso files/F5OS-C/controller/images/F5OS-C-1.6.0-1234.CONTROLLER.iso "Import file" "HTTPS " operation-id IMPORT-C16QYpun status "In Progress (13.0%)" timestamp "Fri Mar 24 23:05:54 2023"
  3. Cancel the specified file transfer.
    file abort-transfer operation-id <
    id
    >
    This example shows canceling a specified in-progress file transfer:
    syscon-1-active# file abort-transfer operation-id IMPORT-C16QYpun Aborting will stop the file transfer. Do you want to proceed? [yes/no] yes result File transfer abort operation initiated.

Export files from the CLI

You can export files to an external server from your system from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Export a file.
    file export insecure local-file <
    local-file-path
    > protocol { https | scp | sftp } remote-file <
    remote-file-path
    > remote-host <
    ip-address-or-fqdn
    > remote-port <
    port-number
    > remote-url <
    ip-address-or-fqdn
    > username <
    user
    > web-token <
    remote-system-token
    >

Delete files from the CLI

You can delete files from either the system controller or chassis partition CLI.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Delete a file.
    file delete file-name <
    local-file-path
    >

Time settings overview

You can configure Network Time Protocol (NTP) for the
VELOS
system. An NTP server ensures that the system clock is synchronized with Coordinated Universal Time (UTC). The system also provides authentication support for NTP, which can enhance security by ensuring that the system sends time-of-day requests only to trusted NTP servers. You can also configure the time zone and set the time and date manually, if NTP is disabled. You can use either the
system controller
CLI or webUI to configure time settings.

Configure time settings from the webUI

After the
VELOS
system license is activated, you can configure Network Time Protocol (NTP) servers, including authentication support for NTP, time zone, and manual configuration of date and time, if NTP is disabled. The NTP server ensures that the system clock is synchronized with Coordinated Universal Time (UTC). You can specify a list of servers that you want the system to use when updating the time on network systems. You can configure time settings for the system from the system controller webUI.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Time Settings
    .
  3. To synchronize the system clock with an NTP server, for
    NTP Service
    , select
    Enabled
    .
    The
    NTP Service
    is set to
    Disabled
    by default.
  4. To set the time and date manually:
    1. For
      NTP Service
      , select
      Disabled
      .
    2. In the Manual Time & Date Settings area, click the calendar to set the date and time.
  5. To use authentication support for NTP:
    1. For
      NTP Authentication
      , select
      Enabled
      .
      The
      NTP Authentication
      is set to
      Disabled
      by default.
    2. For
      NTP Keys
      , click
      Add
      .
      The
      Add NTP Key
      screen displays.
    3. For
      Key ID
      , type an identifier used by the client and server to designate a secret key.
      The client and server must use the same key ID.
    4. For
      Key Type
      , select the encryption type used for the NTP authentication key.
      The default value is F5_NTP_AUTH_SHA256.
      Select from these options:
      • F5_NTP_AUTH_MD5
      • F5_NTP_AUTH_SHA1
      • F5_NTP_AUTH_SHA256
      • F5_NTP_AUTH_SHA384
      • F5_NTP_AUTH_SHA512
    5. For
      Key Value
      , paste the text of the NTP authentication key.
    6. Click
      Save & Close
      .
  6. To specify an
    NTP server
    , from
    NTP Servers
    :
    1. Click
      Add
      .
    2. For
      NTP Server
      , type the IPv4 address, IPv6 address, or Fully Qualified Domain Name (FQDN) of the NTP server. This information will be displayed in the Name column of the table on the Time Settings screen.
      If specifying an FQDN, you must configure a resolvable DNS server for the system. The resolved IP address will display in the NTP Server column of the table on the Time Settings screen. If the FQDN is unresolvable, this will be indicated in the NTP Server column, although this could be a transitional state.
      If specifying an IPv4 or IPv6 address, the address will display in both the Name and the NTP Server columns.
  7. To set the time zone, from
    Locations
    , select the time zone region.
  8. Click
    Save & Close
    .

Configure the system date/time from the CLI

You can manually configure the date and time for your system from the CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Change the system date and/or time.
    You can opt to change only the time or only the date by including only the relevant option (either
    time
    or
    date
    ).
    system set-datetime date <
    YYYY-MM-DD
    > time <
    HH:MM-SS
    >
    In this example, you change the system date to 2022-01-01 and the system time to be 12:01:00:
    syscon-1-active# system set-datetime date 2022-01-01 time 12:01:00
The system date and time are now updated.

Configure NTP from the CLI

You can configure Network Time Protocol (NTP) for your
VELOS
system from the system controller CLI.
If you want to enable NTP authentication, see Configure NTP authentication from the CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Enable NTP.
    system ntp config enabled
  5. Add an NTP server.
    system ntp servers server <
    ip-address
    >
    In this example, you configure an NTP server at pool.ntp.org:
    syscon-1-active(config)# system ntp servers server pool.ntp.org
  6. Commit the configuration changes.
    commit
  7. Return to user (operational) mode.
    end
  8. Verify that NTP is enabled and a server is configured.
    syscon-1-active# show system ntp system ntp state enabled system ntp state enable-ntp-auth false system ntp servers server pool.ntp.org state address pool.ntp.org state port 123 state version 4 state association-type SERVER state iburst false state prefer false state stratum 4 state root-delay 32 state root-dispersion 45 state offset 0 state poll-interval 8 state authenticated false

Configure NTP authentication from the CLI

You can configure Network Time Protocol (NTP) authentication for your
VELOS
system from the system controller CLI. NTP authentication enhances security by ensuring that the system sends time-of-day requests only to trusted NTP servers.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Enable NTP.
    system ntp config enabled
  5. Enable NTP authentication.
    system ntp config enable-ntp-auth true
  6. Add the key associated with your server to the system.
    system ntp ntp-keys ntp-key <
    public-key-id
    > config key-id <
    secret-key-id
    > key-type [ F5_NTP_AUTH_MD5 | F5_NTP_AUTH_SHA1 | F5_NTP_AUTH_SHA256 | F5_NTP_AUTH_SHA384 | F5_NTP_AUTH_SHA512 ] key-value HEX:<
    ntp-auth-key-value
    >
    The ID, key type, and key value on this client system must match the server exactly.
    syscon-1-active(config)# system ntp ntp-keys ntp-key 11 config key-id 11 key-type F5_NTP_AUTH_SHA1 key-value HEX:E27611234BB5E7CDFC8A8ACE55B567FC5CA7C890
  7. Add an NTP server and associate the key ID you added with the server.
    system ntp servers server <
    ip-address
    >
    In this example, you configure an NTP server at the IP address pool.ntp.org:
    syscon-1-active(config)# system ntp servers server pool.ntp.org syscon-1-active(config-server-pool.ntp.org)# config key-id 11
  8. Commit the configuration changes.
    commit
  9. Return to user (operational) mode.
    end
  10. Verify that NTP with authentication is enabled and a server is configured.
    syscon-1-active# show system ntp servers system ntp servers server pool.ntp.org state address pool.ntp.org state port 123 state version 4 state association-type SERVER state iburst false state prefer false state stratum 8 state root-delay 0 state root-dispersion 0 state offset 251333 state poll-interval 6 state key-id 11 state authenticated true

SNMP configuration overview

Simple Network Management Protocol (SNMP) is an industry-standard protocol that enables you to use a standard SNMP management system to remotely manage network devices.
VELOS
systems support SNMPv1, SNMPv2c, and SNMPv3. You can configure the system from both the CLI and webUI.
You can use SNMP to monitor VELOS systems at both the system controller and chassis partition levels. For more comprehensive monitoring, configure your system at both levels from the CLI or webUI. SNMP traps always send from the active system controller’s fixed management IP address as the source IP address.

SNMP software support

SNMP support is available in different ways, depending on which F5OS software version you are using. On VELOS systems, SNMP is available from both the system controller and chassis partition CLIs and webUIs.
F5 recommends using the newer
system snmp
commands, which include support for SNMP versions 1, 2c, and 3. For more information on the older commands, see:
F5OS-C software version
Older CLI (v1/v2c only)
Newer CLI (v1/v2c/v3)
webUI
1.5.0
SNMP-COMMUNITY-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMP-VIEW-BASED-ACM-MIB
SNMPv2-MIB
system snmp communities
system snmp engine-id
system snmp targets
system snmp users
SYSTEM SETTINGS > SNMP Configuration

Prerequisites for SNMP configuration

Before you configure SNMP access for VELOS systems:

SNMP log overview

You can view SNMP information in the
/log/system/snmp.log
file. You can download the log file to your local workstation from the File Utilities screen in the system controller or chassis partition webUI (on the left, click
SYSTEM SETTINGS
File Utilities
, and then from
Base Directory
, select
log/system
, select
snmp.log
, and click
Download
).
For more information about managing files from the system controller or chassis partition webUI or CLI, see File utilities overview.

SNMPWALK overview

SNMPWALK is an application on an SNMP management system that performs SNMP GETNEXT requests to query a network device for information. You can provide an object identifier (OID) to specify which portion of the object identifier space to search using GETNEXT requests. The SNMP management system queries all variables in the subtree below the specified OID, displays these values to the user, and stops when it returns results that are no longer inside the range of the specified OID.
The IDs display in text format when the corresponding MIB is loaded in your SNMP management system. If the MIB is not loaded, the walk displays in OID format.
To more accurately map these system OIDs, you must download the F5-OS-SYSTEM-MIB.mib file and load it into your SNMP management system. To download the F5 MIB files, use File Utilities in the
system controller or chassis partition
webUI (on the left, click
SYSTEM SETTINGS
File Utilities
, and then from
Base Directory
, select
mibs
, select a
.tar.gz
file, and click
Download
).

SNMP configuration from the webUI

Configure SNMP communities from the webUI

You can configure SNMP communities with either version 1, version 2c, or both security models from either the system controller or chassis partition webUI.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    SNMP Configuration
    .
  3. In the Communities area, click
    Add
    .
    The Add Community screen displays.
  4. For
    Community
    , enter a descriptive name.
  5. For
    Security Model
    , select from these security models: v1, v2c, and v1 and v2c.
  6. Click
    Save & Close
    .

Configure SNMP users from the webUI

You can configure SNMP version 3, which is a user-based security model, from either the system controller or chassis partition webUI. This model provides support for additional authentication and privacy protocols.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    SNMP Configuration
    .
  3. In the Users area, click
    Add
    .
    The Add V3 User screen displays.
  4. For
    User
    , enter the user name.
  5. For
    Authentication Protocol
    , select from these protocols: MD5, SHA, or None.
  6. For
    Authentication Password
    , enter the password for the specified user.
  7. For
    Privacy Protocol
    , select from these protocols: AES128, DES, or None.
  8. Click
    Save & Close
    .

Configure SNMP targets from the webUI

Before you can add an SNMP target, you must have already configured either the SNMPv1/v2c community or SNMPv3 user.
You can configure SNMP targets from either the system controller or chassis partition webUI. These are required to send system-generated traps to a manager. You can choose either community (v1/v2c) or user-based (v3) security.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    SNMP Configuration
    .
  3. In the Targets area, click
    Add
    .
    The Add Target screen displays.
  4. For
    Name
    , enter a descriptive name.
  5. For
    Security Model
    , select from these security models: v1, v2c, or v3.
  6. Select one of these options, depending on the selected security model:
    • If you select v1 or v2, for
      Community
      , select the community that you created.
    • If you select v3, for
      User
      , select the user that you created.
  7. For
    IPv4/IPv6
    , select either
    IPv4
    or
    IPv6
    .
  8. For
    Name
    , enter the IPv4 address, IPv6 address, or fully qualified domain name (FQDN) of the target.
  9. For
    Port
    , enter the port number for the target.
    The default value is 162, and the range is from 1024 to 65535
  10. Click
    Save & Close
    .

SNMP configuration from the CLI

Configure SNMP communities from the CLI

You can configure SNMP communities with either version 1, version 2c, or both security models from either the system controller or chassis partition CLI.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure a community.
    system snmp communities community <
    community-name
    > | config security-model { v1 | v2c }
    This example creates a community that uses the v2c security model:
    syscon-1-active(config)# system snmp communities community v2comm config security-model v2c
    This example creates a community that uses both v1 and v2c community models:
    syscon-1-active(config)# system snmp communities community v1v2c config security-model [ v1 v2c ]
  5. Commit the configuration changes.
    commit
  6. Return to user (operational) mode.
    end
  7. Verify the community configuration.
    show system snmp communities
    A summary similar to this example displays:
    syscon-1-active# show system snmp communities SECURITY NAME NAME MODEL ---------------------------------- v1v2c v1v2c [ v1 v2c ]
    This example shows both security models configured. If you configure only one security model, then only the configured model displays in the output.

Configure SNMP users from the CLI

You can configure SNMP version 3, which is a user-based security model, from either the system controller or chassis partition CLI. This model provides support for additional authentication and privacy protocols.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure a user, including authentication and privacy protocols.
    system snmp users user <
    user-name
    > config authentication-protocol config { md5 | none | sha } privacy-protocol { aes | des | none }
    This example creates a user that uses MD5 authentication and AES for password authentication:
    syscon-1-active(config)# system snmp users user jdoe config authentication-protocol md5 privacy-protocol aes authentication-password
    After you press Enter, you are prompted to enter the authentication password.
    (<string, min: 8 chars, max: 32 chars>): ********
    After you press Enter, configure the privacy password.
    syscon-1-active(config-user-v3-user)# config privacy-password
    After you press Enter, you are prompted to enter the privacy password.
    (<string, min: 8 chars, max: 32 chars>): *********
  5. Commit the configuration changes.
    commit
  6. Return to user (operational) mode.
    end
  7. Verify the user configuration.
    show system snmp users
    A summary similar to this example displays:
    syscon-1-active# show system snmp users AUTHENTICATION PRIVACY NAME NAME PROTOCOL PROTOCOL -------------------------------------------- jdoe jdoe md5 aes

Configure SNMP v1/SNMPv2c targets from the CLI

You can configure SNMP targets with community-based security (SNMPv1/SNMPv2c) from either the system controller or chassis partition CLI. These are required to send system-generated traps to a manager.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure a target with community-based security.
    system snmp targets target <
    target-name
    > config community <
    community-name
    > security-model { v1 | v2c } { ipv4 | ipv6 } address <
    ip-address
    > port <
    port-number
    >
    This example creates a target with community-based security:
    syscon-1-active(config)# system snmp targets target v2c-target config community v2c-comm security-model v2c ipv4 address 192.0.2.24 port 5001
  5. Commit the configuration changes.
    commit
  6. Return to user (operational) mode.
    end
  7. Verify the target configuration.
    show system snmp users
    A summary similar to this example displays:
    syscon-1-active# show system snmp targets SECURITY NAME NAME USER COMMUNITY MODEL ADDRESS PORT ADDRESS PORT ----------------------------------------------------------------------------------------- v2c-target v2c-target jdoe - - 192.0.2.24 5001 - -

Configure SNMPv3 targets from the CLI

You can configure SNMP targets with user-based security (SNMPv3) from either the system controller or chassis partition CLI. These are required to send system-generated traps to an SNMP management system.
  1. Connect using SSH to the system controller floating management IP address or chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Configure a target with user-based security.
    system snmp targets target <
    target-name
    > config user <
    user-name
    > { ipv4 | ipv6 } address <
    ip-address
    > port <
    port-number
    >
    This example creates a target with user-based security:
    syscon-1-active(config)# system snmp targets target v3-target config user jdoe ipv4 address 192.0.2.24 port 5001
  5. Commit the configuration changes.
    commit
  6. Return to user (operational) mode.
    end
  7. Verify the target configuration.
    show system snmp targets
    A summary similar to this example displays:
    syscon-1-active# show system snmp targets SECURITY NAME NAME USER COMMUNITY MODEL ADDRESS PORT ADDRESS PORT ----------------------------------------------------------------------------------------- v3-target v3-target jdoe - - 192.0.2.24 5001 - -

Back up system configurations from the webUI

You can back up the configurations of the system controller or chassis partition in which you are working from the webUI.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Configuration Backup
    .
  3. Click
    Create
    .
    The Create Configuration Backup popup opens.
  4. In the
    Name
    field, enter a name for the backup (for example, system-controller-12-21-21 or partition1-6-14-21).
  5. Click
    Create
    .
    The backup is created and added to the list.
  6. To delete a backup file, select the file and click
    Delete
    .
System controller and chassis partition configuration backups are stored in
configs/
. Backups should be stored off the system.
You can restore configurations from the CLI. For more information on saving and restoring the configuration, see the
Complete backup and restore overview
section.

System licensing overview

You can activate a license for the
VELOS
system from either the system controller CLI or webUI. There is one license per
VELOS
system, which is used by the chassis partitions and any tenants.
There are two ways to license the system:
Automatically
If your system is connected to the internet, use the Automatic method to prompt the system to contact the F5 license server and activate the license.
Manually
If your system is not connected to the internet, use a management workstation that is connected to the internet to retrieve an activation key from
F5
and then transfer it to the system.
Adding or reactivating a license on an active
VELOS
system might impact traffic on tenants
running on chassis partitions
. Traffic processing will stop briefly on the tenants, and then restart automatically. This occurs when the tenant receives a new or reactivated license causing a configuration reload on the tenants. For more information, see these other references:

System licensing from the webUI

License the system automatically from the system controller webUI

You can license the system automatically from the webUI, as long as the system has internet access.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Licensing
    .
  3. For the
    Base Registration Key
    field, the registration key is auto-populated.
    You can choose to overwrite this field with a new registration key.
  4. For the
    Add-On Keys
    field, the associated add-on keys are auto-populated.
    You can click
    +
    or
    x
    to add or remove additional add-on keys.
    To add add-on keys to a licensed system, enter the keys in the
    Add-On Keys
    field and click
    Reactivate
    .
  5. For the
    Activation Method
    , select
    Automatic
    .
  6. Click
    Activate
    .
    The End User License Agreement (EULA) displays.
  7. Click
    Agree
    to accept the EULA, .
The system is now licensed. If a base registration key or add-on key fails to activate, try re-activating the license or contact support.f5.com.

License the system manually from the system controller webUI

You can use the system controller webUI to manually license the
VELOS
system for systems without access to the internet.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Licensing
    .
  3. For the
    Base Registration Key
    field, the registration key is auto-populated.
    You can choose to overwrite this field with a new registration key.
  4. For the
    Add-On Keys
    field, the associated add-on keys are auto-populated.
    You can click
    +
    or
    x
    to add or remove additional add-on keys.
    To add add-on keys to a licensed system, enter the keys in the
    Add-On Keys
    field and click
    Reactivate
    .
  5. For the
    Activation Method
    , select
    Manual.
  6. For the
    Device Dossier,
    click
    Get Dossier
    .
    The VELOS system refreshes and displays the dossier.
  7. Copy the dossier text into the
    Device Dossier
    field.
  8. Click
    Click here to access F5 Licensing Server
    .
    The Activate F5 Product page displays.
  9. Paste the dossier in the
    Enter Your Dossier
    field.
  10. Click
    Next
    .
    The license key text displays.
  11. Copy the license key text.
    Alternatively, you can use the F5 license activation portal at activate.f5.com/license.
  12. In the
    License Text
    field, paste the license key text.
  13. Click
    Activate
    .
    The End User License Agreement (EULA) displays.
  14. Click
    Agree
    to accept the EULA.
The system is now licensed. If a base registration key or add-on key fails to activate, try re-activating the license or contact support.f5.com.

View the license from the webUI

You can view information about the software license activated on your system, including license activation and expiration dates, service check date, and licensed modules, from either the system controller or chassis partition webUIs.
  1. Log in to the VELOS system controller webUI or the chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Licensing
    .
  3. View the license information for the system.

System licensing from the CLI

License the system automatically from the CLI

For automatic
VELOS
system licensing, the system needs to be able to connect to the F5 licensing server either through the internet or another means of networking. You need to have the Base Registration Key (five sets of characters separated by hyphens) provided by F5, and any add-on keys (two sets of 7 characters separated by a hyphen) that you have purchased. The Base Registration Key with associated add-on keys are pre-installed on a new
VELOS
system.
You can activate the
VELOS
system license automatically from the system controller CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Apply a license to the chassis.
    system licensing install registration-key <
    key
    >
    The registration key is optional. If it is not included, the system uses the one that is already pre-installed. If no registration key is found, you receive an error.
    This example applies a specified base registration license to the system:
    syscon-1-active(config)# system licensing install registration-key I1234-12345-12345-12345-1234567 result License installed successfully.
  5. Apply any add-on keys.
    system licensing install add-on-keys <
    add-on-keys
    >
    This example enables the additional features associated with the three specified add-on-keys, along with the entitlements of the base registration key:
    syscon-1-active(config)# system licensing install add-on-keys [1234567-1234567 2345678-2345678 3456789-3456789] result License installed successfully.
The
VELOS
system is licensed. The license and any add-on keys apply to all partitions and tenants.

License the system manually from the CLI

You can activate the
VELOS
system license manually from the system controller CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  4. Get the system dossier.
    system licensing get-dossier [registration-key XXXXX-XXXXX-XXXXX-XXXXX-XXXXXXX]
    The registration key is optional. If it is not included, the system uses the one already pre-installed. If no registration key is found, you receive an error.
    The dossier for the system displays.
  5. Get the license file using the dossier output you just received by going to the F5 site activate.f5.com/license/dossier.jsp.
  6. Install the license.
    1. Copy the license file text.
    2. Run the manual install command and press Enter:
      system licensing manual-install license
    3. Paste the license file content in multiline mode, then press Ctrl+D.
    syscon-1-active(config)# system licensing manual-install license Value for 'license' (<string>): [Multiline mode, exit with ctrl-D.] >
The
VELOS
system is licensed. The license applies to all of the chassis partitions and tenants.

Display the system license from the CLI

You can display the license of a
VELOS
system from the system controller CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Display the system license in a simple form.
    show system licensing
    A summary similar to this example displays:
    syscon-1-active# show system licensing system licensing license Licensed version 7.4.0 Registration Key Gxxxx-xxxxx-xxxxx-xxxxx-xxxxxxxx Licensed date 2021/01/01 License start 2021/04/16 License end 2022/01/01 Service check date 2021/12/02 Platform ID F101 Appliance SN chs600144s Active Modules Local Traffic Manager, CX410 (Exxxxxx-xxxxxx) Best Bundle, CX410 APM-Lite Carrier Grade NAT (AFM ONLY) Max Compression, CX410 Rate Shaping Max SSL, CX410 Advanced Firewall Manager, CX410 Access Policy Manager, Base, CX410 Anti-Virus Checks Base Endpoint Security Checks Firewall Checks Machine Certificate Checks Network Access Protected Workspace Secure Virtual Keyboard APM, Web Application App Tunnel Remote Desktop Advanced Routing, CX410 Advanced Web Application Firewall, CX410 DNS, Max QPS, CX410
  4. Display the raw license file content that was received from the F5 license server.
    show running-config system licensing
The
VELOS
system is licensed. The license applies to all of the chassis partitions and tenants.

Cluster details overview

A cluster on a
VELOS
system is group of blades or nodes working together as a logical unit. The Cluster Details screen on the chassis partition webUI provides detailed information about clusters that might be useful when a chassis partition is made up of more than one slot/blade.

View cluster details from the webUI

You can view detailed information about clusters from the chassis partition webUI.
  1. Log in to the VELOS chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    Cluster Details
    .
  3. Set the
    Auto Refresh
    interval for refreshing the data displayed or click the refresh icon to update the data immediately.
  4. View the cluster detail information.

View cluster details from the CLI

You can view detailed information about clusters from the chassis partition CLI.
  1. Log in to the command line interface (CLI) of the chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Show all cluster details.
    show cluster
    A summary similar to this excerpt displays:
    default-1# show cluster cluster state cluster disk-usage-threshold state warning-limit 85 cluster disk-usage-threshold state error-limit 90 cluster disk-usage-threshold state critical-limit 97 cluster disk-usage-threshold state growth-rate-limit 10 cluster disk-usage-threshold state interval 60 cluster nodes node blade-1 state enabled true state assigned true state node-running-state running state present single state platform-id B60100 state slots [ 1 ] state platform fpga-state FPGA_RDY state platform dma-agent-state DMA_AGENT_RDY state slot-number 1 state node-info creation-time 2023-01-06T02:11:09Z state node-info cpu 28 state node-info pods 250 state node-info memory 131576224Ki state ready-info ready true ...

General system configuration overview

You can configure general system settings for the
VELOS
system, such as system hostname, login banner, and message of the day (MOTD) banner. Depending on which setting you want to configure, you can use either the CLI or the webUI.

Configure general system settings from the webUI

You can configure general system settings, including hostname, login banner, message of the day (MOTD) banner, and an advisory banner from the system controller webUI. When enabled and configured, the advisory banner will display at the top of the webUI after authentication. The product name displays but cannot be changed.
  1. Log in to the VELOS system controller webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    General
    .
  3. For
    Hostname
    , enter a custom hostname for the system.
  4. For
    Login Banner
    , enter any text to be displayed when users log in to the system.
  5. For
    MOTD Banner
    , enter any text to be displayed as a MOTD when users log in to the system.
  6. For
    Advisory Banner
    , select Enabled or Disabled.
  7. For
    Advisory Banner Color
    , select the color for the banner.
  8. For
    Advisory Banner Text
    , enter the text for the banner. The maximum number of characters is 80.
  9. Click
    Save
    .

Configure general chassis partition settings from the webUI

You can configure general system settings, including login banner, message of the day (MOTD) banner, advisory banner, and time zone/location from the chassis partition webUI. When enabled and configured, the advisory banner will display at the top of the webUI after authentication.
  1. Log in to the command line interface (CLI) of the chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. On the left, click
    SYSTEM SETTINGS
    General
    .
  3. For
    Login Banner
    , enter any text to be displayed when users log in to the chassis partition.
  4. For
    MOTD Banner
    , enter any text to be displayed as a MOTD when users log in to the chassis partition.
  5. For
    Advisory Banner
    , select Enabled or Disabled.
  6. For
    Advisory Banner Color
    , select the color for the banner.
  7. For
    Advisory Banner Text
    , enter the text for the banner. The maximum number of characters is 80.
  8. From
    Time Zone/Locations
    , select the time zone region.
  9. Click
    Save
    .

Configure the hostname from the CLI

You can manually configure the hostname for your system from either the system controller or chassis partition CLI. The hostname must be a fully-qualified domain name (FQDN).
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  3. Change the hostname.
    system config hostname <
    hostname
    >
    The minimum length is 1 character, and the maximum length is 253 characters.
    In this example, you change the hostname for the system to test.company.com:
    syscon-1-active# system config hostname test.company.com
The system hostname is now updated.

Configure the login banner from the CLI

You can configure the login banner for your system manually from either the system controller or chassis partition CLI. The login banner displays before users log in to each respective system.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  3. Change the login banner text.
    system config login-banner
    In this example, you change the login banner text to notify users that unauthorized access is prohibited:
    syscon-1-active(config)# system config login-banner (<string>): [Multiline mode, exit with ctrl-D.] UNAUTHORIZED ACCESS TO THIS DEVICE IS PROHIBITED
  4. Commit the configuration changes.
    commit
The login banner is now updated.

Configure the MOTD banner from the CLI

You can manually configure the message-of-the-day (MOTD) banner for your system from either the system controller or chassis partition CLI. The MOTD banner displays after users log in to each respective system.
  1. Log in to the command line interface (CLI) of the system controller or chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Change to config mode.
    config
    The CLI prompt changes to include
    (config)
    .
  3. Change the MOTD banner text.
    system config motd-banner
    In this example, you change the login banner text to notify users of upcoming system maintenance:
    syscon-1-active(config)# system config motd-banner (<string>): [Multiline mode, exit with ctrl-D.] ATTENTION! This system is scheduled for maintenance in two days.
  4. Commit the configuration changes.
    commit
The MOTD banner is now updated.

Verify MAC allocation from the CLI

You can verify the current MAC allocation data from the system controller CLI.
  1. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Display the current MAC allocation data.
    show system mac-allocation
    A summary similar to this example displays:
    syscon-1-active# show system mac-allocation system mac-allocation state free-single-macs 144 system mac-allocation state allocated-single-macs 16 system mac-allocation state free-large-blocks 24 system mac-allocation state allocated-large-blocks 0 system mac-allocation state total-free-mac-count 912 system mac-allocation state total-allocated-mac-count 16 system mac-allocation state total-mac-count 928

Verify chassis MAC allocation from the CLI

You can verify the current runtime status of the MAC pool from the system controller CLI.
  1. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  2. Display the current chassis MAC allocation.
    show system chassis-macs
    A summary similar to this example displays:
    syscon-1-active# show system chassis-macs system chassis-macs base 000a49ff1800 ALLOCATED IDENTIFIER UUID OFFSET MAC ADDRESS INDEX AS SINGLE ----------------------------------------------------------------------------------------------- 1 c2c66fb4-7426-4134-8110-a0fb4547c866 8 00:0a:49:ff:18:08 - - 9 00:0a:49:ff:18:09 - - 10 00:0a:49:ff:18:0a - - 11 00:0a:49:ff:18:0b - - 12 00:0a:49:ff:18:0c - - 13 00:0a:49:ff:18:0d - - 14 00:0a:49:ff:18:0e - - 15 00:0a:49:ff:18:0f - - 16 00:0a:49:ff:18:10 - - 17 00:0a:49:ff:18:11 - - 18 00:0a:49:ff:18:12 - - 19 00:0a:49:ff:18:13 - - 20 00:0a:49:ff:18:14 - - 21 00:0a:49:ff:18:15 - - 22 00:0a:49:ff:18:16 - - 23 00:0a:49:ff:18:17 - - 28 00:0a:49:ff:18:1c 0 false 29 00:0a:49:ff:18:1d 0 false 30 00:0a:49:ff:18:1e 0 false 31 00:0a:49:ff:18:1f 0 false 32 00:0a:49:ff:18:20 0 false 33 00:0a:49:ff:18:21 0 false 34 00:0a:49:ff:18:22 0 false 35 00:0a:49:ff:18:23 0 false 36 00:0a:49:ff:18:24 0 false 37 00:0a:49:ff:18:25 0 false 38 00:0a:49:ff:18:26 0 false 39 00:0a:49:ff:18:27 0 false 40 00:0a:49:ff:18:28 0 false 41 00:0a:49:ff:18:29 0 false 42 00:0a:49:ff:18:2a 0 false 43 00:0a:49:ff:18:2b 0 false 44 00:0a:49:ff:18:2c 0 false 45 00:0a:49:ff:18:2d 0 false 46 00:0a:49:ff:18:2e 0 false 47 00:0a:49:ff:18:2f 0 false 48 00:0a:49:ff:18:30 0 false 49 00:0a:49:ff:18:31 0 false 50 00:0a:49:ff:18:32 0 false 51 00:0a:49:ff:18:33 0 false 52 00:0a:49:ff:18:34 0 false 53 00:0a:49:ff:18:35 0 false 54 00:0a:49:ff:18:36 0 false 55 00:0a:49:ff:18:37 0 false 56 00:0a:49:ff:18:38 0 false 57 00:0a:49:ff:18:39 0 false 58 00:0a:49:ff:18:3a 0 false 59 00:0a:49:ff:18:3b 0 false

System reboot overview

If you are having an issue with a chassis partition (such as unusually high CPU or memory usage or lockup), it is possible that rebooting a blade in the chassis partition might help to resolve the issue.
When there is a problem, the system sends alerts that you would see on the dashboard or on the Alarms & Events screen. A blade status of
Not ready
for a prolonged time on the General screen can also indicate the need to reboot the blade. You should rarely have to reboot a blade, however, because typically if the
VELOS
system needs to reboot a blade, it will do so automatically without administrator intervention. F5 recommends working with customer support if you think a blade reboot is necessary.

Reboot a system controller from the CLI

You can manually reboot a system controller in your
VELOS
system from the system controller CLI.
  1. Connect using SSH to the system controller floating management IP address.
  2. Log in to the command line interface (CLI) of the system controller using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Reboot a system controller.
    system reboot controllers controller {
    active
    |
    standby
    ]
    In this example, you reboot the standby system controller:
    syscon-1-active# system reboot controllers controller standby
The specified system controller reboots.

Reboot a system controller from the webUI

You can reboot a system controller from the system controller webUI.
  1. Log in to the VELOS chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    General
    .
  3. Review the status of the system controllers.
    The
    Reboot
    button will not be available for a system controller that is currently being rebooted.
  4. If you decide that a reboot is necessary, click
    Reboot
    to the right of the system controller that you want to reboot.
    If the system controller has the active role, a popup displays asking you to confirm the reboot operation. This causes a failover to the standby controller.
    The It takes a few minutes for the system controller to reboot. The status will show
    Reboot in progress
    , then
    Not ready
    , and when reboot is complete, it says
    Ready
    .

Reboot a blade in a chassis partition from the CLI

You can manually reboot a blade in your system from the chassis partition CLI.
  1. Connect using SSH to the chassis partition management IP address.
  2. Log in to the command line interface (CLI) of the chassis partition using an account with admin access.
    When you log in to the system, you are in user (operational) mode.
  3. Reboot a blade.
    cluster nodes node <
    blade-number
    > reboot
    In this example, you reboot blade-1:
    default-1#(config) cluster nodes node blade-1 reboot
The specified blade reboots.

Reboot a blade in a chassis partition from the webUI

You can reboot a blade within a chassis partition from the chassis partition webUI.
  1. Log in to the VELOS chassis partition webUI using an account with admin access.
  2. On the left, click
    SYSTEM SETTINGS
    General
    .
  3. Review the status of each of the blades in the chassis partition.
    The
    Reboot
    button will not be available for slots that do not have blades present, or for blades that are currently being rebooted.
  4. If you have tenants running on the chassis partition you might want to warn users that their service might be interrupted temporarily.
  5. If you decide that a reboot is necessary, click
    Reboot
    to the right of the slot containing the blade that you want to reboot.
    It takes a few minutes for the blade to reboot. The status will show
    Reboot in progress
    , then
    Not ready
    , and when reboot is complete, it says
    Ready
    .
